DtEmptyFomMapper Class Reference

An instance of DtEmptyFomMapper is a DtFomMapper that has no mappings registered between FOM classes and VR-Link classes. More...

Inheritance diagram for DtEmptyFomMapper:

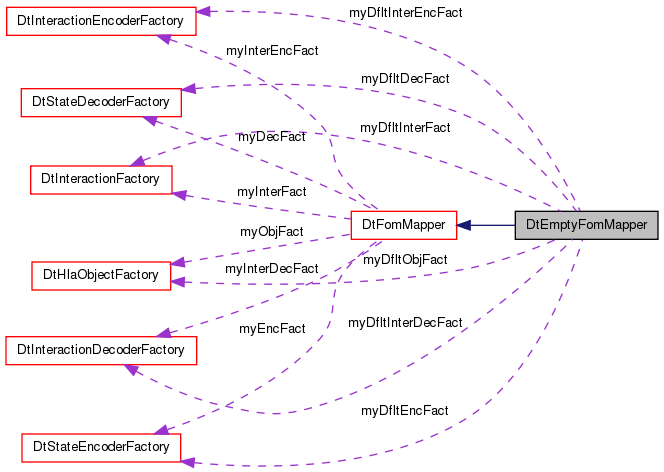

Collaboration diagram for DtEmptyFomMapper:

List of all members.

Public Member Functions
	DtEmptyFomMapper ()
	Default constructor.
virtual	~DtEmptyFomMapper ()
	destructor
virtual void	init (DtExerciseConn *conn)
	Initialize the instance, once an exercise connection is available.
DtStateDecoderFactory *	dfltStateDecoderFactory ()
	Returns the default state decoder factory.
DtStateEncoderFactory *	dfltStateEncoderFactory ()
	Returns the default state encoder factory.
DtInteractionDecoderFactory *	dfltInteractionDecoderFactory ()
	Returns the default interaction decoder factory.
DtInteractionEncoderFactory *	dfltInteractionEncoderFactory ()
	Returns the default state interaction factory.
DtHlaObjectFactory *	dfltHlaObjectFactory ()
	Returns the default HlaObject factory.
DtInteractionFactory *	dfltInteractionFactory ()
	Returns the default Interaction factory.
Static Public Member Functions
static DtFomMapper *	create (void *usr=NULL)
	A Creator function that returns a DtEmptyFomMapper configured with no mappings at all.
Protected Member Functions
	DtEmptyFomMapper (const DtEmptyFomMapper &orig)
	copy constructor - not implemented.
DtEmptyFomMapper &	operator= (const DtEmptyFomMapper &orig)
	assignment operator - not implemented.
Protected Attributes
DtStateDecoderFactory *	myDfltDecFact
	Default factories and other objects.
DtStateEncoderFactory *	myDfltEncFact
DtInteractionDecoderFactory *	myDfltInterDecFact
DtInteractionEncoderFactory *	myDfltInterEncFact
DtHlaObjectFactory *	myDfltObjFact
DtInteractionFactory *	myDfltInterFact

---

Detailed Description

An instance of DtEmptyFomMapper is a DtFomMapper that has no mappings registered between FOM classes and VR-Link classes.

Mappings can be added later.

---

Constructor & Destructor Documentation

DtEmptyFomMapper::DtEmptyFomMapper

(

)

Default constructor.

Typically, most initialization takes place within init(), which is called by DtExerciseConn's constructor.

virtual DtEmptyFomMapper::~DtEmptyFomMapper

(

)

[virtual]

destructor

DtEmptyFomMapper::DtEmptyFomMapper

(

const DtEmptyFomMapper &

orig

)

[protected]

copy constructor - not implemented.

---

Member Function Documentation

static DtFomMapper* DtEmptyFomMapper::create

(

void *

usr = NULL

)

[static]

A Creator function that returns a DtEmptyFomMapper configured with no mappings at all.

Reimplemented in DtRprFomMapper.

DtHlaObjectFactory* DtEmptyFomMapper::dfltHlaObjectFactory

(

)

Returns the default HlaObject factory.

DtInteractionDecoderFactory* DtEmptyFomMapper::dfltInteractionDecoderFactory

(

)

Returns the default interaction decoder factory.

DtInteractionEncoderFactory* DtEmptyFomMapper::dfltInteractionEncoderFactory

(

)

Returns the default state interaction factory.

DtInteractionFactory* DtEmptyFomMapper::dfltInteractionFactory

(

)

Returns the default Interaction factory.

DtStateDecoderFactory* DtEmptyFomMapper::dfltStateDecoderFactory

(

)

Returns the default state decoder factory.

DtStateEncoderFactory* DtEmptyFomMapper::dfltStateEncoderFactory

(

)

Returns the default state encoder factory.

virtual void DtEmptyFomMapper::init

(

DtExerciseConn *

conn

)

[virtual]

Initialize the instance, once an exercise connection is available.

Called by DtExerciseConn constructor.

Implements DtFomMapper.

Reimplemented in DtRprFomMapper, and MyFomMapper.

DtEmptyFomMapper& DtEmptyFomMapper::operator=

(

const DtEmptyFomMapper &

orig

)

[protected]

assignment operator - not implemented.

---

Member Data Documentation

DtStateDecoderFactory* DtEmptyFomMapper::myDfltDecFact [protected]

Default factories and other objects.

DtStateEncoderFactory* DtEmptyFomMapper::myDfltEncFact [protected]

DtInteractionDecoderFactory* DtEmptyFomMapper::myDfltInterDecFact [protected]

DtInteractionEncoderFactory* DtEmptyFomMapper::myDfltInterEncFact [protected]

DtInteractionFactory* DtEmptyFomMapper::myDfltInterFact [protected]

DtHlaObjectFactory* DtEmptyFomMapper::myDfltObjFact [protected]

---

The documentation for this class was generated from the following file:

• emptyFomMap.h
