Represents a particular FOM, as described by a FED file. More...

Inheritance diagram for DtFom:

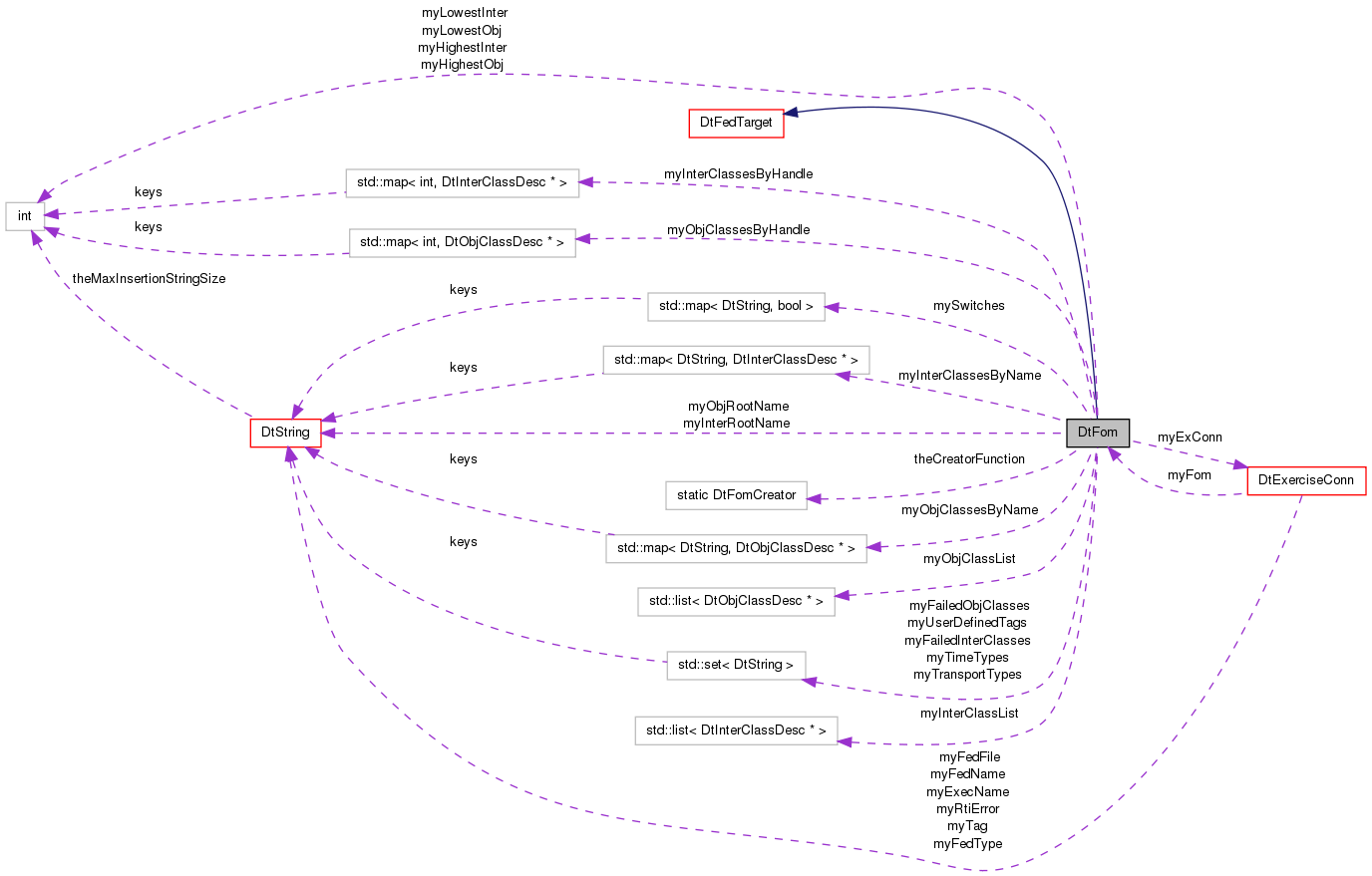

Collaboration diagram for DtFom:

Public Member Functions
	DtFom (DtExerciseConn *exConn)
	Constructor.
virtual	~DtFom ()
	Destructor.
	DtFom (const DtFom &orig)
	copy constructor
DtFom &	operator= (const DtFom &orig)
	assignment operator
virtual DtFedReadStatus	readFed (const DtString &fedFile, const std::vector< std::wstring > &fomModules, const DtString &mimModule, bool strictCheckingEnabled, bool useDTD, bool dontParseSwitches)
	Read a vector of create merging them into this as they're read.
virtual void	addSpace (const char *name)
	Define a routing space. Used when initializing from FED file.
virtual void	addDimension (const char SpaceName, const char dimName)
	Define a dimension within a routing space.
virtual void	addDimension (const char *dimName, unsigned long upperBound, unsigned long defaultLowerBound, unsigned long defaultUpperBound, bool excluded)
	Define a dimension. Used when initializing from FED file.
virtual void	addInterClass (const char name, const char baseName, DtTransportType transport, DtOrderType order, const char *space=NULL)
	Define a class. Used when initializing from FED file.
virtual void	addObjClass (const char name, const char baseName)
	Define a class. Used when initializing from FED file.
virtual void	addParameter (const char className, const char paramName)
	Define an parameter of a class.
virtual bool	addInteractionDimension (const char interactionName, const char dimension)
	Add regions to the class Return true if add was successful (i.e., dimension is valid)
virtual void	addAttribute (const char className, const char attrName, DtTransportType transport, DtOrderType order, const char *space=NULL)
	Define an attribute of a class.
virtual bool	addAttributeDimension (const char className, const char attrName, const char *dimName)
	Define the dimensions of an attribute Return true if add was successful (i.e., dimension is valid)
virtual DtInterClassDesc *	interClassByName (const char *name) const
	Returns the class descriptor for the name.
virtual DtObjClassDesc *	objClassByName (const char *name) const
	Returns the class descriptor for the name.
virtual DtInterClassDesc *	interClassByHandle (RTI::InteractionClassHandle handle) const
	Returns the class descriptor for the handle.
virtual DtObjClassDesc *	objClassByHandle (RTI::ObjectClassHandle handle) const
	Returns the class descriptor for the handle.
virtual const std::list < DtInterClassDesc * > &	interClassList () const
	interClassList() and objClassList() provide return a list of interaction and object classes.
virtual const std::list < DtObjClassDesc * > &	objClassList () const
virtual DtObjClassDesc *	firstObjClass () const
	Returns the first, last and next object classes in the FOM.
virtual DtObjClassDesc *	lastObjClass () const
virtual DtObjClassDesc *	nextObjClass (DtObjClassDesc *current) const
virtual DtInterClassDesc *	firstInterClass () const
	Returns the first, last and next interaction class in the FOM.
virtual DtInterClassDesc *	lastInterClass () const
virtual DtInterClassDesc *	nextInterClass (DtInterClassDesc *current) const
virtual DtVrlRtiAmbassador *	rtiAmb () const
	Returns our RTI ambassador.
virtual void	print () const
	Prints the contents of the FOM.
int	minObjClassHandle () const
	Returns the minimum and maximum interaction and object class handles in the FOM.
int	maxObjClassHandle () const
int	minInterClassHandle () const
int	maxInterClassHandle () const
int	numObjClasses () const
	Returns number of object or interaction classes in the FOM.
int	numInterClasses () const
Static Public Member Functions
static void	setFomCreator (DtFomCreator)
	set creator function
static DtFom *	create (DtExerciseConn *exConn)
Protected Member Functions
virtual DtMergeFomStatus	mergeTarget (const DtFom &module)
	Merge the contents of the specified target with this.
virtual DtMergeFomStatus	mergeObjectClasses (const DtFom &module)
	Merge the object classes of the specified FomMgr with this.
virtual DtMergeFomStatus	mergeObjClassDesc (const DtObjClassDesc *desc)
	Merge the contents of the objClassDesc with this.
virtual DtMergeFomStatus	mergeInteractionClasses (const DtFom &module)
	Merge the contents of the specified interactionClasses with this.
virtual DtMergeFomStatus	mergeIntClassDesc (const DtInterClassDesc *desc)
	Merge the contents of the InteractionClassDescription with this.
virtual DtMergeFomStatus	mergeSpaces (const DtFom &module)
	Merge the given routing spaces with this.
virtual DtMergeFomStatus	mergeUpdateRates (const DtFom &module)
	Merge the given update rates with this.
virtual DtMergeFomStatus	mergeSwitches (const DtFom &module)
	Merge the given switches with this.
virtual bool	switchesSame (const DtFom &module) const
	Check that module's switches are the same as mine.
virtual bool	transportTypesSame (DtFom const &module) const
	Check that module's transport types are the same as mine.
virtual bool	timeTypesSame (const DtFom &module) const
	Check that module's time match mine.
virtual bool	userDefinedTagsSame (const DtFom &module) const
	Check that user defined tags match mine.
virtual bool	updateRatesSame (const DtFom &module) const
	Check that update rates match mine.
virtual bool	knownTransportType (const DtString) const
	Is this transport Type already known.
virtual bool	knownTime (const DtString) const
	Is this time Type present.
virtual void	addTime (const DtString)
	Add a timeType from the FOM.
virtual unsigned int	numTimeTypes () const
	How many timeTypes are specified in this target.
virtual bool	knownUserDefinedTag (const DtString) const
	Is this userDefined tag present.
Protected Attributes
DtExerciseConn *	myExConn
std::map< DtString, DtInterClassDesc * >	myInterClassesByName
	Hash lists that map class names (DtStringHashKeys) to DtObjClassDesc pointers.
std::map< DtString, DtObjClassDesc * >	myObjClassesByName
std::map< int, DtInterClassDesc * >	myInterClassesByHandle
	Hash lists that map class handles (DtIntHashKeys) to DtObjClassDesc pointers.
std::map< int, DtObjClassDesc * >	myObjClassesByHandle
std::list< DtObjClassDesc * >	myObjClassList
std::list< DtInterClassDesc * >	myInterClassList
int	myLowestObj
int	myHighestObj
int	myLowestInter
int	myHighestInter
DtString	myObjRootName
DtString	myInterRootName
std::set< DtString >	myTransportTypes
	Transport types names.
std::set< DtString >	myUserDefinedTags
	User defined tag names.
std::map< DtString, bool >	mySwitches
	Order types names.
std::set< DtString >	myTimeTypes
	Time type names.
std::set< DtString >	myFailedObjClasses
std::set< DtString >	myFailedInterClasses
Static Protected Attributes
static DtFomCreator	theCreatorFunction

Detailed Description

Represents a particular FOM, as described by a FED file.

Object classes are represented by DtObjClassDescs; Interaction classes by DtInterClassDescs. Being a DtFedTarget, a DtFom can be filled in by a DtFedReader. Alternatively, you can fill it in programatically, with addObjClass, addInterClass, addParameter and addAttribute. Once so initialized, you can query for a class descriptor associated with a class.

Constructor & Destructor Documentation

DtFom::DtFom ( DtExerciseConn * exConn )

Constructor.

virtual DtFom::~DtFom ( ) [virtual]

Destructor.

DtFom::DtFom ( const DtFom & orig )

copy constructor

Member Function Documentation

virtual void DtFom::addAttribute	(	const char *	className,
		const char *	attrName,
		DtTransportType	transport,
		DtOrderType	order,
		const char *	space = `NULL`
	)		`[virtual]`

Define an attribute of a class.

Used when initializing from FED file.

Implements DtFedTarget.

virtual bool DtFom::addAttributeDimension	(	const char *	className,
		const char *	attrName,
		const char *	dimName
	)		`[virtual]`

Define the dimensions of an attribute Return true if add was successful (i.e., dimension is valid)

Implements DtFedTarget.

virtual void DtFom::addDimension	(	const char *	SpaceName,
		const char *	dimName
	)		`[virtual]`

Define a dimension within a routing space.

Used when initializing from FED file.

Implements DtFedTarget.

virtual void DtFom::addDimension	(	const char *	dimName,
		unsigned long	upperBound,
		unsigned long	defaultLowerBound,
		unsigned long	defaultUpperBound,
		bool	excluded
	)		`[virtual]`

Define a dimension. Used when initializing from FED file.

Implements DtFedTarget.

virtual bool DtFom::addInteractionDimension	(	const char *	interactionName,
		const char *	dimension
	)		`[virtual]`

Add regions to the class Return true if add was successful (i.e., dimension is valid)

Implements DtFedTarget.

virtual void DtFom::addInterClass	(	const char *	name,
		const char *	baseName,
		DtTransportType	transport,
		DtOrderType	order,
		const char *	space = `NULL`
	)		`[virtual]`

Define a class. Used when initializing from FED file.

Implements DtFedTarget.

virtual void DtFom::addObjClass	(	const char *	name,
		const char *	baseName
	)		`[virtual]`

Define a class. Used when initializing from FED file.

Implements DtFedTarget.

virtual void DtFom::addParameter	(	const char *	className,
		const char *	paramName
	)		`[virtual]`

Define an parameter of a class.

Used when initializing from FED file.

Implements DtFedTarget.

virtual void DtFom::addSpace ( const char * name ) [virtual]

Define a routing space. Used when initializing from FED file.

Implements DtFedTarget.

virtual void DtFom::addTime ( const DtString ) [protected, virtual]

Add a timeType from the FOM.

static DtFom* DtFom::create ( DtExerciseConn * exConn ) [static]

virtual DtInterClassDesc* DtFom::firstInterClass ( ) const [virtual]

Returns the first, last and next interaction class in the FOM.

Next returns NULL if current is the last class, or if current is NULL. These functions facilitate looping through classes like this: for (desc = firstInterClass; desc; desc = nextInterClass(desc))

virtual DtObjClassDesc* DtFom::firstObjClass ( ) const [virtual]

Returns the first, last and next object classes in the FOM.

Next returns NULL if current is the last class, or if current is NULL. These functions facilitate looping through classes like this: for (desc = firstObjClass; desc; desc = nextObjClass(desc))

virtual DtInterClassDesc* DtFom::interClassByHandle ( RTI::InteractionClassHandle handle ) const [virtual]

Returns the class descriptor for the handle.

virtual DtInterClassDesc* DtFom::interClassByName ( const char * name ) const [virtual]

Returns the class descriptor for the name.

virtual const std::list<DtInterClassDesc*>& DtFom::interClassList ( ) const [virtual]

interClassList() and objClassList() provide return a list of interaction and object classes.

These lists contain pointers to DtInterClassDesc and DtObjClassDesc, which can be accessed using the DtList API. This is provided to replace the firstObjClass/lastObjClass/nextObjClass functionality below.

virtual bool DtFom::knownTime ( const DtString ) const [protected, virtual]

Is this time Type present.

virtual bool DtFom::knownTransportType ( const DtString ) const [protected, virtual]

Is this transport Type already known.

virtual bool DtFom::knownUserDefinedTag ( const DtString ) const [protected, virtual]

Is this userDefined tag present.

virtual DtInterClassDesc* DtFom::lastInterClass ( ) const [virtual]

virtual DtObjClassDesc* DtFom::lastObjClass ( ) const [virtual]

int DtFom::maxInterClassHandle ( ) const

int DtFom::maxObjClassHandle ( ) const

virtual DtMergeFomStatus DtFom::mergeIntClassDesc ( const DtInterClassDesc * desc ) [protected, virtual]

Merge the contents of the InteractionClassDescription with this.

virtual DtMergeFomStatus DtFom::mergeInteractionClasses ( const DtFom & module ) [protected, virtual]

Merge the contents of the specified interactionClasses with this.

virtual DtMergeFomStatus DtFom::mergeObjClassDesc ( const DtObjClassDesc * desc ) [protected, virtual]

Merge the contents of the objClassDesc with this.

virtual DtMergeFomStatus DtFom::mergeObjectClasses ( const DtFom & module ) [protected, virtual]

Merge the object classes of the specified FomMgr with this.

virtual DtMergeFomStatus DtFom::mergeSpaces ( const DtFom & module ) [protected, virtual]

Merge the given routing spaces with this.

virtual DtMergeFomStatus DtFom::mergeSwitches ( const DtFom & module ) [protected, virtual]

Merge the given switches with this.

virtual DtMergeFomStatus DtFom::mergeTarget ( const DtFom & module ) [protected, virtual]

Merge the contents of the specified target with this.

virtual DtMergeFomStatus DtFom::mergeUpdateRates ( const DtFom & module ) [protected, virtual]

Merge the given update rates with this.

int DtFom::minInterClassHandle ( ) const

int DtFom::minObjClassHandle ( ) const

Returns the minimum and maximum interaction and object class handles in the FOM.

Not every handle between min and max must be valid.

virtual DtInterClassDesc* DtFom::nextInterClass ( DtInterClassDesc * current ) const [virtual]

virtual DtObjClassDesc* DtFom::nextObjClass ( DtObjClassDesc * current ) const [virtual]

int DtFom::numInterClasses ( ) const

int DtFom::numObjClasses ( ) const

Returns number of object or interaction classes in the FOM.

virtual unsigned int DtFom::numTimeTypes ( ) const [protected, virtual]

How many timeTypes are specified in this target.

virtual DtObjClassDesc* DtFom::objClassByHandle ( RTI::ObjectClassHandle handle ) const [virtual]

Returns the class descriptor for the handle.

virtual DtObjClassDesc* DtFom::objClassByName ( const char * name ) const [virtual]

Returns the class descriptor for the name.

virtual const std::list<DtObjClassDesc*>& DtFom::objClassList ( ) const [virtual]

DtFom& DtFom::operator= ( const DtFom & orig )

assignment operator

virtual void DtFom::print ( ) const [virtual]

Prints the contents of the FOM.

virtual DtFedReadStatus DtFom::readFed	(	const DtString &	fedFile,
		const std::vector< std::wstring > &	fomModules,
		const DtString &	mimModule,
		bool	strictCheckingEnabled,
		bool	useDTD,
		bool	dontParseSwitches
	)		`[virtual]`
