Instances of DtHlaObject are used to represent HLA objects which are communicated across the network. More...

Inheritance diagram for DtHlaObject:

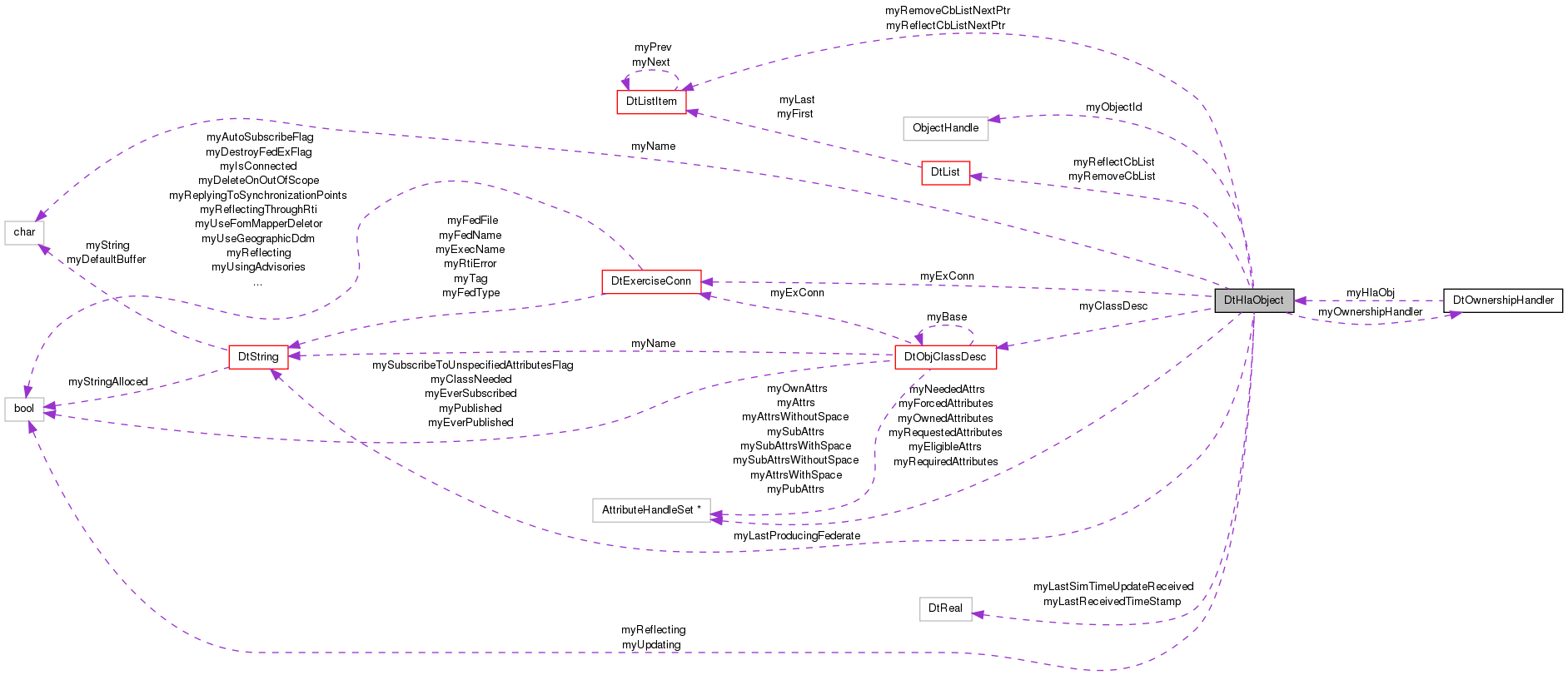

Collaboration diagram for DtHlaObject:

Public Member Functions
	DtHlaObject (DtExerciseConn conn, RTI::ObjectHandle id, const char name, DtObjClassDesc &classDesc, bool reflecting=false)
	Constructor - used to construct a DtHlaObject to represent an object that we discover through an RTI callback.
	DtHlaObject (DtExerciseConn conn, const char name, DtObjClassDesc &classDesc, bool reflecting=false)
	Constructor - used to construct a DtHlaObject to represent an object that will be registered locally.
virtual	~DtHlaObject ()
	Destructor.
virtual const RTI::ObjectHandle &	objectId () const
	Get the object's handle.
virtual const RTI::AttributeHandleSet &	attrHandleSet ()
	Get the set of attributes associated with this object's FOM class.
virtual const RTI::AttributeHandleSet &	requestedAttributes ()
	Returns the union of all sets of attributes requested since the last call to clearRequestedAttributes.
virtual RTI::ObjectClassHandle	objectClassHandle () const
	Get the object's class handle.
virtual const char *	name () const
	Get the object's name.
int	numAttributes () const
	Get the number of attributes associated with this object's FOM class.
virtual DtExerciseConn *	exerciseConn () const
	Get the exercise connection for this object.
virtual DtObjClassDesc &	classDesc () const
	Get the class descriptor for the object's class.
virtual void	setupUpdating ()
	Local Object specific functions.
virtual void	update ()
	Generate and send any necessary attribute updates through the RTI.
virtual void	generateUpdate (const RTI::AttributeHandleSet &eligibileAttrs, const RTI::AttributeHandleSet &requiredAttrs, DtStateMsg *msg)
	Called by update to actually generate an outgoing message.
virtual void	cleanupFromUpdating ()
	Do the deinitialization required to stop updating attributes of this object.
virtual void	processProvideUpdate (const RTI::AttributeHandleSet &set)
	Set yourself up so that on the next tick, you send an update for the appropriate attributes.
virtual void	clearRequestedAttributes ()
	Clears the set of requested attributes.
virtual const RTI::AttributeHandleSet &	ownedAttributes ()
	Returns the set of attributes of this object that are owned by the local federate.
virtual void	forceUpdate ()
	Specify a set of attributes that should be included in the ahvps the next time update is called, even if they would not otherwise need to be sent.
virtual void	forceUpdate (const RTI::AttributeHandleSet &set)
virtual void	clearForcedAttributes ()
	Clear (empty) the set of forced attributes.
virtual const RTI::AttributeHandleSet &	attributesNeededByFederation ()
	Returns the set of attributes that are currently needed by the federation, i.e.
virtual const RTI::AttributeHandleSet &	eligibleAttributes ()
	Returns the set of attributes that eligible for sending.
virtual const RTI::AttributeHandleSet &	requiredAttributes ()
	Returns the set of attributes that should be included in the next update regardless of whether their update conditions have been met.
bool	classNeededByFederation ()
	Returns true if the class is needed by the federation, i.e.
void	setupClassForUpdating ()
	If the class has never been published, publish it with all attributes using DtObjClassDesc::publish.
virtual void	setupReflecting ()
	Remote Object specific functions.
virtual void	callReflect (const DtStateMsg &msg)
	Calls reflect, and any postReflect callbacks.
virtual void	callReflectLocal (const DtStateMsg &msg)
	Calls reflectLocal, and any postReflect callbacks.
virtual void	reflectLocal (const DtStateMsg &msg)=0
	Called by callReflectLocal to handle the reflection of updates that we are sending locally.
virtual void	cleanupFromReflecting ()
	Do the deinitialization required to stop handling reflection of object.
virtual void	requestUpdate (RTI::AttributeHandleSet *attrs=0)
	Request an update for the object for the set of attributes indicated by attrs (or all subscribed attributes if attrs is NULL).
virtual void	addRemoveObjectCb (DtRemoveObjectCb cb, void *usr)
	Add (register) function to be called when object is about to be removed.
virtual void	removeRemoveObjectCb (DtRemoveObjectCb cb, void *usr)
	Remove (deregister) function to be called when object is about to be removed.
virtual void	addPostReflectCb (DtObjectReflectAttributeValuesCb cb, void *usr)
	Add (register) function to be called after each reflectAttrValues.
virtual void	removePostReflectCb (DtObjectReflectAttributeValuesCb cb, void *usr)
	Remove (deregister) function to be called after each reflectAttrValues.
virtual void	processRemoveObject ()
	Process notification of removal of the object from the network.
virtual DtOwnershipHandler *	setOwnershipHandler (DtOwnershipHandler *handler)
	Ownership-Management-related functions.
virtual void	unconditionalDivest (const RTI::AttributeHandleSet &attrs)
	Unconditionally divest ownership of attrs.
virtual void	negotiatedDivest (const RTI::AttributeHandleSet &attrs)
	Try to divest ownership of attrs.
virtual void	cancelNegotiatedDivest (const RTI::AttributeHandleSet &attrs)
	Cancel a negotiated divestiture of attributes.
virtual void	acquireAttributes (const RTI::AttributeHandleSet &attrs, bool ifAvailable=false)
	Attempt to acquire ownership of attributes.
virtual void	cancelAcquireAttributes (const RTI::AttributeHandleSet &attrs)
	Cancel the request to acquire ownership of attrs.
virtual DtTime	lastSimTimeUpdateReceived () const
	Returns the value of VR-Link simulation time at the time the last attribute update was received for this object.
virtual DtTime	lastReceivedTimeStamp () const
virtual void	printMsg (const DtStateMsg &msg, bool fullReport=false) const
	Prints contents of a state msg.
virtual void	localSubscriptionChanged ()
	Called when local object class subscriptions change.
virtual void	publicationChanged ()
	Called when there is a change in the publication status of this object's object class.
virtual const DtString &	lastProducingFederate () const
	Obtain the Federate Handle of the last federate to produce a reflect attribute update.
Static Public Member Functions
static void	ownerAcquisitionIfAvailableCb (void *usr)
	The following four static fns are for use within ownership msg callbacks.
static void	ownerAcquisitionCb (void *usr)
static void	negotiatedDivestitureCb (void *usr)
static void	unconditionalDivestitureCb (void *usr)
Protected Member Functions
	DtHlaObject ()
	Default constructor: not implemented; do not call.
	DtHlaObject (const DtHlaObject &src)
	Copy constructor: not implemented; do not call.
DtHlaObject &	operator= (const DtHlaObject &src)
	Assignment operator: not implemented; do not call.
virtual void	setLastSimTimeUpdateReceived (DtTime tm)
	Set the time an update was last received or sent.
virtual void	setLastReceivedTimeStamp (DtTime tm)
virtual void	reflect (const DtStateMsg &msg)=0
	Handle reflection of object (receipt of state message) from the network.
void	wipeRemoveList ()
	Remove all callbacks from the remove callback list.
virtual void	clearRemoveList ()
	Virtual version of above.
void	wipeReflectList ()
	Remove all callbacks from the reflect callback list.
virtual void	applyPostReflectCallbacks (const DtStateMsg &msg)
	Apply callbacks after a state msg is reflected.
virtual void	loseOwnership (const RTI::AttributeHandleSet &attrs)
	Gets called whenever we lose ownership of a set of attributes.
virtual void	gainOwnership (const RTI::AttributeHandleSet &attrs)
	Gets called whenever we gain ownership of a set of attributes.
virtual void	processUpdatesOff (const RTI::AttributeHandleSet &set)
	Callback for handling turnUpdatesOffForObjectInstance RTI call.
void	processUpdatesOn (const RTI::AttributeHandleSet &set)
	Callback for handling turnUpdatesOnForObjectInstance RTI call.
virtual bool	known () const
	Returns true if the object has been registered with, or discovered via the RTI.
virtual void	processRequestAssumption (const RTI::AttributeHandleSet &attrs, const char *tag)
	Process RTI's requestAttributeOwnershipAssumption service.
virtual void	processRequestRelease (const RTI::AttributeHandleSet &attrs, const char *tag)
	Process RTI's requestAttributeOwnershipRelease service.
void	dumpRtiException (const char functionName, const RTI::Exception exc) const
	Print message to explain the RTI Exception.
virtual void	processAttributeAcquisition (const RTI::AttributeHandleSet &attrs)
	Handle an invocation of the attributeOwnershipAcquisitionNotification service.
virtual void	processAttributeDivestiture (const RTI::AttributeHandleSet &attrs)
	Handle an invocation of the attributeOwnershipDivestitureNotification service.
virtual void	processConfirmAcquisitionCancellation (const RTI::AttributeHandleSet &attrs)
	Process RTI's conformAttributeOwnershipAcquisitionCancellation service.
virtual void	computeEligible ()
	Recomputes the set of attrs that are eligible for sending.
virtual void	justRegistered ()
	Called by DtHlaObjectManager right after a DtHlaObject is created, if it was created to represent a newly registered object.
virtual void	setLastProducingFederate (const DtString &fedName)
	Set the Federate Handle of the last federate to produce a reflect attribute update.
Static Protected Member Functions
static void	reflectAttributeValuesCb (const DtStateMsg &stateMsg, void *hlaObj)
	Callback for handling state messages for the HLA object.
static void	updatesOnCb (RTI::ObjectHandle handle, const RTI::AttributeHandleSet &attributeSet, void *usr)
	Callback for handling turnUpdatesOnForObjectInstance RTI call.
static void	updatesOffCb (RTI::ObjectHandle handle, const RTI::AttributeHandleSet &attributeSet, void *usr)
	Callback for handling turnUpdatesOffForObjectInstance RTI call.
Protected Attributes
char *	myName
DtExerciseConn *	myExConn
bool	myReflecting
bool	myUpdating
DtList	myRemoveCbList
DtList	myReflectCbList
DtListItem *	myRemoveCbListNextPtr
DtListItem *	myReflectCbListNextPtr
DtTime	myLastSimTimeUpdateReceived
DtTime	myLastReceivedTimeStamp
DtObjClassDesc &	myClassDesc
DtString	myLastProducingFederate
RTI::ObjectHandle	myObjectId
RTI::AttributeHandleSet *	myEligibleAttrs
	Attributes that are eligible to be sent from within update() - passed to generateUpdate.
RTI::AttributeHandleSet *	myNeededAttrs
	Set of owned attributes for which we have received a turnUpdatesOn more recently than a turnUpdatesOff.
RTI::AttributeHandleSet *	myOwnedAttributes
	Set of attributes owned by the local federate.
RTI::AttributeHandleSet *	myRequestedAttributes
	Requested by other federates.
RTI::AttributeHandleSet *	myForcedAttributes
	Requested by a call to setForcedUpdate.
RTI::AttributeHandleSet *	myRequiredAttributes
	Union of forced and requested - not computed until needed.
DtOwnershipHandler *	myOwnershipHandler
Friends
class	DtHlaObjectManager

Detailed Description

Instances of DtHlaObject are used to represent HLA objects which are communicated across the network.

There should be one DtHlaObject instance for each "known" object in the federation execution. To enforce this restriction, only the DtHlaObjectManager can create DtHlaObjects. DtHlaObject keeps track of which attributes are locally owned. It also defines the interface for the virtual functions reflect, and generateUpdate which are using when receiving or sending updates through the RTI respectively. DtHlaObject is used by DtObjectPublisher and DtReflectedObject, so many applications will not need to deal directly with DtHlaObjects.

Constructor & Destructor Documentation

DtHlaObject::DtHlaObject	(	DtExerciseConn *	conn,
		RTI::ObjectHandle	id,
		const char *	name,
		DtObjClassDesc &	classDesc,
		bool	reflecting = `false`
	)

Constructor - used to construct a DtHlaObject to represent an object that we discover through an RTI callback.

The RTI provides us with the handle, name and class. Object is not ready to use until setupReflecting is called.

DtHlaObject::DtHlaObject	(	DtExerciseConn *	conn,
		const char *	name,
		DtObjClassDesc &	classDesc,
		bool	reflecting = `false`
	)

Constructor - used to construct a DtHlaObject to represent an object that will be registered locally.

We provide a name and class, and the RTI chooses a handle after the register call. Object is not ready to use until setupUpdating is called.

virtual DtHlaObject::~DtHlaObject ( ) [virtual]

Destructor.

Make sure to call cleanupFromUpdating and/or cleanupFromReflecting before deleting the object.

DtHlaObject::DtHlaObject ( ) [protected]

Default constructor: not implemented; do not call.

DtHlaObject::DtHlaObject ( const DtHlaObject & src ) [protected]

Copy constructor: not implemented; do not call.

Member Function Documentation

virtual void DtHlaObject::acquireAttributes	(	const RTI::AttributeHandleSet &	attrs,
		bool	ifAvailable = `false`
	)		`[virtual]`

Attempt to acquire ownership of attributes.

If ifAvailable is true, use the RTI's "IfAvailable" version of attributeOwnershipAcquisition. You have not actually gained ownership of the attributes until you receive an attributeOwnershipAcquisitionNotification callback from the RTI. Caller needs to handle RTI-generated exceptions.

virtual void DtHlaObject::addPostReflectCb	(	DtObjectReflectAttributeValuesCb	cb,
		void *	usr
	)		`[virtual]`

Add (register) function to be called after each reflectAttrValues.

virtual void DtHlaObject::addRemoveObjectCb	(	DtRemoveObjectCb	cb,
		void *	usr
	)		`[virtual]`

Add (register) function to be called when object is about to be removed.

virtual void DtHlaObject::applyPostReflectCallbacks ( const DtStateMsg & msg ) [protected, virtual]

Apply callbacks after a state msg is reflected.

const RTI::AttributeHandleSet & DtHlaObject::attrHandleSet ( ) [inline, virtual]

Get the set of attributes associated with this object's FOM class.

References DtObjClassDesc::attrHandleSet(), and myClassDesc.

virtual const RTI::AttributeHandleSet& DtHlaObject::attributesNeededByFederation ( ) [virtual]

Returns the set of attributes that are currently needed by the federation, i.e.

those that have been specified in startUpdates calls more recently than in stopUpdates calls. This set may contain attributes that are not locally owned.

virtual void DtHlaObject::callReflect ( const DtStateMsg & msg ) [virtual]

Calls reflect, and any postReflect callbacks.

Override reflect rather than this function to change the way an HLA object reflects a stateMsg. This function is called when we receive an update from the RTI.

virtual void DtHlaObject::callReflectLocal ( const DtStateMsg & msg ) [virtual]

Calls reflectLocal, and any postReflect callbacks.

Override reflectLocal rather than this function to change the way an HLA object reflects a stateMsg that we generate locally. This function is called from within update() when the exercise connection's reflecting flag is set.

virtual void DtHlaObject::cancelAcquireAttributes ( const RTI::AttributeHandleSet & attrs ) [virtual]

Cancel the request to acquire ownership of attrs.

If the cancel goes through, you will receive a confirmAttributeOwnershipAcquisitionCancellation RTI callback. Caller must handle RTI-generated exceptions.

virtual void DtHlaObject::cancelNegotiatedDivest ( const RTI::AttributeHandleSet & attrs ) [virtual]

Cancel a negotiated divestiture of attributes.

Caller needs to handle RTI-generated exceptions.

DtObjClassDesc & DtHlaObject::classDesc ( ) const [inline, virtual]

Get the class descriptor for the object's class.

References myClassDesc.

bool DtHlaObject::classNeededByFederation ( )

Returns true if the class is needed by the federation, i.e.

we've received a startRegistration or startUpdates service call from the RTI for the object's class.

virtual void DtHlaObject::cleanupFromReflecting ( ) [virtual]

Do the deinitialization required to stop handling reflection of object.

Call before deleting a DtHlaObject.

virtual void DtHlaObject::cleanupFromUpdating ( ) [virtual]

Do the deinitialization required to stop updating attributes of this object.

virtual void DtHlaObject::clearForcedAttributes ( ) [virtual]

Clear (empty) the set of forced attributes.

virtual void DtHlaObject::clearRemoveList ( ) [protected, virtual]

Virtual version of above.

virtual void DtHlaObject::clearRequestedAttributes ( ) [virtual]

Clears the set of requested attributes.

Should be called after request has been serviced.

virtual void DtHlaObject::computeEligible ( ) [protected, virtual]

Recomputes the set of attrs that are eligible for sending.

Called any time we lose or gain ownership of attributes, when we get update on/off advisories, and when local subscription changes.

void DtHlaObject::dumpRtiException	(	const char *	functionName,
		const RTI::Exception *	exc
	)		const `[protected]`

Print message to explain the RTI Exception.

Both functionName and the exception can be Null.

virtual const RTI::AttributeHandleSet& DtHlaObject::eligibleAttributes ( ) [virtual]

Returns the set of attributes that eligible for sending.

That is, the intersection of owned attributes and attributes needed by federation.

DtExerciseConn * DtHlaObject::exerciseConn ( ) const [inline, virtual]

Get the exercise connection for this object.

References myExConn.

virtual void DtHlaObject::forceUpdate ( ) [virtual]

Specify a set of attributes that should be included in the ahvps the next time update is called, even if they would not otherwise need to be sent.

The call with no arguments, indicates the set of all of the object's published attributes. Multiple calls are cumulative, until the set is cleared with clearForcedAttributes, which should happen within update.

virtual void DtHlaObject::forceUpdate ( const RTI::AttributeHandleSet & set ) [virtual]

virtual void DtHlaObject::gainOwnership ( const RTI::AttributeHandleSet & attrs ) [protected, virtual]

Gets called whenever we gain ownership of a set of attributes.

virtual void DtHlaObject::generateUpdate	(	const RTI::AttributeHandleSet &	eligibileAttrs,
		const RTI::AttributeHandleSet &	requiredAttrs,
		DtStateMsg *	msg
	)		`[virtual]`

Called by update to actually generate an outgoing message.

Derived class implementations should keep track of which attributes are updated when, should check update conditions, and add values to stateMsg for only those attributes that currently need to be sent. eligibleAttrs is the set of owned attributes to which remote federates have subscribed. requiredAttrs is the set of attributes that have been requested or forced by application code since the attribute was last sent. stateMsg is the message to fill out. Default implementation is null, but the function is not pure virtual since some subclasses might want to override update rather than overriding generateUpdate.

Reimplemented in DtHlaObjectWithStateRep.

virtual void DtHlaObject::justRegistered ( ) [protected, virtual]

Called by DtHlaObjectManager right after a DtHlaObject is created, if it was created to represent a newly registered object.

Implementation gains ownership of all published attributes.

virtual bool DtHlaObject::known ( ) const [protected, virtual]

Returns true if the object has been registered with, or discovered via the RTI.

Should always return true once the DtHlaObject has been set up for receiving or updating.

virtual const DtString& DtHlaObject::lastProducingFederate ( ) const [virtual]

Obtain the Federate Handle of the last federate to produce a reflect attribute update.

DtTime DtHlaObject::lastReceivedTimeStamp ( ) const [inline, virtual]

References myLastReceivedTimeStamp.

DtTime DtHlaObject::lastSimTimeUpdateReceived ( ) const [inline, virtual]

Returns the value of VR-Link simulation time at the time the last attribute update was received for this object.

References myLastSimTimeUpdateReceived.

virtual void DtHlaObject::localSubscriptionChanged ( ) [virtual]

Called when local object class subscriptions change.

As a result, we update the set of eligible attributes to include remotely subscribed attributes, plus locally subscribed attributes.

virtual void DtHlaObject::loseOwnership ( const RTI::AttributeHandleSet & attrs ) [protected, virtual]

Gets called whenever we lose ownership of a set of attributes.

const char * DtHlaObject::name ( ) const [inline, virtual]

Get the object's name.

References myName.

virtual void DtHlaObject::negotiatedDivest ( const RTI::AttributeHandleSet & attrs ) [virtual]

Try to divest ownership of attrs.

Divesting is not complete (i.e. you still own the attributes) until you receive an attributeOwnershipDivestitureNotification callback from the RTI. Elements of attrs that are not currently owned are ignored. Caller needs to handle other RTI-generated exceptions.

static void DtHlaObject::negotiatedDivestitureCb ( void * usr ) [static]

int DtHlaObject::numAttributes ( ) const [inline]

Get the number of attributes associated with this object's FOM class.

Non Virtual -- called from Ctor

References myClassDesc, and DtObjClassDesc::numAttributes().

RTI::ObjectClassHandle DtHlaObject::objectClassHandle ( ) const [inline, virtual]

Get the object's class handle.

References DtObjClassDesc::handle(), and myClassDesc.

const RTI::ObjectHandle & DtHlaObject::objectId ( ) const [inline, virtual]

Get the object's handle.

DtHlaObject& DtHlaObject::operator= ( const DtHlaObject & src ) [protected]

Assignment operator: not implemented; do not call.

const RTI::AttributeHandleSet & DtHlaObject::ownedAttributes ( ) [inline, virtual]

Returns the set of attributes of this object that are owned by the local federate.

References myOwnedAttributes.

static void DtHlaObject::ownerAcquisitionCb ( void * usr ) [static]

static void DtHlaObject::ownerAcquisitionIfAvailableCb ( void * usr ) [static]

The following four static fns are for use within ownership msg callbacks.

virtual void DtHlaObject::printMsg	(	const DtStateMsg &	msg,
		bool	fullReport = `false`
	)		const `[virtual]`

Prints contents of a state msg.

Base class prints only header info. If fullReport set to true, printMsg requests a full status print out for objects with a state repository.

Reimplemented in DtHlaObjectWithStateRep.

virtual void DtHlaObject::processAttributeAcquisition ( const RTI::AttributeHandleSet & attrs ) [protected, virtual]

Handle an invocation of the attributeOwnershipAcquisitionNotification service.

virtual void DtHlaObject::processAttributeDivestiture ( const RTI::AttributeHandleSet & attrs ) [protected, virtual]

Handle an invocation of the attributeOwnershipDivestitureNotification service.

virtual void DtHlaObject::processConfirmAcquisitionCancellation ( const RTI::AttributeHandleSet & attrs ) [protected, virtual]

Process RTI's conformAttributeOwnershipAcquisitionCancellation service.

virtual void DtHlaObject::processProvideUpdate ( const RTI::AttributeHandleSet & set ) [virtual]

Set yourself up so that on the next tick, you send an update for the appropriate attributes.

(Can't send them within this function since this is called from within an RTI service).

virtual void DtHlaObject::processRemoveObject ( ) [virtual]

Process notification of removal of the object from the network.

Call back all the remove object callbacks.

virtual void DtHlaObject::processRequestAssumption	(	const RTI::AttributeHandleSet &	attrs,
		const char *	tag
	)		`[protected, virtual]`

Process RTI's requestAttributeOwnershipAssumption service.

virtual void DtHlaObject::processRequestRelease	(	const RTI::AttributeHandleSet &	attrs,
		const char *	tag
	)		`[protected, virtual]`

Process RTI's requestAttributeOwnershipRelease service.

virtual void DtHlaObject::processUpdatesOff ( const RTI::AttributeHandleSet & set ) [protected, virtual]

Callback for handling turnUpdatesOffForObjectInstance RTI call.

void DtHlaObject::processUpdatesOn ( const RTI::AttributeHandleSet & set ) [protected]

Callback for handling turnUpdatesOnForObjectInstance RTI call.

Non Virtual --called from CTOR

virtual void DtHlaObject::publicationChanged ( ) [virtual]

Called when there is a change in the publication status of this object's object class.

virtual void DtHlaObject::reflect ( const DtStateMsg & msg ) [protected, pure virtual]

Handle reflection of object (receipt of state message) from the network.

called by callReflect. Override this function rather than callReflect to change the way an HLA object reflects a stateMsg.

Implemented in DtHlaObjectWithStateRep, and DtUnknownHlaObject.

static void DtHlaObject::reflectAttributeValuesCb	(	const DtStateMsg &	stateMsg,
		void *	hlaObj
	)		`[static, protected]`

Callback for handling state messages for the HLA object.

Casts hlaObj to DtHlaObject* and calls reflect().

virtual void DtHlaObject::reflectLocal ( const DtStateMsg & msg ) [pure virtual]

Called by callReflectLocal to handle the reflection of updates that we are sending locally.

Used when the exercise connection's reflecting flag is set.

Implemented in DtHlaObjectWithStateRep.

virtual void DtHlaObject::removePostReflectCb	(	DtObjectReflectAttributeValuesCb	cb,
		void *	usr
	)		`[virtual]`

Remove (deregister) function to be called after each reflectAttrValues.

virtual void DtHlaObject::removeRemoveObjectCb	(	DtRemoveObjectCb	cb,
		void *	usr
	)		`[virtual]`

Remove (deregister) function to be called when object is about to be removed.

const RTI::AttributeHandleSet & DtHlaObject::requestedAttributes ( ) [inline, virtual]

Returns the union of all sets of attributes requested since the last call to clearRequestedAttributes.

References myRequestedAttributes.

virtual void DtHlaObject::requestUpdate ( RTI::AttributeHandleSet * attrs = 0 ) [virtual]

Request an update for the object for the set of attributes indicated by attrs (or all subscribed attributes if attrs is NULL).

virtual const RTI::AttributeHandleSet& DtHlaObject::requiredAttributes ( ) [virtual]

Returns the set of attributes that should be included in the next update regardless of whether their update conditions have been met.

virtual void DtHlaObject::setLastProducingFederate ( const DtString & fedName ) [protected, virtual]

Set the Federate Handle of the last federate to produce a reflect attribute update.

void DtHlaObject::setLastReceivedTimeStamp ( DtTime tm ) [inline, protected, virtual]

References myLastReceivedTimeStamp.

void DtHlaObject::setLastSimTimeUpdateReceived ( DtTime tm ) [inline, protected, virtual]

Set the time an update was last received or sent.

References myLastSimTimeUpdateReceived.

virtual DtOwnershipHandler* DtHlaObject::setOwnershipHandler ( DtOwnershipHandler * handler ) [virtual]

Ownership-Management-related functions.

Sets the current ownership handler to handler. A DtOwnershipHandler is an object that encapsulates callback function for a variety of ownership-management-related functions. Returns previous handler.

void DtHlaObject::setupClassForUpdating ( )

If the class has never been published, publish it with all attributes using DtObjClassDesc::publish.

Non Virtual -- called from CTOR

virtual void DtHlaObject::setupReflecting ( ) [virtual]

Remote Object specific functions.

Do the initialization required to handle reflection of object.

virtual void DtHlaObject::setupUpdating ( ) [virtual]

Local Object specific functions.

Do the initialization required to begin updating attributes of this object. Calls registerObject() if the object has not yet been registered or discovered (that is, we are creating a new object).

virtual void DtHlaObject::unconditionalDivest ( const RTI::AttributeHandleSet & attrs ) [virtual]

Unconditionally divest ownership of attrs.

Elements of attrs that are not currently owned are ignored. Caller needs to handle other RTI- generated exceptions.

static void DtHlaObject::unconditionalDivestitureCb ( void * usr ) [static]

virtual void DtHlaObject::update ( ) [virtual]

Generate and send any necessary attribute updates through the RTI.

Called by publisher's tick function. Default implementation is to call the (logically) pure virtual generateUpdate, and then send the generated message.

Reimplemented in DtUnknownHlaObject.

static void DtHlaObject::updatesOffCb	(	RTI::ObjectHandle	handle,
		const RTI::AttributeHandleSet &	attributeSet,
		void *	usr
	)		`[static, protected]`

Callback for handling turnUpdatesOffForObjectInstance RTI call.

static void DtHlaObject::updatesOnCb	(	RTI::ObjectHandle	handle,
		const RTI::AttributeHandleSet &	attributeSet,
		void *	usr
	)		`[static, protected]`

Callback for handling turnUpdatesOnForObjectInstance RTI call.

void DtHlaObject::wipeReflectList ( ) [protected]

Remove all callbacks from the reflect callback list.

Non-virtual since meant to be called from dtor.

void DtHlaObject::wipeRemoveList ( ) [protected]

Remove all callbacks from the remove callback list.

Non-virtual since meant to be called from dtor.

Friends And Related Function Documentation

friend class DtHlaObjectManager [friend]

Member Data Documentation

DtObjClassDesc& DtHlaObject::myClassDesc [protected]

Referenced by attrHandleSet(), classDesc(), numAttributes(), and objectClassHandle().

RTI::AttributeHandleSet* DtHlaObject::myEligibleAttrs [protected]

Attributes that are eligible to be sent from within update() - passed to generateUpdate.

If we are reflecting local objects, then it's the union of needed attributes, locally subscribed attributes, and owned attributes. Otherwise, it's the union of owned attributes and needed attributes.

DtExerciseConn* DtHlaObject::myExConn [protected]

Referenced by exerciseConn().

RTI::AttributeHandleSet* DtHlaObject::myForcedAttributes [protected]

Requested by a call to setForcedUpdate.

DtString DtHlaObject::myLastProducingFederate [protected]

DtTime DtHlaObject::myLastReceivedTimeStamp [protected]

Referenced by lastReceivedTimeStamp(), and setLastReceivedTimeStamp().

DtTime DtHlaObject::myLastSimTimeUpdateReceived [protected]

Referenced by lastSimTimeUpdateReceived(), and setLastSimTimeUpdateReceived().

char* DtHlaObject::myName [protected]

Referenced by name().

RTI::AttributeHandleSet* DtHlaObject::myNeededAttrs [protected]
