DtInteractionDecoder Class Reference

Instances of DtInteractionDecoder are used to decode interactions from the network. More...

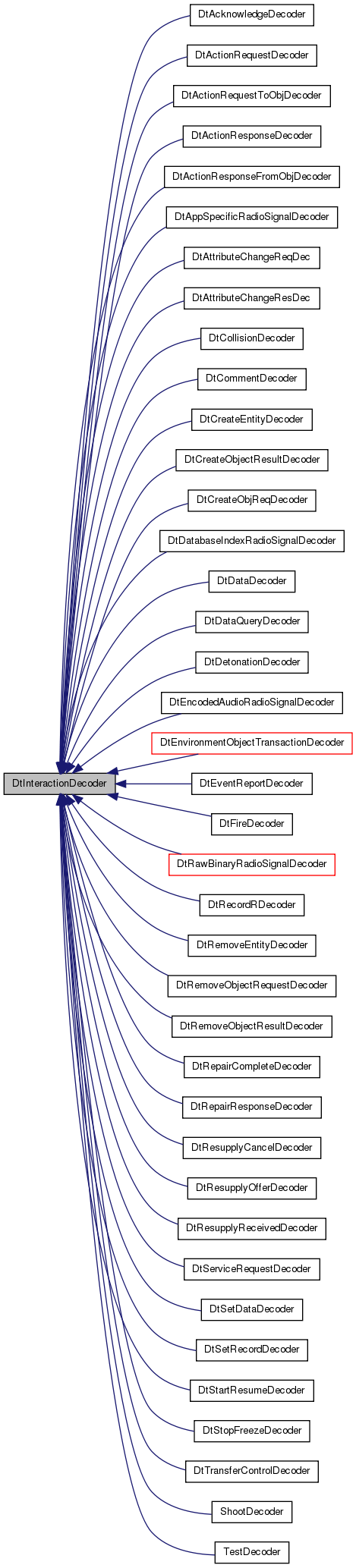

Inheritance diagram for DtInteractionDecoder:

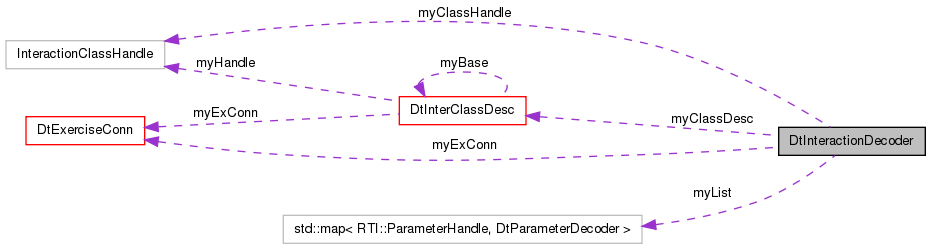

Collaboration diagram for DtInteractionDecoder:

List of all members.

Public Types
typedef void(*	DtParameterDecoder )(DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Parameter decoder function signature.
Public Member Functions
	DtInteractionDecoder (DtExerciseConn *exConn, DtInterClassDesc *classDesc)
	constructor
virtual	~DtInteractionDecoder ()
	destructor
DtParameterDecoder	addDecoder (RTI::ParameterHandle handle, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by handle.
DtParameterDecoder	addDecoder (char *name, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by name.
virtual DtParameterDecoder	decoder (RTI::ParameterHandle handle) const
	Get the parameter decoder for the specified handle.
virtual void	decode (DtInteractionRep *interaction, const RTI::ParameterHandleValuePairSet &pvList)
	Decode the interaction.
virtual RTI::InteractionClassHandle	interactionClassHandle ()
	Get the interaction's class handle.
virtual DtInteractionDecoder *	clone () const
	Returns a new-ed clone of this object.
virtual DtInteractionDecoder *	clone (DtInterClassDesc *interDesc) const
	Returns a new-ed clone of this object which corresponds to the inter description interDesc.
Static Public Member Functions
static char *	decodingBuffer (int length)
	Returns a pointer to a buffer that can be used to copy data obtained from a phvps.
Protected Member Functions
	DtInteractionDecoder (const DtInteractionDecoder &orig)
	copy constructor - not implemented.
DtInteractionDecoder &	operator= (const DtInteractionDecoder &orig)
	assignment operator - not implemented.
virtual void	decodeParameter (DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvList, int index)
	Process (decode) the specified parameter.
Protected Attributes
DtExerciseConn *	myExConn
DtInterClassDesc *	myClassDesc
RTI::InteractionClassHandle	myClassHandle
std::map< RTI::ParameterHandle, DtParameterDecoder >	myList
	myList is an array of classDesc->maxParamHandle() items.

---

Detailed Description

Instances of DtInteractionDecoder are used to decode interactions from the network.

---

Member Typedef Documentation

typedef void(* DtInteractionDecoder::DtParameterDecoder)(DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)

Parameter decoder function signature.

---

Constructor & Destructor Documentation

DtInteractionDecoder::DtInteractionDecoder	(	DtExerciseConn *	exConn,
		DtInterClassDesc *	classDesc
	)

constructor

virtual DtInteractionDecoder::~DtInteractionDecoder

(

)

[virtual]

destructor

DtInteractionDecoder::DtInteractionDecoder

(

const DtInteractionDecoder &

orig

)

[protected]

copy constructor - not implemented.

---

Member Function Documentation

DtParameterDecoder DtInteractionDecoder::addDecoder	(	RTI::ParameterHandle	handle,
		DtParameterDecoder	proc
	)

Add/Remove a decoding function for the parameter specified by handle.

Returns the decoding function which is replaced by the add/remove. Note: This is non-virtual, since it is typically called by constructors.

DtParameterDecoder DtInteractionDecoder::addDecoder	(	char *	name,
		DtParameterDecoder	proc
	)

Add/Remove a decoding function for the parameter specified by name.

Returns the decoding function which is replaced by the add/remove. Note: This is non-virtual, since it is typically called by constructors.

virtual DtInteractionDecoder* DtInteractionDecoder::clone

(

)

const [virtual]

Returns a new-ed clone of this object.

virtual DtInteractionDecoder* DtInteractionDecoder::clone

(

DtInterClassDesc *

interDesc

)

const [virtual]

Returns a new-ed clone of this object which corresponds to the inter description interDesc.

Use this function if you want a subclass in the FOM to use the same decoder as its parent.

virtual void DtInteractionDecoder::decode	(	DtInteractionRep *	interaction,
		const RTI::ParameterHandleValuePairSet &	pvList
	)		[virtual]

Decode the interaction.

virtual void DtInteractionDecoder::decodeParameter	(	DtInteractionRep *	inter,
		const RTI::ParameterHandleValuePairSet &	pvList,
		int	index
	)		[protected, virtual]

Process (decode) the specified parameter.

virtual DtParameterDecoder DtInteractionDecoder::decoder

(

RTI::ParameterHandle

handle

)

const [virtual]

Get the parameter decoder for the specified handle.

char * DtInteractionDecoder::decodingBuffer

(

int

length

)

[inline, static]

Returns a pointer to a buffer that can be used to copy data obtained from a phvps.

If the buffer isn't large enough to contain the data, more space will be allocated to it.

References DtDecodingBuffer().

RTI::InteractionClassHandle DtInteractionDecoder::interactionClassHandle

(

)

[inline, virtual]

Get the interaction's class handle.

References myClassHandle.

DtInteractionDecoder& DtInteractionDecoder::operator=

(

const DtInteractionDecoder &

orig

)

[protected]

assignment operator - not implemented.

---

Member Data Documentation

DtInterClassDesc* DtInteractionDecoder::myClassDesc [protected]

RTI::InteractionClassHandle DtInteractionDecoder::myClassHandle [protected]

Referenced by interactionClassHandle().

DtExerciseConn* DtInteractionDecoder::myExConn [protected]

std::map<RTI::ParameterHandle, DtParameterDecoder> DtInteractionDecoder::myList [protected]

myList is an array of classDesc->maxParamHandle() items.

---

The documentation for this class was generated from the following file:

• interDecoder.h
