Instances of DtOldSmoother are used to provide approximated position and orientation information for entities. More...

Inheritance diagram for DtOldSmoother:

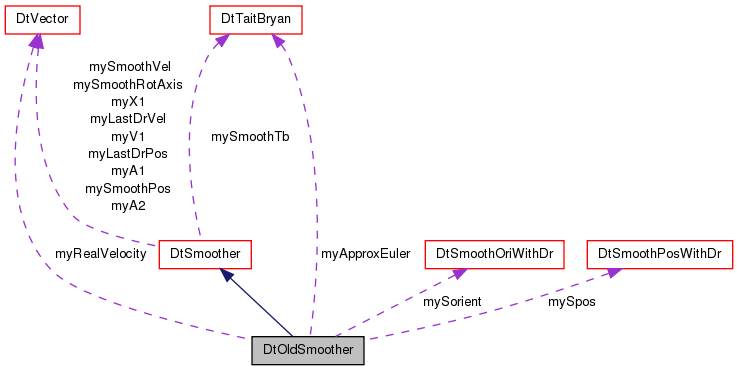

Collaboration diagram for DtOldSmoother:

Public Member Functions
	DtOldSmoother ()
	constructor
virtual	~DtOldSmoother ()
	destructor
	DtOldSmoother (const DtOldSmoother &orig)
	copy constructor
DtOldSmoother &	operator= (const DtOldSmoother &orig)
	assignment operator
virtual DtApproximator *	clone () const
	Create a copy of this object.
virtual void	setLocation (const DtVector &loc, DtTime t)
	Set absolute location.
virtual const DtVector &	approxLocation (DtTime t) const
	Get the approximated location at the specified time.
virtual void	setVelocity (const DtVector &vel, DtTime t)
	Set absolute velocity.
virtual const DtVector &	approxVelocity (DtTime t) const
	Get the approximated velocity at the specified time.
virtual void	setOrientation (const DtTaitBryan &ori, DtTime t)
	Set absolute orientation.
virtual const DtTaitBryan &	approxEuler (DtTime t) const
	Get approximated orientation (Euler angles) at the specified time.
virtual void	setAcceleration (const DtVector &acc, DtTime t)
	Set/Get absolute acceleration.
virtual const DtVector &	acceleration (DtTime t) const
virtual void	setRotationalVelocity (const DtVector &vel, DtTime t)
	Set/Get absolute rotational velocity.
virtual const DtVector &	rotationalVelocity (DtTime t) const
virtual const DtDcm &	approxBodyToGeoc (DtTime t) const
	Get the approximated data body to geocentric coordinate matrix.
virtual void	setSmoothEnable (bool on)
	Set/Get the individual smoothing switch.
virtual bool	smoothEnable () const
virtual void	setSmoothPeriod (DtTime smoothPeriod)
	Set/Get smoothing period - the amount of time over which smoothing takes place.
virtual DtTime	smoothPeriod () const
Static Public Member Functions
static void	setDfltSmoothPeriod (DtTime smoothPeriod)
	Set/Get the default smoothing period.
static DtTime	dfltSmoothPeriod ()
static void	setMasterSmoothEnable (bool onOff)
	Set/Get the value of the "master" smoothing-enabled switch.
static bool	masterSmoothEnable ()
Protected Member Functions
virtual void	feedSmoothing ()
	Provide inputs to the actual smoothing algorithm.
DtOldSmoother *	self () const
	Get rid of const-ness on the "this" pointer in order to access non-const functions from const member functions (such as simple accessors).
Protected Attributes
DtSmoothPosWithDr	mySpos
DtSmoothOriWithDr	mySorient
DtTaitBryan	myApproxEuler
DtVector	myRealVelocity

Detailed Description

Instances of DtOldSmoother are used to provide approximated position and orientation information for entities.

This class was the default smoother prior to VR-Link 3.11. It has been rewritten and replaced by DtSmoother. Customers who need the previous behavior should use this class.

Position and orientation information is approximated over time from the last set absolute (non-approximated) information. When a new position is set, the current position moves smoothly to reflect the new information, rather than jumping to the new absolute position.

Deprecated:: This class was replaced by DtSmoother in VR-Link 3.11 and is provided for backwards compatibility only.

Constructor & Destructor Documentation

DtOldSmoother::DtOldSmoother ( )

constructor

virtual DtOldSmoother::~DtOldSmoother ( ) [virtual]

destructor

DtOldSmoother::DtOldSmoother ( const DtOldSmoother & orig )

copy constructor

Member Function Documentation

virtual const DtVector& DtOldSmoother::acceleration ( DtTime t ) const [virtual]

Reimplemented from DtSmoother.

virtual const DtDcm& DtOldSmoother::approxBodyToGeoc ( DtTime t ) const [virtual]

Get the approximated data body to geocentric coordinate matrix.

Reimplemented from DtSmoother.

virtual const DtTaitBryan& DtOldSmoother::approxEuler ( DtTime t ) const [virtual]

Get approximated orientation (Euler angles) at the specified time.

Reimplemented from DtSmoother.

virtual const DtVector& DtOldSmoother::approxLocation ( DtTime t ) const [virtual]

Get the approximated location at the specified time.

Reimplemented from DtSmoother.

virtual const DtVector& DtOldSmoother::approxVelocity ( DtTime t ) const [virtual]

Get the approximated velocity at the specified time.

Reimplemented from DtSmoother.

virtual DtApproximator* DtOldSmoother::clone ( ) const [virtual]

Create a copy of this object.

Memory is allocated and it is the responsibility of the caller to free the memory via delete.

Reimplemented from DtSmoother.

static DtTime DtOldSmoother::dfltSmoothPeriod ( ) [static]

Reimplemented from DtSmoother.

virtual void DtOldSmoother::feedSmoothing ( ) [protected, virtual]

Provide inputs to the actual smoothing algorithm.

static bool DtOldSmoother::masterSmoothEnable ( ) [static]

Reimplemented from DtSmoother.

DtOldSmoother& DtOldSmoother::operator= ( const DtOldSmoother & orig )

assignment operator

virtual const DtVector& DtOldSmoother::rotationalVelocity ( DtTime t ) const [virtual]

Reimplemented from DtSmoother.

DtOldSmoother * DtOldSmoother::self ( ) const [inline, protected]

Get rid of const-ness on the "this" pointer in order to access non-const functions from const member functions (such as simple accessors).

This should be used sparingly since it bypasses the const protection. Note: This is essentially like an operator and is non-virtual, since can't override based on return type. Allows derived classes to also define this member.

Reimplemented from DtSmoother.

virtual void DtOldSmoother::setAcceleration	(	const DtVector &	acc,
		DtTime	t
	)		`[virtual]`

Set/Get absolute acceleration.

Reimplemented from DtSmoother.

static void DtOldSmoother::setDfltSmoothPeriod ( DtTime smoothPeriod ) [static]

Set/Get the default smoothing period.

Reimplemented from DtSmoother.

virtual void DtOldSmoother::setLocation	(	const DtVector &	loc,
		DtTime	t
	)		`[virtual]`

Set absolute location.

Reimplemented from DtSmoother.

static void DtOldSmoother::setMasterSmoothEnable ( bool onOff ) [static]

Set/Get the value of the "master" smoothing-enabled switch.

Master smoothing switch defaults to on.

Reimplemented from DtSmoother.

virtual void DtOldSmoother::setOrientation	(	const DtTaitBryan &	ori,
		DtTime	t
	)		`[virtual]`

Set absolute orientation.

Reimplemented from DtSmoother.

virtual void DtOldSmoother::setRotationalVelocity	(	const DtVector &	vel,
		DtTime	t
	)		`[virtual]`

Set/Get absolute rotational velocity.

Reimplemented from DtSmoother.

virtual void DtOldSmoother::setSmoothEnable ( bool on ) [virtual]

Set/Get the individual smoothing switch.

In order for smoothing to be enabled, the "master" smoothing-enabled switch must be on, AND the individual smoothing switch (accessed through these functions), must be on. Individual smoothing switch defaults to on.

Reimplemented from DtSmoother.

virtual void DtOldSmoother::setSmoothPeriod ( DtTime smoothPeriod ) [virtual]

Set/Get smoothing period - the amount of time over which smoothing takes place.

Pass a value of -1 to indicate use of the default smoothing period.

Reimplemented from DtSmoother.
