DtPointObjectTransaction Class Reference

class DtPointObjectTransaction: More...

Inheritance diagram for DtPointObjectTransaction:

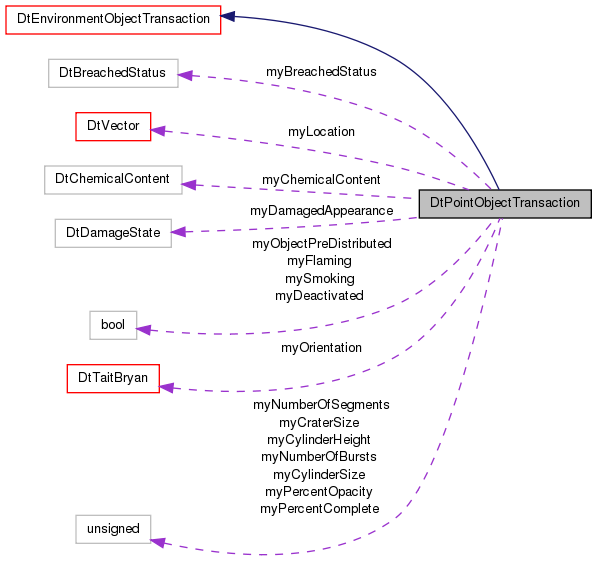

Collaboration diagram for DtPointObjectTransaction:

List of all members.

Public Member Functions
	DtPointObjectTransaction ()
	default constructor
virtual	~DtPointObjectTransaction ()
	destructor
	DtPointObjectTransaction (const DtPointObjectTransaction &orig)
	copy constructor
DtPointObjectTransaction &	operator= (const DtPointObjectTransaction &orig)
	assignment operator
virtual void	printData () const
	Print the interaction's data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream.
virtual void	setLocation (const DtVector &value)
	Set/Get Location.
virtual const DtVector &	location () const
virtual void	setOrientation (const DtTaitBryan &value)
	Set/Get Orientation.
virtual const DtTaitBryan &	orientation () const
virtual void	setPercentComplete (DtU32 value)
	Set/Get Percent Complete.
virtual DtU32	percentComplete () const
virtual void	setDamagedAppearance (DtDamageState value)
	Set/Get Damaged Appearance.
virtual DtDamageState	damagedAppearance () const
virtual void	setObjectPreDistributed (bool onOff)
	Set/Get Object PreDistributed.
virtual bool	objectPreDistributed () const
virtual void	setDeactivated (bool onOff)
	Set/Get Deactivated.
virtual bool	deactivated () const
virtual void	setSmoking (bool onOff)
	Set/Get Smoking.
virtual bool	smoking () const
virtual void	setFlaming (bool onOff)
	Set/Get Flaming.
virtual bool	flaming () const
virtual void	setBreachedStatus (DtBreachedStatus status)
	Set/Get Breached Status.
virtual DtBreachedStatus	breachedStatus () const
virtual void	setPercentOpacity (DtU32 value)
	Set/Get Percent Opacity.
virtual DtU32	percentOpacity () const
virtual void	setCylinderSize (DtU32 value)
	Set/Get Cylinder Size.
virtual DtU32	cylinderSize () const
virtual void	setCylinderHeight (DtU32 value)
	Set/Get Cylinder Height.
virtual DtU32	cylinderHeight () const
virtual void	setNumberOfBursts (DtU32 value)
	Set/Get Number Of Bursts.
virtual DtU32	numberOfBursts () const
virtual void	setChemicalContent (DtChemicalContent value)
	Set/Get Chemical Content.
virtual DtChemicalContent	chemicalContent () const
virtual void	setCraterSize (DtU32 size)
	Set/Get Crater Size.
virtual DtU32	craterSize () const
virtual void	setNumberOfSegments (DtU32 num)
	Set/Get Number of Segments.
virtual DtU32	numberOfSegments () const
virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.)
Static Public Member Functions
static DtInteraction *	create ()
	Create a DtEnvironmentObjectTransaction.
static void	addCallback (DtExerciseConn *conn, DtPointObjectTransactionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs.
static void	removeCallback (DtExerciseConn *conn, DtPointObjectTransactionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
Protected Attributes
DtVector	myLocation
	For All Point Object Transactions.
DtTaitBryan	myOrientation
DtU32	myPercentComplete
DtDamageState	myDamagedAppearance
bool	myObjectPreDistributed
bool	myDeactivated
bool	mySmoking
bool	myFlaming
DtBreachedStatus	myBreachedStatus
	For BreachablePointObjectTransactions.
DtU32	myPercentOpacity
	For BurstPointObjectTransactions.
DtU32	myCylinderSize
DtU32	myCylinderHeight
DtU32	myNumberOfBursts
DtChemicalContent	myChemicalContent
DtU32	myCraterSize
	For CraterObjectTransactions.
DtU32	myNumberOfSegments
	For RibbonBridgeObjectTransactions.

---

Detailed Description

class DtPointObjectTransaction:

Instances of DtPointObjectTransaction are used to represent Point Object Transactions in the RPR FOM.

---

Constructor & Destructor Documentation

DtPointObjectTransaction::DtPointObjectTransaction

(

)

default constructor

virtual DtPointObjectTransaction::~DtPointObjectTransaction

(

)

[virtual]

destructor

DtPointObjectTransaction::DtPointObjectTransaction

(

const DtPointObjectTransaction &

orig

)

copy constructor

---

Member Function Documentation

static void DtPointObjectTransaction::addCallback	(	DtExerciseConn *	conn,
		DtPointObjectTransactionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

Add (register)/Remove (deregister) function to be called when interaction occurs.

virtual DtBreachedStatus DtPointObjectTransaction::breachedStatus

(

)

const [virtual]

virtual DtChemicalContent DtPointObjectTransaction::chemicalContent

(

)

const [virtual]

virtual DtU32 DtPointObjectTransaction::craterSize

(

)

const [virtual]

static DtInteraction* DtPointObjectTransaction::create

(

)

[static]

Create a DtEnvironmentObjectTransaction.

Caller is responsible for deletion.

Reimplemented from DtEnvironmentObjectTransaction.

virtual DtU32 DtPointObjectTransaction::cylinderHeight

(

)

const [virtual]

virtual DtU32 DtPointObjectTransaction::cylinderSize

(

)

const [virtual]

virtual DtDamageState DtPointObjectTransaction::damagedAppearance

(

)

const [virtual]

virtual bool DtPointObjectTransaction::deactivated

(

)

const [virtual]

virtual bool DtPointObjectTransaction::flaming

(

)

const [virtual]

virtual const DtVector& DtPointObjectTransaction::location

(

)

const [virtual]

virtual const char* DtPointObjectTransaction::name

(

)

const [virtual]

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Reimplemented from DtEnvironmentObjectTransaction.

virtual DtU32 DtPointObjectTransaction::numberOfBursts

(

)

const [virtual]

virtual DtU32 DtPointObjectTransaction::numberOfSegments

(

)

const [virtual]

virtual bool DtPointObjectTransaction::objectPreDistributed

(

)

const [virtual]

DtPointObjectTransaction& DtPointObjectTransaction::operator=

(

const DtPointObjectTransaction &

orig

)

assignment operator

virtual const DtTaitBryan& DtPointObjectTransaction::orientation

(

)

const [virtual]

virtual DtU32 DtPointObjectTransaction::percentComplete

(

)

const [virtual]

virtual DtU32 DtPointObjectTransaction::percentOpacity

(

)

const [virtual]

virtual void DtPointObjectTransaction::printData

(

)

const [virtual]

Print the interaction's data to DtInfo.

Reimplemented from DtEnvironmentObjectTransaction.

virtual void DtPointObjectTransaction::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print the interaction's data to the specified stream.

Reimplemented from DtEnvironmentObjectTransaction.

static void DtPointObjectTransaction::removeCallback	(	DtExerciseConn *	conn,
		DtPointObjectTransactionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

virtual void DtPointObjectTransaction::setBreachedStatus

(

DtBreachedStatus

status

)

[virtual]

Set/Get Breached Status.

virtual void DtPointObjectTransaction::setChemicalContent

(

DtChemicalContent

value

)

[virtual]

Set/Get Chemical Content.

virtual void DtPointObjectTransaction::setCraterSize

(

DtU32

size

)

[virtual]

Set/Get Crater Size.

virtual void DtPointObjectTransaction::setCylinderHeight

(

DtU32

value

)

[virtual]

Set/Get Cylinder Height.

virtual void DtPointObjectTransaction::setCylinderSize

(

DtU32

value

)

[virtual]

Set/Get Cylinder Size.

virtual void DtPointObjectTransaction::setDamagedAppearance

(

DtDamageState

value

)

[virtual]

Set/Get Damaged Appearance.

virtual void DtPointObjectTransaction::setDeactivated

(

bool

onOff

)

[virtual]

Set/Get Deactivated.

virtual void DtPointObjectTransaction::setFlaming

(

bool

onOff

)

[virtual]

Set/Get Flaming.

virtual void DtPointObjectTransaction::setLocation

(

const DtVector &

value

)

[virtual]

Set/Get Location.

virtual void DtPointObjectTransaction::setNumberOfBursts

(

DtU32

value

)

[virtual]

Set/Get Number Of Bursts.

virtual void DtPointObjectTransaction::setNumberOfSegments

(

DtU32

num

)

[virtual]

Set/Get Number of Segments.

virtual void DtPointObjectTransaction::setObjectPreDistributed

(

bool

onOff

)

[virtual]

Set/Get Object PreDistributed.

virtual void DtPointObjectTransaction::setOrientation

(

const DtTaitBryan &

value

)

[virtual]

Set/Get Orientation.

virtual void DtPointObjectTransaction::setPercentComplete

(

DtU32

value

)

[virtual]

Set/Get Percent Complete.

virtual void DtPointObjectTransaction::setPercentOpacity

(

DtU32

value

)

[virtual]

Set/Get Percent Opacity.

virtual void DtPointObjectTransaction::setSmoking

(

bool

onOff

)

[virtual]

Set/Get Smoking.

virtual bool DtPointObjectTransaction::smoking

(

)

const [virtual]

---

Member Data Documentation

DtBreachedStatus DtPointObjectTransaction::myBreachedStatus [protected]

For BreachablePointObjectTransactions.

DtChemicalContent DtPointObjectTransaction::myChemicalContent [protected]

DtU32 DtPointObjectTransaction::myCraterSize [protected]

For CraterObjectTransactions.

DtU32 DtPointObjectTransaction::myCylinderHeight [protected]

DtU32 DtPointObjectTransaction::myCylinderSize [protected]

DtDamageState DtPointObjectTransaction::myDamagedAppearance [protected]

bool DtPointObjectTransaction::myDeactivated [protected]

bool DtPointObjectTransaction::myFlaming [protected]

DtVector DtPointObjectTransaction::myLocation [protected]

For All Point Object Transactions.

DtU32 DtPointObjectTransaction::myNumberOfBursts [protected]

DtU32 DtPointObjectTransaction::myNumberOfSegments [protected]

For RibbonBridgeObjectTransactions.

bool DtPointObjectTransaction::myObjectPreDistributed [protected]

DtTaitBryan DtPointObjectTransaction::myOrientation [protected]

DtU32 DtPointObjectTransaction::myPercentComplete [protected]

DtU32 DtPointObjectTransaction::myPercentOpacity [protected]

For BurstPointObjectTransactions.

bool DtPointObjectTransaction::mySmoking [protected]

---

The documentation for this class was generated from the following file:

• hPointObjTrans.h
