DtServiceRequestInteraction Class Reference

class DtServiceRequestInteraction: More...

Inheritance diagram for DtServiceRequestInteraction:

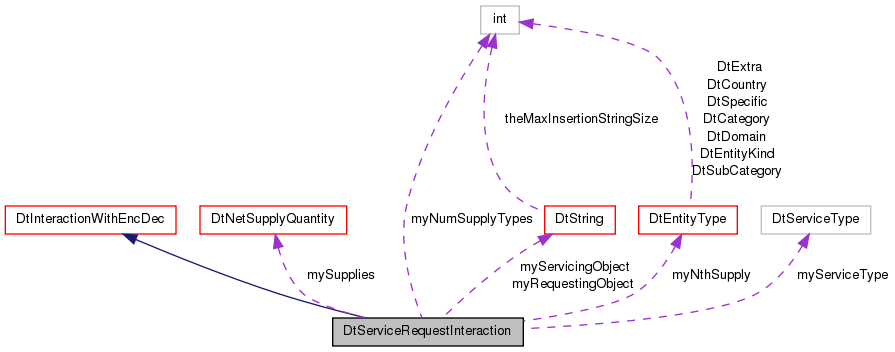

Collaboration diagram for DtServiceRequestInteraction:

List of all members.

Public Member Functions
	DtServiceRequestInteraction ()
	default constructor
virtual	~DtServiceRequestInteraction ()
	destructor
	DtServiceRequestInteraction (const DtServiceRequestInteraction &orig)
	copy constructor
DtServiceRequestInteraction &	operator= (const DtServiceRequestInteraction &orig)
	assignment operator
virtual void	printData () const
	Print the interaction's data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream.
virtual void	setRequestingId (const DtGlobalObjectDesignator &requester)
	Set/Get the receiving object.
virtual const DtGlobalObjectDesignator &	requestingId () const
virtual void	setServicingId (const DtGlobalObjectDesignator &servicer)
	Set/Get the repairing object.
virtual const DtGlobalObjectDesignator &	servicingId () const
virtual void	setServiceType (DtServiceType type)
	Set/Get the service type.
virtual DtServiceType	serviceType () const
virtual void	setSupplies (const void *data, int numBytes)
	Set/Get the supplies memory block all at once.
virtual const void *	supplies () const
virtual void	setNumSupplyTypes (int numTypes)
	Supporting functions to get/set the Supply Array.
virtual int	numSupplyTypes () const
virtual void	setNthSupply (int supplyIndex, const DtEntityType &supply, float quantity, int *retCode=NULL)
virtual const DtEntityType &	nthSupply (int supplyIndex, float *quantity=NULL, int *retCode=NULL) const
virtual float	supplyQuantity (const DtEntityType &supply) const
virtual void	changeSuppliesSize (int newSize)
virtual int	indexInBounds (int ind) const
virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.)
Static Public Member Functions
static DtInteraction *	create ()
	Create a DtServiceRequestInteraction.
static void	addCallback (DtExerciseConn *conn, DtServiceRequestInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs.
static void	removeCallback (DtExerciseConn *conn, DtServiceRequestInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
Protected Attributes
DtGlobalObjectDesignator	myRequestingObject
DtGlobalObjectDesignator	myServicingObject
DtServiceType	myServiceType
int	myNumSupplyTypes
DtNetSupplyQuantity *	mySupplies
DtEntityType	myNthSupply

---

Detailed Description

class DtServiceRequestInteraction:

Instances of DtServiceRequestInteraction are used to represent ServiceRequest Interactions in the RPR FOM.

---

Constructor & Destructor Documentation

DtServiceRequestInteraction::DtServiceRequestInteraction

(

)

default constructor

virtual DtServiceRequestInteraction::~DtServiceRequestInteraction

(

)

[virtual]

destructor

DtServiceRequestInteraction::DtServiceRequestInteraction

(

const DtServiceRequestInteraction &

orig

)

copy constructor

---

Member Function Documentation

static void DtServiceRequestInteraction::addCallback	(	DtExerciseConn *	conn,
		DtServiceRequestInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

Add (register)/Remove (deregister) function to be called when interaction occurs.

virtual void DtServiceRequestInteraction::changeSuppliesSize

(

int

newSize

)

[virtual]

static DtInteraction* DtServiceRequestInteraction::create

(

)

[static]

Create a DtServiceRequestInteraction.

Caller is responsible for deletion.

virtual int DtServiceRequestInteraction::indexInBounds

(

int

ind

)

const [virtual]

const char * DtServiceRequestInteraction::name

(

)

const [inline, virtual]

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Implements DtInteraction.

virtual const DtEntityType& DtServiceRequestInteraction::nthSupply	(	int	supplyIndex,
		float *	quantity = NULL,
		int *	retCode = NULL
	)		const [virtual]

virtual int DtServiceRequestInteraction::numSupplyTypes

(

)

const [virtual]

DtServiceRequestInteraction& DtServiceRequestInteraction::operator=

(

const DtServiceRequestInteraction &

orig

)

assignment operator

virtual void DtServiceRequestInteraction::printData

(

)

const [virtual]

Print the interaction's data to DtInfo.

Reimplemented from DtInteraction.

virtual void DtServiceRequestInteraction::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print the interaction's data to the specified stream.

Reimplemented from DtInteraction.

static void DtServiceRequestInteraction::removeCallback	(	DtExerciseConn *	conn,
		DtServiceRequestInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

const DtGlobalObjectDesignator & DtServiceRequestInteraction::requestingId

(

)

const [inline, virtual]

References myRequestingObject.

DtServiceType DtServiceRequestInteraction::serviceType

(

)

const [inline, virtual]

References myServiceType.

const DtGlobalObjectDesignator & DtServiceRequestInteraction::servicingId

(

)

const [inline, virtual]

References myServicingObject.

virtual void DtServiceRequestInteraction::setNthSupply	(	int	supplyIndex,
		const DtEntityType &	supply,
		float	quantity,
		int *	retCode = NULL
	)		[virtual]

virtual void DtServiceRequestInteraction::setNumSupplyTypes

(

int

numTypes

)

[virtual]

Supporting functions to get/set the Supply Array.

void DtServiceRequestInteraction::setRequestingId

(

const DtGlobalObjectDesignator &

requester

)

[inline, virtual]

Set/Get the receiving object.

References myRequestingObject.

void DtServiceRequestInteraction::setServiceType

(

DtServiceType

type

)

[inline, virtual]

Set/Get the service type.

References myServiceType.

void DtServiceRequestInteraction::setServicingId

(

const DtGlobalObjectDesignator &

servicer

)

[inline, virtual]

Set/Get the repairing object.

References myServicingObject.

virtual void DtServiceRequestInteraction::setSupplies	(	const void *	data,
		int	numBytes
	)		[virtual]

Set/Get the supplies memory block all at once.

virtual const void* DtServiceRequestInteraction::supplies

(

)

const [virtual]

virtual float DtServiceRequestInteraction::supplyQuantity

(

const DtEntityType &

supply

)

const [virtual]

---

Member Data Documentation

DtEntityType DtServiceRequestInteraction::myNthSupply [protected]

int DtServiceRequestInteraction::myNumSupplyTypes [protected]

DtGlobalObjectDesignator DtServiceRequestInteraction::myRequestingObject [protected]

Referenced by requestingId(), and setRequestingId().

DtServiceType DtServiceRequestInteraction::myServiceType [protected]

Referenced by serviceType(), and setServiceType().

DtGlobalObjectDesignator DtServiceRequestInteraction::myServicingObject [protected]

Referenced by servicingId(), and setServicingId().

DtNetSupplyQuantity* DtServiceRequestInteraction::mySupplies [protected]

---

The documentation for this class was generated from the following file:

• hServReqInter.h
