DtSetRecordInteraction Class Reference

Inheritance diagram for DtSetRecordInteraction:

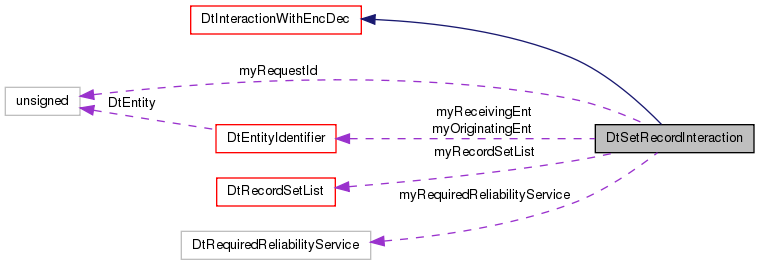

Collaboration diagram for DtSetRecordInteraction:

List of all members.

Public Member Functions
	DtSetRecordInteraction ()
	DtSetRecordInteraction (const DtSetRecordInteraction &other)
	copy Constructor
virtual	~DtSetRecordInteraction ()
	destructor
DtSetRecordInteraction &	operator= (const DtSetRecordInteraction &other)
	assignment operator
virtual void	printData () const
	Print out interaction's data.
virtual void	printDataToStream (std::ostream &stream) const
	Print out the interaction's data to a stream.
virtual void	setOriginatingEntityID (const DtEntityIdentifier &entity)
	Set/Get originator ID.
virtual const DtEntityIdentifier &	originatingEntityID () const
virtual void	setReceivingEntityID (const DtEntityIdentifier &entity)
	Set/Get receiver ID.
virtual const DtEntityIdentifier	receivingEntityID () const
virtual void	setRequestID (DtU32 id)
	Set/Get request ID.
virtual DtU32	requestID () const
virtual void	setReqRelService (enum DtRequiredReliabilityService service)
	Set/Get required reliability service.
virtual DtRequiredReliabilityService	reqRelService () const
virtual void	setNumRecordSets (DtU32 number)
	Set/Get the number of record sets in this list.
virtual DtU32	numRecordSets () const
virtual bool	setRecordSet (int index, const DtRecordSet &set)
	Set/Get the record set at the specified index.
virtual const DtRecordSet &	recordSet (int index, bool *valid=NULL)
virtual bool	getRecordSet (int index, DtRecordSet &recSet) const
	a separate Get Function For backwards compatibility
virtual const DtRecordSetList &	recordSetList () const
	They exist for the mapper to use for conversion to net data.
virtual DtRecordSetList *	recordSetList ()
virtual const char *	name () const
	name of the interaction.
Static Public Member Functions
static DtInteraction *	create ()
	Create a DtSetRecordInteraction.
static void	addCallback (DtExerciseConn *conn, DtSetRecordInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register) / remove (deregister) function to be called when interaction occurs.
static void	removeCallback (DtExerciseConn *conn, DtSetRecordInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
Protected Attributes
DtEntityIdentifier	myOriginatingEnt
DtEntityIdentifier	myReceivingEnt
DtU32	myRequestId
DtRequiredReliabilityService	myRequiredReliabilityService
DtRecordSetList	myRecordSetList

---

Constructor & Destructor Documentation

DtSetRecordInteraction::DtSetRecordInteraction

(

)

DtSetRecordInteraction::DtSetRecordInteraction

(

const DtSetRecordInteraction &

other

)

copy Constructor

virtual DtSetRecordInteraction::~DtSetRecordInteraction

(

)

[virtual]

destructor

---

Member Function Documentation

static void DtSetRecordInteraction::addCallback	(	DtExerciseConn *	conn,
		DtSetRecordInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

Add (register) / remove (deregister) function to be called when interaction occurs.

static DtInteraction* DtSetRecordInteraction::create

(

)

[static]

Create a DtSetRecordInteraction.

Caller is responsible for the deletion

virtual bool DtSetRecordInteraction::getRecordSet	(	int	index,
		DtRecordSet &	recSet
	)		const [virtual]

a separate Get Function For backwards compatibility

const char * DtSetRecordInteraction::name

(

)

const [inline, virtual]

name of the interaction.

(Not necessarily the ClassName from the FOM)

Implements DtInteraction.

virtual DtU32 DtSetRecordInteraction::numRecordSets

(

)

const [virtual]

DtSetRecordInteraction& DtSetRecordInteraction::operator=

(

const DtSetRecordInteraction &

other

)

assignment operator

const DtEntityIdentifier & DtSetRecordInteraction::originatingEntityID

(

)

const [inline, virtual]

References myOriginatingEnt.

virtual void DtSetRecordInteraction::printData

(

)

const [virtual]

Print out interaction's data.

Reimplemented from DtInteraction.

virtual void DtSetRecordInteraction::printDataToStream

(

std::ostream &

stream

)

const [virtual]

Print out the interaction's data to a stream.

Reimplemented from DtInteraction.

const DtEntityIdentifier DtSetRecordInteraction::receivingEntityID

(

)

const [inline, virtual]

References myReceivingEnt.

virtual const DtRecordSet& DtSetRecordInteraction::recordSet	(	int	index,
		bool *	valid = NULL
	)		[virtual]

const DtRecordSetList & DtSetRecordInteraction::recordSetList

(

)

const [inline, virtual]

They exist for the mapper to use for conversion to net data.

References myRecordSetList.

DtRecordSetList * DtSetRecordInteraction::recordSetList

(

)

[inline, virtual]

References myRecordSetList.

static void DtSetRecordInteraction::removeCallback	(	DtExerciseConn *	conn,
		DtSetRecordInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = DtDDMRegionSP()
	)		[static]

DtRequiredReliabilityService DtSetRecordInteraction::reqRelService

(

)

const [inline, virtual]

References myRequiredReliabilityService.

DtU32 DtSetRecordInteraction::requestID

(

)

const [inline, virtual]

References myRequestId.

virtual void DtSetRecordInteraction::setNumRecordSets

(

DtU32

number

)

[virtual]

Set/Get the number of record sets in this list.

When the number of record sets are changed, old records are not preserved.

void DtSetRecordInteraction::setOriginatingEntityID

(

const DtEntityIdentifier &

entity

)

[inline, virtual]

Set/Get originator ID.

void DtSetRecordInteraction::setReceivingEntityID

(

const DtEntityIdentifier &

entity

)

[inline, virtual]

Set/Get receiver ID.

References myReceivingEnt.

virtual bool DtSetRecordInteraction::setRecordSet	(	int	index,
		const DtRecordSet &	set
	)		[virtual]

Set/Get the record set at the specified index.

RecordSetPDU used getRecordSet, here we use recordSet

void DtSetRecordInteraction::setReqRelService

(

enum DtRequiredReliabilityService

service

)

[inline, virtual]

Set/Get required reliability service.

References myRequiredReliabilityService.

void DtSetRecordInteraction::setRequestID

(

DtU32

id

)

[inline, virtual]

Set/Get request ID.

References myRequestId.

---

Member Data Documentation

DtEntityIdentifier DtSetRecordInteraction::myOriginatingEnt [protected]

Referenced by originatingEntityID().

DtEntityIdentifier DtSetRecordInteraction::myReceivingEnt [protected]

Referenced by receivingEntityID(), and setReceivingEntityID().

DtRecordSetList DtSetRecordInteraction::myRecordSetList [protected]

Referenced by recordSetList().

DtU32 DtSetRecordInteraction::myRequestId [protected]

Referenced by requestID(), and setRequestID().

DtRequiredReliabilityService DtSetRecordInteraction::myRequiredReliabilityService [protected]

Referenced by reqRelService(), and setReqRelService().

---

The documentation for this class was generated from the following file:

• hSetRecordInter.h
