DtAggregateStatePdu Class Reference

Instances of DtAggregateStatePdu are used to communicate information about aggregating entities. More...

Inheritance diagram for DtAggregateStatePdu:

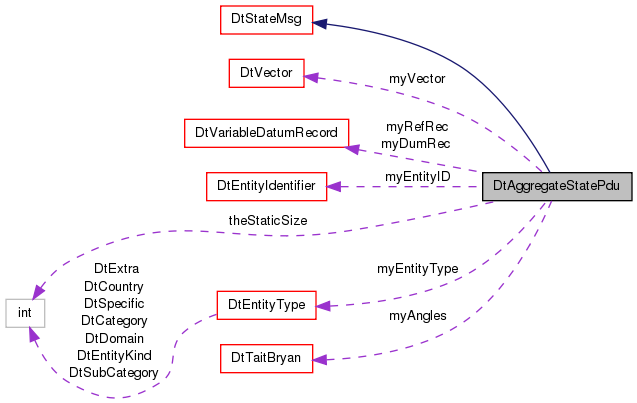

Collaboration diagram for DtAggregateStatePdu:

Public Member Functions
	DtAggregateStatePdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors.
	DtAggregateStatePdu (const DtNetAggregateStatePdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtAggregateStatePdu (const DtAggregateStatePdu &orig)
virtual	~DtAggregateStatePdu ()
	destructor
DtAggregateStatePdu &	operator= (const DtAggregateStatePdu &orig)
	Assignment operator.
virtual void	setAggregateID (const DtEntityIdentifier &entity)
	Set/Get aggregate entity identifier.
virtual const DtEntityIdentifier &	aggregateID () const
virtual void	setForceID (DtForceType force)
	Set/Get the force ID.
virtual DtForceType	forceID () const
virtual void	setAggregateState (DtAggregateState value)
	Set/Get the aggregate state.
virtual DtAggregateState	aggregateState () const
virtual void	setAggregateType (const DtEntityType &type)
	Set/Get the aggregate type.
virtual const DtEntityType &	aggregateType () const
virtual void	setFormation (DtAggregateFormation value)
	Set/Get the formation.
virtual DtAggregateFormation	formation () const
virtual void	setMarkingCharacterSet (DtCharacterSet value)
	Set/Get marking character set.
virtual DtCharacterSet	markingCharacterSet () const
virtual void	setMarkingText (DtU8 *copyFrom)
	Set/Get marking text (copies 31 bytes).
virtual void	getMarkingText (DtU8 *copyTo) const
virtual void	setDimensions (const DtVector &dims)
	Set/Get the dimensions.
virtual const DtVector &	dimensions () const
virtual void	setOrientation (const DtTaitBryan &orientation)
	Set/Get orientation.
virtual const DtTaitBryan &	orientation () const
virtual void	setLocation (const DtVector &coords)
	Set/Get the location of center of mass.
virtual const DtVector &	location () const
virtual void	setVelocity (const DtVector &coords)
	Set/Get the velocity.
virtual const DtVector &	velocity () const
virtual bool	setNumberOfDIS_Subaggregates (DtU16 newNumberOfAggregates)
	Set/Get the number of DIS sub-aggregates.
virtual DtU16	numberOfDIS_Subaggregates () const
virtual bool	setNumberOfDIS_Entities (DtU16 newNumberOfEntities)
	Set/Get the number of DIS entities.
virtual DtU16	numberOfDIS_Entities () const
virtual bool	setNumberOfSilentSubaggregates (DtU16 newNumberOfAggregates)
	Set/Get the number of silent aggregates.
virtual DtU16	numberOfSilentSubaggregates () const
virtual bool	setNumberOfSilentEntities (DtU16 newNumberOfEntities)
	Set/Get the number of silent entities.
virtual DtU16	numberOfSilentEntities () const
virtual bool	setSubaggregateID (int index, const DtEntityIdentifier &aggID)
	Set/Get a DIS sub-aggregate ID.
virtual bool	getSubaggregateID (int index, DtEntityIdentifier &aggID) const
virtual bool	setEntityID (int index, const DtEntityIdentifier &entID)
	Set/Get a DIS entity ID. Returns false if the index is invalid.
virtual bool	getEntityID (int index, DtEntityIdentifier &entID) const
virtual bool	setSilentAggregateList (int index, const DtSilentAggregateList &aggList)
	Set/Get a silent aggregate list.
virtual bool	getSilentAggregateList (int index, DtSilentAggregateList &aggList) const
virtual bool	setSilentEntityList (int index, const DtSilentEntityList &entList)
	Set/Get a silent entity list.
virtual bool	getSilentEntityList (int index, DtSilentEntityList &entList) const
virtual bool	setNumberOfDatumRecords (DtU32 newNumberOfRecords)
	Set/Get the number of datum records.
virtual DtU32	numberOfDatumRecords () const
virtual bool	setVariableDatumRecord (int index, const DtVariableDatumRecord &rec)
	Set/Get a variable datum record.
virtual bool	getVariableDatumRecord (int index, DtVariableDatumRecord &rec) const
virtual const DtVariableDatumRecord &	variableDatumRecordConstRef (int index) const
	Get a constant reference to a variable datum record.
virtual void	printData () const
	Print the data contained by this PDU.
virtual void	printDataToStream (std::ostream &stream) const
	Print the data to a stream.
virtual bool	setDatumBitLength (int index, DtU32 newRecordBitLength)
	WARNING: These methods are obsolete but have been retained for backward compatibility.
virtual bool	getDatumBitLength (int index, DtU32 &length) const
virtual bool	setDatumID (int index, DtDatumParam value)
	Set/Get the variable datum ID.
virtual bool	getDatumID (int index, DtDatumParam &value) const
virtual bool	setDatumValFloat64 (int index, DtFloat64 value)
	Set/Get datum value as a DtFloat64.
virtual bool	getDatumValFloat64 (int index, DtFloat64 &value) const
virtual bool	setDatumValFloat32 (int index, DtFloat32 value)
	Set/Get datum value as a DtFloat32.
virtual bool	getDatumValFloat32 (int index, DtFloat32 &value) const
virtual bool	setDatumValInt32 (int index, DtInt32 value)
	Set/Get datum value as a DtInt32.
virtual bool	getDatumValInt32 (int index, DtInt32 &value) const
virtual bool	setDatumValU32 (int index, DtU32 value)
	Set/Get datum value as a DtU32.
virtual bool	getDatumValU32 (int index, DtU32 &value) const
virtual bool	setDatumValInt16 (int index, DtInt16 value)
	Set/Get datum value as a DtInt16.
virtual bool	getDatumValInt16 (int index, DtInt16 &value) const
virtual bool	setDatumValU16 (int index, DtU16 value)
	Set/Get datum value as a DtU16.
virtual bool	getDatumValU16 (int index, DtU16 &value) const
virtual bool	setDatumValU8 (int index, DtU8 value)
	Set/Get datum value as a DtU8.
virtual bool	getDatumValU8 (int index, DtU8 &value) const
virtual bool	setDatumValByteArray (int index, const DtU8 *setFrom)
	Set/Get datum value as a byte array.
virtual bool	getDatumValByteArray (int index, DtU8 *copyTo) const
virtual bool	getDatumValPtr (int index, DtNetU8 *&datumPtr)
	Get a pointer to datum value. Returns false if the index is invalid.
Public Member Functions inherited from DtStateMsg
	DtStateMsg ()
	default constructor
virtual	~DtStateMsg ()
	destructor
	DtStateMsg (const DtStateMsg &orig)
	copy constructor
DtStateMsg &	operator= (const DtStateMsg &orig)
	assignment operator
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor.
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator.
virtual void *	packet () const
	Older function that returns a pointer to the network representation.
virtual int	status () const
	Get PDU status.
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header.
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header.
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header.
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header.
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type.
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header.
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo).
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU by calling printHeaderToStream and printDataToStream.
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo).
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream.
virtual void	printDataToString (DtString &str) const
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor.
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment.
virtual const char *	netRep () const
	Get network representation.
virtual int	length () const
	Get size of message.

Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Create a DtAggregateStatePdu.
static void	addCallback (DtExerciseConn *conn, DtAggregateStatePduCb cb, void *usr)
	Add (register)/Remove (deregister) function to be called when pdu is received.
static void	removeCallback (DtExerciseConn *conn, DtAggregateStatePduCb cb, void *usr)

Protected Member Functions
virtual DtPduKind	internalGetPduKind () const
	Returns the internal PDU kind.
virtual DtNetAggregateStatePdu *	netPduStruct () const
	Casts the netPdu element to our network struct.
DtAggregateStatePdu *	self () const
	Casts the 'this' pointer for changing elements in a const function.
virtual char *	var () const
	Returns a pointer to the first byte of variable length data.
virtual int	subaggregateID_Offset (int index) const
	Returns an offset from the beginning of variable length data to a particular subaggregate ID.
virtual int	entityID_Offset (int index) const
	Returns an offset from the beginning of variable length data to a particular entity ID.
virtual int	paddingOffset () const
	Returns an offset from the beginning of variable length data to the padding following the entity ID records.
virtual int	paddingBytes () const
	Returns the number of padding bytes which must follow the entity ID records.
virtual int	silentAggregateOffset (int index) const
	Returns an offset from the beginning of variable length data to a particular silent aggregate list.
virtual int	silentEntityOffset (int index) const
	Returns an offset from the beginning of variable length data to a particular silent entity system list.
virtual int	numberOfDatumRecordsOffset () const
	Returns an offset from the beginning of variable length data to the number of variable datum records field.
virtual int	datumRecordOffset (int index) const
	Returns an offset from the beginning of variable length data to a particular variable datum record.

Protected Attributes
DtEntityIdentifier	myEntityID
	Temporary objects for reference returns.
DtEntityType	myEntityType
DtVector	myVector
DtTaitBryan	myAngles
DtVariableDatumRecord	myRefRec
DtVariableDatumRecord	myDumRec

Static Protected Attributes
static const int	theStaticSize
	Size of PDU with zero data bytes.

Detailed Description

Instances of DtAggregateStatePdu are used to communicate information about aggregating entities.

Constructor & Destructor Documentation

DtAggregateStatePdu::DtAggregateStatePdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

Constructors.

DtAggregateStatePdu::DtAggregateStatePdu	(	const DtNetAggregateStatePdu *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

DtAggregateStatePdu::DtAggregateStatePdu

(

const DtAggregateStatePdu &

orig

)

virtual DtAggregateStatePdu::~DtAggregateStatePdu ( )

virtual

destructor

Member Function Documentation

static void DtAggregateStatePdu::addCallback ( DtExerciseConn *  conn, DtAggregateStatePduCb  cb, void *  usr  )

static

Add (register)/Remove (deregister) function to be called when pdu is received.

virtual const DtEntityIdentifier& DtAggregateStatePdu::aggregateID ( ) const

virtual

virtual DtAggregateState DtAggregateStatePdu::aggregateState ( ) const

virtual

virtual const DtEntityType& DtAggregateStatePdu::aggregateType ( ) const

virtual

static DtPdu* DtAggregateStatePdu::create ( const DtNetPacket *  initial, DtBufferPtr  buffer = DtUSE_INTERNAL_BUFFER  )

static

Create a DtAggregateStatePdu.

Caller is reponsible for deletion.

virtual int DtAggregateStatePdu::datumRecordOffset ( int  index ) const

protectedvirtual

Returns an offset from the beginning of variable length data to a particular variable datum record.

virtual const DtVector& DtAggregateStatePdu::dimensions ( ) const

virtual

virtual int DtAggregateStatePdu::entityID_Offset ( int  index ) const

protectedvirtual

Returns an offset from the beginning of variable length data to a particular entity ID.

virtual DtForceType DtAggregateStatePdu::forceID ( ) const

virtual

virtual DtAggregateFormation DtAggregateStatePdu::formation ( ) const

virtual

virtual bool DtAggregateStatePdu::getDatumBitLength ( int  index, DtU32 &  length  ) const

virtual

virtual bool DtAggregateStatePdu::getDatumID ( int  index, DtDatumParam &  value  ) const

virtual

virtual bool DtAggregateStatePdu::getDatumValByteArray ( int  index, DtU8 *  copyTo  ) const

virtual

virtual bool DtAggregateStatePdu::getDatumValFloat32 ( int  index, DtFloat32 &  value  ) const

virtual

virtual bool DtAggregateStatePdu::getDatumValFloat64 ( int  index, DtFloat64 &  value  ) const

virtual

virtual bool DtAggregateStatePdu::getDatumValInt16 ( int  index, DtInt16 &  value  ) const

virtual

virtual bool DtAggregateStatePdu::getDatumValInt32 ( int  index, DtInt32 &  value  ) const

virtual

virtual bool DtAggregateStatePdu::getDatumValPtr ( int  index, DtNetU8 *&  datumPtr  )

virtual

Get a pointer to datum value. Returns false if the index is invalid.

virtual bool DtAggregateStatePdu::getDatumValU16 ( int  index, DtU16 &  value  ) const

virtual

virtual bool DtAggregateStatePdu::getDatumValU32 ( int  index, DtU32 &  value  ) const

virtual

virtual bool DtAggregateStatePdu::getDatumValU8 ( int  index, DtU8 &  value  ) const

virtual

virtual bool DtAggregateStatePdu::getEntityID ( int  index, DtEntityIdentifier &  entID  ) const

virtual

virtual void DtAggregateStatePdu::getMarkingText ( DtU8 *  copyTo ) const

virtual

virtual bool DtAggregateStatePdu::getSilentAggregateList ( int  index, DtSilentAggregateList &  aggList  ) const

virtual

virtual bool DtAggregateStatePdu::getSilentEntityList ( int  index, DtSilentEntityList &  entList  ) const

virtual

virtual bool DtAggregateStatePdu::getSubaggregateID ( int  index, DtEntityIdentifier &  aggID  ) const

virtual

virtual bool DtAggregateStatePdu::getVariableDatumRecord ( int  index, DtVariableDatumRecord &  rec  ) const

virtual

virtual DtPduKind DtAggregateStatePdu::internalGetPduKind ( ) const

protectedvirtual

Returns the internal PDU kind.

Implements DtPdu.

virtual const DtVector& DtAggregateStatePdu::location ( ) const

virtual

virtual DtCharacterSet DtAggregateStatePdu::markingCharacterSet ( ) const

virtual

virtual DtNetAggregateStatePdu* DtAggregateStatePdu::netPduStruct ( ) const

protectedvirtual

Casts the netPdu element to our network struct.

Non-virtual since you can't override based on return type.

virtual DtU32 DtAggregateStatePdu::numberOfDatumRecords ( ) const

virtual

virtual int DtAggregateStatePdu::numberOfDatumRecordsOffset ( ) const

protectedvirtual

Returns an offset from the beginning of variable length data to the number of variable datum records field.

virtual DtU16 DtAggregateStatePdu::numberOfDIS_Entities ( ) const

virtual

virtual DtU16 DtAggregateStatePdu::numberOfDIS_Subaggregates ( ) const

virtual

virtual DtU16 DtAggregateStatePdu::numberOfSilentEntities ( ) const

virtual

virtual DtU16 DtAggregateStatePdu::numberOfSilentSubaggregates ( ) const

virtual

DtAggregateStatePdu& DtAggregateStatePdu::operator=

(

const DtAggregateStatePdu &

orig

)

Assignment operator.

virtual const DtTaitBryan& DtAggregateStatePdu::orientation ( ) const

virtual

virtual int DtAggregateStatePdu::paddingBytes ( ) const

protectedvirtual

Returns the number of padding bytes which must follow the entity ID records.

virtual int DtAggregateStatePdu::paddingOffset ( ) const

protectedvirtual

Returns an offset from the beginning of variable length data to the padding following the entity ID records.

virtual void DtAggregateStatePdu::printData ( ) const

virtual

Print the data contained by this PDU.

Reimplemented from DtPdu.

virtual void DtAggregateStatePdu::printDataToStream ( std::ostream &  stream ) const

virtual

Print the data to a stream.

Reimplemented from DtPdu.

static void DtAggregateStatePdu::removeCallback ( DtExerciseConn *  conn, DtAggregateStatePduCb  cb, void *  usr  )

static

DtAggregateStatePdu* DtAggregateStatePdu::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

Non virtual since you can't override based on return type.

virtual void DtAggregateStatePdu::setAggregateID ( const DtEntityIdentifier &  entity )

virtual

Set/Get aggregate entity identifier.

virtual void DtAggregateStatePdu::setAggregateState ( DtAggregateState  value )

virtual

Set/Get the aggregate state.

virtual void DtAggregateStatePdu::setAggregateType ( const DtEntityType &  type )

virtual

Set/Get the aggregate type.

virtual bool DtAggregateStatePdu::setDatumBitLength ( int  index, DtU32  newRecordBitLength  )

virtual

WARNING: These methods are obsolete but have been retained for backward compatibility.

These methods may be removed in a future release. Instead, the methods setVariableDatumRecord, getVariableDatumRecord, and variableDatumRecordConstRef should be used. Set/Get the datum length (in bits). Returns false if the index is invalid. Set may destroy data in the record.

virtual bool DtAggregateStatePdu::setDatumID ( int  index, DtDatumParam  value  )

virtual

Set/Get the variable datum ID.

Returns false if the index is invalid.

virtual bool DtAggregateStatePdu::setDatumValByteArray ( int  index, const DtU8 *  setFrom  )

virtual

Set/Get datum value as a byte array.

Returns false if the index is invalid. Data is copied to and from the network PDU structure according to the datum length of the record.

virtual bool DtAggregateStatePdu::setDatumValFloat32 ( int  index, DtFloat32  value  )

virtual

Set/Get datum value as a DtFloat32.

Returns false if the index is invalid or if the field length is not 32 bits.

virtual bool DtAggregateStatePdu::setDatumValFloat64 ( int  index, DtFloat64  value  )

virtual

Set/Get datum value as a DtFloat64.

Returns false if the index is invalid or if the field length is not 64 bits.

virtual bool DtAggregateStatePdu::setDatumValInt16 ( int  index, DtInt16  value  )

virtual

Set/Get datum value as a DtInt16.

Returns false if the index is invalid or if the field length is not 16 bits.

virtual bool DtAggregateStatePdu::setDatumValInt32 ( int  index, DtInt32  value  )

virtual

Set/Get datum value as a DtInt32.

Returns false if the index is invalid or if the field length is not 32 bits.

virtual bool DtAggregateStatePdu::setDatumValU16 ( int  index, DtU16  value  )

virtual

Set/Get datum value as a DtU16.

Returns false if the index is invalid or if the field length is not 16 bits.

virtual bool DtAggregateStatePdu::setDatumValU32 ( int  index, DtU32  value  )

virtual

Set/Get datum value as a DtU32.

Returns false if the index is invalid or if the field length is not 32 bits.

virtual bool DtAggregateStatePdu::setDatumValU8 ( int  index, DtU8  value  )

virtual

Set/Get datum value as a DtU8.

Returns false if the index is invalid or if the field length is not 8 bits.

virtual void DtAggregateStatePdu::setDimensions ( const DtVector &  dims )

virtual

Set/Get the dimensions.

virtual bool DtAggregateStatePdu::setEntityID ( int  index, const DtEntityIdentifier &  entID  )

virtual

Set/Get a DIS entity ID. Returns false if the index is invalid.

virtual void DtAggregateStatePdu::setForceID ( DtForceType  force )

virtual

Set/Get the force ID.

virtual void DtAggregateStatePdu::setFormation ( DtAggregateFormation  value )

virtual

Set/Get the formation.

virtual void DtAggregateStatePdu::setLocation ( const DtVector &  coords )

virtual

Set/Get the location of center of mass.

virtual void DtAggregateStatePdu::setMarkingCharacterSet ( DtCharacterSet  value )

virtual

Set/Get marking character set.

virtual void DtAggregateStatePdu::setMarkingText ( DtU8 *  copyFrom )

virtual

Set/Get marking text (copies 31 bytes).

virtual bool DtAggregateStatePdu::setNumberOfDatumRecords ( DtU32  newNumberOfRecords )

virtual

Set/Get the number of datum records.

Set returns false if the requested number is too large.

virtual bool DtAggregateStatePdu::setNumberOfDIS_Entities ( DtU16  newNumberOfEntities )

virtual

Set/Get the number of DIS entities.

Set returns false if the requested number is too large.

virtual bool DtAggregateStatePdu::setNumberOfDIS_Subaggregates ( DtU16  newNumberOfAggregates )

virtual

Set/Get the number of DIS sub-aggregates.

Set returns false if the requested number is too large.

virtual bool DtAggregateStatePdu::setNumberOfSilentEntities ( DtU16  newNumberOfEntities )

virtual

Set/Get the number of silent entities.

Set returns false if the requested number is too large.

virtual bool DtAggregateStatePdu::setNumberOfSilentSubaggregates ( DtU16  newNumberOfAggregates )

virtual

Set/Get the number of silent aggregates.

Set returns false if the requested number is too large.

virtual void DtAggregateStatePdu::setOrientation ( const DtTaitBryan &  orientation )

virtual

Set/Get orientation.

virtual bool DtAggregateStatePdu::setSilentAggregateList ( int  index, const DtSilentAggregateList &  aggList  )

virtual

Set/Get a silent aggregate list.

Returns false if the index is invalid.

virtual bool DtAggregateStatePdu::setSilentEntityList ( int  index, const DtSilentEntityList &  entList  )

virtual

Set/Get a silent entity list.

Returns false if the index is invalid.

virtual bool DtAggregateStatePdu::setSubaggregateID ( int  index, const DtEntityIdentifier &  aggID  )

virtual

Set/Get a DIS sub-aggregate ID.

Returns false if the index is invalid.

virtual bool DtAggregateStatePdu::setVariableDatumRecord ( int  index, const DtVariableDatumRecord &  rec  )

virtual

Set/Get a variable datum record.

Returns false if the index is invalid.

virtual void DtAggregateStatePdu::setVelocity ( const DtVector &  coords )

virtual

Set/Get the velocity.

virtual int DtAggregateStatePdu::silentAggregateOffset ( int  index ) const

protectedvirtual

Returns an offset from the beginning of variable length data to a particular silent aggregate list.

virtual int DtAggregateStatePdu::silentEntityOffset ( int  index ) const

protectedvirtual

Returns an offset from the beginning of variable length data to a particular silent entity system list.

virtual int DtAggregateStatePdu::subaggregateID_Offset ( int  index ) const

protectedvirtual

Returns an offset from the beginning of variable length data to a particular subaggregate ID.

virtual char* DtAggregateStatePdu::var ( ) const

protectedvirtual

Returns a pointer to the first byte of variable length data.

virtual const DtVariableDatumRecord& DtAggregateStatePdu::variableDatumRecordConstRef ( int  index ) const

virtual

Get a constant reference to a variable datum record.

virtual const DtVector& DtAggregateStatePdu::velocity ( ) const

virtual

Member Data Documentation

DtTaitBryan DtAggregateStatePdu::myAngles

protected

DtVariableDatumRecord DtAggregateStatePdu::myDumRec

protected

DtEntityIdentifier DtAggregateStatePdu::myEntityID

protected

Temporary objects for reference returns.

DtEntityType DtAggregateStatePdu::myEntityType

protected

DtVariableDatumRecord DtAggregateStatePdu::myRefRec

protected

DtVector DtAggregateStatePdu::myVector

protected

const int DtAggregateStatePdu::theStaticSize

staticprotected

Size of PDU with zero data bytes.

---

The documentation for this class was generated from the following file:

• aggStatePdu.h
