DtEmitterSystemStateEncoder Class Reference

Instances of DtEmitterSystemStateEncoder are used to take state information from a DtEmitterSystemRepository and place it into an electromagnetic emissions PDU. More...

Inheritance diagram for DtEmitterSystemStateEncoder:

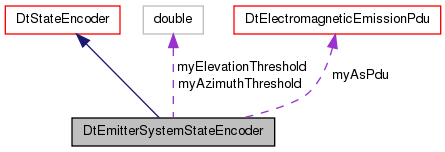

Collaboration diagram for DtEmitterSystemStateEncoder:

Public Member Functions
	DtEmitterSystemStateEncoder ()
	Default constructor.
virtual	~DtEmitterSystemStateEncoder ()
	Destructor.
	DtEmitterSystemStateEncoder (const DtEmitterSystemStateEncoder &orig)
	Copy constructor.
DtEmitterSystemStateEncoder &	operator= (const DtEmitterSystemStateEncoder &orig)
	Assignment operator.
virtual DtElectromagneticEmissionPdu *	stateMsg (const DtEmitterSystemRepository &stateRep, const DtEmitterSystemRepository &asSeenByRemote)
	Constructs a PDU from the state repository.
virtual void	setAzimuthThreshold (double threshold)
	Set the azimuth threshold.
virtual double	azimuthThreshold () const
	Returns the azimuth threshold (in radians).
virtual void	setElevationThreshold (double threshold)
	Set the elevation threshold.
virtual double	elevationThreshold () const
	Returns the elevation threshold (in radians).
Public Member Functions inherited from DtStateEncoder
	DtStateEncoder ()
	Default constructor.
virtual	~DtStateEncoder ()
	Destructor.
	DtStateEncoder (const DtStateEncoder &orig)
	Copy constructor.
DtStateEncoder &	operator= (const DtStateEncoder &orig)
	Assignment operator.
void	setSendNeeded ()
	Sets myForceSendNeeded to true.

Protected Member Functions
virtual bool	sendNeeded (const DtEmitterSystemRepository &stateRep, const DtEmitterSystemRepository &asSeenByRemote)
	Determine if a state message needs to be sent.
virtual void	fillOut (const DtEmitterSystemRepository &stateRep, const DtEmitterSystemRepository &asSeenByRemote, DtElectromagneticEmissionPdu *pdu)
	Fill out a state message which reflects a state repository.

Protected Attributes
DtElectromagneticEmissionPdu	myAsPdu
double	myAzimuthThreshold
double	myElevationThreshold
Protected Attributes inherited from DtStateEncoder
bool	myForceSendNeeded

Detailed Description

Instances of DtEmitterSystemStateEncoder are used to take state information from a DtEmitterSystemRepository and place it into an electromagnetic emissions PDU.

Constructor & Destructor Documentation

DtEmitterSystemStateEncoder::DtEmitterSystemStateEncoder

(

)

Default constructor.

virtual DtEmitterSystemStateEncoder::~DtEmitterSystemStateEncoder ( )

virtual

Destructor.

DtEmitterSystemStateEncoder::DtEmitterSystemStateEncoder

(

const DtEmitterSystemStateEncoder &

orig

)

Copy constructor.

Member Function Documentation

virtual double DtEmitterSystemStateEncoder::azimuthThreshold ( ) const

virtual

Returns the azimuth threshold (in radians).

virtual double DtEmitterSystemStateEncoder::elevationThreshold ( ) const

virtual

Returns the elevation threshold (in radians).

virtual void DtEmitterSystemStateEncoder::fillOut ( const DtEmitterSystemRepository &  stateRep, const DtEmitterSystemRepository &  asSeenByRemote, DtElectromagneticEmissionPdu *  pdu  )

protectedvirtual

Fill out a state message which reflects a state repository.

DtEmitterSystemStateEncoder& DtEmitterSystemStateEncoder::operator=

(

const DtEmitterSystemStateEncoder &

orig

)

Assignment operator.

virtual bool DtEmitterSystemStateEncoder::sendNeeded ( const DtEmitterSystemRepository &  stateRep, const DtEmitterSystemRepository &  asSeenByRemote  )

protectedvirtual

Determine if a state message needs to be sent.

virtual void DtEmitterSystemStateEncoder::setAzimuthThreshold ( double  threshold )

virtual

Set the azimuth threshold.

Defaulted to 1 degree. threshold Threshold in radians.

virtual void DtEmitterSystemStateEncoder::setElevationThreshold ( double  threshold )

virtual

Set the elevation threshold.

Defaulted to 1 degree. threshold Threshold in radians.

virtual DtElectromagneticEmissionPdu* DtEmitterSystemStateEncoder::stateMsg ( const DtEmitterSystemRepository &  stateRep, const DtEmitterSystemRepository &  asSeenByRemote  )

virtual

Constructs a PDU from the state repository.

stateMsg determines whether an Electromagnetic Emission PDU needs to be sent and constructs one of it does.

Returns

PDU if send is needed, and NULL if not

Member Data Documentation

DtElectromagneticEmissionPdu DtEmitterSystemStateEncoder::myAsPdu

protected

double DtEmitterSystemStateEncoder::myAzimuthThreshold

protected

double DtEmitterSystemStateEncoder::myElevationThreshold

protected

---

The documentation for this class was generated from the following file:

• dEmittrSysEnc.h
