This class provides a wrapper around the DIS Entity State PDU network structure. More...

Inheritance diagram for DtEntityStatePdu:

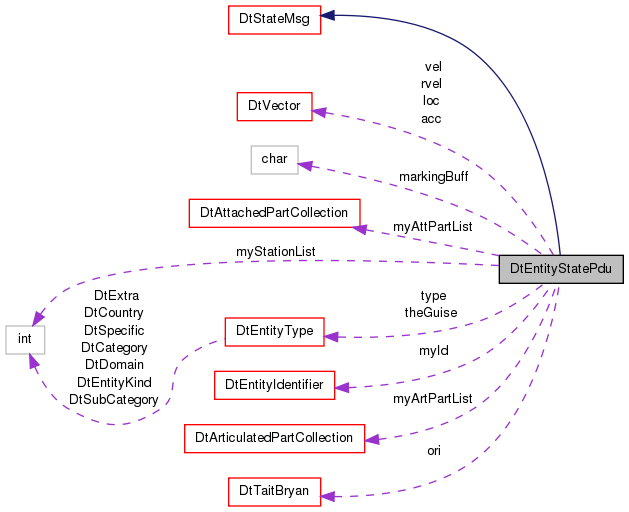

Collaboration diagram for DtEntityStatePdu:

Public Types
enum	{ PduStaticSize = 144 }

Public Member Functions
	DtEntityStatePdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtEntityStatePdu (const DtNetEntityStatePdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	CTOR for constructing the pdu using an existing net rep.
	DtEntityStatePdu (const DtEntityIdentifier &id, const DtEntityType &type, const DtEntityType &guise, DtDeadReckonTypes algorithm, DtForceType forceId, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	CTOR for creating a new Entity state pdu.
virtual	~DtEntityStatePdu ()
	DTOR.
const DtEntityIdentifier &	id () const
void	setId (const DtEntityIdentifier &id)
DtForceType	forceId () const
void	setForceId (DtForceType force)
int	numArtParams () const
int	numAttachedParams () const
int	numArtPlusAttachedParams () const
const DtEntityType &	entityType () const
void	setEntityType (const DtEntityType &type)
const DtEntityType &	guise () const
void	setGuise (const DtEntityType &type)
const DtVector &	velocity () const
void	setVelocity (const DtVector &Velocity)
const DtVector &	location () const
void	setLocation (const DtVector &Location)
const DtTaitBryan &	orientation () const
void	setOrientation (const DtTaitBryan &Orient)
DtU32	appearance () const
	Get the appearance attribute collection.
void	setAppearance (DtU32 app)
	Set the appearance attribute collection.
DtAppearAttrVal	appearanceAttribute (const DtAppearAttribute &attr) const
	Get the value of a specific appearance attribute.
void	setAppearanceAttribute (const DtAppearAttribute attr, const DtAppearAttrVal val)
	Set the value of a specific appearance attribute.
DtDeadReckonTypes	algorithm () const
void	setAlgorithm (DtDeadReckonTypes alg)
const DtVector &	acceleration () const
void	setAcceleration (const DtVector &Acceleration)
const DtVector &	rotationalVelocity () const
void	setRotationalVelocity (const DtVector &BodyRates)
int	markingCharSet () const
void	setMarkingText (const char *text)
const char *	markingText () const
void	setMarkingCharSet (int charSet)
DtU32	capabilities () const
void	setCapabilities (DtU32 cap)
void	setNumArtPlusAttachedParams (int num)
void	printData () const
	Print the PDU's data (not including header).
void	printDataToStream (std::ostream &stream) const

const DtArticulatedPartCollection &	artPartList () const
	Set/Get the articulated part list via the DtArticulatedPartCollection.
void	setArtPartList (const DtArticulatedPartCollection &apList)
	Set/Get the articulated part list via the DtArticulatedPartCollection.

const DtAttachedPartCollection &	attPartList () const
	Set/Get the attached part list via the DtAttachedPartCollection.
void	setAttPartList (const DtAttachedPartCollection &apList)
	Set/Get the attached part list via the DtAttachedPartCollection.

const DtNetArtPartRecord *	artPartRecord (int index) const
	Access the net articulated parts records through an index.
DtNetArtPartRecord *	artPartRecord (int index)
	Access the net articulated parts records through an index.

DtNetAttachedPart *	attPartRecord (int index)
	Access the net attached parts records through an index.
const DtNetAttachedPart *	attPartRecord (int index) const
	Access the net attached parts records through an index.
Public Member Functions inherited from DtStateMsg
	DtStateMsg ()
	default constructor
virtual	~DtStateMsg ()
	destructor
	DtStateMsg (const DtStateMsg &orig)
	copy constructor
DtStateMsg &	operator= (const DtStateMsg &orig)
	assignment operator
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor.
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator.
virtual void *	packet () const
	Older function that returns a pointer to the network representation.
virtual int	status () const
	Get PDU status.
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header.
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header.
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header.
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header.
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type.
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header.
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo).
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU by calling printHeaderToStream and printDataToStream.
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo).
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream.
virtual void	printDataToString (DtString &str) const
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor.
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment.
virtual const char *	netRep () const
	Get network representation.
virtual int	length () const
	Get size of message.

Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Static functions.
static void	addCallback (DtExerciseConn conn, DtEntityStatePduCb cb, void usr)
	Add a receive callback.
static void	removeCallback (DtExerciseConn conn, DtEntityStatePduCb cb, void usr)
	Remove a receive callback.

Protected Member Functions
DtPduKind	internalGetPduKind () const
	Returns the PDU kind associated with the derived PDU class.
DtNetArtPartRecord *	artPartRecord (int partType, int param) const
DtNetArtPartRecord *	attachedPartRecord (int station) const

Protected Attributes
DtEntityIdentifier	myId
DtEntityType	type
DtEntityType	theGuise
DtVector	vel
DtVector	loc
DtVector	acc
DtTaitBryan	ori
DtBodyRates	rvel
char	markingBuff [DtMaxEntityMarkingLength+1]
DtArticulatedPartCollection	myArtPartList
	Does not store state.
DtAttachedPartCollection	myAttPartList
int	myStationList [DtMaxNumAttachedParts]

Detailed Description

This class provides a wrapper around the DIS Entity State PDU network structure.

Member Enumeration Documentation

anonymous enum

Enumerator:

PduStaticSize

Constructor & Destructor Documentation

DtEntityStatePdu::DtEntityStatePdu ( DtBufferPtr buffer = DtUSE_INTERNAL_BUFFER )

DtEntityStatePdu::DtEntityStatePdu	(	const DtNetEntityStatePdu *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)

CTOR for constructing the pdu using an existing net rep.

DtEntityStatePdu::DtEntityStatePdu	(	const DtEntityIdentifier &	id,
		const DtEntityType &	type,
		const DtEntityType &	guise,
		DtDeadReckonTypes	algorithm,
		DtForceType	forceId,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)

CTOR for creating a new Entity state pdu.

virtual DtEntityStatePdu::~DtEntityStatePdu ( )

inlinevirtual

DTOR.

Member Function Documentation

const DtVector& DtEntityStatePdu::acceleration ( ) const

static void DtEntityStatePdu::addCallback	(	DtExerciseConn *	conn,
		DtEntityStatePduCb	cb,
		void *	usr
	)

static

Add a receive callback.

DtDeadReckonTypes DtEntityStatePdu::algorithm ( ) const

DtU32 DtEntityStatePdu::appearance ( ) const

Get the appearance attribute collection.

DtAppearAttrVal DtEntityStatePdu::appearanceAttribute ( const DtAppearAttribute & attr ) const

Get the value of a specific appearance attribute.

const DtArticulatedPartCollection& DtEntityStatePdu::artPartList ( ) const

Set/Get the articulated part list via the DtArticulatedPartCollection.

Warning: setNumArtPlusAttachedParams() needs to be called before setting the articulated parts, as memory needs to be allocated

const DtNetArtPartRecord* DtEntityStatePdu::artPartRecord ( int index ) const

Access the net articulated parts records through an index.

These are used for encoding/decoding functions. It is recommended that the artPartList() accessor is used for articulated part access from the PDU.

DtNetArtPartRecord* DtEntityStatePdu::artPartRecord ( int index )

Access the net articulated parts records through an index.

These are used for encoding/decoding functions. It is recommended that the artPartList() accessor is used for articulated part access from the PDU.

DtNetArtPartRecord* DtEntityStatePdu::artPartRecord	(	int	partType,
		int	param
	)		const

protected

DtNetArtPartRecord* DtEntityStatePdu::attachedPartRecord ( int station ) const

protected

const DtAttachedPartCollection& DtEntityStatePdu::attPartList ( ) const

Set/Get the attached part list via the DtAttachedPartCollection.

Warning: setNumArtPlusAttachedParams() needs to be called before setting the articulated parts, as memory needs to be allocated

DtNetAttachedPart* DtEntityStatePdu::attPartRecord ( int index )

Access the net attached parts records through an index.

These are used for encoding/decoding functions. It is recommended that the attPartList() accessor is used for articulated part access from the PDU.

const DtNetAttachedPart* DtEntityStatePdu::attPartRecord ( int index ) const

Access the net attached parts records through an index.

These are used for encoding/decoding functions. It is recommended that the attPartList() accessor is used for articulated part access from the PDU.

DtU32 DtEntityStatePdu::capabilities ( ) const

static DtPdu* DtEntityStatePdu::create	(	const DtNetPacket *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)

static

Static functions.

const DtEntityType& DtEntityStatePdu::entityType ( ) const

DtForceType DtEntityStatePdu::forceId ( ) const

const DtEntityType& DtEntityStatePdu::guise ( ) const

const DtEntityIdentifier& DtEntityStatePdu::id ( ) const

DtPduKind DtEntityStatePdu::internalGetPduKind ( ) const

inlineprotectedvirtual

Returns the PDU kind associated with the derived PDU class.

Implements DtPdu.

References DtEntityStatePduKind.

const DtVector& DtEntityStatePdu::location ( ) const

int DtEntityStatePdu::markingCharSet ( ) const

const char* DtEntityStatePdu::markingText ( ) const

int DtEntityStatePdu::numArtParams ( ) const

int DtEntityStatePdu::numArtPlusAttachedParams ( ) const

int DtEntityStatePdu::numAttachedParams ( ) const

const DtTaitBryan& DtEntityStatePdu::orientation ( ) const

void DtEntityStatePdu::printData ( ) const

virtual

Print the PDU's data (not including header).

Base DtPdu version just prints hex. Use the printDataToString to put the data into a DtString instead of simply sending the output to stdout. printData() calls printDataToStream(DtInfo).

Reimplemented from DtPdu.

void DtEntityStatePdu::printDataToStream ( std::ostream & stream ) const

virtual

Reimplemented from DtPdu.

static void DtEntityStatePdu::removeCallback	(	DtExerciseConn *	conn,
		DtEntityStatePduCb	cb,
		void *	usr
	)

static

Remove a receive callback.

const DtVector& DtEntityStatePdu::rotationalVelocity ( ) const

void DtEntityStatePdu::setAcceleration ( const DtVector & Acceleration )

void DtEntityStatePdu::setAlgorithm ( DtDeadReckonTypes alg )

void DtEntityStatePdu::setAppearance ( DtU32 app )

Set the appearance attribute collection.

void DtEntityStatePdu::setAppearanceAttribute	(	const DtAppearAttribute	attr,
		const DtAppearAttrVal	val
	)

Set the value of a specific appearance attribute.

void DtEntityStatePdu::setArtPartList ( const DtArticulatedPartCollection & apList )

Set/Get the articulated part list via the DtArticulatedPartCollection.

Warning: setNumArtPlusAttachedParams() needs to be called before setting the articulated parts, as memory needs to be allocated

void DtEntityStatePdu::setAttPartList ( const DtAttachedPartCollection & apList )

Set/Get the attached part list via the DtAttachedPartCollection.

Warning: setNumArtPlusAttachedParams() needs to be called before setting the articulated parts, as memory needs to be allocated

void DtEntityStatePdu::setCapabilities ( DtU32 cap )

void DtEntityStatePdu::setEntityType ( const DtEntityType & type )

void DtEntityStatePdu::setForceId ( DtForceType force )

void DtEntityStatePdu::setGuise ( const DtEntityType & type )

void DtEntityStatePdu::setId ( const DtEntityIdentifier & id )

void DtEntityStatePdu::setLocation ( const DtVector & Location )

void DtEntityStatePdu::setMarkingCharSet ( int charSet )

void DtEntityStatePdu::setMarkingText ( const char * text )

void DtEntityStatePdu::setNumArtPlusAttachedParams ( int num )

void DtEntityStatePdu::setOrientation ( const DtTaitBryan & Orient )

void DtEntityStatePdu::setRotationalVelocity ( const DtVector & BodyRates )

void DtEntityStatePdu::setVelocity ( const DtVector & Velocity )

const DtVector& DtEntityStatePdu::velocity ( ) const

Member Data Documentation

DtVector DtEntityStatePdu::acc

protected

DtVector DtEntityStatePdu::loc

protected

char DtEntityStatePdu::markingBuff[DtMaxEntityMarkingLength+1]

protected

DtArticulatedPartCollection DtEntityStatePdu::myArtPartList

mutableprotected

Does not store state.

DtAttachedPartCollection DtEntityStatePdu::myAttPartList

mutableprotected

DtEntityIdentifier DtEntityStatePdu::myId

protected

int DtEntityStatePdu::myStationList[DtMaxNumAttachedParts]

protected

DtTaitBryan DtEntityStatePdu::ori

protected

DtBodyRates DtEntityStatePdu::rvel

protected

DtEntityType DtEntityStatePdu::theGuise

protected

DtEntityType DtEntityStatePdu::type

protected

DtVector DtEntityStatePdu::vel

protected

The documentation for this class was generated from the following file:

esPdu.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
