DtInetDevice Class Reference

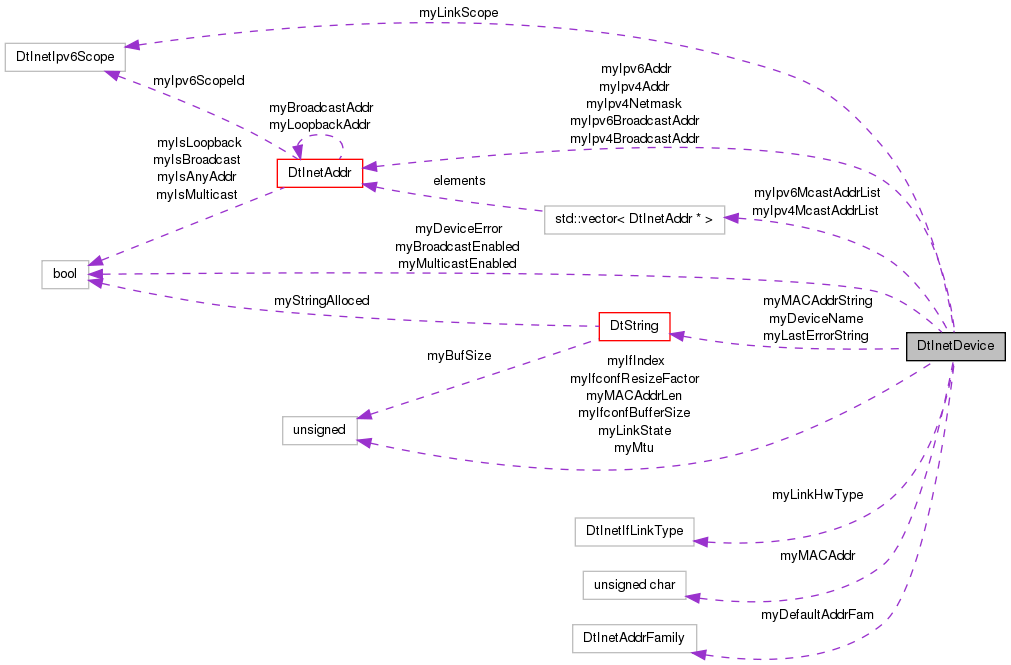

Collaboration diagram for DtInetDevice:

Public Member Functions
	DtInetDevice (const DtInetAddr &addr)
	Basic Constructors.
	DtInetDevice (const DtString &deviceName, DtInetUtils::DtInetAddrFamily fam=DtInetUtils::DtInetAddrFamily_IPv4)
	DtInetDevice (int sock, struct ifreq *devInfo, struct ifreq_in6 *ipv6DevInfo, DtInetUtils::DtInetAddrFamily fam=DtInetUtils::DtInetAddrFamily_IPv4)
	Constructors.
	DtInetDevice (const DtInetDevice &orig)
	Copy Constructor.
DtInetDevice &	operator= (const DtInetDevice &orig)
	Assignment Operator.
virtual	~DtInetDevice ()
	Destructor.
virtual const DtString &	deviceName () const
	Returns a DtString representation of the device name, eg.
virtual const DtInetAddr *	addr () const
	Returns the IP address of the device corresponding to the default address family the user specified via the constructor.
virtual const DtInetAddr *	broadcastAddr () const
	Returns the broadcast IP address of the device corresponding to the default address family the user specified via the constructor.
virtual const DtInetAddr *	ipv4Addr () const
	Returns the IPv4 address object for this device.
virtual const DtInetAddr *	ipv4Netmask () const
	Returns the IPv4 address object representing the netmask set for this device.
virtual const DtInetAddr *	ipv4BroadcastAddr () const
	Returns the IPv4 address object representing the broadcast address set for this device.
virtual const DtInetAddr *	ipv6Addr () const
	Returns the IPv6 address object for this device.
virtual const DtInetAddr *	ipv6BroadcastAddr () const
	Returns the IPv6 address object representing the broadcast address for this device.
virtual unsigned int	macAddr (DtInetMacAddr &mac) const
	Returns size of the device's MAC address with the MAC address in the byte array pointed to by the argument.
virtual const DtString &	macAddrString () const
	Returns a DtString representation of the MAC address.
virtual DtInetIfLinkType	type () const
	Returns the device type: Ethernet, loopback, IEEE 1395, FDDI, etc of the device.
virtual unsigned int	mtu () const
	Returns MTU (Maximum Transfer Unit) of device.
virtual unsigned int	linkState () const
	Returns the link state enum equivalent.
virtual DtInetIpv6Scope	linkScope () const
	Returns the link scope of the device (IPv6 only).
virtual unsigned int	interfaceIndex () const
	Return the interface index.
virtual bool	isOk () const
	Return indication that the device is not in an error state.
virtual const DtString &	getLastErrorString () const
	Return string describing last error and clear error indication.
virtual bool	isUp () const
	Return true if the queried condition is met.
virtual bool	isActive () const
	Return true if the queried condition is met.
virtual bool	isBroadcastCapable () const
	Return true if the queried condition is met.
virtual bool	isMulticastCapable () const
	Return true if the queried condition is met.
virtual bool	hasIpv4Addr () const
	Return true if the queried condition is met.
virtual bool	hasIpv6Addr () const
	Return true if the queried condition is met.

Protected Member Functions
void	scanDeviceByName (const DtString &deviceName)
void	initMACAddrString ()
void	init (int sockFd, struct ifreq *devInfo, struct ifreq_in6 *ipv6DevInfo)

Protected Attributes
DtString	myDeviceName
DtInetMacAddr	myMACAddr
unsigned int	myMACAddrLen
DtString	myMACAddrString
DtInetAddr *	myIpv4Addr
DtInetAddr *	myIpv4Netmask
DtInetAddr *	myIpv6Addr
DtInetIpv6Scope	myLinkScope
bool	myBroadcastEnabled
DtInetAddr *	myIpv4BroadcastAddr
DtInetAddr *	myIpv6BroadcastAddr
DtInetUtils::DtInetAddrFamily	myDefaultAddrFam
bool	myMulticastEnabled
std::vector< DtInetAddr * >	myIpv4McastAddrList
std::vector< DtInetAddr * >	myIpv6McastAddrList
unsigned int	myMtu
unsigned int	myLinkState
DtInetIfLinkType	myLinkHwType
unsigned int	myIfIndex
bool	myDeviceError
DtString	myLastErrorString
unsigned int	myIfconfBufferSize
unsigned int	myIfconfResizeFactor

Friends
bool	operator== (const DtInetDevice &dev1, const DtInetDevice &dev2)
	Comparison Operators.

Constructor & Destructor Documentation

DtInetDevice::DtInetDevice

(

const DtInetAddr &

addr

)

Basic Constructors.

Take a device name (which could be the IP address string) or IP address object (IPv4 or IPv6) and scans the host device list to retrieve interface info.

DtInetDevice::DtInetDevice	(	const DtString &	deviceName,
		DtInetUtils::DtInetAddrFamily	fam = DtInetUtils::DtInetAddrFamily_IPv4
	)

DtInetDevice::DtInetDevice	(	int	sock,
		struct ifreq *	devInfo,
		struct ifreq_in6 *	ipv6DevInfo,
		DtInetUtils::DtInetAddrFamily	fam = DtInetUtils::DtInetAddrFamily_IPv4
	)

Constructors.

Takes a pointer to a structure containing the host device information. Structures are platform dependent.

DtInetDevice::DtInetDevice

(

const DtInetDevice &

orig

)

Copy Constructor.

virtual DtInetDevice::~DtInetDevice ( )

virtual

Destructor.

Member Function Documentation

virtual const DtInetAddr* DtInetDevice::addr ( ) const

virtual

Returns the IP address of the device corresponding to the default address family the user specified via the constructor.

virtual const DtInetAddr* DtInetDevice::broadcastAddr ( ) const

virtual

Returns the broadcast IP address of the device corresponding to the default address family the user specified via the constructor.

virtual const DtString& DtInetDevice::deviceName ( ) const

virtual

Returns a DtString representation of the device name, eg.

eth0, en0 Local Area Connection, etc.

virtual const DtString& DtInetDevice::getLastErrorString ( ) const

virtual

Return string describing last error and clear error indication.

virtual bool DtInetDevice::hasIpv4Addr ( ) const

virtual

Return true if the queried condition is met.

virtual bool DtInetDevice::hasIpv6Addr ( ) const

virtual

Return true if the queried condition is met.

void DtInetDevice::init ( int  sockFd, struct ifreq *  devInfo, struct ifreq_in6 *  ipv6DevInfo  )

protected

void DtInetDevice::initMACAddrString ( )

protected

virtual unsigned int DtInetDevice::interfaceIndex ( ) const

virtual

Return the interface index.

Should be used with care, as it can be outdated if interface is restarted.

virtual const DtInetAddr* DtInetDevice::ipv4Addr ( ) const

virtual

Returns the IPv4 address object for this device.

virtual const DtInetAddr* DtInetDevice::ipv4BroadcastAddr ( ) const

virtual

Returns the IPv4 address object representing the broadcast address set for this device.

The broadcast address set for the device may not be the same as the default broadcast address derived from the device's IPv4 address class.

virtual const DtInetAddr* DtInetDevice::ipv4Netmask ( ) const

virtual

Returns the IPv4 address object representing the netmask set for this device.

The set netmask may not be the same as the default netmask associated with the device's IPv4 address class.

virtual const DtInetAddr* DtInetDevice::ipv6Addr ( ) const

virtual

Returns the IPv6 address object for this device.

virtual const DtInetAddr* DtInetDevice::ipv6BroadcastAddr ( ) const

virtual

Returns the IPv6 address object representing the broadcast address for this device.

virtual bool DtInetDevice::isActive ( ) const

virtual

Return true if the queried condition is met.

virtual bool DtInetDevice::isBroadcastCapable ( ) const

virtual

Return true if the queried condition is met.

virtual bool DtInetDevice::isMulticastCapable ( ) const

virtual

Return true if the queried condition is met.

virtual bool DtInetDevice::isOk ( ) const

virtual

Return indication that the device is not in an error state.

Possible errors include: device not found, device not initialized, invalid name

virtual bool DtInetDevice::isUp ( ) const

virtual

Return true if the queried condition is met.

virtual DtInetIpv6Scope DtInetDevice::linkScope ( ) const

virtual

Returns the link scope of the device (IPv6 only).

(eg. link-local, global)

virtual unsigned int DtInetDevice::linkState ( ) const

virtual

Returns the link state enum equivalent.

virtual unsigned int DtInetDevice::macAddr ( DtInetMacAddr &  mac ) const

virtual

Returns size of the device's MAC address with the MAC address in the byte array pointed to by the argument.

virtual const DtString& DtInetDevice::macAddrString ( ) const

virtual

Returns a DtString representation of the MAC address.

Uses *nix notation convention (ie. colon separated hexadecimal) or Windows notation convention (ie. dash separated hexadecimal) depending on OS.

virtual unsigned int DtInetDevice::mtu ( ) const

virtual

Returns MTU (Maximum Transfer Unit) of device.

DtInetDevice& DtInetDevice::operator=

(

const DtInetDevice &

orig

)

Assignment Operator.

void DtInetDevice::scanDeviceByName ( const DtString &  deviceName )

protected

virtual DtInetIfLinkType DtInetDevice::type ( ) const

virtual

Returns the device type: Ethernet, loopback, IEEE 1395, FDDI, etc of the device.

Friends And Related Function Documentation

bool operator== ( const DtInetDevice &  dev1, const DtInetDevice &  dev2  )

friend

Comparison Operators.

Member Data Documentation

bool DtInetDevice::myBroadcastEnabled

protected

DtInetUtils::DtInetAddrFamily DtInetDevice::myDefaultAddrFam

protected

bool DtInetDevice::myDeviceError

protected

DtString DtInetDevice::myDeviceName

protected

unsigned int DtInetDevice::myIfconfBufferSize

protected

unsigned int DtInetDevice::myIfconfResizeFactor

protected

unsigned int DtInetDevice::myIfIndex

protected

DtInetAddr* DtInetDevice::myIpv4Addr

protected

DtInetAddr* DtInetDevice::myIpv4BroadcastAddr

protected

std::vector<DtInetAddr*> DtInetDevice::myIpv4McastAddrList

protected

DtInetAddr* DtInetDevice::myIpv4Netmask

protected

DtInetAddr* DtInetDevice::myIpv6Addr

protected

DtInetAddr* DtInetDevice::myIpv6BroadcastAddr

protected

std::vector<DtInetAddr*> DtInetDevice::myIpv6McastAddrList

protected

DtString DtInetDevice::myLastErrorString

protected

DtInetIfLinkType DtInetDevice::myLinkHwType

protected

DtInetIpv6Scope DtInetDevice::myLinkScope

protected

unsigned int DtInetDevice::myLinkState

protected

DtInetMacAddr DtInetDevice::myMACAddr

protected

unsigned int DtInetDevice::myMACAddrLen

protected

DtString DtInetDevice::myMACAddrString

protected

unsigned int DtInetDevice::myMtu

protected

bool DtInetDevice::myMulticastEnabled

protected

---

The documentation for this class was generated from the following file:

• vlInetDevice.h
