VR-Link API Documentation for DIS
|
|
VR-Link API Documentation for DIS
|
DtInteraction is an base class for representing DIS PDUs which don't have state. More...

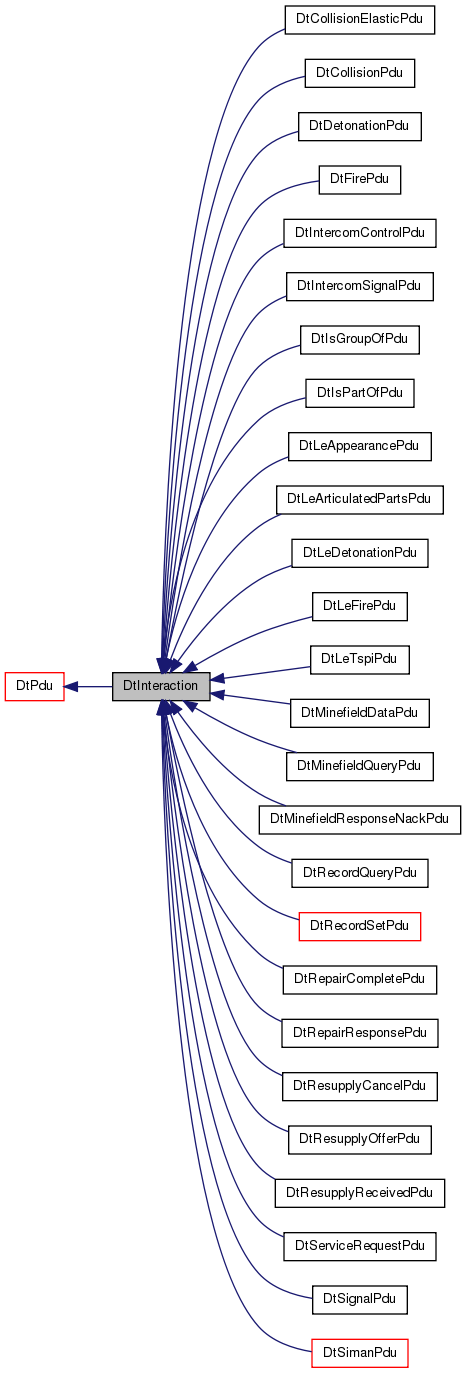

Inheritance diagram for DtInteraction: Collaboration diagram for DtInteraction:Public Member Functions | |
| DtInteraction () | |
| default constructor | |
| virtual | ~DtInteraction () |
| destructor | |
| DtInteraction (const DtInteraction &orig) | |
| copy constructor | |
| DtInteraction & | operator= (const DtInteraction &orig) |
| assignment operator | |
| Public Member Functions inherited from DtPdu | |
| virtual | ~DtPdu () |
| Destructor. | |
| DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) | |
| Copy constructor. | |
| DtPdu & | operator= (const DtPdu &pdu) |
| Assignment operator. | |
| virtual void * | packet () const |
| Older function that returns a pointer to the network representation. | |
| virtual int | status () const |
| Get PDU status. | |
| virtual void | setVersion (int vers) |
| Set/Get protocol version from PDU header. | |
| virtual int | protocolVersion () const |
| virtual void | setExerciseId (int id) |
| Set/Get exerciseID in PDU header. | |
| virtual int | exerciseId () const |
| virtual DtPduKind | kind () const |
| Returns PDU kind from PDU header. | |
| virtual DtProtocolFamily | protocolFamily () const |
| Returns protocol family from PDU header. | |
| virtual void | setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative) |
| Set the PDU header's time stamp to reflect time and type. | |
| virtual DtTime | timeStamp () const |
| Return the time (in seconds past an hour) encoded in the PDU header's time stamp. | |
| virtual DtTimeStampType | timeStampType () const |
| Return the type of the time stamp, as indicated in PDU header. | |
| virtual DtTime | guessTimeValid (DtTime referenceTime) const |
| Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. | |
| virtual DtNetPduHeader * | netHeader () const |
| Returns a pointer to the PDU's header. | |
| virtual void | print () const |
| Print the contents of the PDU by calling printToStream(DtInfo). | |
| virtual void | printToStream (std::ostream &stream) const |
| Print the contents of the PDU by calling printHeaderToStream and printDataToStream. | |
| virtual void | printHeader () const |
| Print the PDU's header. This calls printHeaderToStream(DtInfo). | |
| virtual void | printHeaderToStream (std::ostream &stream) const |
| Print the PDU's header to a stream. | |
| virtual void | printData () const |
| Print the PDU's data (not including header). | |
| virtual void | printDataToStream (std::ostream &stream) const |
| virtual void | printDataToString (DtString &str) const |
| Public Member Functions inherited from DtBaseMsg | |
| virtual | ~DtBaseMsg () |
| Destructor. | |
| DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) | |
| Copy constructor. | |
| DtBaseMsg & | operator= (const DtBaseMsg &msg) |
| Assignment. | |
| virtual const char * | netRep () const |
| Get network representation. | |
| virtual int | length () const |
| Get size of message. | |
Additional Inherited Members | |
| Protected Member Functions inherited from DtPdu | |
| DtPdu () | |
| Constructor. | |
| virtual void | setStatus (int okStatus) |
| Sets the PDU's status to okStatus. | |
| virtual void | initPdu (int size, DtBufferPtr buffer) |
| Must be called after default ctor before PDU is completely constructed. | |
| virtual void | initPdu (const void *initial, DtBufferPtr buffer) |
| Called by from-net-rep ctor. Initializes DtBaseMsg. | |
| virtual DtPduKind | internalGetPduKind () const =0 |
| Returns the PDU kind associated with the derived PDU class. | |
| virtual DtProtocolFamily | kindToFamily (DtPduKind kind) const |
| Maps PDU kind to ProtocolFamily. | |
| virtual void | sizeChanged (int size) |
| Called by changeSize. Sets the size in the header to size. | |
| virtual void | clearData () |
| zeros out all bytes after the PDU header. | |
| virtual void | initHeader (DtPduKind kind, int size) |
| Initializes PDU header. Called by initPdu. | |
| Protected Attributes inherited from DtPdu | |
| int | myOKStatus |
DtInteraction is an base class for representing DIS PDUs which don't have state.
In HLA this concept of a stateless message is called an interaction.
| DtInteraction::DtInteraction | ( | ) |
default constructor
|
virtual |
destructor
| DtInteraction::DtInteraction | ( | const DtInteraction & | orig | ) |
copy constructor
| DtInteraction& DtInteraction::operator= | ( | const DtInteraction & | orig | ) |
assignment operator
