DtLinearObjectStatePdu Class Reference

class DtLinearObjectStatePdu: More...

Inheritance diagram for DtLinearObjectStatePdu:

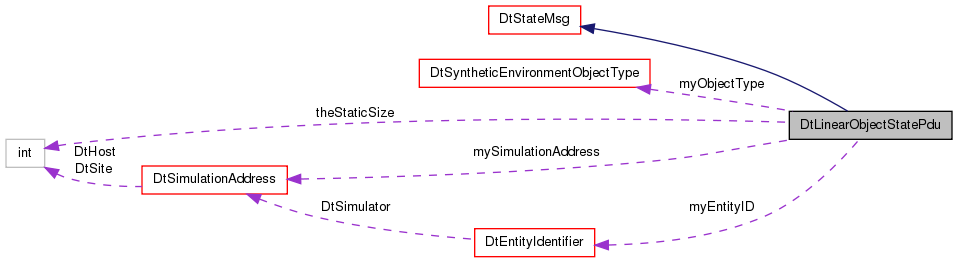

Collaboration diagram for DtLinearObjectStatePdu:

Public Member Functions
	DtLinearObjectStatePdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors.
	DtLinearObjectStatePdu (const DtNetLinearObjectStatePdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtLinearObjectStatePdu (const DtLinearObjectStatePdu &orig)
virtual	~DtLinearObjectStatePdu ()
	destructor
DtLinearObjectStatePdu &	operator= (const DtLinearObjectStatePdu &orig)
	Assignment operator.
virtual void	setObjectID (const DtEntityIdentifier &id)
	Set/Get object ID.
virtual const DtEntityIdentifier &	objectID () const
virtual void	setReferencedObjectID (const DtEntityIdentifier &id)
	Set/Get referenced object ID.
virtual const DtEntityIdentifier &	referencedObjectID () const
virtual void	setUpdateNumber (DtU16 field)
	Set/Get update number.
virtual DtU16	updateNumber () const
virtual void	setForceID (DtForceType force)
	Set/Get the force ID.
virtual DtForceType	forceID () const
virtual bool	setNumSegments (DtU8 num)
	Set/Get the number of segments.
virtual DtU8	numSegments () const
virtual void	setRequesterID (const DtSimulationAddress &type)
	Set/Get the requester ID.
virtual const DtSimulationAddress &	requesterID () const
virtual void	setReceivingID (const DtSimulationAddress &type)
	Set/Get the receiving ID.
virtual const DtSimulationAddress &	receivingID () const
virtual void	setObjectType (const DtSyntheticEnvironmentObjectType &type)
	Set/Get the object type.
virtual const DtSyntheticEnvironmentObjectType &	objectType () const
virtual bool	setLinearSegmentParameter (int index, const DtLinearSegmentParameter &init)
	Set/Get a linear segment parameter record.
virtual bool	getLinearSegmentParameter (int index, DtLinearSegmentParameter &record) const
virtual void	printData () const
	Print the data contained by this PDU.
virtual void	printDataToStream (std::ostream &stream) const
	Print the data to a stream.
Public Member Functions inherited from DtStateMsg
	DtStateMsg ()
	default constructor
virtual	~DtStateMsg ()
	destructor
	DtStateMsg (const DtStateMsg &orig)
	copy constructor
DtStateMsg &	operator= (const DtStateMsg &orig)
	assignment operator
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor.
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator.
virtual void *	packet () const
	Older function that returns a pointer to the network representation.
virtual int	status () const
	Get PDU status.
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header.
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header.
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header.
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header.
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type.
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header.
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo).
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU by calling printHeaderToStream and printDataToStream.
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo).
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream.
virtual void	printDataToString (DtString &str) const
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor.
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment.
virtual const char *	netRep () const
	Get network representation.
virtual int	length () const
	Get size of message.

Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Create a DtLinearObjectStatePdu.
static void	addCallback (DtExerciseConn *conn, DtLinearObjectStatePduCb cb, void *usr)
	Add (register)/Remove (deregister) function to be called when pdu is received.
static void	removeCallback (DtExerciseConn *conn, DtLinearObjectStatePduCb cb, void *usr)

Protected Member Functions
virtual DtPduKind	internalGetPduKind () const
	Returns the internal PDU kind.
virtual DtNetLinearObjectStatePdu *	netPduStruct () const
	Casts the netPdu element to our network struct.
DtLinearObjectStatePdu *	self () const
	Casts the 'this' pointer for changing elements in a const function.
virtual char *	var () const
	Returns a pointer to the first byte of variable length data.

Protected Attributes
DtEntityIdentifier	myEntityID
	Temporary objects for reference returns.
DtSyntheticEnvironmentObjectType	myObjectType
DtSimulationAddress	mySimulationAddress

Static Protected Attributes
static const int	theStaticSize
	Size of PDU with zero parameter records.

Detailed Description

class DtLinearObjectStatePdu:

Instances of DtLinearObjectStatePdu are used to communicate information about the addition/modification of a synthetic object which is geometrically anchored to the terrain with one point.

Constructor & Destructor Documentation

DtLinearObjectStatePdu::DtLinearObjectStatePdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

Constructors.

DtLinearObjectStatePdu::DtLinearObjectStatePdu	(	const DtNetLinearObjectStatePdu *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

DtLinearObjectStatePdu::DtLinearObjectStatePdu

(

const DtLinearObjectStatePdu &

orig

)

virtual DtLinearObjectStatePdu::~DtLinearObjectStatePdu ( )

virtual

destructor

Member Function Documentation

static void DtLinearObjectStatePdu::addCallback ( DtExerciseConn *  conn, DtLinearObjectStatePduCb  cb, void *  usr  )

static

Add (register)/Remove (deregister) function to be called when pdu is received.

static DtPdu* DtLinearObjectStatePdu::create ( const DtNetPacket *  initial, DtBufferPtr  buffer = DtUSE_INTERNAL_BUFFER  )

static

Create a DtLinearObjectStatePdu.

Caller is responsible for deletion.

virtual DtForceType DtLinearObjectStatePdu::forceID ( ) const

virtual

virtual bool DtLinearObjectStatePdu::getLinearSegmentParameter ( int  index, DtLinearSegmentParameter &  record  ) const

virtual

virtual DtPduKind DtLinearObjectStatePdu::internalGetPduKind ( ) const

protectedvirtual

Returns the internal PDU kind.

Implements DtPdu.

virtual DtNetLinearObjectStatePdu* DtLinearObjectStatePdu::netPduStruct ( ) const

protectedvirtual

Casts the netPdu element to our network struct.

virtual DtU8 DtLinearObjectStatePdu::numSegments ( ) const

virtual

virtual const DtEntityIdentifier& DtLinearObjectStatePdu::objectID ( ) const

virtual

virtual const DtSyntheticEnvironmentObjectType& DtLinearObjectStatePdu::objectType ( ) const

virtual

DtLinearObjectStatePdu& DtLinearObjectStatePdu::operator=

(

const DtLinearObjectStatePdu &

orig

)

Assignment operator.

virtual void DtLinearObjectStatePdu::printData ( ) const

virtual

Print the data contained by this PDU.

Reimplemented from DtPdu.

virtual void DtLinearObjectStatePdu::printDataToStream ( std::ostream &  stream ) const

virtual

Print the data to a stream.

Reimplemented from DtPdu.

virtual const DtSimulationAddress& DtLinearObjectStatePdu::receivingID ( ) const

virtual

virtual const DtEntityIdentifier& DtLinearObjectStatePdu::referencedObjectID ( ) const

virtual

static void DtLinearObjectStatePdu::removeCallback ( DtExerciseConn *  conn, DtLinearObjectStatePduCb  cb, void *  usr  )

static

virtual const DtSimulationAddress& DtLinearObjectStatePdu::requesterID ( ) const

virtual

DtLinearObjectStatePdu* DtLinearObjectStatePdu::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

Non-virtual, since you can't override based on return type.

virtual void DtLinearObjectStatePdu::setForceID ( DtForceType  force )

virtual

Set/Get the force ID.

virtual bool DtLinearObjectStatePdu::setLinearSegmentParameter ( int  index, const DtLinearSegmentParameter &  init  )

virtual

Set/Get a linear segment parameter record.

Returns false if the index is out of range.

virtual bool DtLinearObjectStatePdu::setNumSegments ( DtU8  num )

virtual

Set/Get the number of segments.

virtual void DtLinearObjectStatePdu::setObjectID ( const DtEntityIdentifier &  id )

virtual

Set/Get object ID.

virtual void DtLinearObjectStatePdu::setObjectType ( const DtSyntheticEnvironmentObjectType &  type )

virtual

Set/Get the object type.

virtual void DtLinearObjectStatePdu::setReceivingID ( const DtSimulationAddress &  type )

virtual

Set/Get the receiving ID.

virtual void DtLinearObjectStatePdu::setReferencedObjectID ( const DtEntityIdentifier &  id )

virtual

Set/Get referenced object ID.

virtual void DtLinearObjectStatePdu::setRequesterID ( const DtSimulationAddress &  type )

virtual

Set/Get the requester ID.

virtual void DtLinearObjectStatePdu::setUpdateNumber ( DtU16  field )

virtual

Set/Get update number.

virtual DtU16 DtLinearObjectStatePdu::updateNumber ( ) const

virtual

virtual char* DtLinearObjectStatePdu::var ( ) const

protectedvirtual

Returns a pointer to the first byte of variable length data.

Member Data Documentation

DtEntityIdentifier DtLinearObjectStatePdu::myEntityID

protected

Temporary objects for reference returns.

DtSyntheticEnvironmentObjectType DtLinearObjectStatePdu::myObjectType

protected

DtSimulationAddress DtLinearObjectStatePdu::mySimulationAddress

protected

const int DtLinearObjectStatePdu::theStaticSize

staticprotected

Size of PDU with zero parameter records.

---

The documentation for this class was generated from the following file:

• linObjStPdu.h
