Instances of DtRelativeLocationPdu are used to convey the fact that one unit is located at a position relative to another unit's world location. More...

Inheritance diagram for DtRelativeLocationPdu:

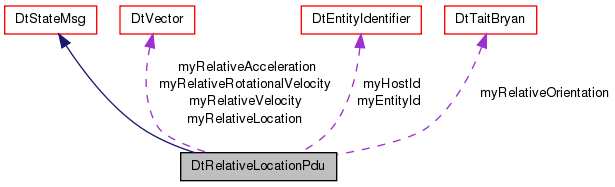

Collaboration diagram for DtRelativeLocationPdu:

Public Member Functions
	DtRelativeLocationPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	The blank constructor creates a blank DtRelativeLocationPdu ready to be filled out and sent by application code.
	DtRelativeLocationPdu (const DtNetRelativeLocationPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	The from-network-representation constructor makes a PDU from an already filled out buffer containing the exact bytes that represent this type of PDU.
virtual	~DtRelativeLocationPdu ()
	Destructor.
	DtRelativeLocationPdu (const DtRelativeLocationPdu &orig)
	Copy Constructor.
DtRelativeLocationPdu &	operator= (const DtRelativeLocationPdu &orig)
	Assignment operator.
virtual void	printData () const
	Print data function override prints out readable text representing the PDU instead of the raw hex.
virtual void	printDataToStream (std::ostream &stream) const
	Print the data to a stream.
virtual DtNetRelativeLocationPdu *	networkRepresentation ()
	To make writing inspector/mutator functions easier these next two functions return a pointer to the PDU's network representation by casting the value returned by the base class' packet() function into a DtNetRelativeLocationPdu.
virtual const DtNetRelativeLocationPdu *	networkRepresentation () const
virtual void	setId (const DtEntityIdentifier &id)
	Set/Get Object Identifier of issuing unit.
virtual const DtEntityIdentifier &	id () const
virtual void	setHostId (const DtEntityIdentifier &id)
	Set/Get Object Identifier of host unit.
virtual const DtEntityIdentifier &	hostId () const
virtual void	setRelativeAlgorithm (DtDeadReckonTypes alg)
	Set/Get dead reckoning algorithm.
virtual DtDeadReckonTypes	relativeAlgorithm () const
virtual void	setRelativeLocation (const DtVector &loc)
	Set/Get the unit's world location.
virtual const DtVector &	relativeLocation () const
virtual void	setRelativeVelocity (const DtVector &vel)
	Set/Get the unit's velocity.
virtual const DtVector &	relativeVelocity () const
virtual void	setRelativeAcceleration (const DtVector &accel)
	Set/Get the unit's acceleration.
virtual const DtVector &	relativeAcceleration () const
virtual void	setRelativeOrientation (const DtTaitBryan &orient)
	Set/Get the unit's orientation.
virtual const DtTaitBryan &	relativeOrientation () const
virtual void	setRelativeRotationalVelocity (const DtVector &vel)
	Set/Get the unit's average acceleration.
virtual const DtVector &	relativeRotationalVelocity () const
virtual void	setNature (DtNature value)
	Set/Get the units nature.
virtual DtNature	nature () const
virtual void	setPartPosition (DtPosition value)
	Set/Get the unit's position.
virtual DtPosition	partPosition () const
virtual void	setStationName (DtStationName value)
	Set/Get the unit's station name.
virtual DtStationName	stationName () const
virtual void	setStationNumber (DtU16 value)
	Set/Get the unit's station number.
virtual DtU16	stationNumber () const
Public Member Functions inherited from DtStateMsg
	DtStateMsg ()
	default constructor
virtual	~DtStateMsg ()
	destructor
	DtStateMsg (const DtStateMsg &orig)
	copy constructor
DtStateMsg &	operator= (const DtStateMsg &orig)
	assignment operator
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor.
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator.
virtual void *	packet () const
	Older function that returns a pointer to the network representation.
virtual int	status () const
	Get PDU status.
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header.
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header.
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header.
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header.
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type.
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header.
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo).
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU by calling printHeaderToStream and printDataToStream.
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo).
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream.
virtual void	printDataToString (DtString &str) const
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor.
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment.
virtual const char *	netRep () const
	Get network representation.
virtual int	length () const
	Get size of message.

Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buiffer=DtUSE_INTERNAL_BUFFER)
	Create and return a new DtRelativeLocationPdu.
static void	addCallback (DtExerciseConn conn, DtRelativeLocationPduCb cb, void usr)
	Wrappers around DtExerciseConn's add/removeCallback functions.
static void	removeCallback (DtExerciseConn conn, DtRelativeLocationPduCb cb, void usr)

Protected Member Functions
virtual DtPduKind	internalGetPduKind () const
	Returns the PDU kind associated with the PDU class.
DtRelativeLocationPdu *	self () const
	Casts the 'this' pointer for changing elements in a const function.

Protected Attributes
DtEntityIdentifier	myEntityId
	These objects are for "reference returns".
DtEntityIdentifier	myHostId
DtVector	myRelativeLocation
DtVector	myRelativeVelocity
DtVector	myRelativeAcceleration
DtTaitBryan	myRelativeOrientation
DtVector	myRelativeRotationalVelocity

Detailed Description

Instances of DtRelativeLocationPdu are used to convey the fact that one unit is located at a position relative to another unit's world location.

Useful for having units mounted on other units etc.

Constructor & Destructor Documentation

DtRelativeLocationPdu::DtRelativeLocationPdu ( DtBufferPtr buffer = DtUSE_INTERNAL_BUFFER )

The blank constructor creates a blank DtRelativeLocationPdu ready to be filled out and sent by application code.

DtRelativeLocationPdu::DtRelativeLocationPdu	(	const DtNetRelativeLocationPdu *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`
	)

The from-network-representation constructor makes a PDU from an already filled out buffer containing the exact bytes that represent this type of PDU.

This constructor is used by VR-Link to create an instance of this class from PDU data received from the network.

virtual DtRelativeLocationPdu::~DtRelativeLocationPdu ( )

virtual

Destructor.

DtRelativeLocationPdu::DtRelativeLocationPdu ( const DtRelativeLocationPdu & orig )

Copy Constructor.

Member Function Documentation

static void DtRelativeLocationPdu::addCallback	(	DtExerciseConn *	conn,
		DtRelativeLocationPduCb	cb,
		void *	usr
	)

static

Wrappers around DtExerciseConn's add/removeCallback functions.

The DtExerciseConn functions could be used instead but this keeps the non-typesafe cast limited to this one place. In addition within addCallback, this class' create function is registered with VR-Link, letting VR-Link know to create one of these to represent the right kind of PDU.

static DtPdu* DtRelativeLocationPdu::create	(	const DtNetPacket *	initial,
		DtBufferPtr	buiffer = `DtUSE_INTERNAL_BUFFER`
	)

static

Create and return a new DtRelativeLocationPdu.

Basically a wrapper around a constructor. Necessary because pointers to static functions like this can be registered with a DtPduFactory (which tells VR-Link how to construct an instance of a particular kind of PDU) but constructors can not.

virtual const DtEntityIdentifier& DtRelativeLocationPdu::hostId ( ) const

virtual

virtual const DtEntityIdentifier& DtRelativeLocationPdu::id ( ) const

virtual

virtual DtPduKind DtRelativeLocationPdu::internalGetPduKind ( ) const

protectedvirtual

Returns the PDU kind associated with the PDU class.

This value goes in the header of all instances of this PDU class.

Implements DtPdu.

virtual DtNature DtRelativeLocationPdu::nature ( ) const

virtual

virtual DtNetRelativeLocationPdu* DtRelativeLocationPdu::networkRepresentation ( )

virtual

To make writing inspector/mutator functions easier these next two functions return a pointer to the PDU's network representation by casting the value returned by the base class' packet() function into a DtNetRelativeLocationPdu.

virtual const DtNetRelativeLocationPdu* DtRelativeLocationPdu::networkRepresentation ( ) const

virtual

DtRelativeLocationPdu& DtRelativeLocationPdu::operator= ( const DtRelativeLocationPdu & orig )

Assignment operator.

virtual DtPosition DtRelativeLocationPdu::partPosition ( ) const

virtual

virtual void DtRelativeLocationPdu::printData ( ) const

virtual

Print data function override prints out readable text representing the PDU instead of the raw hex.

Reimplemented from DtPdu.

virtual void DtRelativeLocationPdu::printDataToStream ( std::ostream & stream ) const

virtual

Print the data to a stream.

Reimplemented from DtPdu.

virtual const DtVector& DtRelativeLocationPdu::relativeAcceleration ( ) const

virtual

virtual DtDeadReckonTypes DtRelativeLocationPdu::relativeAlgorithm ( ) const

virtual

virtual const DtVector& DtRelativeLocationPdu::relativeLocation ( ) const

virtual

virtual const DtTaitBryan& DtRelativeLocationPdu::relativeOrientation ( ) const

virtual

virtual const DtVector& DtRelativeLocationPdu::relativeRotationalVelocity ( ) const

virtual

virtual const DtVector& DtRelativeLocationPdu::relativeVelocity ( ) const

virtual

static void DtRelativeLocationPdu::removeCallback	(	DtExerciseConn *	conn,
		DtRelativeLocationPduCb	cb,
		void *	usr
	)

static

DtRelativeLocationPdu* DtRelativeLocationPdu::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

Non virtual, since you can't override based on return type.

virtual void DtRelativeLocationPdu::setHostId ( const DtEntityIdentifier & id )

virtual

Set/Get Object Identifier of host unit.

virtual void DtRelativeLocationPdu::setId ( const DtEntityIdentifier & id )

virtual

Set/Get Object Identifier of issuing unit.

virtual void DtRelativeLocationPdu::setNature ( DtNature value )

virtual

Set/Get the units nature.

virtual void DtRelativeLocationPdu::setPartPosition ( DtPosition value )

virtual

Set/Get the unit's position.

virtual void DtRelativeLocationPdu::setRelativeAcceleration ( const DtVector & accel )

virtual

Set/Get the unit's acceleration.

virtual void DtRelativeLocationPdu::setRelativeAlgorithm ( DtDeadReckonTypes alg )

virtual

Set/Get dead reckoning algorithm.

virtual void DtRelativeLocationPdu::setRelativeLocation ( const DtVector & loc )

virtual

Set/Get the unit's world location.

virtual void DtRelativeLocationPdu::setRelativeOrientation ( const DtTaitBryan & orient )

virtual

Set/Get the unit's orientation.

virtual void DtRelativeLocationPdu::setRelativeRotationalVelocity ( const DtVector & vel )

virtual

Set/Get the unit's average acceleration.

virtual void DtRelativeLocationPdu::setRelativeVelocity ( const DtVector & vel )

virtual

Set/Get the unit's velocity.

virtual void DtRelativeLocationPdu::setStationName ( DtStationName value )

virtual

Set/Get the unit's station name.

virtual void DtRelativeLocationPdu::setStationNumber ( DtU16 value )

virtual

Set/Get the unit's station number.

virtual DtStationName DtRelativeLocationPdu::stationName ( ) const

virtual

virtual DtU16 DtRelativeLocationPdu::stationNumber ( ) const

virtual

Member Data Documentation

DtEntityIdentifier DtRelativeLocationPdu::myEntityId

protected

These objects are for "reference returns".

DtEntityIdentifier DtRelativeLocationPdu::myHostId

protected

DtVector DtRelativeLocationPdu::myRelativeAcceleration

protected

DtVector DtRelativeLocationPdu::myRelativeLocation

protected

DtTaitBryan DtRelativeLocationPdu::myRelativeOrientation

protected

DtVector DtRelativeLocationPdu::myRelativeRotationalVelocity

protected

DtVector DtRelativeLocationPdu::myRelativeVelocity

protected

The documentation for this class was generated from the following file:

relLocPdu.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
