DtStateRepository Class Reference

DtStateRepository is an abstract base class for maintaining state for an object. More...

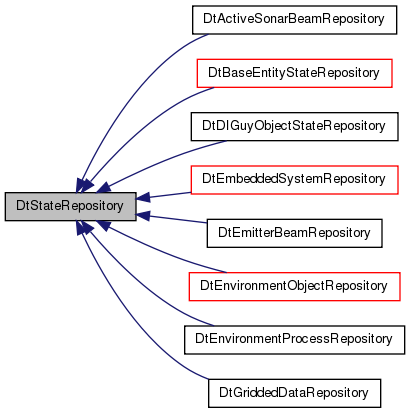

Inheritance diagram for DtStateRepository:

Collaboration diagram for DtStateRepository:

Public Member Functions
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual DtStateRepository *	clone (bool copy=false) const =0
	Return a copy/empty object of the same type as this.
virtual void	printData () const =0
	Print State Data to the DtInfo Stream.
virtual void	printDataToStream (std::ostream &stream) const
	Prints the State Data to the stream specified.
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name.
virtual const DtGlobalObjectDesignator &	globalId () const

Protected Member Functions
	DtStateRepository ()
	Constructors are protected since this is an abstract base class.
	DtStateRepository (const DtStateRepository &orig)
	copy constructor

Protected Attributes
DtGlobalObjectDesignator	myGlobalId

Detailed Description

DtStateRepository is an abstract base class for maintaining state for an object.

Instances of DtStateRepository subclasses are used to store state for specific object types, such as vehicles or lifeforms.

Constructor & Destructor Documentation

virtual DtStateRepository::~DtStateRepository ( )

virtual

destructor

DtStateRepository::DtStateRepository ( )

protected

Constructors are protected since this is an abstract base class.

default constructor

DtStateRepository::DtStateRepository ( const DtStateRepository &  orig )

protected

copy constructor

Member Function Documentation

virtual DtStateRepository* DtStateRepository::clone ( bool  copy = false ) const

pure virtual

Return a copy/empty object of the same type as this.

Implemented in DtLinearObjectRepository, DtUnderwaterAcousticsStateRepository, DtEmitterBeamRepository, DtPointObjectRepository, DtActiveSonarStateRepository, DtBaseEntityStateRepository, DtEntityStateRepository, DtEmitterSystemRepository, DtAggregateStateRepository, DtArealObjectRepository, DtIffStateRepository, DtRadioTransmitterRepository, DtEnvironmentProcessRepository, DtEnvironmentObjectRepository, DtActiveSonarBeamRepository, DtDIGuyObjectStateRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtEmbeddedSystemRepository, DtGriddedDataRepository, DtDesignatorRepository, DtUnderwaterAcousticsEmissionRepository, and DtRadioReceiverRepository.

virtual const DtGlobalObjectDesignator& DtStateRepository::globalId ( ) const

virtual

DtStateRepository& DtStateRepository::operator=

(

const DtStateRepository &

orig

)

assignment operator

virtual void DtStateRepository::printData ( ) const

pure virtual

Print State Data to the DtInfo Stream.

Implemented in DtEntityStateRepository, DtBaseEntityStateRepository, DtRadioTransmitterRepository, DtAggregateStateRepository, DtEmitterBeamRepository, DtGriddedDataRepository, DtPointObjectRepository, DtLinearObjectRepository, DtArealObjectRepository, DtRadioReceiverRepository, DtUnderwaterAcousticsStateRepository, DtEmitterSystemRepository, DtEnvironmentObjectRepository, DtEmbeddedSystemRepository, DtActiveSonarStateRepository, DtIffStateRepository, DtDIGuyObjectStateRepository, DtEnvironmentProcessRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, DtDesignatorRepository, and DtActiveSonarBeamRepository.

virtual void DtStateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Prints the State Data to the stream specified.

Reimplemented in DtEntityStateRepository, DtBaseEntityStateRepository, DtRadioTransmitterRepository, DtAggregateStateRepository, DtEmitterBeamRepository, DtGriddedDataRepository, DtPointObjectRepository, DtLinearObjectRepository, DtArealObjectRepository, DtRadioReceiverRepository, DtUnderwaterAcousticsStateRepository, DtEmitterSystemRepository, DtEnvironmentObjectRepository, DtEmbeddedSystemRepository, DtActiveSonarStateRepository, DtIffStateRepository, DtDIGuyObjectStateRepository, DtEnvironmentProcessRepository, DtPropulsionNoiseStateRepository, DtAdditionalPassiveActivitiesRepository, DtUnderwaterAcousticsEmissionRepository, DtDesignatorRepository, and DtActiveSonarBeamRepository.

virtual void DtStateRepository::setGlobalId ( const DtGlobalObjectDesignator &  id )

virtual

Get/Set global identifier, or name.

Set by VR-Link for reflected objects. Not necessary to set for local objects.

Member Data Documentation

DtGlobalObjectDesignator DtStateRepository::myGlobalId

protected

---

The documentation for this class was generated from the following file:

• stateRep.h
