DtUnderwaterAcousticPdu Class Reference

Instances of DtUnderwaterAcousticPdu are used to send information about simulated underwater acoustic emissions. More...

Inheritance diagram for DtUnderwaterAcousticPdu:

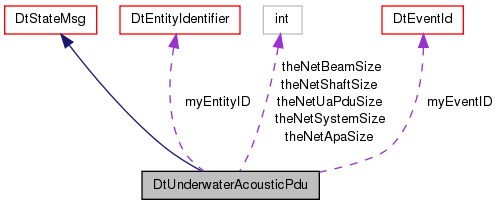

Collaboration diagram for DtUnderwaterAcousticPdu:

Public Member Functions
	DtUnderwaterAcousticPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors.
	DtUnderwaterAcousticPdu (const DtNetUnderwaterAcousticPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtUnderwaterAcousticPdu (const DtUnderwaterAcousticPdu &orig)
virtual	~DtUnderwaterAcousticPdu ()
	destructor
DtUnderwaterAcousticPdu &	operator= (const DtUnderwaterAcousticPdu &orig)
	Assignment operator.
virtual void	setEmittingEntityID (const DtEntityIdentifier &entity)
	Set/Get emitting entity identifier.
virtual const DtEntityIdentifier &	emittingEntityID () const
virtual void	setEventID (const DtEventID &event)
	Set/Get event identifier.
virtual const DtEventID &	eventID () const
virtual void	setStateChangeUpdate (DtUnderwaterAcousticUpdate upd)
	Set/Get state/change update indicator.
virtual DtUnderwaterAcousticUpdate	stateChangeUpdate () const
virtual void	setPassiveParameterIndex (DtUnderwaterAcousticPassiveParmIndex ind)
	Set/Get passive parameter index.
virtual DtUnderwaterAcousticPassiveParmIndex	passiveParameterIndex () const
virtual void	setPropulsionPlantConfig (DtUnderwaterAcousticPropulsionPlantConfig config)
	Set/Get propulsion plant configuration.
virtual DtUnderwaterAcousticPropulsionPlantConfig	propulsionPlantConfig () const
virtual bool	setNumShafts (DtU8 num)
	Set/Get number of shafts.
virtual DtU8	numShafts () const
virtual bool	setNumAdditionalPassiveAct (DtU8 num)
	Set/Get number of additional passive activities.
virtual DtU8	numAdditionalPassiveAct () const
virtual bool	setNumEmitterSystems (DtU8 num)
	Set/Get number of emitter systems.
virtual DtU8	numEmitterSystems () const
virtual bool	setNumBeams (int emitterSystemIndex, DtU8 num)
	Set/Get number of beam data records for a particular emitter system.
virtual DtU8	numBeams (int emitterSystemIndex) const
virtual bool	setShaftSpeed (int index, const DtUnderwaterAcousticShaftSpeed &record)
	Set/Get a shaft speed data record.
virtual bool	getShaftSpeed (int index, DtUnderwaterAcousticShaftSpeed &record) const
virtual bool	setAddtnlPassiveAct (int index, const DtUnderwaterAcousticAddtnlPassiveAct &record)
	Set/Get an additional passive activity data record.
virtual bool	getAddtnlPassiveAct (int index, DtUnderwaterAcousticAddtnlPassiveAct &record) const
virtual bool	setEmitterSystem (int index, const DtUnderwaterAcousticEmitterSystem &record)
	Set/Get an underwater acoustic emitter system.
virtual bool	getEmitterSystem (int index, DtUnderwaterAcousticEmitterSystem &record) const
virtual bool	setBeam (int emitterSystemIndex, int beamIndex, const DtUnderwaterAcousticBeam &record)
	Set/Get beam fundamental data parameters for a beam.
virtual bool	getBeam (int emitterSystemIndex, int beamIndex, DtUnderwaterAcousticBeam &record) const
virtual void	printData () const
	Print the data contained by this PDU.
virtual void	printDataToStream (std::ostream &stream) const
Public Member Functions inherited from DtStateMsg
	DtStateMsg ()
	default constructor
virtual	~DtStateMsg ()
	destructor
	DtStateMsg (const DtStateMsg &orig)
	copy constructor
DtStateMsg &	operator= (const DtStateMsg &orig)
	assignment operator
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor.
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator.
virtual void *	packet () const
	Older function that returns a pointer to the network representation.
virtual int	status () const
	Get PDU status.
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header.
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header.
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header.
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header.
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type.
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header.
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo).
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU by calling printHeaderToStream and printDataToStream.
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo).
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream.
virtual void	printDataToString (DtString &str) const
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor.
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment.
virtual const char *	netRep () const
	Get network representation.
virtual int	length () const
	Get size of message.

Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Create a DtUnderwaterAcousticPdu.
static void	addCallback (DtExerciseConn *conn, DtUnderwaterAcousticPduCb cb, void *usr)
	Add (register)/Remove (deregister) function to be called when pdu is received.
static void	removeCallback (DtExerciseConn *conn, DtUnderwaterAcousticPduCb cb, void *usr)

Protected Member Functions
DtUnderwaterAcousticPdu *	self () const
	Casts the 'this' pointer for changing elements in a const function.
virtual DtPduKind	internalGetPduKind () const
	Returns the internal PDU kind.
virtual DtNetUnderwaterAcousticPdu *	netPduStruct () const
	Casts the netPdu element to our network struct.
virtual char *	var () const
	Returns a pointer to the first byte of variable length data.
virtual int	shaftSpeedRecordOffset (int recordIndex) const
	Returns a buffer offset to the given shaft speed record.
virtual int	passiveActRecordOffset (int recordIndex) const
	Returns a buffer offset to the given additional passive activity record.
virtual int	emitterSystemRecordOffset (int recordIndex) const
	Returns a buffer offset to the given acoustic emitter system.
virtual int	beamDataRecordOffset (int emitterSystemIndex, int beamIndex) const
	Returns a buffer offset to the given beam fundamental data parameter of a particular emitter system.
int	computeStatus () const

Protected Attributes
DtEntityIdentifier	myEntityID
	Temporary objects for reference returns.
DtEventID	myEventID

Static Protected Attributes
static const int	theNetUaPduSize
static const int	theNetShaftSize
static const int	theNetApaSize
static const int	theNetSystemSize
static const int	theNetBeamSize

Detailed Description

Instances of DtUnderwaterAcousticPdu are used to send information about simulated underwater acoustic emissions.

Constructor & Destructor Documentation

DtUnderwaterAcousticPdu::DtUnderwaterAcousticPdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

Constructors.

DtUnderwaterAcousticPdu::DtUnderwaterAcousticPdu	(	const DtNetUnderwaterAcousticPdu *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

DtUnderwaterAcousticPdu::DtUnderwaterAcousticPdu

(

const DtUnderwaterAcousticPdu &

orig

)

virtual DtUnderwaterAcousticPdu::~DtUnderwaterAcousticPdu ( )

virtual

destructor

Member Function Documentation

static void DtUnderwaterAcousticPdu::addCallback ( DtExerciseConn *  conn, DtUnderwaterAcousticPduCb  cb, void *  usr  )

static

Add (register)/Remove (deregister) function to be called when pdu is received.

virtual int DtUnderwaterAcousticPdu::beamDataRecordOffset ( int  emitterSystemIndex, int  beamIndex  ) const

protectedvirtual

Returns a buffer offset to the given beam fundamental data parameter of a particular emitter system.

int DtUnderwaterAcousticPdu::computeStatus ( ) const

protected

static DtPdu* DtUnderwaterAcousticPdu::create ( const DtNetPacket *  initial, DtBufferPtr  buffer = DtUSE_INTERNAL_BUFFER  )

static

Create a DtUnderwaterAcousticPdu.

Caller is responsible for deletion.

virtual int DtUnderwaterAcousticPdu::emitterSystemRecordOffset ( int  recordIndex ) const

protectedvirtual

Returns a buffer offset to the given acoustic emitter system.

virtual const DtEntityIdentifier& DtUnderwaterAcousticPdu::emittingEntityID ( ) const

virtual

virtual const DtEventID& DtUnderwaterAcousticPdu::eventID ( ) const

virtual

virtual bool DtUnderwaterAcousticPdu::getAddtnlPassiveAct ( int  index, DtUnderwaterAcousticAddtnlPassiveAct &  record  ) const

virtual

virtual bool DtUnderwaterAcousticPdu::getBeam ( int  emitterSystemIndex, int  beamIndex, DtUnderwaterAcousticBeam &  record  ) const

virtual

virtual bool DtUnderwaterAcousticPdu::getEmitterSystem ( int  index, DtUnderwaterAcousticEmitterSystem &  record  ) const

virtual

virtual bool DtUnderwaterAcousticPdu::getShaftSpeed ( int  index, DtUnderwaterAcousticShaftSpeed &  record  ) const

virtual

virtual DtPduKind DtUnderwaterAcousticPdu::internalGetPduKind ( ) const

inlineprotectedvirtual

Returns the internal PDU kind.

Implements DtPdu.

References DtUnderwaterAcousticPduKind.

virtual DtNetUnderwaterAcousticPdu* DtUnderwaterAcousticPdu::netPduStruct ( ) const

protectedvirtual

Casts the netPdu element to our network struct.

virtual DtU8 DtUnderwaterAcousticPdu::numAdditionalPassiveAct ( ) const

virtual

virtual DtU8 DtUnderwaterAcousticPdu::numBeams ( int  emitterSystemIndex ) const

virtual

virtual DtU8 DtUnderwaterAcousticPdu::numEmitterSystems ( ) const

virtual

virtual DtU8 DtUnderwaterAcousticPdu::numShafts ( ) const

virtual

DtUnderwaterAcousticPdu& DtUnderwaterAcousticPdu::operator=

(

const DtUnderwaterAcousticPdu &

orig

)

Assignment operator.

virtual int DtUnderwaterAcousticPdu::passiveActRecordOffset ( int  recordIndex ) const

protectedvirtual

Returns a buffer offset to the given additional passive activity record.

virtual DtUnderwaterAcousticPassiveParmIndex DtUnderwaterAcousticPdu::passiveParameterIndex ( ) const

virtual

virtual void DtUnderwaterAcousticPdu::printData ( ) const

virtual

Print the data contained by this PDU.

Reimplemented from DtPdu.

virtual void DtUnderwaterAcousticPdu::printDataToStream ( std::ostream &  stream ) const

virtual

Reimplemented from DtPdu.

virtual DtUnderwaterAcousticPropulsionPlantConfig DtUnderwaterAcousticPdu::propulsionPlantConfig ( ) const

virtual

static void DtUnderwaterAcousticPdu::removeCallback ( DtExerciseConn *  conn, DtUnderwaterAcousticPduCb  cb, void *  usr  )

static

DtUnderwaterAcousticPdu* DtUnderwaterAcousticPdu::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

Non-virtual, since you can't override based on return type.

virtual bool DtUnderwaterAcousticPdu::setAddtnlPassiveAct ( int  index, const DtUnderwaterAcousticAddtnlPassiveAct &  record  )

virtual

Set/Get an additional passive activity data record.

Returns false if the record does not exist.

virtual bool DtUnderwaterAcousticPdu::setBeam ( int  emitterSystemIndex, int  beamIndex, const DtUnderwaterAcousticBeam &  record  )

virtual

Set/Get beam fundamental data parameters for a beam.

Returns false if the record does not exist. Data length field is automatically set by the PDU class.

virtual bool DtUnderwaterAcousticPdu::setEmitterSystem ( int  index, const DtUnderwaterAcousticEmitterSystem &  record  )

virtual

Set/Get an underwater acoustic emitter system.

Returns false if the record does not exist. Data length field is automatically set by the PDU class.

virtual void DtUnderwaterAcousticPdu::setEmittingEntityID ( const DtEntityIdentifier &  entity )

virtual

Set/Get emitting entity identifier.

virtual void DtUnderwaterAcousticPdu::setEventID ( const DtEventID &  event )

virtual

Set/Get event identifier.

virtual bool DtUnderwaterAcousticPdu::setNumAdditionalPassiveAct ( DtU8  num )

virtual

Set/Get number of additional passive activities.

May return false if PDU size would exceed the maximum PDU size.

virtual bool DtUnderwaterAcousticPdu::setNumBeams ( int  emitterSystemIndex, DtU8  num  )

virtual

Set/Get number of beam data records for a particular emitter system.

May return false if PDU size would exceed the maximum PDU size or if the emitter system number is invalid.

virtual bool DtUnderwaterAcousticPdu::setNumEmitterSystems ( DtU8  num )

virtual

Set/Get number of emitter systems.

May return false if PDU size would exceed the maximum PDU size.

virtual bool DtUnderwaterAcousticPdu::setNumShafts ( DtU8  num )

virtual

Set/Get number of shafts.

May return false if PDU size would exceed the maximum PDU size.

virtual void DtUnderwaterAcousticPdu::setPassiveParameterIndex ( DtUnderwaterAcousticPassiveParmIndex  ind )

virtual

Set/Get passive parameter index.

virtual void DtUnderwaterAcousticPdu::setPropulsionPlantConfig ( DtUnderwaterAcousticPropulsionPlantConfig  config )

virtual

Set/Get propulsion plant configuration.

virtual bool DtUnderwaterAcousticPdu::setShaftSpeed ( int  index, const DtUnderwaterAcousticShaftSpeed &  record  )

virtual

Set/Get a shaft speed data record.

Returns false if the record does not exist.

virtual void DtUnderwaterAcousticPdu::setStateChangeUpdate ( DtUnderwaterAcousticUpdate  upd )

virtual

Set/Get state/change update indicator.

virtual int DtUnderwaterAcousticPdu::shaftSpeedRecordOffset ( int  recordIndex ) const

protectedvirtual

Returns a buffer offset to the given shaft speed record.

virtual DtUnderwaterAcousticUpdate DtUnderwaterAcousticPdu::stateChangeUpdate ( ) const

virtual

virtual char* DtUnderwaterAcousticPdu::var ( ) const

protectedvirtual

Returns a pointer to the first byte of variable length data.

Member Data Documentation

DtEntityIdentifier DtUnderwaterAcousticPdu::myEntityID

protected

Temporary objects for reference returns.

DtEventID DtUnderwaterAcousticPdu::myEventID

protected

const int DtUnderwaterAcousticPdu::theNetApaSize

staticprotected

const int DtUnderwaterAcousticPdu::theNetBeamSize

staticprotected

const int DtUnderwaterAcousticPdu::theNetShaftSize

staticprotected

const int DtUnderwaterAcousticPdu::theNetSystemSize

staticprotected

const int DtUnderwaterAcousticPdu::theNetUaPduSize

staticprotected

---

The documentation for this class was generated from the following file:

• undwaAcPdu.h
