DtArticulatedPartCollection Class Reference

A DtArticulatedPartCollection is a collection of articulated parts typically of an entity. More...

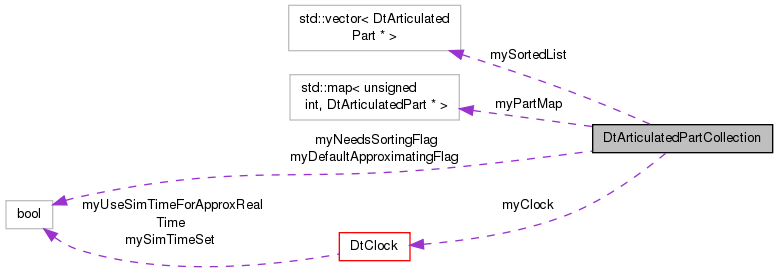

Collaboration diagram for DtArticulatedPartCollection:

Public Types
typedef std::map< unsigned int, DtArticulatedPart * >	PartMap
typedef PartMap::const_iterator	const_iterator
typedef std::set< unsigned int >	PartTypeSet

Public Member Functions
	DtArticulatedPartCollection (DtClock *clock=0)
	CTOR.
	DtArticulatedPartCollection (const DtArticulatedPartCollection &)
	Copy CTOR.
DtArticulatedPartCollection &	operator= (const DtArticulatedPartCollection &)
	Assignment operator.
virtual	~DtArticulatedPartCollection ()
	DTOR.
bool	operator== (const DtArticulatedPartCollection &other) const
bool	operator!= (const DtArticulatedPartCollection &other) const
virtual void	getPartTypes (PartTypeSet &aSet)
	Get all of the part types by adding each part type to a part type set.
virtual DtArticulatedPart &	getPart (unsigned int partType)
	Get the art part of a part type. If the part type does not exist it will be created.
virtual void	removeAllParts ()
	Removes all parts.
virtual void	removePart (unsigned int partType)
	Remove a part.
virtual void	attachPart (DtArticulatedPart *childPart, DtArticulatedPart *parentPart)
	Attach a child part to a parent part.
void	attachPart (unsigned int childPartType, unsigned int parentPartType)
	Helper function which looks up via type.
virtual unsigned int	totalParameterCount () const
	Get the sum of the number of parameters for all parts.
virtual unsigned int	partCount () const
	Get the number of parts.
virtual DtArticulatedPart *	createPart (DtArticulatedPart *copy=0) const
	Function used to create a part instance.
const_iterator	begin () const
	Get a constant iterator to the first part.
const_iterator	end () const
	Get a constant iterator beyond the last part.
virtual void	setClock (DtClock *clock, bool setForAllParts=true)
	Set the clock object.
bool	partsApproximateByDefault () const
	Get if parts approximate by default.
void	setPartsApproximateByDefault (bool deadReckonByDefault)
	Set whether parts approximate by default.
void	printDataToStream (std::ostream &stream) const
	Print the collection to a stream.
const std::vector < DtArticulatedPart * > &	getSortedList () const
	Get the parts in a sorted list useful for encoding.
virtual DtArticulatedPart *	findPart (unsigned int partType)
	Search for a particular part.
virtual const DtArticulatedPart *	findPart (unsigned int partType) const
	Search for a particular part.
DtClock *	clock ()
	Get the clock pointer, it may be NULL.
const DtClock *	clock () const
	Get the clock pointer, it may be NULL.

Protected Member Functions
virtual void	sortArtParts () const
	Sort the internal list.
int	calculatePartDistance (DtArticulatedPart *part) const
	Internal calculate distance function.

Protected Attributes
PartMap	myPartMap
DtClock *	myClock
bool	myDefaultApproximatingFlag
std::vector< DtArticulatedPart * >	mySortedList
bool	myNeedsSortingFlag

Detailed Description

A DtArticulatedPartCollection is a collection of articulated parts typically of an entity.

Examples

• Articulated Parts

Member Typedef Documentation

typedef PartMap::const_iterator DtArticulatedPartCollection::const_iterator

typedef std::map<unsigned int,DtArticulatedPart*> DtArticulatedPartCollection::PartMap

typedef std::set<unsigned int> DtArticulatedPartCollection::PartTypeSet

Constructor & Destructor Documentation

DtArticulatedPartCollection::DtArticulatedPartCollection

(

DtClock *

clock = 0

)

CTOR.

Parameters

Input
clock	is an optional parameter for setting the clock. The clock is passed to each newly create part.

DtArticulatedPartCollection::DtArticulatedPartCollection

(

const DtArticulatedPartCollection &

)

Copy CTOR.

Warning

If sub classing do not change the subclass copy constructor with this Copy CTOR as copying will not be done correctly. Chain the subclass with the default constructor and explicitly copy the internal parts using the desired class.

virtual DtArticulatedPartCollection::~DtArticulatedPartCollection ( )

virtual

DTOR.

Member Function Documentation

virtual void DtArticulatedPartCollection::attachPart ( DtArticulatedPart *  childPart, DtArticulatedPart *  parentPart  )

virtual

Attach a child part to a parent part.

Exceptions

DtCorruptedState

if childPart == parentPart

Referenced by attachPart().

void DtArticulatedPartCollection::attachPart ( unsigned int  childPartType, unsigned int  parentPartType  )

inline

Helper function which looks up via type.

References attachPart(), and findPart().

const_iterator DtArticulatedPartCollection::begin

(

)

const

Get a constant iterator to the first part.

int DtArticulatedPartCollection::calculatePartDistance ( DtArticulatedPart *  part ) const

protected

Internal calculate distance function.

Exceptions

DtCorruptedState

if a circulate dependency is detected.

DtClock* DtArticulatedPartCollection::clock

(

)

Get the clock pointer, it may be NULL.

const DtClock* DtArticulatedPartCollection::clock

(

)

const

Get the clock pointer, it may be NULL.

virtual DtArticulatedPart* DtArticulatedPartCollection::createPart ( DtArticulatedPart *  copy = 0 ) const

virtual

Function used to create a part instance.

This is a separate function to allow subclasses to create the part instances.

Parameters

Input
copy	is an optional parameter which should be used with a copy constructor when copy is valid.

const_iterator DtArticulatedPartCollection::end

(

)

const

Get a constant iterator beyond the last part.

virtual DtArticulatedPart* DtArticulatedPartCollection::findPart ( unsigned int  partType )

virtual

Search for a particular part.

If the part does not exist the function will return null.

Return values

0	If the part is not found.

Warning

Do not delete the returned pointer it is owned and managed by the collection.

Do not hold on to the pointer it is owned and managed by the collection and may be deallocated anytime in the future.

Referenced by attachPart().

virtual const DtArticulatedPart* DtArticulatedPartCollection::findPart ( unsigned int  partType ) const

virtual

Search for a particular part.

If the part does not exist the function will return null.

Return values

0	If the part is not found.

Warning

Do not delete the returned pointer it is owned and managed by the collection.

Do not hold on to the pointer it is owned and managed by the collection and may be deallocated anytime in the future.

virtual DtArticulatedPart& DtArticulatedPartCollection::getPart ( unsigned int  partType )

virtual

Get the art part of a part type. If the part type does not exist it will be created.

virtual void DtArticulatedPartCollection::getPartTypes ( PartTypeSet &  aSet )

virtual

Get all of the part types by adding each part type to a part type set.

This

Parameters

Output
aSet	is used to store the part types. Note aSet is not cleared.

const std::vector<DtArticulatedPart*>& DtArticulatedPartCollection::getSortedList

(

)

const

Get the parts in a sorted list useful for encoding.

Exceptions

DtCorruptedState

if a circulate dependency is detected.

bool DtArticulatedPartCollection::operator!=

(

const DtArticulatedPartCollection &

other

)

const

DtArticulatedPartCollection& DtArticulatedPartCollection::operator=

(

const DtArticulatedPartCollection &

)

Assignment operator.

bool DtArticulatedPartCollection::operator==

(

const DtArticulatedPartCollection &

other

)

const

virtual unsigned int DtArticulatedPartCollection::partCount ( ) const

virtual

Get the number of parts.

bool DtArticulatedPartCollection::partsApproximateByDefault

(

)

const

Get if parts approximate by default.

This is true by default for all articulated part collections.

void DtArticulatedPartCollection::printDataToStream

(

std::ostream &

stream

)

const

Print the collection to a stream.

virtual void DtArticulatedPartCollection::removeAllParts ( )

virtual

Removes all parts.

Warning

This function invalidates all iterators.

virtual void DtArticulatedPartCollection::removePart ( unsigned int  partType )

virtual

Remove a part.

If the part is not found the function does nothing.

Warning

This function may invalidate an iterator if it points to the part that was just removed.

virtual void DtArticulatedPartCollection::setClock ( DtClock *  clock, bool  setForAllParts = true  )

virtual

Set the clock object.

Optionally this will set the clock object for all existing parts.

Parameters

Input
clock	the clock pointer, which may be NULL.
setForAllParts	controls whether each existing part get the new clock pointer as well.

void DtArticulatedPartCollection::setPartsApproximateByDefault

(

bool

deadReckonByDefault

)

Set whether parts approximate by default.

virtual void DtArticulatedPartCollection::sortArtParts ( ) const

protectedvirtual

Sort the internal list.

Exceptions

DtCorruptedState

if a circulate dependency is detected.

virtual unsigned int DtArticulatedPartCollection::totalParameterCount ( ) const

virtual

Get the sum of the number of parameters for all parts.

Member Data Documentation

DtClock* DtArticulatedPartCollection::myClock

protected

bool DtArticulatedPartCollection::myDefaultApproximatingFlag

protected

bool DtArticulatedPartCollection::myNeedsSortingFlag

mutableprotected

PartMap DtArticulatedPartCollection::myPartMap

protected

std::vector<DtArticulatedPart*> DtArticulatedPartCollection::mySortedList

mutableprotected

---

The documentation for this class was generated from the following file:

• articulatedPartCollection.h
