DtEmitterSystemRepository Class Reference

Instances of DtEmitterSystemRepository are used to store state data for emitter systems in both HLA and DIS environments. More...

Inheritance diagram for DtEmitterSystemRepository:

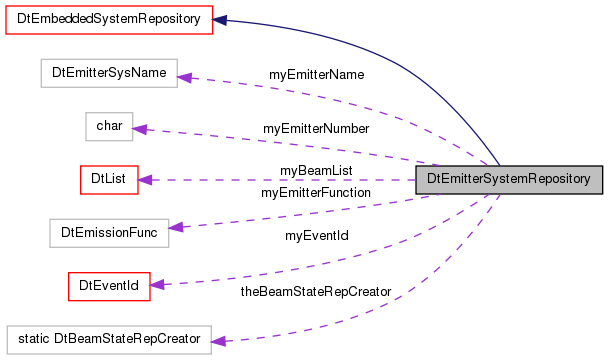

Collaboration diagram for DtEmitterSystemRepository:

Public Types
typedef DtEmitterBeamRepository *(*	DtBeamStateRepCreator )()
	Function prototype for functions that create Beam State Repositories.

Public Member Functions
	DtEmitterSystemRepository ()
	default constructor
virtual	~DtEmitterSystemRepository ()
	destructor
	DtEmitterSystemRepository (const DtEmitterSystemRepository &orig)
	copy constructor
DtEmitterSystemRepository &	operator= (const DtEmitterSystemRepository &orig)
	assignment operator
virtual DtStateRepository *	clone (bool copy=false) const
	Return a copy/empty object of the same type as this.
virtual void	setEmitterFunction (DtEmissionFunc function)
	Set/Get the emitter function.
virtual DtEmissionFunc	emitterFunction () const
virtual void	setEmitterName (DtEmitterSysName name)
	Set/Get the emitter name.
virtual DtEmitterSysName	emitterName () const
virtual void	setEmitterNumber (DtU8 number)
	Set/Get the emitter number.
virtual DtU8	emitterNumber () const
virtual void	setEventId (const DtEventId &id)
	Set/Get Event Id - not used until RPR 0.7.
virtual const DtEventId &	eventId () const
virtual void	printData () const
	Print data to the DtInfo stream.
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream.
virtual DtEmitterBeamRepository *	beamSRById (DtU8 beamId, DtEmitterSysRetCode *retcode=NULL)
	Return a pointer to the first BeamSR with specified beamID.
virtual DtEmitterBeamRepository *	addBeam (DtU8 beamId=0, DtBeamType type=DtRegularBeam, DtEmitterSysRetCode *retcode=NULL)
	Add/remove a new emitter beam within this system.
virtual DtEmitterSysRetCode	removeBeam (DtU8 beamId)
	removes an emitter beam, if there are duplicate beams it will remove the first beam with the given beamID.
virtual DtEmitterSysRetCode	removeBeam (const DtGlobalObjectDesignator &id)
virtual int	numBeams () const
	Returns number of beams.
virtual const DtList *	beamList () const
	Returns DtList of DtEmitterBeamStateRepositories.
virtual DtList *	beamList ()
bool	isMember (DtEmitterBeamRepository *bsr) const
	Returns true if the give BSR is in this ESR's list of BSRs.
Public Member Functions inherited from DtEmbeddedSystemRepository
	DtEmbeddedSystemRepository ()
	default constructor
	DtEmbeddedSystemRepository (const DtEmbeddedSystemRepository &orig)
	copy constructor
virtual	~DtEmbeddedSystemRepository ()
	destructor
DtEmbeddedSystemRepository &	operator= (const DtEmbeddedSystemRepository &orig)
	assignment operator
virtual void	setEntityId (const DtEntityIdentifier &id)
	Set the entity identifier.
virtual const DtEntityIdentifier &	entityId () const
	Get the entity identifier.
virtual void	setHostId (const DtGlobalObjectDesignator &id)
	Set the host identifier.
virtual const DtGlobalObjectDesignator &	hostId () const
	Get the host identifier.
virtual void	setRelativePosition (const DtVector &position)
	Set the position of the object relative to the entity.
virtual const DtVector &	relativePosition () const
	Get the position of the object relative to the entity.
Public Member Functions inherited from DtStateRepository
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name.
virtual const DtGlobalObjectDesignator &	globalId () const
virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle.
virtual const DtObjectId &	localId () const

Static Public Member Functions
static DtEmitterSystemRepository *	create ()
static DtBeamStateRepCreator	setStateRepCreator (DtBeamStateRepCreator creator)
	Give us a function to be used for creating Beam SRs.

Protected Member Functions
virtual void	purgeBeamList ()

Protected Attributes
DtEventId	myEventId
DtEmissionFunc	myEmitterFunction
DtEmitterSysName	myEmitterName
DtU8	myEmitterNumber
DtList	myBeamList
	List of beams in this system.
Protected Attributes inherited from DtEmbeddedSystemRepository
DtEntityIdentifier	myEntityId
	Embedded system class attributes.
DtGlobalObjectDesignator	myHostId
DtVector	myRelativePosition
Protected Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtObjectId	myLocalId

Static Protected Attributes
static DtBeamStateRepCreator	theBeamStateRepCreator

Detailed Description

Instances of DtEmitterSystemRepository are used to store state data for emitter systems in both HLA and DIS environments.

Member Typedef Documentation

typedef DtEmitterBeamRepository*(* DtEmitterSystemRepository::DtBeamStateRepCreator)()

Function prototype for functions that create Beam State Repositories.

Constructor & Destructor Documentation

DtEmitterSystemRepository::DtEmitterSystemRepository

(

)

default constructor

virtual DtEmitterSystemRepository::~DtEmitterSystemRepository ( )

virtual

destructor

DtEmitterSystemRepository::DtEmitterSystemRepository

(

const DtEmitterSystemRepository &

orig

)

copy constructor

Member Function Documentation

virtual DtEmitterBeamRepository* DtEmitterSystemRepository::addBeam ( DtU8  beamId = 0, DtBeamType  type = DtRegularBeam, DtEmitterSysRetCode *  retcode = NULL  )

virtual

Add/remove a new emitter beam within this system.

If you add a beam with duplicate ID, retcode will be set to DtDuplicateBeam, and beamSRById will return the first beamSR with the given ID.

virtual const DtList* DtEmitterSystemRepository::beamList ( ) const

virtual

Returns DtList of DtEmitterBeamStateRepositories.

virtual DtList* DtEmitterSystemRepository::beamList ( )

virtual

virtual DtEmitterBeamRepository* DtEmitterSystemRepository::beamSRById ( DtU8  beamId, DtEmitterSysRetCode *  retcode = NULL  )

virtual

Return a pointer to the first BeamSR with specified beamID.

virtual DtStateRepository* DtEmitterSystemRepository::clone ( bool  copy = false ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtEmbeddedSystemRepository.

static DtEmitterSystemRepository* DtEmitterSystemRepository::create ( )

static

Reimplemented from DtEmbeddedSystemRepository.

virtual DtEmissionFunc DtEmitterSystemRepository::emitterFunction ( ) const

virtual

virtual DtEmitterSysName DtEmitterSystemRepository::emitterName ( ) const

virtual

virtual DtU8 DtEmitterSystemRepository::emitterNumber ( ) const

virtual

virtual const DtEventId& DtEmitterSystemRepository::eventId ( ) const

virtual

bool DtEmitterSystemRepository::isMember

(

DtEmitterBeamRepository *

bsr

)

const

Returns true if the give BSR is in this ESR's list of BSRs.

virtual int DtEmitterSystemRepository::numBeams ( ) const

virtual

Returns number of beams.

DtEmitterSystemRepository& DtEmitterSystemRepository::operator=

(

const DtEmitterSystemRepository &

orig

)

assignment operator

virtual void DtEmitterSystemRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual void DtEmitterSystemRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual void DtEmitterSystemRepository::purgeBeamList ( )

protectedvirtual

virtual DtEmitterSysRetCode DtEmitterSystemRepository::removeBeam ( DtU8  beamId )

virtual

removes an emitter beam, if there are duplicate beams it will remove the first beam with the given beamID.

This can cause crashes in HLA as this may not be the HLA object which was actually removed. It is safer in HLA to call removeBeam which takes a GlobalId

virtual DtEmitterSysRetCode DtEmitterSystemRepository::removeBeam ( const DtGlobalObjectDesignator &  id )

virtual

virtual void DtEmitterSystemRepository::setEmitterFunction ( DtEmissionFunc  function )

virtual

Set/Get the emitter function.

virtual void DtEmitterSystemRepository::setEmitterName ( DtEmitterSysName  name )

virtual

Set/Get the emitter name.

virtual void DtEmitterSystemRepository::setEmitterNumber ( DtU8  number )

virtual

Set/Get the emitter number.

virtual void DtEmitterSystemRepository::setEventId ( const DtEventId &  id )

virtual

Set/Get Event Id - not used until RPR 0.7.

static DtBeamStateRepCreator DtEmitterSystemRepository::setStateRepCreator ( DtBeamStateRepCreator  creator )

static

Give us a function to be used for creating Beam SRs.

Member Data Documentation

DtList DtEmitterSystemRepository::myBeamList

protected

List of beams in this system.

DtEmissionFunc DtEmitterSystemRepository::myEmitterFunction

protected

DtEmitterSysName DtEmitterSystemRepository::myEmitterName

protected

DtU8 DtEmitterSystemRepository::myEmitterNumber

protected

DtEventId DtEmitterSystemRepository::myEventId

protected

DtBeamStateRepCreator DtEmitterSystemRepository::theBeamStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• emitterSysSR.h
