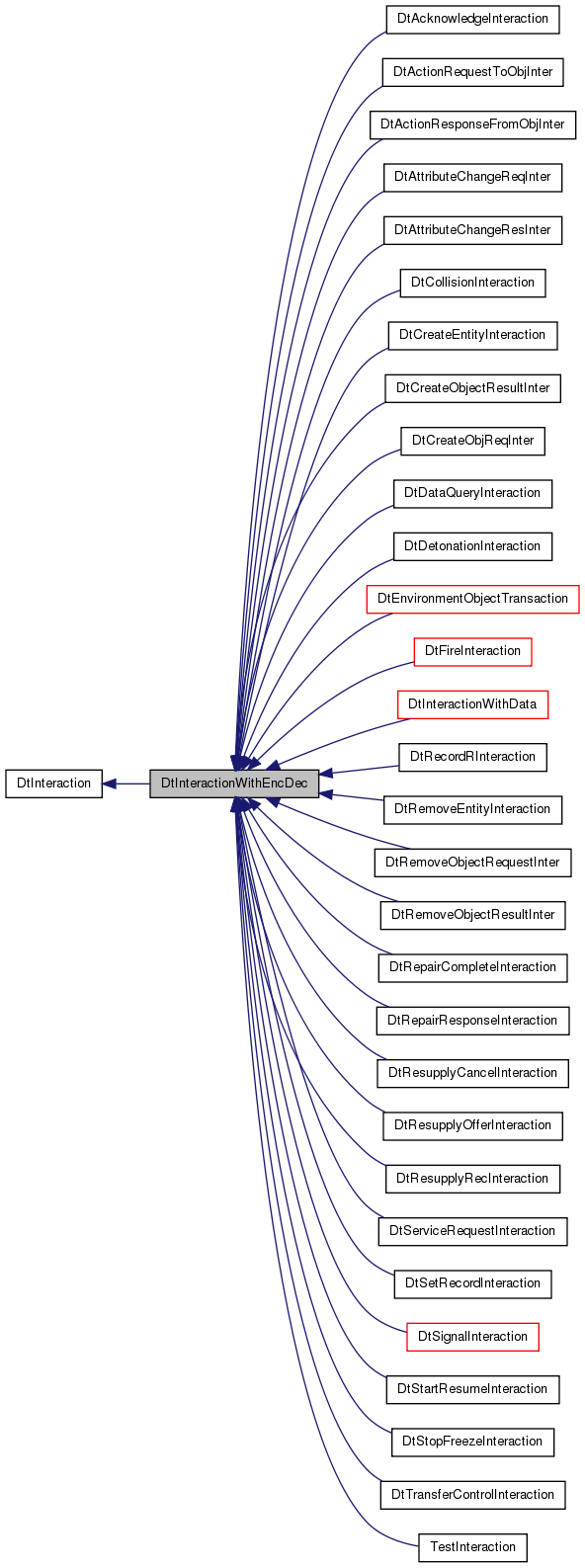

Inheritance diagram for DtInteractionWithEncDec:

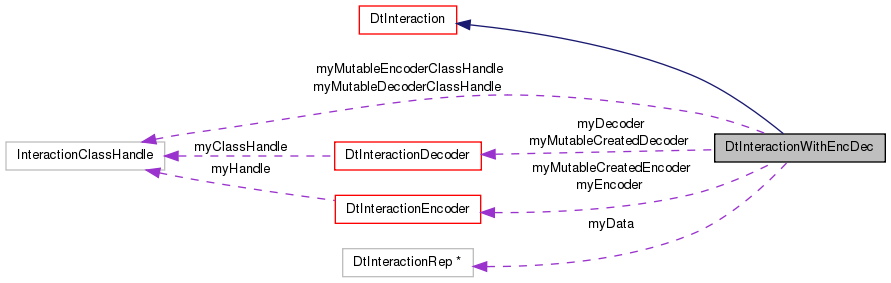

Collaboration diagram for DtInteractionWithEncDec:

Public Member Functions
	DtInteractionWithEncDec ()
	default constructor
virtual	~DtInteractionWithEncDec ()
	destructor
	DtInteractionWithEncDec (const DtInteractionWithEncDec &orig)
	copy constructor
DtInteractionWithEncDec &	operator= (const DtInteractionWithEncDec &orig)
	assignment operator
virtual void	setExConn (DtExerciseConn exConn, DtInterClassDesc classDesc=NULL)
	Sets the interaction's ExerciseConn and class descriptor.
virtual const RTI::ParameterHandleValuePairSet &	phvps () const
	Get the parameter handle value pair set for the interaction.
virtual void	setFromPhvps (const RTI::ParameterHandleValuePairSet &pvList)
	Set contents from a parameter handle value pair set.
virtual void	useThese (DtInteractionEncoder enc, DtInteractionDecoder dec, DtInteractionRep *data)
	Specify an encoder, decoder, and interaction data repository to use in encoding and decoding.
virtual DtInteractionEncoder *	encoder () const
	Return the encoder we are using.
virtual DtInteractionDecoder *	decoder () const
	Return the decoder we are using.
Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor
virtual	~DtInteraction ()
	destructor
	DtInteraction (const DtInteraction &orig)
	copy constructor
DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator
virtual RTI::InteractionClassHandle	interactionClassHandle () const
	Get the interaction class handle. Returns 0 if no classDesc.
virtual char *	interactionClassName () const
	Get the interaction class name. Returns NULL if no classDesc.
virtual int	numParameters () const
	Get the number of parameters. Returns 0 if no classDesc.
virtual bool	neededByFederation () const
	Returns true if the interaction class is needed by the federation false otherwise.
virtual void	print () const
	Print the interaction's host rep data, including header.
virtual void	printToStream (std::ostream &stream) const
	Print the interaction to a stream.
virtual void	printHeader () const
	Print the header info.
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the header info to a stream.
virtual void	printData () const
	Print the interaction's data to DtInfo.
virtual void	printDataToString (DtString &buff) const
	Print the interaction's data to the string provided.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the stream.
virtual void	printParams (bool withHex) const
	Print the header followed by the interaction's parameters.
virtual void	printParamsToStream (std::ostream &stream, bool withHex) const
	Print the header followed by the interaction's parameters to a stream.
virtual const char *	name () const =0
	Name of the interaction. (Not necessarily the ClassName from the FOM.)
virtual DtExerciseConn *	exerciseConn () const
	Get the current exercise connection.
virtual DtInterClassDesc *	classDesc () const
	Get the current class descriptor we're using for this interaction.
virtual bool	customTagSet () const
	Get whether a custom tag has been set on the interaction or not.
virtual void	setCustomTag (const DtString &a_tag)
	Set the user-defined tag.
virtual void	setTag (const DtString &tag)
	Set the user-defined tag.
virtual const DtString &	tag () const
	Get the user-defined tag.
virtual const DtDDMRegion *	region () const
virtual DtDDMRegion *	region ()
virtual void	setRegion (const DtDDMRegion &region)
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the time of validity of the message, and whether this represents relative or absolute time.
virtual DtTime	timeStamp () const
	Return the time of validity of the message (in seconds past an hour) as set by setTimeStamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual void	setFedTime (const RTI::FedTime &ft)
	This is used for TSO interactions.
virtual const RTI::FedTime *	fedTime () const
	When the interaction is received, if the federate sending the interaction had TSO set then the fedTime will be set.
virtual void	setEventRetractionHandle (const RTI::EventRetractionHandle &handle)
	Get/Set the EventRetractionHandle.
virtual RTI::EventRetractionHandle	eventRetractionHandle () const
	Get the event retraction handle. For more info see setEventRetractionHandle.

Protected Member Functions
virtual DtInteractionDecoder *	createDecoder (DtExerciseConn *exConn) const
	Called by decoderToUse to obtain a new'ed decoder.
virtual DtInteractionEncoder *	createEncoder (DtExerciseConn *exConn) const
	Called by encoderToUse to obtain a new'ed encoder.
virtual DtInteractionDecoder *	decoderToUse (DtExerciseConn *exConn) const
	Returns a decoder to use for decoding the interaction.
virtual DtInteractionEncoder *	encoderToUse (DtExerciseConn *exConn) const
	Returns an encoder to use for encoding the interaction.
Protected Member Functions inherited from DtInteraction
virtual char *	interactionClassToUse (DtExerciseConn *exConn) const
	Returns the FOM interaction class name to use.
virtual RTI::ParameterHandleValuePairSet *	privPvList () const
	Returns a pointer to a private pvList that can be used as a return value by phvps.
DtInteraction *	self () const
	Get rid of const-ness on the "this" pointer in order to access non-const functions from const member functions (such as simple accessors).

Protected Attributes
DtInteractionDecoder *	myDecoder
DtInteractionEncoder *	myEncoder
DtInteractionRep *	myData
Protected Attributes inherited from DtInteraction
DtInterClassDesc *	myClassDesc
DtExerciseConn *	myExConn
DtTime	myTime
DtTimeStampType	myTimeType
DtString	myTag
RTI::ParameterHandleValuePairSet *	myPvList
int	myPvListMaxSize
RTI::FedTime *	myFedTime
RTI::EventRetractionHandle	myRetractionHandle
DtDDMRegion *	myRegion
bool	myCustomTagSet

Private Attributes
DtInteractionDecoder *	myMutableCreatedDecoder
	These data members are changed in const functions.
DtInteractionEncoder *	myMutableCreatedEncoder
RTI::InteractionClassHandle	myMutableEncoderClassHandle
RTI::InteractionClassHandle	myMutableDecoderClassHandle

Additional Inherited Members
Static Public Member Functions inherited from DtInteraction
static void	setTagIsAsciiTime (bool val)
	Set/Get flag that tells us whether we're using the RPR FOM convention that the UserDefinedTag in updates and interactions represents a DIS-style timestamp.
static bool	tagIsAsciiTime ()
static void	addCallback (DtExerciseConn conn, const DtList classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Register/Deregister callback function cb with conn, on all interaction class name (char*) contained in classes.
static void	removeCallback (DtExerciseConn conn, const DtList classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
static void	addCallback (DtExerciseConn conn, const char className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Can be used instead of above for a single class.
static void	removeCallback (DtExerciseConn conn, const char className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
Static Protected Attributes inherited from DtInteraction
static bool	theTagIsAsciiTime

Detailed Description

class DtInteractionWithEncDec:

DtInteractionWithEncDec is a DtInteraction that uses an encoder and decoder to implement the virtual functions phvps and setFromPhvps.

Constructor & Destructor Documentation

DtInteractionWithEncDec::DtInteractionWithEncDec ( )

default constructor

virtual DtInteractionWithEncDec::~DtInteractionWithEncDec ( )

virtual

destructor

DtInteractionWithEncDec::DtInteractionWithEncDec ( const DtInteractionWithEncDec & orig )

copy constructor

Member Function Documentation

virtual DtInteractionDecoder* DtInteractionWithEncDec::createDecoder ( DtExerciseConn * exConn ) const

protectedvirtual

Called by decoderToUse to obtain a new'ed decoder.

Default implementation is to ask the FOM Mapper. The object is automatically deleted in the interaction's destructor.

Reimplemented in DtL16RadioSignalInteraction, TestInteraction, DtJtidsLetRadioSignalInteraction, DtJtidsMessageRadioSignalInteraction, DtVmfRadioSignalInteraction, DtJtidsVoiceCvsdRadioSignalInteraction, DtJtidsVoiceLpc10RadioSignalInteraction, DtJtidsVoiceLpc12RadioSignalInteraction, DtRttabRadioSignalInteraction, and DtRttReplyRadioSignalInteraction.

virtual DtInteractionEncoder* DtInteractionWithEncDec::createEncoder ( DtExerciseConn * exConn ) const

protectedvirtual

Called by encoderToUse to obtain a new'ed encoder.

Default implementation is to ask the FOM Mapper. The object is automatically deleted in the interaction's destructor.

Reimplemented in DtL16RadioSignalInteraction, TestInteraction, DtJtidsLetRadioSignalInteraction, DtJtidsMessageRadioSignalInteraction, DtVmfRadioSignalInteraction, DtJtidsVoiceCvsdRadioSignalInteraction, DtJtidsVoiceLpc10RadioSignalInteraction, DtJtidsVoiceLpc12RadioSignalInteraction, DtRttabRadioSignalInteraction, and DtRttReplyRadioSignalInteraction.

DtInteractionDecoder * DtInteractionWithEncDec::decoder ( ) const

inlinevirtual

Return the decoder we are using.

References myDecoder.

virtual DtInteractionDecoder* DtInteractionWithEncDec::decoderToUse ( DtExerciseConn * exConn ) const

protectedvirtual

Returns a decoder to use for decoding the interaction.

DtInteractionEncoder * DtInteractionWithEncDec::encoder ( ) const

inlinevirtual

Return the encoder we are using.

References myEncoder.

virtual DtInteractionEncoder* DtInteractionWithEncDec::encoderToUse ( DtExerciseConn * exConn ) const

protectedvirtual

Returns an encoder to use for encoding the interaction.

DtInteractionWithEncDec& DtInteractionWithEncDec::operator= ( const DtInteractionWithEncDec & orig )

assignment operator

virtual const RTI::ParameterHandleValuePairSet& DtInteractionWithEncDec::phvps ( ) const

virtual

Get the parameter handle value pair set for the interaction.

This is a slow function as the phvps is regenerated every time its called. Please do not count on the data in the phvps being correct after the function is called the second time.

Implements DtInteraction.

virtual void DtInteractionWithEncDec::setExConn	(	DtExerciseConn *	exConn,
		DtInterClassDesc *	classDesc = `NULL`
	)

virtual

Sets the interaction's ExerciseConn and class descriptor.

If classDesc is NULL, a default is chosen by calling interactionClassToUse(). Without being told what ExConn or class descriptor to use, many of the HLA-specific functions won't work properly. However, it is usually not necessary for application code to call this function, since it is called by DtExerciseConn::send on the outgoing side, and by the DtInteractionFactory on the incoming side.

Reimplemented from DtInteraction.

virtual void DtInteractionWithEncDec::setFromPhvps ( const RTI::ParameterHandleValuePairSet & pvList )

virtual

Set contents from a parameter handle value pair set.

Implements DtInteraction.

virtual void DtInteractionWithEncDec::useThese	(	DtInteractionEncoder *	enc,
		DtInteractionDecoder *	dec,
		DtInteractionRep *	data
	)

virtual

Specify an encoder, decoder, and interaction data repository to use in encoding and decoding.

Called by setExConn (using encoder and decoder obtained through encoderToUse() and decoderToUse()) so call AFTER setExConn if you want to override defaults. Caller is responsible for deleting enc, dec and data, but should do so only after they are no longer used by the interaction.

Member Data Documentation

DtInteractionRep* DtInteractionWithEncDec::myData

protected

DtInteractionDecoder* DtInteractionWithEncDec::myDecoder

protected

Referenced by decoder().

DtInteractionEncoder* DtInteractionWithEncDec::myEncoder

protected

Referenced by encoder().

DtInteractionDecoder* DtInteractionWithEncDec::myMutableCreatedDecoder

mutableprivate

These data members are changed in const functions.

They are computed when we go to send an interaction and are cashed.

DtInteractionEncoder* DtInteractionWithEncDec::myMutableCreatedEncoder

mutableprivate

RTI::InteractionClassHandle DtInteractionWithEncDec::myMutableDecoderClassHandle

mutableprivate

RTI::InteractionClassHandle DtInteractionWithEncDec::myMutableEncoderClassHandle

mutableprivate

The documentation for this class was generated from the following file:

hIntWEncDec.h
