Inheritance diagram for DtPointObjectRepository:

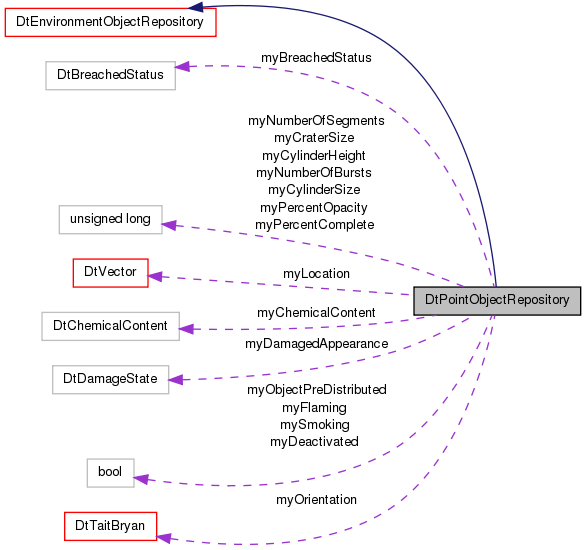

Collaboration diagram for DtPointObjectRepository:

Public Member Functions
	DtPointObjectRepository ()
virtual	~DtPointObjectRepository ()
	DtPointObjectRepository (const DtPointObjectRepository &orig)
DtPointObjectRepository &	operator= (const DtPointObjectRepository &orig)
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual void	setLocation (const DtVector &location)
	Set/Get Location.
virtual const DtVector &	location () const
virtual void	setOrientation (const DtTaitBryan &orientation)
	Set/Get Orientation.
virtual const DtTaitBryan &	orientation () const
virtual void	setPercentComplete (const DtU32 percent)
	Set/Get Percent Complete.
virtual DtU32	percentComplete () const
virtual void	setDamagedAppearance (const DtDamageState damage)
	Set/Get Damaged Appearance.
virtual DtDamageState	damagedAppearance () const
virtual void	setObjectPreDistributed (bool predistributed)
	Set/Get Object Predistributed.
virtual bool	objectPreDistributed () const
virtual void	setDeactivated (bool onOff)
	Set/Get Deactivated.
virtual bool	deactivated () const
virtual void	setSmoking (bool onOff)
	Set/Get Smoking.
virtual bool	smoking () const
virtual void	setFlaming (bool onOff)
	Set/Get Flaming.
virtual bool	flaming () const
virtual void	setBreachedStatus (const DtBreachedStatus status)
	Set/Get Breached Status.
virtual DtBreachedStatus	breachedStatus () const
virtual void	setPercentOpacity (const DtU32 percent)
	Set/Get Percent Opacity.
virtual DtU32	percentOpacity () const
virtual void	setCylinderSize (const DtU32 size)
	Set/Get Cylinder Size.
virtual DtU32	cylinderSize () const
virtual void	setCylinderHeight (const DtU32 height)
	Set/Get Cylinder Height.
virtual DtU32	cylinderHeight () const
virtual void	setNumberOfBursts (const DtU32 number)
	Set/Get Number Of Bursts.
virtual DtU32	numberOfBursts () const
virtual void	setChemicalContent (const DtChemicalContent chem)
	Set/Get Chemical Content.
virtual DtChemicalContent	chemicalContent () const
virtual void	setCraterSize (const DtU32 size)
	Set/Get Crater Size.
virtual DtU32	craterSize () const
virtual void	setNumberOfSegments (const DtU32 number)
	Set/Get Number Of Segments.
virtual DtU32	numberOfSegments () const
virtual void	printData () const
	Prints data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Prints data to the specified stream.
Public Member Functions inherited from DtEnvironmentObjectRepository
	DtEnvironmentObjectRepository ()
virtual	~DtEnvironmentObjectRepository ()
	DtEnvironmentObjectRepository (const DtEnvironmentObjectRepository &orig)
DtEnvironmentObjectRepository &	operator= (const DtEnvironmentObjectRepository &orig)
virtual void	setObjectId (const DtEntityIdentifier &identifier)
	Set/Get Environment Object ID.
virtual const DtEntityIdentifier &	objectId () const
virtual void	setReferencedObjectId (const DtGlobalObjectDesignator &rtiObject)
	Set/Get Referenced Object ID.
virtual const DtGlobalObjectDesignator &	referencedObjectId () const
virtual void	setForceId (const DtForceType value)
	Set/Get Force ID.
virtual DtForceType	forceId () const
virtual void	setObjectType (const DtSyntheticEnvironmentObjectType &type)
	Set/Get Object Type.
virtual const DtSyntheticEnvironmentObjectType &	objectType () const
Public Member Functions inherited from DtStateRepository
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name.
virtual const DtGlobalObjectDesignator &	globalId () const
virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle.
virtual const DtObjectId &	localId () const

Static Public Member Functions
static DtPointObjectRepository *	create ()

Protected Attributes
DtVector	myLocation
DtTaitBryan	myOrientation
DtU32	myPercentComplete
DtDamageState	myDamagedAppearance
bool	myObjectPreDistributed
bool	myDeactivated
bool	mySmoking
bool	myFlaming
DtBreachedStatus	myBreachedStatus
DtU32	myPercentOpacity
DtU32	myCylinderSize
DtU32	myCylinderHeight
DtU32	myNumberOfBursts
DtChemicalContent	myChemicalContent
DtU32	myCraterSize
DtU32	myNumberOfSegments
Protected Attributes inherited from DtEnvironmentObjectRepository
DtEntityIdentifier	myObjectId
DtGlobalObjectDesignator	myReferencedObjId
DtForceType	myForceId
DtSyntheticEnvironmentObjectType	myObjectType
Protected Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtObjectId	myLocalId

Additional Inherited Members
Protected Member Functions inherited from DtStateRepository
	DtStateRepository ()
	Constructors are protected since this is an abstract base class.
	DtStateRepository (const DtStateRepository &orig)
	copy constructor

Detailed Description

class DtPointObjectRepository

Instances of DtPointObjectRepository are used to maintain state information needed by point environment object entities

The type of point object published depends on the object type Object Type: BreachablePointObject – Domain = 1 (land), Kind = 1 (obstacle) or 2 (prepared position), Category = 1 or 2 BurstPointObject – Domain = 0 (other), Kind = 5 (tactical smoke), Category = 1 or 2 CraterObject – Domain = 1 (land), Kind = 1 (obstacle), Category = 3 RibbonBridgeObject – Domain = 1 (land), Kind = 4 (passageway), Category = 3 StructureObject – Domain = 1 (land), Kind = 3 (cult. feature) or 4 (passageway), Category = 1 or 2 Object types not specified will be published as OtherPointObjects

Constructor & Destructor Documentation

DtPointObjectRepository::DtPointObjectRepository ( )

virtual DtPointObjectRepository::~DtPointObjectRepository ( )

virtual

DtPointObjectRepository::DtPointObjectRepository ( const DtPointObjectRepository & orig )

Member Function Documentation

virtual DtBreachedStatus DtPointObjectRepository::breachedStatus ( ) const

virtual

virtual DtChemicalContent DtPointObjectRepository::chemicalContent ( ) const

virtual

virtual DtStateRepository* DtPointObjectRepository::clone ( bool copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtEnvironmentObjectRepository.

virtual DtU32 DtPointObjectRepository::craterSize ( ) const

virtual

static DtPointObjectRepository* DtPointObjectRepository::create ( )

static

Reimplemented from DtEnvironmentObjectRepository.

virtual DtU32 DtPointObjectRepository::cylinderHeight ( ) const

virtual

virtual DtU32 DtPointObjectRepository::cylinderSize ( ) const

virtual

virtual DtDamageState DtPointObjectRepository::damagedAppearance ( ) const

virtual

virtual bool DtPointObjectRepository::deactivated ( ) const

virtual

virtual bool DtPointObjectRepository::flaming ( ) const

virtual

virtual const DtVector& DtPointObjectRepository::location ( ) const

virtual

virtual DtU32 DtPointObjectRepository::numberOfBursts ( ) const

virtual

virtual DtU32 DtPointObjectRepository::numberOfSegments ( ) const

virtual

virtual bool DtPointObjectRepository::objectPreDistributed ( ) const

virtual

DtPointObjectRepository& DtPointObjectRepository::operator= ( const DtPointObjectRepository & orig )

virtual const DtTaitBryan& DtPointObjectRepository::orientation ( ) const

virtual

virtual DtU32 DtPointObjectRepository::percentComplete ( ) const

virtual

virtual DtU32 DtPointObjectRepository::percentOpacity ( ) const

virtual

virtual void DtPointObjectRepository::printData ( ) const

virtual

Prints data to DtInfo.

Reimplemented from DtEnvironmentObjectRepository.

virtual void DtPointObjectRepository::printDataToStream ( std::ostream & stream ) const

virtual

Prints data to the specified stream.

Reimplemented from DtEnvironmentObjectRepository.

virtual void DtPointObjectRepository::setBreachedStatus ( const DtBreachedStatus status )

virtual

Set/Get Breached Status.

virtual void DtPointObjectRepository::setChemicalContent ( const DtChemicalContent chem )

virtual

Set/Get Chemical Content.

virtual void DtPointObjectRepository::setCraterSize ( const DtU32 size )

virtual

Set/Get Crater Size.

virtual void DtPointObjectRepository::setCylinderHeight ( const DtU32 height )

virtual

Set/Get Cylinder Height.

virtual void DtPointObjectRepository::setCylinderSize ( const DtU32 size )

virtual

Set/Get Cylinder Size.

virtual void DtPointObjectRepository::setDamagedAppearance ( const DtDamageState damage )

virtual

Set/Get Damaged Appearance.

virtual void DtPointObjectRepository::setDeactivated ( bool onOff )

virtual

Set/Get Deactivated.

virtual void DtPointObjectRepository::setFlaming ( bool onOff )

virtual

Set/Get Flaming.

virtual void DtPointObjectRepository::setLocation ( const DtVector & location )

virtual

Set/Get Location.

virtual void DtPointObjectRepository::setNumberOfBursts ( const DtU32 number )

virtual

Set/Get Number Of Bursts.

virtual void DtPointObjectRepository::setNumberOfSegments ( const DtU32 number )

virtual

Set/Get Number Of Segments.

virtual void DtPointObjectRepository::setObjectPreDistributed ( bool predistributed )

virtual

Set/Get Object Predistributed.

virtual void DtPointObjectRepository::setOrientation ( const DtTaitBryan & orientation )

virtual

Set/Get Orientation.

virtual void DtPointObjectRepository::setPercentComplete ( const DtU32 percent )

virtual

Set/Get Percent Complete.

virtual void DtPointObjectRepository::setPercentOpacity ( const DtU32 percent )

virtual

Set/Get Percent Opacity.

virtual void DtPointObjectRepository::setSmoking ( bool onOff )

virtual

Set/Get Smoking.

virtual bool DtPointObjectRepository::smoking ( ) const

virtual

Member Data Documentation

DtBreachedStatus DtPointObjectRepository::myBreachedStatus

protected

DtChemicalContent DtPointObjectRepository::myChemicalContent

protected

DtU32 DtPointObjectRepository::myCraterSize

protected

DtU32 DtPointObjectRepository::myCylinderHeight

protected

DtU32 DtPointObjectRepository::myCylinderSize

protected

DtDamageState DtPointObjectRepository::myDamagedAppearance

protected

bool DtPointObjectRepository::myDeactivated

protected

bool DtPointObjectRepository::myFlaming

protected

DtVector DtPointObjectRepository::myLocation

protected

DtU32 DtPointObjectRepository::myNumberOfBursts

protected

DtU32 DtPointObjectRepository::myNumberOfSegments

protected

bool DtPointObjectRepository::myObjectPreDistributed

protected

DtTaitBryan DtPointObjectRepository::myOrientation

protected

DtU32 DtPointObjectRepository::myPercentComplete

protected

DtU32 DtPointObjectRepository::myPercentOpacity

protected

bool DtPointObjectRepository::mySmoking

protected

The documentation for this class was generated from the following file:

pointObjSR.h
