DtReflectedDIGuyObject Class Reference

Instances of DtReflectedDIGuyObject are used to represent a simulated HLAobjectRoot.DIGuyObject object reflected across a network. More...

Inheritance diagram for DtReflectedDIGuyObject:

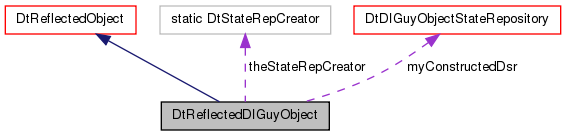

Collaboration diagram for DtReflectedDIGuyObject:

Public Types
typedef DtDIGuyObjectStateRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create a DtDIGuyObjectStateRepository.
Public Types inherited from DtReflectedObject
typedef DtStateRepository *(*	DtBaseStateRepCreator )()
	Function prototype for functions that create DtStateRepositories.

Public Member Functions
	DtReflectedDIGuyObject (DtHlaObject *obj, DtExerciseConn *exConn)
	Constructor.
virtual	~DtReflectedDIGuyObject ()
	Destructor.
virtual DtDIGuyObjectStateRepository *	dIGuyObjectStateRep () const
	Returns the DIGuyObject's state repository.
virtual DtDIGuyObjectStateRepository *	dsr () const
	Shorter version of lifeformRep.
virtual void	setDsr (DtDIGuyObjectStateRepository *newDsr)
	Set beam state repository.
virtual DtReflectedDIGuyObject *	next () const
	Returns the next reflected DIGuyObject in the DtReflectedDIGuyObjectList.
virtual DtReflectedDIGuyObject *	prev () const
	Returns the previous reflected DIGuyObject in the DtReflectedDIGuyObjectList.
virtual DtReflectedDIGuyObject *	wrapNext () const
	Returns the next reflected DIGuyObject.
virtual DtReflectedDIGuyObject *	wrapPrev () const
	Returns the previous reflected DIGuyObject.
virtual void	addPostUpdateCallback (DtDIGuyObjectCallbackFunction cb, void *userData)
	Add a callback that is called when the DtReflectedDIGuyObject is updated.
virtual void	removePostUpdateCallback (DtDIGuyObjectCallbackFunction cb, void *userData)
	Remove the callback that is called when the DtReflectedDIGuyObject is updated.
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn, DtStateRepository *stateRep)
	Primary constructor.
	DtReflectedObject (DtHlaObject *obj, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor.
	DtReflectedObject (const DtObjectId &id, const DtGlobalObjectDesignator &des, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor.
virtual	~DtReflectedObject ()
	destructor
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information.
virtual DtStateRepository *	sr () const
	Synonym for stateRep().
virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our SR.
virtual DtHlaObjectWithStateRep *	hlaObject () const
	Get the entity's hlaObject (DtHlaObjectWithStateRep is derived from DtHlaObject).
virtual const DtObjectId &	objectId () const
	Get the HLA object's id.
virtual const DtObjectId &	id () const
	Get the HLA object's id (local ID).
virtual const DtObjectId &	localId () const
	Get the HLA object's id (local ID).
virtual const DtString &	name () const
	Get the HLA object name.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in HLA.
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of simulation time at the time an update was last received for the entity.
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value of the time send in the last Update received for this entity.
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration.
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object.
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object.
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object.
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object.
void	setHlaObject (DtHlaObject *obj, DtHlaStateDecoder *decoder=NULL)
	Start reflecting this object, using this decoder.
virtual void	setNoHlaObject (const DtObjectId &id, const DtGlobalObjectDesignator &des)
	Used to set up a proxy DtReflectedEntity - one that is not actually managing a real reflected HLA object.
void	detachHlaObject ()
	Ends managing of current HLA object.
virtual void	requestUpdate ()
	Request that the owner of this entity send an attribute update.
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor.
virtual	~DtListedObj ()
	Destructor.

Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Set the function to be called for creating state repositories.

Protected Member Functions
	DtReflectedDIGuyObject (const DtReflectedDIGuyObject &orig)
	Copy Constructor not implemented.
DtReflectedDIGuyObject &	operator= (const DtReflectedDIGuyObject &orig)
	Assignment operator not implemented.
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – Not Implemented
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – Not Implemented
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks.

Protected Attributes
DtDIGuyObjectStateRepository *	myConstructedDsr
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtHlaObjectWithStateRep *	myHlaObj
DtStateRepository *	myStateRep
DtHlaStateDecoder *	myDecoder
bool	myRequestCbRegistered
DtIntrusiveList	myStateUpdateCallbacks
DtObjectId	myId
DtString	myName
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator
	The function called to create state repositories.

Additional Inherited Members
Static Protected Member Functions inherited from DtReflectedObject
static void	requestUpdatePostDrainCb (void *usr)
	Calls requestUpdate.
static void	processPostUpdateCallbacksCb (const DtStateMsg &stateMsg, DtHlaObject *obj, void *usr)
	Callback from HlaObject to process post update callbacks.

Detailed Description

Instances of DtReflectedDIGuyObject are used to represent a simulated HLAobjectRoot.DIGuyObject object reflected across a network.

Member Typedef Documentation

typedef DtDIGuyObjectStateRepository*(* DtReflectedDIGuyObject::DtStateRepCreator)()

Function prototype for functions that create a DtDIGuyObjectStateRepository.

Constructor & Destructor Documentation

DtReflectedDIGuyObject::DtReflectedDIGuyObject	(	DtHlaObject *	obj,
		DtExerciseConn *	exConn
	)

Constructor.

virtual DtReflectedDIGuyObject::~DtReflectedDIGuyObject ( )

virtual

Destructor.

DtReflectedDIGuyObject::DtReflectedDIGuyObject ( const DtReflectedDIGuyObject &  orig )

protected

Copy Constructor not implemented.

Member Function Documentation

virtual void DtReflectedDIGuyObject::addPostUpdateCallback ( DtDIGuyObjectCallbackFunction  cb, void *  userData  )

virtual

Add a callback that is called when the DtReflectedDIGuyObject is updated.

DtDIGuyObjectStateRepository * DtReflectedDIGuyObject::dIGuyObjectStateRep ( ) const

inlinevirtual

Returns the DIGuyObject's state repository.

References DtReflectedObject::myStateRep.

DtDIGuyObjectStateRepository * DtReflectedDIGuyObject::dsr ( ) const

inlinevirtual

Shorter version of lifeformRep.

References DtReflectedObject::myStateRep.

virtual DtReflectedDIGuyObject* DtReflectedDIGuyObject::next ( ) const

virtual

Returns the next reflected DIGuyObject in the DtReflectedDIGuyObjectList.

Reimplemented from DtListedObj.

DtReflectedDIGuyObject& DtReflectedDIGuyObject::operator= ( const DtReflectedDIGuyObject &  orig )

protected

Assignment operator not implemented.

virtual DtReflectedDIGuyObject* DtReflectedDIGuyObject::prev ( ) const

virtual

Returns the previous reflected DIGuyObject in the DtReflectedDIGuyObjectList.

Reimplemented from DtListedObj.

virtual void DtReflectedDIGuyObject::removePostUpdateCallback ( DtDIGuyObjectCallbackFunction  cb, void *  userData  )

virtual

Remove the callback that is called when the DtReflectedDIGuyObject is updated.

virtual void DtReflectedDIGuyObject::setDsr ( DtDIGuyObjectStateRepository *  newDsr )

virtual

Set beam state repository.

Only necessary when you want to use something other than the default, which is created internally.

static DtStateRepCreator DtReflectedDIGuyObject::setStateRepCreator ( DtStateRepCreator  creator )

static

Set the function to be called for creating state repositories.

virtual DtReflectedDIGuyObject* DtReflectedDIGuyObject::wrapNext ( ) const

virtual

Returns the next reflected DIGuyObject.

Will cycle back to the first remote DIGuyObject in the DtReflectedDIGuyObjectList.

Reimplemented from DtListedObj.

virtual DtReflectedDIGuyObject* DtReflectedDIGuyObject::wrapPrev ( ) const

virtual

Returns the previous reflected DIGuyObject.

Will cycle back to the first remote DIGuyObject in the DtReflectedDIGuyObjectList.

Reimplemented from DtListedObj.

Member Data Documentation

DtDIGuyObjectStateRepository* DtReflectedDIGuyObject::myConstructedDsr

protected

DtStateRepCreator DtReflectedDIGuyObject::theStateRepCreator

staticprotected

The function called to create state repositories.

---

The documentation for this class was generated from the following file:

• hrefDIGuyObject.h
