DtNetEnvironmentalRecord is the network structure for the environmental process PDU record header (defined IEEE 1278.1a-1998). More...

Inheritance diagram for DtNetEnvironmentalRecord:

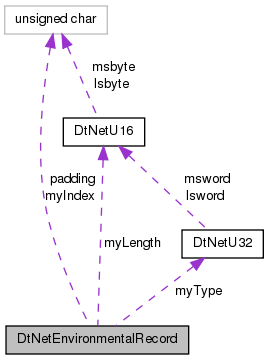

Collaboration diagram for DtNetEnvironmentalRecord:

Public Attributes
DtNetU32	myType
	The record type as defined by the DIS Enumerations document.
DtNetU16	myLength
	The length in bits of the Environment Record.
DtNetU8	myIndex
	The sequentially numbered record index.
DtNetU8	padding
	padding to break the record to a 64 bit boundary

Detailed Description

DtNetEnvironmentalRecord is the network structure for the environmental process PDU record header (defined IEEE 1278.1a-1998).

This record is used in DIS and in the DtEnvironmentalProcessRepository.

Member Data Documentation

DtNetU8 DtNetEnvironmentalRecord::myIndex

The sequentially numbered record index.

DtNetU16 DtNetEnvironmentalRecord::myLength

The length in bits of the Environment Record.

DtNetU32 DtNetEnvironmentalRecord::myType

The record type as defined by the DIS Enumerations document.

DtNetU8 DtNetEnvironmentalRecord::padding

padding to break the record to a 64 bit boundary

The documentation for this struct was generated from the following file:
