DtDDMRegion Class Reference

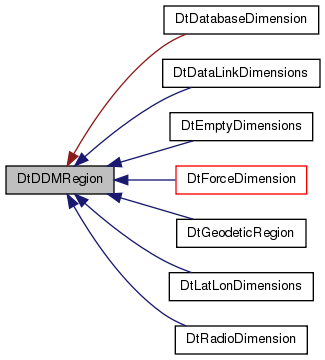

Inheritance diagram for DtDDMRegion:

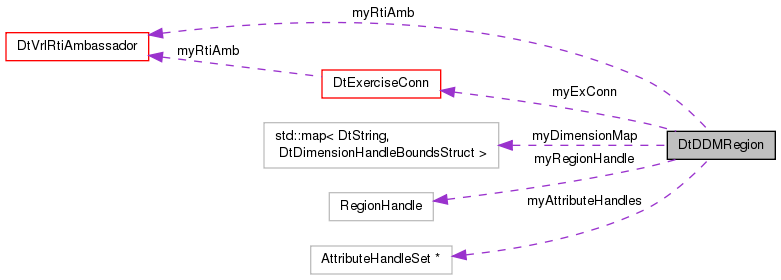

Collaboration diagram for DtDDMRegion:

Classes
struct	DtDimensionHandleBoundsStruct

Public Member Functions
	DtDDMRegion (DtExerciseConn *exConn)
	Constructor that only takes exConn.
	DtDDMRegion (DtExerciseConn *exConn, const std::vector< DtString > &dimensionNameVector)
	Constructor that specifies the dimensions.
	DtDDMRegion (DtExerciseConn *exConn, const RTI::RegionHandle &region)
	DtDDMRegion (const DtDDMRegion &orig)
	Copy constructor.
virtual	~DtDDMRegion ()
	Destructor.
virtual void	initializeDimensions (const std::vector< DtString > &dimensionNameVector)
	Initializes dimensions passed in.
virtual void	initializeDimensions (const RTI::DimensionHandleSet &dimHandles)
virtual void	setUpperBound (const DtString &dimensionName, unsigned long upperBound)
	This method sets the upper bound of dimension, specified by dimensionName, to the normalized value specified by upperBound.
virtual void	setLowerBound (const DtString &dimensionName, unsigned long lowerBound)
	This method sets the lower bound of the dimension, specified by dimensionName, to the normalized value specified by lowerBound.
virtual void	setDimensionBounds (const DtString &dimensionName, unsigned long lowerBound, unsigned long upperBound)
virtual void	notifyRtiOfUpdate ()
virtual RTI::RegionHandle	regionHandle ()
	I don't like this, as it exposes the region*.
virtual const RTI::RegionHandle	regionHandle () const
virtual void	init (const std::vector< DtString > &dimensionNameVector)
virtual void	addAttributeHandle (RTI::AttributeHandle handle)
virtual void	addAttributeHandle (const DtString &objClassName, const DtString &attrName)
	Add an attribute to the handle set by class name/attribute name.
virtual const RTI::AttributeHandleSet &	attributeHandles () const
virtual bool	hasAttributeHandles () const
virtual int	attributeHandleCount () const
bool	operator< (const DtDDMRegion &other) const

Protected Member Functions
virtual void	createRegion ()
	Utility function that actually creates the region and stores the handle.
DtDDMRegion &	operator= (const DtDDMRegion &orig)
	Assignment operator. Not implemented – not assignable.

Protected Attributes
RTI::RegionHandle	myRegionHandle
DtVrlRtiAmbassador *	myRtiAmb
std::map< DtString, DtDimensionHandleBoundsStruct >	myDimensionMap
DtExerciseConn *	myExConn
RTI::AttributeHandleSet *	myAttributeHandles

Constructor & Destructor Documentation

DtDDMRegion::DtDDMRegion

(

DtExerciseConn *

exConn

)

Constructor that only takes exConn.

Init must be called before using.

DtDDMRegion::DtDDMRegion	(	DtExerciseConn *	exConn,
		const std::vector< DtString > &	dimensionNameVector
	)

Constructor that specifies the dimensions.

The number of dimensions is determined from the size() method of the vector passed in.

Exceptions

DtException

the region cannot be created

DtDDMRegion::DtDDMRegion	(	DtExerciseConn *	exConn,
		const RTI::RegionHandle &	region
	)

DtDDMRegion::DtDDMRegion

(

const DtDDMRegion &

orig

)

Copy constructor.

virtual DtDDMRegion::~DtDDMRegion ( )

virtual

Destructor.

Member Function Documentation

virtual void DtDDMRegion::addAttributeHandle ( RTI::AttributeHandle  handle )

virtual

virtual void DtDDMRegion::addAttributeHandle ( const DtString &  objClassName, const DtString &  attrName  )

virtual

Add an attribute to the handle set by class name/attribute name.

Exceptions

DtException

if objClassName or attrName doesn't exist in the FOM.

virtual int DtDDMRegion::attributeHandleCount ( ) const

virtual

virtual const RTI::AttributeHandleSet& DtDDMRegion::attributeHandles ( ) const

virtual

virtual void DtDDMRegion::createRegion ( )

protectedvirtual

Utility function that actually creates the region and stores the handle.

The dimensions need to be initialized before this call is made.

Exceptions

DtException

if the region cannot be created

virtual bool DtDDMRegion::hasAttributeHandles ( ) const

virtual

virtual void DtDDMRegion::init ( const std::vector< DtString > &  dimensionNameVector )

virtual

virtual void DtDDMRegion::initializeDimensions ( const std::vector< DtString > &  dimensionNameVector )

virtual

Initializes dimensions passed in.

Retrieves the dimension handles from the RTI and adds them to the internal mapping.

Exceptions

DtException

dimension handles cannot be retrieved.

virtual void DtDDMRegion::initializeDimensions ( const RTI::DimensionHandleSet &  dimHandles )

virtual

virtual void DtDDMRegion::notifyRtiOfUpdate ( )

virtual

bool DtDDMRegion::operator<

(

const DtDDMRegion &

other

)

const

DtDDMRegion& DtDDMRegion::operator= ( const DtDDMRegion &  orig )

protected

Assignment operator. Not implemented – not assignable.

virtual RTI::RegionHandle DtDDMRegion::regionHandle ( )

virtual

I don't like this, as it exposes the region*.

virtual const RTI::RegionHandle DtDDMRegion::regionHandle ( ) const

virtual

virtual void DtDDMRegion::setDimensionBounds ( const DtString &  dimensionName, unsigned long  lowerBound, unsigned long  upperBound  )

virtual

virtual void DtDDMRegion::setLowerBound ( const DtString &  dimensionName, unsigned long  lowerBound  )

virtual

This method sets the lower bound of the dimension, specified by dimensionName, to the normalized value specified by lowerBound.

Referenced by DtHyperspaceRegion< SubspaceType, DimensionType >::DtHyperspaceRegion().

virtual void DtDDMRegion::setUpperBound ( const DtString &  dimensionName, unsigned long  upperBound  )

virtual

This method sets the upper bound of dimension, specified by dimensionName, to the normalized value specified by upperBound.

Referenced by DtHyperspaceRegion< SubspaceType, DimensionType >::DtHyperspaceRegion().

Member Data Documentation

RTI::AttributeHandleSet* DtDDMRegion::myAttributeHandles

protected

std::map<DtString, DtDimensionHandleBoundsStruct> DtDDMRegion::myDimensionMap

protected

DtExerciseConn* DtDDMRegion::myExConn

protected

RTI::RegionHandle DtDDMRegion::myRegionHandle

protected

DtVrlRtiAmbassador* DtDDMRegion::myRtiAmb

protected

---

The documentation for this class was generated from the following file:

• region1516.h
