DtDirectRtiAmbassador Class Reference

Instances of DtDirectRtiAmbassador are for wrapping the calls to The RTI ambassador so that we may override them. More...

Inheritance diagram for DtDirectRtiAmbassador:

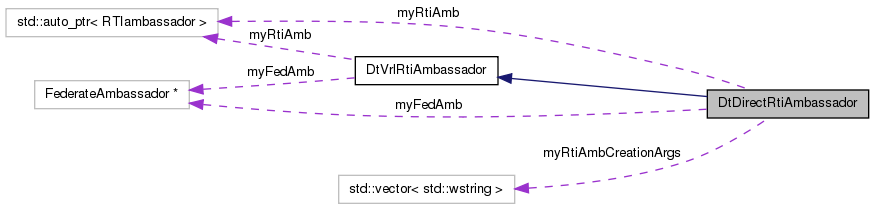

Collaboration diagram for DtDirectRtiAmbassador:

Public Member Functions
	DtDirectRtiAmbassador (const std::vector< std::wstring > &createArguments=std::vector< std::wstring >()) throw (BadInitializationParameter, RTIinternalError)
	The RTI Ambassador factory takes a vector of wstrings that the user can specify via the createArguments argument.
virtual	~DtDirectRtiAmbassador ()
virtual RTI::RTIambassador *	rtiAmb ()
	Get the real RTI ambassador.
virtual void	createFederationExecution (std::wstring const &federationExecutionName, std::wstring const &fullPathNameToTheFDDfile, std::wstring const &logicalTimeImplementationName=L"") throw (FederationExecutionAlreadyExists, CouldNotOpenFDD, ErrorReadingFDD, RTIinternalError)
	4.2
virtual void	destroyFederationExecution (std::wstring const &federationExecutionName) throw (FederatesCurrentlyJoined, FederationExecutionDoesNotExist, RTIinternalError)
	4.3
virtual FederateHandle	joinFederationExecution (std::wstring const &federateType, std::wstring const &federationExecutionName, FederateAmbassador &federateAmbassador) throw (FederateAlreadyExecutionMember, FederationExecutionDoesNotExist, SaveInProgress, RestoreInProgress, RTIinternalError)
	4.4
virtual void	resignFederationExecution (ResignAction resignAction) throw (OwnershipAcquisitionPending, FederateOwnsAttributes, FederateNotExecutionMember, RTIinternalError)
	4.5
virtual void	registerFederationSynchronizationPoint (std::wstring const &label, RTI::VariableLengthData const &aTag) throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	4.6
virtual void	registerFederationSynchronizationPoint (std::wstring const &label, RTI::VariableLengthData const &aTag, FederateHandleSet const &syncSet) throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
virtual void	synchronizationPointAchieved (std::wstring const &label) throw (SynchronizationPointLabelNotAnnounced, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	4.9
virtual void	requestFederationSave (std::wstring const &label) throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	4.11
virtual void	requestFederationSave (std::wstring const &label, LogicalTime const &theTime) throw (LogicalTimeAlreadyPassed, InvalidLogicalTime, FederateUnableToUseTime, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
virtual void	federateSaveBegun () throw (SaveNotInitiated, FederateNotExecutionMember, RestoreInProgress, RTIinternalError)
	4.13
virtual void	federateSaveComplete () throw (FederateHasNotBegunSave, FederateNotExecutionMember, RestoreInProgress, RTIinternalError)
	4.14
virtual void	federateSaveNotComplete () throw (FederateHasNotBegunSave, FederateNotExecutionMember, RestoreInProgress, RTIinternalError)
virtual void	queryFederationSaveStatus () throw (FederateNotExecutionMember, RestoreInProgress, RTIinternalError)
	4.16
virtual void	requestFederationRestore (std::wstring const &label) throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	4.18
virtual void	federateRestoreComplete () throw (RestoreNotRequested, FederateNotExecutionMember, SaveInProgress, RTIinternalError)
	4.22
virtual void	federateRestoreNotComplete () throw (RestoreNotRequested, FederateNotExecutionMember, SaveInProgress, RTIinternalError)
virtual void	queryFederationRestoreStatus () throw (FederateNotExecutionMember, SaveInProgress, RTIinternalError)
	4.24
virtual void	publishObjectClassAttributes (ObjectClassHandle theClass, AttributeHandleSet const &attributeList) throw (ObjectClassNotDefined, AttributeNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	! Declaration Management Services //!
virtual void	unpublishObjectClass (ObjectClassHandle theClass) throw (ObjectClassNotDefined, OwnershipAcquisitionPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	5.3
virtual void	unpublishObjectClassAttributes (ObjectClassHandle theClass, AttributeHandleSet const &attributeList) throw (ObjectClassNotDefined, AttributeNotDefined, OwnershipAcquisitionPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
virtual void	publishInteractionClass (InteractionClassHandle theInteraction) throw (InteractionClassNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	5.4
virtual void	unpublishInteractionClass (InteractionClassHandle theInteraction) throw (InteractionClassNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	5.5
virtual void	subscribeObjectClassAttributes (ObjectClassHandle theClass, AttributeHandleSet const &attributeList, bool active=true) throw (ObjectClassNotDefined, AttributeNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	5.6
virtual void	unsubscribeObjectClass (ObjectClassHandle theClass) throw (ObjectClassNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	5.7
virtual void	unsubscribeObjectClassAttributes (ObjectClassHandle theClass, AttributeHandleSet const &attributeList) throw (ObjectClassNotDefined, AttributeNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
virtual void	subscribeInteractionClass (InteractionClassHandle theClass, bool active=true) throw (InteractionClassNotDefined, FederateServiceInvocationsAreBeingReportedViaMOM, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	5.8
virtual void	unsubscribeInteractionClass (InteractionClassHandle theClass) throw (InteractionClassNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	5.9
virtual void	reserveObjectInstanceName (std::wstring const &theObjectInstanceName) throw (IllegalName, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	! Object Management Services //!
virtual ObjectInstanceHandle	registerObjectInstance (ObjectClassHandle theClass) throw (ObjectClassNotDefined, ObjectClassNotPublished, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	6.4
virtual ObjectInstanceHandle	registerObjectInstance (ObjectClassHandle theClass, std::wstring const &theObjectInstanceName) throw (ObjectClassNotDefined, ObjectClassNotPublished, ObjectInstanceNameNotReserved, ObjectInstanceNameInUse, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
virtual void	updateAttributeValues (ObjectInstanceHandle theObject, AttributeHandleValueMap const &theAttributeValues, RTI::VariableLengthData const &aTag) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	6.6
virtual MessageRetractionHandle	updateAttributeValues (ObjectInstanceHandle theObject, AttributeHandleValueMap const &theAttributeValues, RTI::VariableLengthData const &aTag, LogicalTime const &theTime) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, InvalidLogicalTime, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
virtual void	sendInteraction (InteractionClassHandle theInteraction, ParameterHandleValueMap const &theParameterValues, RTI::VariableLengthData const &aTag) throw (InteractionClassNotPublished, InteractionClassNotDefined, InteractionParameterNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	6.8
virtual MessageRetractionHandle	sendInteraction (InteractionClassHandle theInteraction, ParameterHandleValueMap const &theParameterValues, RTI::VariableLengthData const &aTag, LogicalTime const &theTime) throw (InteractionClassNotPublished, InteractionClassNotDefined, InteractionParameterNotDefined, InvalidLogicalTime, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
virtual void	deleteObjectInstance (ObjectInstanceHandle theObject, RTI::VariableLengthData const &aTag) throw (DeletePrivilegeNotHeld, ObjectInstanceNotKnown, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	6.10
virtual MessageRetractionHandle	deleteObjectInstance (ObjectInstanceHandle theObject, RTI::VariableLengthData const &aTag, LogicalTime const &theTime) throw (DeletePrivilegeNotHeld, ObjectInstanceNotKnown, InvalidLogicalTime, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
virtual void	localDeleteObjectInstance (ObjectInstanceHandle theObject) throw (ObjectInstanceNotKnown, FederateOwnsAttributes, OwnershipAcquisitionPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	6.12
virtual void	changeAttributeTransportationType (ObjectInstanceHandle theObject, AttributeHandleSet const &theAttributes, TransportationType theType) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	6.13
virtual void	changeInteractionTransportationType (InteractionClassHandle theClass, TransportationType theType) throw (InteractionClassNotDefined, InteractionClassNotPublished, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	6.14
virtual void	requestAttributeValueUpdate (ObjectInstanceHandle theObject, AttributeHandleSet const &theAttributes, RTI::VariableLengthData const &aTag) throw (ObjectInstanceNotKnown, AttributeNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	6.17
virtual void	requestAttributeValueUpdate (ObjectClassHandle theClass, AttributeHandleSet const &theAttributes, RTI::VariableLengthData const &aTag) throw (ObjectClassNotDefined, AttributeNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
virtual void	unconditionalAttributeOwnershipDivestiture (ObjectInstanceHandle theObject, AttributeHandleSet const &theAttributes) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	! Ownership Management Services //!
virtual void	negotiatedAttributeOwnershipDivestiture (ObjectInstanceHandle theObject, AttributeHandleSet const &theAttributes, RTI::VariableLengthData const &aTag) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, AttributeAlreadyBeingDivested, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	7.3
virtual void	confirmDivestiture (ObjectInstanceHandle theObject, AttributeHandleSet const &confirmedAttributes, RTI::VariableLengthData const &aTag) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, AttributeDivestitureWasNotRequested, NoAcquisitionPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	7.6
virtual void	attributeOwnershipAcquisition (ObjectInstanceHandle theObject, AttributeHandleSet const &desiredAttributes, RTI::VariableLengthData const &aTag) throw (ObjectInstanceNotKnown, ObjectClassNotPublished, AttributeNotDefined, AttributeNotPublished, FederateOwnsAttributes, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	7.8
virtual void	attributeOwnershipAcquisitionIfAvailable (ObjectInstanceHandle theObject, AttributeHandleSet const &desiredAttributes) throw (ObjectInstanceNotKnown, ObjectClassNotPublished, AttributeNotDefined, AttributeNotPublished, FederateOwnsAttributes, AttributeAlreadyBeingAcquired, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	7.9
virtual void	attributeOwnershipDivestitureIfWanted (ObjectInstanceHandle theObject, AttributeHandleSet const &theAttributes, AttributeHandleSet &theDivestedAttributes) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	7.12
virtual void	cancelNegotiatedAttributeOwnershipDivestiture (ObjectInstanceHandle theObject, AttributeHandleSet const &theAttributes) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, AttributeDivestitureWasNotRequested, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	7.13
virtual void	cancelAttributeOwnershipAcquisition (ObjectInstanceHandle theObject, AttributeHandleSet const &theAttributes) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeAlreadyOwned, AttributeAcquisitionWasNotRequested, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	7.14
virtual void	queryAttributeOwnership (ObjectInstanceHandle theObject, AttributeHandle theAttribute) throw (ObjectInstanceNotKnown, AttributeNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	7.16
virtual bool	isAttributeOwnedByFederate (ObjectInstanceHandle theObject, AttributeHandle theAttribute) throw (ObjectInstanceNotKnown, AttributeNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	7.18
virtual void	enableTimeRegulation (LogicalTimeInterval const &theLookahead) throw (TimeRegulationAlreadyEnabled, InvalidLookahead, InTimeAdvancingState, RequestForTimeRegulationPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	! Time Management Services //!
virtual void	disableTimeRegulation () throw (TimeRegulationIsNotEnabled, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.4
virtual void	enableTimeConstrained () throw (TimeConstrainedAlreadyEnabled, InTimeAdvancingState, RequestForTimeConstrainedPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.5
virtual void	disableTimeConstrained () throw (TimeConstrainedIsNotEnabled, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.7
virtual void	timeAdvanceRequest (LogicalTime const &theTime) throw (InvalidLogicalTime, LogicalTimeAlreadyPassed, InTimeAdvancingState, RequestForTimeRegulationPending, RequestForTimeConstrainedPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.8
virtual void	timeAdvanceRequestAvailable (LogicalTime const &theTime) throw (InvalidLogicalTime, LogicalTimeAlreadyPassed, InTimeAdvancingState, RequestForTimeRegulationPending, RequestForTimeConstrainedPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.9
virtual void	nextMessageRequest (LogicalTime const &theTime) throw (InvalidLogicalTime, LogicalTimeAlreadyPassed, InTimeAdvancingState, RequestForTimeRegulationPending, RequestForTimeConstrainedPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.10
virtual void	nextMessageRequestAvailable (LogicalTime const &theTime) throw (InvalidLogicalTime, LogicalTimeAlreadyPassed, InTimeAdvancingState, RequestForTimeRegulationPending, RequestForTimeConstrainedPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.11
virtual void	flushQueueRequest (LogicalTime const &theTime) throw (InvalidLogicalTime, LogicalTimeAlreadyPassed, InTimeAdvancingState, RequestForTimeRegulationPending, RequestForTimeConstrainedPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.12
virtual void	enableAsynchronousDelivery () throw (AsynchronousDeliveryAlreadyEnabled, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.14
virtual void	disableAsynchronousDelivery () throw (AsynchronousDeliveryAlreadyDisabled, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.15
virtual bool	queryGALT (LogicalTime &theTime) throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.16
virtual void	queryLogicalTime (LogicalTime &theTime) throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.17
virtual bool	queryLITS (LogicalTime &theTime) throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.18
virtual void	modifyLookahead (LogicalTimeInterval const &theLookahead) throw (TimeRegulationIsNotEnabled, InvalidLookahead, InTimeAdvancingState, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.19
virtual void	queryLookahead (LogicalTimeInterval &interval) throw (TimeRegulationIsNotEnabled, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.20
virtual void	retract (MessageRetractionHandle theHandle) throw (InvalidRetractionHandle, TimeRegulationIsNotEnabled, MessageCanNoLongerBeRetracted, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.21
virtual void	changeAttributeOrderType (ObjectInstanceHandle theObject, AttributeHandleSet const &theAttributes, OrderType theType) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.23
virtual void	changeInteractionOrderType (InteractionClassHandle theClass, OrderType theType) throw (InteractionClassNotDefined, InteractionClassNotPublished, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	8.24
virtual RegionHandle	createRegion (DimensionHandleSet const &theDimensions) throw (InvalidDimensionHandle, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	! Data Distribution Management //!
virtual void	commitRegionModifications (RegionHandleSet const &theRegionHandleSet) throw (InvalidRegion, RegionNotCreatedByThisFederate, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	9.3
virtual void	deleteRegion (RegionHandle theRegion) throw (InvalidRegion, RegionNotCreatedByThisFederate, RegionInUseForUpdateOrSubscription, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	9.4
virtual ObjectInstanceHandle	registerObjectInstanceWithRegions (ObjectClassHandle theClass, AttributeHandleSetRegionHandleSetPairVector const &theAttributeHandleSetRegionHandleSetPairVector) throw (ObjectClassNotDefined, ObjectClassNotPublished, AttributeNotDefined, AttributeNotPublished, InvalidRegion, RegionNotCreatedByThisFederate, InvalidRegionContext, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	9.5
virtual ObjectInstanceHandle	registerObjectInstanceWithRegions (ObjectClassHandle theClass, AttributeHandleSetRegionHandleSetPairVector const &theAttributeHandleSetRegionHandleSetPairVector, std::wstring const &theObjectInstanceName) throw (ObjectClassNotDefined, ObjectClassNotPublished, AttributeNotDefined, AttributeNotPublished, InvalidRegion, RegionNotCreatedByThisFederate, InvalidRegionContext, ObjectInstanceNameNotReserved, ObjectInstanceNameInUse, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
virtual void	associateRegionsForUpdates (ObjectInstanceHandle theObject, AttributeHandleSetRegionHandleSetPairVector const &theAttributeHandleSetRegionHandleSetPairVector) throw (ObjectInstanceNotKnown, AttributeNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, InvalidRegionContext, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	9.6
virtual void	unassociateRegionsForUpdates (ObjectInstanceHandle theObject, AttributeHandleSetRegionHandleSetPairVector const &theAttributeHandleSetRegionHandleSetPairVector) throw (ObjectInstanceNotKnown, AttributeNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	9.7
virtual void	subscribeObjectClassAttributesWithRegions (ObjectClassHandle theClass, AttributeHandleSetRegionHandleSetPairVector const &theAttributeHandleSetRegionHandleSetPairVector, bool active=true) throw (ObjectClassNotDefined, AttributeNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, InvalidRegionContext, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	9.8
virtual void	unsubscribeObjectClassAttributesWithRegions (ObjectClassHandle theClass, AttributeHandleSetRegionHandleSetPairVector const &theAttributeHandleSetRegionHandleSetPairVector) throw (ObjectClassNotDefined, AttributeNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	9.9
virtual void	subscribeInteractionClassWithRegions (InteractionClassHandle theClass, RegionHandleSet const &theRegionHandleSet, bool active=true) throw (InteractionClassNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, InvalidRegionContext, FederateServiceInvocationsAreBeingReportedViaMOM, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	9.10
virtual void	unsubscribeInteractionClassWithRegions (InteractionClassHandle theClass, RegionHandleSet const &theRegionHandleSet) throw (InteractionClassNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	9.11
virtual void	sendInteractionWithRegions (InteractionClassHandle theInteraction, ParameterHandleValueMap const &theParameterValues, RegionHandleSet const &theRegionHandleSet, RTI::VariableLengthData const &aTag) throw (InteractionClassNotDefined, InteractionClassNotPublished, InteractionParameterNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, InvalidRegionContext, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	9.12
virtual MessageRetractionHandle	sendInteractionWithRegions (InteractionClassHandle theInteraction, ParameterHandleValueMap const &theParameterValues, RegionHandleSet const &theRegionHandleSet, RTI::VariableLengthData const &aTag, LogicalTime const &theTime) throw (InteractionClassNotDefined, InteractionClassNotPublished, InteractionParameterNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, InvalidRegionContext, InvalidLogicalTime, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
virtual void	requestAttributeValueUpdateWithRegions (ObjectClassHandle theClass, AttributeHandleSetRegionHandleSetPairVector const &theSet, RTI::VariableLengthData const &aTag) throw (ObjectClassNotDefined, AttributeNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, InvalidRegionContext, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	9.13
virtual ObjectClassHandle	getObjectClassHandle (std::wstring const &theName) throw (NameNotFound, FederateNotExecutionMember, RTIinternalError)
	! RTI Support Services //!
virtual std::wstring	getObjectClassName (ObjectClassHandle theClass) throw (InvalidObjectClassHandle, FederateNotExecutionMember, RTIinternalError)
	10.3
virtual AttributeHandle	getAttributeHandle (ObjectClassHandle theClass, std::wstring const &theAttributeName) throw (InvalidObjectClassHandle, NameNotFound, FederateNotExecutionMember, RTIinternalError)
	10.4
virtual std::wstring	getAttributeName (ObjectClassHandle theClass, AttributeHandle theHandle) throw (InvalidObjectClassHandle, InvalidAttributeHandle, AttributeNotDefined, FederateNotExecutionMember, RTIinternalError)
	10.5
virtual InteractionClassHandle	getInteractionClassHandle (std::wstring const &theName) throw (NameNotFound, FederateNotExecutionMember, RTIinternalError)
	10.6
virtual std::wstring	getInteractionClassName (InteractionClassHandle theHandle) throw (InvalidInteractionClassHandle, FederateNotExecutionMember, RTIinternalError)
	10.7
virtual ParameterHandle	getParameterHandle (InteractionClassHandle whichClass, std::wstring const &theName) throw (InvalidInteractionClassHandle, NameNotFound, FederateNotExecutionMember, RTIinternalError)
	10.8
virtual std::wstring	getParameterName (InteractionClassHandle whichClass, ParameterHandle theHandle) throw (InvalidInteractionClassHandle, InvalidParameterHandle, InteractionParameterNotDefined, FederateNotExecutionMember, RTIinternalError)
	10.9
virtual ObjectInstanceHandle	getObjectInstanceHandle (std::wstring const &theName) throw (ObjectInstanceNotKnown, FederateNotExecutionMember, RTIinternalError)
	10.10
virtual std::wstring	getObjectInstanceName (ObjectInstanceHandle theHandle) throw (ObjectInstanceNotKnown, FederateNotExecutionMember, RTIinternalError)
	10.11
virtual DimensionHandle	getDimensionHandle (std::wstring const &theName) throw (NameNotFound, FederateNotExecutionMember, RTIinternalError)
	10.12
virtual std::wstring	getDimensionName (DimensionHandle theHandle) throw (InvalidDimensionHandle, FederateNotExecutionMember, RTIinternalError)
	10.13
virtual unsigned long	getDimensionUpperBound (DimensionHandle theHandle) throw (InvalidDimensionHandle, FederateNotExecutionMember, RTIinternalError)
	10.14
virtual DimensionHandleSet	getAvailableDimensionsForClassAttribute (ObjectClassHandle theClass, AttributeHandle theHandle) throw (InvalidObjectClassHandle, InvalidAttributeHandle, AttributeNotDefined, FederateNotExecutionMember, RTIinternalError)
	10.15
virtual ObjectClassHandle	getKnownObjectClassHandle (ObjectInstanceHandle theObject) throw (ObjectInstanceNotKnown, FederateNotExecutionMember, RTIinternalError)
	10.16
virtual DimensionHandleSet	getAvailableDimensionsForInteractionClass (InteractionClassHandle theClass) throw (InvalidInteractionClassHandle, FederateNotExecutionMember, RTIinternalError)
	10.17
virtual TransportationType	getTransportationType (std::wstring const &transportationName) throw (InvalidTransportationName, FederateNotExecutionMember, RTIinternalError)
	10.18
virtual std::wstring	getTransportationName (TransportationType transportationType) throw (InvalidTransportationType, FederateNotExecutionMember, RTIinternalError)
	10.19
virtual OrderType	getOrderType (std::wstring const &orderName) throw (InvalidOrderName, FederateNotExecutionMember, RTIinternalError)
	10.20
virtual std::wstring	getOrderName (OrderType orderType) throw (InvalidOrderType, FederateNotExecutionMember, RTIinternalError)
	10.21
virtual void	enableObjectClassRelevanceAdvisorySwitch () throw (ObjectClassRelevanceAdvisorySwitchIsOn, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	10.22
virtual void	disableObjectClassRelevanceAdvisorySwitch () throw (ObjectClassRelevanceAdvisorySwitchIsOff, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	10.23
virtual void	enableAttributeRelevanceAdvisorySwitch () throw (AttributeRelevanceAdvisorySwitchIsOn, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	10.24
virtual void	disableAttributeRelevanceAdvisorySwitch () throw (AttributeRelevanceAdvisorySwitchIsOff, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	10.25
virtual void	enableAttributeScopeAdvisorySwitch () throw (AttributeScopeAdvisorySwitchIsOn, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	10.26
virtual void	disableAttributeScopeAdvisorySwitch () throw (AttributeScopeAdvisorySwitchIsOff, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	10.27
virtual void	enableInteractionRelevanceAdvisorySwitch () throw (InteractionRelevanceAdvisorySwitchIsOn, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	10.28
virtual void	disableInteractionRelevanceAdvisorySwitch () throw (InteractionRelevanceAdvisorySwitchIsOff, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	10.29
virtual DimensionHandleSet	getDimensionHandleSet (RegionHandle theRegionHandle) throw (InvalidRegion, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	10.30
virtual RangeBounds	getRangeBounds (RegionHandle theRegionHandle, DimensionHandle theDimensionHandle) throw (InvalidRegion, RegionDoesNotContainSpecifiedDimension, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	10.31
virtual void	setRangeBounds (RegionHandle theRegionHandle, DimensionHandle theDimensionHandle, RangeBounds const &theRangeBounds) throw (InvalidRegion, RegionNotCreatedByThisFederate, RegionDoesNotContainSpecifiedDimension, InvalidRangeBound, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	10.32
virtual unsigned long	normalizeFederateHandle (FederateHandle theFederateHandle) throw (FederateNotExecutionMember, RTIinternalError)
	10.33
virtual unsigned long	normalizeServiceGroup (ServiceGroupIndicator theServiceGroup) throw (FederateNotExecutionMember, InvalidServiceGroup, RTIinternalError)
	10.34
virtual bool	evokeCallback (double approximateMinimumTimeInSeconds) throw (FederateNotExecutionMember, RTIinternalError)
	10.37
virtual bool	evokeMultipleCallbacks (double approximateMinimumTimeInSeconds, double approximateMaximumTimeInSeconds) throw (FederateNotExecutionMember, RTIinternalError)
	10.38
virtual void	enableCallbacks () throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	10.39
virtual void	disableCallbacks () throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)
	10.40
virtual FederateHandle	decodeFederateHandle (VariableLengthData const &encodedValue) const
virtual ObjectClassHandle	decodeObjectClassHandle (VariableLengthData const &encodedValue) const
virtual InteractionClassHandle	decodeInteractionClassHandle (VariableLengthData const &encodedValue) const
virtual ObjectInstanceHandle	decodeObjectInstanceHandle (VariableLengthData const &encodedValue) const
virtual AttributeHandle	decodeAttributeHandle (VariableLengthData const &encodedValue) const
virtual ParameterHandle	decodeParameterHandle (VariableLengthData const &encodedValue) const
virtual DimensionHandle	decodeDimensionHandle (VariableLengthData const &encodedValue) const
virtual MessageRetractionHandle	decodeMessageRetractionHandle (VariableLengthData const &encodedValue) const
virtual RegionHandle	decodeRegionHandle (VariableLengthData const &encodedValue) const
virtual void	rtiAmbCreationArgs (std::vector< std::wstring > &args) const
Public Member Functions inherited from DtVrlRtiAmbassador
	DtVrlRtiAmbassador () throw ()
virtual	~DtVrlRtiAmbassador ()

Static Public Member Functions
static DtVrlRtiAmbassador *	create (const std::vector< std::wstring > &args)
	Returns a new DtDirectRtiAmbassador.
Static Public Member Functions inherited from DtVrlRtiAmbassador
static RTI::RTIambassador *	create ()

Protected Attributes
std::auto_ptr< RTIambassador >	myRtiAmb
FederateAmbassador *	myFedAmb
std::vector< std::wstring >	myRtiAmbCreationArgs
Protected Attributes inherited from DtVrlRtiAmbassador
std::auto_ptr< RTIambassador >	myRtiAmb
FederateAmbassador *	myFedAmb

Private Member Functions
	DtDirectRtiAmbassador (const DtDirectRtiAmbassador &other)
	Copy Ctor not implemented – do not copy.
DtDirectRtiAmbassador &	operator= (const DtDirectRtiAmbassador &other)
	Assignment Operator not implemented – do not copy.

Detailed Description

Instances of DtDirectRtiAmbassador are for wrapping the calls to The RTI ambassador so that we may override them.

This Class declaration is only used for HLA Version 1516

we expose the RTI1516 namespace here in an effort to make the code as backwards compatible as possible.

Constructor & Destructor Documentation

DtDirectRtiAmbassador::DtDirectRtiAmbassador

(

const std::vector< std::wstring > &

createArguments = std::vector< std::wstring >()

)

throw (BadInitializationParameter, RTIinternalError)

The RTI Ambassador factory takes a vector of wstrings that the user can specify via the createArguments argument.

virtual DtDirectRtiAmbassador::~DtDirectRtiAmbassador ( )

virtual

DtDirectRtiAmbassador::DtDirectRtiAmbassador ( const DtDirectRtiAmbassador &  other )

private

Copy Ctor not implemented – do not copy.

Member Function Documentation

virtual void DtDirectRtiAmbassador::associateRegionsForUpdates ( ObjectInstanceHandle  theObject, AttributeHandleSetRegionHandleSetPairVector const &  theAttributeHandleSetRegionHandleSetPairVector  ) throw (ObjectInstanceNotKnown, AttributeNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, InvalidRegionContext, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

9.6

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::attributeOwnershipAcquisition ( ObjectInstanceHandle  theObject, AttributeHandleSet const &  desiredAttributes, RTI::VariableLengthData const &  aTag  ) throw (ObjectInstanceNotKnown, ObjectClassNotPublished, AttributeNotDefined, AttributeNotPublished, FederateOwnsAttributes, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

7.8

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::attributeOwnershipAcquisitionIfAvailable ( ObjectInstanceHandle  theObject, AttributeHandleSet const &  desiredAttributes  ) throw (ObjectInstanceNotKnown, ObjectClassNotPublished, AttributeNotDefined, AttributeNotPublished, FederateOwnsAttributes, AttributeAlreadyBeingAcquired, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

7.9

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::attributeOwnershipDivestitureIfWanted ( ObjectInstanceHandle  theObject, AttributeHandleSet const &  theAttributes, AttributeHandleSet &  theDivestedAttributes  ) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

7.12

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::cancelAttributeOwnershipAcquisition ( ObjectInstanceHandle  theObject, AttributeHandleSet const &  theAttributes  ) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeAlreadyOwned, AttributeAcquisitionWasNotRequested, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

7.14

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::cancelNegotiatedAttributeOwnershipDivestiture ( ObjectInstanceHandle  theObject, AttributeHandleSet const &  theAttributes  ) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, AttributeDivestitureWasNotRequested, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

7.13

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::changeAttributeOrderType ( ObjectInstanceHandle  theObject, AttributeHandleSet const &  theAttributes, OrderType  theType  ) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.23

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::changeAttributeTransportationType ( ObjectInstanceHandle  theObject, AttributeHandleSet const &  theAttributes, TransportationType  theType  ) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

6.13

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::changeInteractionOrderType ( InteractionClassHandle  theClass, OrderType  theType  ) throw (InteractionClassNotDefined, InteractionClassNotPublished, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.24

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::changeInteractionTransportationType ( InteractionClassHandle  theClass, TransportationType  theType  ) throw (InteractionClassNotDefined, InteractionClassNotPublished, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

6.14

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::commitRegionModifications ( RegionHandleSet const &  theRegionHandleSet ) throw (InvalidRegion, RegionNotCreatedByThisFederate, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

9.3

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::confirmDivestiture ( ObjectInstanceHandle  theObject, AttributeHandleSet const &  confirmedAttributes, RTI::VariableLengthData const &  aTag  ) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, AttributeDivestitureWasNotRequested, NoAcquisitionPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

7.6

Implements DtVrlRtiAmbassador.

static DtVrlRtiAmbassador* DtDirectRtiAmbassador::create ( const std::vector< std::wstring > &  args )

static

Returns a new DtDirectRtiAmbassador.

virtual void DtDirectRtiAmbassador::createFederationExecution ( std::wstring const &  federationExecutionName, std::wstring const &  fullPathNameToTheFDDfile, std::wstring const &  logicalTimeImplementationName = L""  ) throw (FederationExecutionAlreadyExists, CouldNotOpenFDD, ErrorReadingFDD, RTIinternalError)

virtual

4.2

Implements DtVrlRtiAmbassador.

virtual RegionHandle DtDirectRtiAmbassador::createRegion ( DimensionHandleSet const &  theDimensions ) throw (InvalidDimensionHandle, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

! Data Distribution Management //!

9.2

Implements DtVrlRtiAmbassador.

virtual AttributeHandle DtDirectRtiAmbassador::decodeAttributeHandle ( VariableLengthData const &  encodedValue ) const

virtual

Implements DtVrlRtiAmbassador.

virtual DimensionHandle DtDirectRtiAmbassador::decodeDimensionHandle ( VariableLengthData const &  encodedValue ) const

virtual

Implements DtVrlRtiAmbassador.

virtual FederateHandle DtDirectRtiAmbassador::decodeFederateHandle ( VariableLengthData const &  encodedValue ) const

virtual

Implements DtVrlRtiAmbassador.

virtual InteractionClassHandle DtDirectRtiAmbassador::decodeInteractionClassHandle ( VariableLengthData const &  encodedValue ) const

virtual

Implements DtVrlRtiAmbassador.

virtual MessageRetractionHandle DtDirectRtiAmbassador::decodeMessageRetractionHandle ( VariableLengthData const &  encodedValue ) const

virtual

Implements DtVrlRtiAmbassador.

virtual ObjectClassHandle DtDirectRtiAmbassador::decodeObjectClassHandle ( VariableLengthData const &  encodedValue ) const

virtual

Implements DtVrlRtiAmbassador.

virtual ObjectInstanceHandle DtDirectRtiAmbassador::decodeObjectInstanceHandle ( VariableLengthData const &  encodedValue ) const

virtual

Implements DtVrlRtiAmbassador.

virtual ParameterHandle DtDirectRtiAmbassador::decodeParameterHandle ( VariableLengthData const &  encodedValue ) const

virtual

Implements DtVrlRtiAmbassador.

virtual RegionHandle DtDirectRtiAmbassador::decodeRegionHandle ( VariableLengthData const &  encodedValue ) const

virtual

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::deleteObjectInstance ( ObjectInstanceHandle  theObject, RTI::VariableLengthData const &  aTag  ) throw (DeletePrivilegeNotHeld, ObjectInstanceNotKnown, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

6.10

Implements DtVrlRtiAmbassador.

virtual MessageRetractionHandle DtDirectRtiAmbassador::deleteObjectInstance ( ObjectInstanceHandle  theObject, RTI::VariableLengthData const &  aTag, LogicalTime const &  theTime  ) throw (DeletePrivilegeNotHeld, ObjectInstanceNotKnown, InvalidLogicalTime, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::deleteRegion ( RegionHandle  theRegion ) throw (InvalidRegion, RegionNotCreatedByThisFederate, RegionInUseForUpdateOrSubscription, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

9.4

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::destroyFederationExecution ( std::wstring const &  federationExecutionName ) throw (FederatesCurrentlyJoined, FederationExecutionDoesNotExist, RTIinternalError)

virtual

4.3

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::disableAsynchronousDelivery ( ) throw (AsynchronousDeliveryAlreadyDisabled, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.15

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::disableAttributeRelevanceAdvisorySwitch ( ) throw (AttributeRelevanceAdvisorySwitchIsOff, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

10.25

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::disableAttributeScopeAdvisorySwitch ( ) throw (AttributeScopeAdvisorySwitchIsOff, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

10.27

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::disableCallbacks ( ) throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

10.40

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::disableInteractionRelevanceAdvisorySwitch ( ) throw (InteractionRelevanceAdvisorySwitchIsOff, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

10.29

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::disableObjectClassRelevanceAdvisorySwitch ( ) throw (ObjectClassRelevanceAdvisorySwitchIsOff, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

10.23

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::disableTimeConstrained ( ) throw (TimeConstrainedIsNotEnabled, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.7

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::disableTimeRegulation ( ) throw (TimeRegulationIsNotEnabled, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.4

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::enableAsynchronousDelivery ( ) throw (AsynchronousDeliveryAlreadyEnabled, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.14

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::enableAttributeRelevanceAdvisorySwitch ( ) throw (AttributeRelevanceAdvisorySwitchIsOn, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

10.24

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::enableAttributeScopeAdvisorySwitch ( ) throw (AttributeScopeAdvisorySwitchIsOn, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

10.26

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::enableCallbacks ( ) throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

10.39

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::enableInteractionRelevanceAdvisorySwitch ( ) throw (InteractionRelevanceAdvisorySwitchIsOn, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

10.28

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::enableObjectClassRelevanceAdvisorySwitch ( ) throw (ObjectClassRelevanceAdvisorySwitchIsOn, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

10.22

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::enableTimeConstrained ( ) throw (TimeConstrainedAlreadyEnabled, InTimeAdvancingState, RequestForTimeConstrainedPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.5

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::enableTimeRegulation ( LogicalTimeInterval const &  theLookahead ) throw (TimeRegulationAlreadyEnabled, InvalidLookahead, InTimeAdvancingState, RequestForTimeRegulationPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

! Time Management Services //!

8.2

Implements DtVrlRtiAmbassador.

virtual bool DtDirectRtiAmbassador::evokeCallback ( double  approximateMinimumTimeInSeconds ) throw (FederateNotExecutionMember, RTIinternalError)

virtual

10.37

Implements DtVrlRtiAmbassador.

virtual bool DtDirectRtiAmbassador::evokeMultipleCallbacks ( double  approximateMinimumTimeInSeconds, double  approximateMaximumTimeInSeconds  ) throw (FederateNotExecutionMember, RTIinternalError)

virtual

10.38

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::federateRestoreComplete ( ) throw (RestoreNotRequested, FederateNotExecutionMember, SaveInProgress, RTIinternalError)

virtual

4.22

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::federateRestoreNotComplete ( ) throw (RestoreNotRequested, FederateNotExecutionMember, SaveInProgress, RTIinternalError)

virtual

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::federateSaveBegun ( ) throw (SaveNotInitiated, FederateNotExecutionMember, RestoreInProgress, RTIinternalError)

virtual

4.13

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::federateSaveComplete ( ) throw (FederateHasNotBegunSave, FederateNotExecutionMember, RestoreInProgress, RTIinternalError)

virtual

4.14

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::federateSaveNotComplete ( ) throw (FederateHasNotBegunSave, FederateNotExecutionMember, RestoreInProgress, RTIinternalError)

virtual

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::flushQueueRequest ( LogicalTime const &  theTime ) throw (InvalidLogicalTime, LogicalTimeAlreadyPassed, InTimeAdvancingState, RequestForTimeRegulationPending, RequestForTimeConstrainedPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.12

Implements DtVrlRtiAmbassador.

virtual AttributeHandle DtDirectRtiAmbassador::getAttributeHandle ( ObjectClassHandle  theClass, std::wstring const &  theAttributeName  ) throw (InvalidObjectClassHandle, NameNotFound, FederateNotExecutionMember, RTIinternalError)

virtual

10.4

Implements DtVrlRtiAmbassador.

virtual std::wstring DtDirectRtiAmbassador::getAttributeName ( ObjectClassHandle  theClass, AttributeHandle  theHandle  ) throw (InvalidObjectClassHandle, InvalidAttributeHandle, AttributeNotDefined, FederateNotExecutionMember, RTIinternalError)

virtual

10.5

Implements DtVrlRtiAmbassador.

virtual DimensionHandleSet DtDirectRtiAmbassador::getAvailableDimensionsForClassAttribute ( ObjectClassHandle  theClass, AttributeHandle  theHandle  ) throw (InvalidObjectClassHandle, InvalidAttributeHandle, AttributeNotDefined, FederateNotExecutionMember, RTIinternalError)

virtual

10.15

Implements DtVrlRtiAmbassador.

virtual DimensionHandleSet DtDirectRtiAmbassador::getAvailableDimensionsForInteractionClass ( InteractionClassHandle  theClass ) throw (InvalidInteractionClassHandle, FederateNotExecutionMember, RTIinternalError)

virtual

10.17

Implements DtVrlRtiAmbassador.

virtual DimensionHandle DtDirectRtiAmbassador::getDimensionHandle ( std::wstring const &  theName ) throw (NameNotFound, FederateNotExecutionMember, RTIinternalError)

virtual

10.12

Implements DtVrlRtiAmbassador.

virtual DimensionHandleSet DtDirectRtiAmbassador::getDimensionHandleSet ( RegionHandle  theRegionHandle ) throw (InvalidRegion, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

10.30

Implements DtVrlRtiAmbassador.

virtual std::wstring DtDirectRtiAmbassador::getDimensionName ( DimensionHandle  theHandle ) throw (InvalidDimensionHandle, FederateNotExecutionMember, RTIinternalError)

virtual

10.13

Implements DtVrlRtiAmbassador.

virtual unsigned long DtDirectRtiAmbassador::getDimensionUpperBound ( DimensionHandle  theHandle ) throw (InvalidDimensionHandle, FederateNotExecutionMember, RTIinternalError)

virtual

10.14

Implements DtVrlRtiAmbassador.

virtual InteractionClassHandle DtDirectRtiAmbassador::getInteractionClassHandle ( std::wstring const &  theName ) throw (NameNotFound, FederateNotExecutionMember, RTIinternalError)

virtual

10.6

Implements DtVrlRtiAmbassador.

virtual std::wstring DtDirectRtiAmbassador::getInteractionClassName ( InteractionClassHandle  theHandle ) throw (InvalidInteractionClassHandle, FederateNotExecutionMember, RTIinternalError)

virtual

10.7

Implements DtVrlRtiAmbassador.

virtual ObjectClassHandle DtDirectRtiAmbassador::getKnownObjectClassHandle ( ObjectInstanceHandle  theObject ) throw (ObjectInstanceNotKnown, FederateNotExecutionMember, RTIinternalError)

virtual

10.16

Implements DtVrlRtiAmbassador.

virtual ObjectClassHandle DtDirectRtiAmbassador::getObjectClassHandle ( std::wstring const &  theName ) throw (NameNotFound, FederateNotExecutionMember, RTIinternalError)

virtual

! RTI Support Services //!

10.2

Implements DtVrlRtiAmbassador.

virtual std::wstring DtDirectRtiAmbassador::getObjectClassName ( ObjectClassHandle  theClass ) throw (InvalidObjectClassHandle, FederateNotExecutionMember, RTIinternalError)

virtual

10.3

Implements DtVrlRtiAmbassador.

virtual ObjectInstanceHandle DtDirectRtiAmbassador::getObjectInstanceHandle ( std::wstring const &  theName ) throw (ObjectInstanceNotKnown, FederateNotExecutionMember, RTIinternalError)

virtual

10.10

Implements DtVrlRtiAmbassador.

virtual std::wstring DtDirectRtiAmbassador::getObjectInstanceName ( ObjectInstanceHandle  theHandle ) throw (ObjectInstanceNotKnown, FederateNotExecutionMember, RTIinternalError)

virtual

10.11

Implements DtVrlRtiAmbassador.

virtual std::wstring DtDirectRtiAmbassador::getOrderName ( OrderType  orderType ) throw (InvalidOrderType, FederateNotExecutionMember, RTIinternalError)

virtual

10.21

Implements DtVrlRtiAmbassador.

virtual OrderType DtDirectRtiAmbassador::getOrderType ( std::wstring const &  orderName ) throw (InvalidOrderName, FederateNotExecutionMember, RTIinternalError)

virtual

10.20

Implements DtVrlRtiAmbassador.

virtual ParameterHandle DtDirectRtiAmbassador::getParameterHandle ( InteractionClassHandle  whichClass, std::wstring const &  theName  ) throw (InvalidInteractionClassHandle, NameNotFound, FederateNotExecutionMember, RTIinternalError)

virtual

10.8

Implements DtVrlRtiAmbassador.

virtual std::wstring DtDirectRtiAmbassador::getParameterName ( InteractionClassHandle  whichClass, ParameterHandle  theHandle  ) throw (InvalidInteractionClassHandle, InvalidParameterHandle, InteractionParameterNotDefined, FederateNotExecutionMember, RTIinternalError)

virtual

10.9

Implements DtVrlRtiAmbassador.

virtual RangeBounds DtDirectRtiAmbassador::getRangeBounds ( RegionHandle  theRegionHandle, DimensionHandle  theDimensionHandle  ) throw (InvalidRegion, RegionDoesNotContainSpecifiedDimension, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

10.31

Implements DtVrlRtiAmbassador.

virtual std::wstring DtDirectRtiAmbassador::getTransportationName ( TransportationType  transportationType ) throw (InvalidTransportationType, FederateNotExecutionMember, RTIinternalError)

virtual

10.19

Implements DtVrlRtiAmbassador.

virtual TransportationType DtDirectRtiAmbassador::getTransportationType ( std::wstring const &  transportationName ) throw (InvalidTransportationName, FederateNotExecutionMember, RTIinternalError)

virtual

10.18

Implements DtVrlRtiAmbassador.

virtual bool DtDirectRtiAmbassador::isAttributeOwnedByFederate ( ObjectInstanceHandle  theObject, AttributeHandle  theAttribute  ) throw (ObjectInstanceNotKnown, AttributeNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

7.18

Implements DtVrlRtiAmbassador.

virtual FederateHandle DtDirectRtiAmbassador::joinFederationExecution ( std::wstring const &  federateType, std::wstring const &  federationExecutionName, FederateAmbassador &  federateAmbassador  ) throw (FederateAlreadyExecutionMember, FederationExecutionDoesNotExist, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

4.4

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::localDeleteObjectInstance ( ObjectInstanceHandle  theObject ) throw (ObjectInstanceNotKnown, FederateOwnsAttributes, OwnershipAcquisitionPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

6.12

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::modifyLookahead ( LogicalTimeInterval const &  theLookahead ) throw (TimeRegulationIsNotEnabled, InvalidLookahead, InTimeAdvancingState, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.19

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::negotiatedAttributeOwnershipDivestiture ( ObjectInstanceHandle  theObject, AttributeHandleSet const &  theAttributes, RTI::VariableLengthData const &  aTag  ) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, AttributeAlreadyBeingDivested, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

7.3

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::nextMessageRequest ( LogicalTime const &  theTime ) throw (InvalidLogicalTime, LogicalTimeAlreadyPassed, InTimeAdvancingState, RequestForTimeRegulationPending, RequestForTimeConstrainedPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.10

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::nextMessageRequestAvailable ( LogicalTime const &  theTime ) throw (InvalidLogicalTime, LogicalTimeAlreadyPassed, InTimeAdvancingState, RequestForTimeRegulationPending, RequestForTimeConstrainedPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.11

Implements DtVrlRtiAmbassador.

virtual unsigned long DtDirectRtiAmbassador::normalizeFederateHandle ( FederateHandle  theFederateHandle ) throw (FederateNotExecutionMember, RTIinternalError)

virtual

10.33

Implements DtVrlRtiAmbassador.

virtual unsigned long DtDirectRtiAmbassador::normalizeServiceGroup ( ServiceGroupIndicator  theServiceGroup ) throw (FederateNotExecutionMember, InvalidServiceGroup, RTIinternalError)

virtual

10.34

Implements DtVrlRtiAmbassador.

DtDirectRtiAmbassador& DtDirectRtiAmbassador::operator= ( const DtDirectRtiAmbassador &  other )

private

Assignment Operator not implemented – do not copy.

virtual void DtDirectRtiAmbassador::publishInteractionClass ( InteractionClassHandle  theInteraction ) throw (InteractionClassNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

5.4

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::publishObjectClassAttributes ( ObjectClassHandle  theClass, AttributeHandleSet const &  attributeList  ) throw (ObjectClassNotDefined, AttributeNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

! Declaration Management Services //!

5.2

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::queryAttributeOwnership ( ObjectInstanceHandle  theObject, AttributeHandle  theAttribute  ) throw (ObjectInstanceNotKnown, AttributeNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

7.16

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::queryFederationRestoreStatus ( ) throw (FederateNotExecutionMember, SaveInProgress, RTIinternalError)

virtual

4.24

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::queryFederationSaveStatus ( ) throw (FederateNotExecutionMember, RestoreInProgress, RTIinternalError)

virtual

4.16

Implements DtVrlRtiAmbassador.

virtual bool DtDirectRtiAmbassador::queryGALT ( LogicalTime &  theTime ) throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.16

Implements DtVrlRtiAmbassador.

virtual bool DtDirectRtiAmbassador::queryLITS ( LogicalTime &  theTime ) throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.18

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::queryLogicalTime ( LogicalTime &  theTime ) throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.17

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::queryLookahead ( LogicalTimeInterval &  interval ) throw (TimeRegulationIsNotEnabled, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.20

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::registerFederationSynchronizationPoint ( std::wstring const &  label, RTI::VariableLengthData const &  aTag  ) throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

4.6

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::registerFederationSynchronizationPoint ( std::wstring const &  label, RTI::VariableLengthData const &  aTag, FederateHandleSet const &  syncSet  ) throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

Implements DtVrlRtiAmbassador.

virtual ObjectInstanceHandle DtDirectRtiAmbassador::registerObjectInstance ( ObjectClassHandle  theClass ) throw (ObjectClassNotDefined, ObjectClassNotPublished, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

6.4

Implements DtVrlRtiAmbassador.

virtual ObjectInstanceHandle DtDirectRtiAmbassador::registerObjectInstance ( ObjectClassHandle  theClass, std::wstring const &  theObjectInstanceName  ) throw (ObjectClassNotDefined, ObjectClassNotPublished, ObjectInstanceNameNotReserved, ObjectInstanceNameInUse, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

Implements DtVrlRtiAmbassador.

virtual ObjectInstanceHandle DtDirectRtiAmbassador::registerObjectInstanceWithRegions ( ObjectClassHandle  theClass, AttributeHandleSetRegionHandleSetPairVector const &  theAttributeHandleSetRegionHandleSetPairVector  ) throw (ObjectClassNotDefined, ObjectClassNotPublished, AttributeNotDefined, AttributeNotPublished, InvalidRegion, RegionNotCreatedByThisFederate, InvalidRegionContext, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

9.5

Implements DtVrlRtiAmbassador.

virtual ObjectInstanceHandle DtDirectRtiAmbassador::registerObjectInstanceWithRegions ( ObjectClassHandle  theClass, AttributeHandleSetRegionHandleSetPairVector const &  theAttributeHandleSetRegionHandleSetPairVector, std::wstring const &  theObjectInstanceName  ) throw (ObjectClassNotDefined, ObjectClassNotPublished, AttributeNotDefined, AttributeNotPublished, InvalidRegion, RegionNotCreatedByThisFederate, InvalidRegionContext, ObjectInstanceNameNotReserved, ObjectInstanceNameInUse, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::requestAttributeValueUpdate ( ObjectInstanceHandle  theObject, AttributeHandleSet const &  theAttributes, RTI::VariableLengthData const &  aTag  ) throw (ObjectInstanceNotKnown, AttributeNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

6.17

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::requestAttributeValueUpdate ( ObjectClassHandle  theClass, AttributeHandleSet const &  theAttributes, RTI::VariableLengthData const &  aTag  ) throw (ObjectClassNotDefined, AttributeNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::requestAttributeValueUpdateWithRegions ( ObjectClassHandle  theClass, AttributeHandleSetRegionHandleSetPairVector const &  theSet, RTI::VariableLengthData const &  aTag  ) throw (ObjectClassNotDefined, AttributeNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, InvalidRegionContext, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

9.13

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::requestFederationRestore ( std::wstring const &  label ) throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

4.18

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::requestFederationSave ( std::wstring const &  label ) throw (FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

4.11

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::requestFederationSave ( std::wstring const &  label, LogicalTime const &  theTime  ) throw (LogicalTimeAlreadyPassed, InvalidLogicalTime, FederateUnableToUseTime, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::reserveObjectInstanceName ( std::wstring const &  theObjectInstanceName ) throw (IllegalName, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

! Object Management Services //!

6.2

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::resignFederationExecution ( ResignAction  resignAction ) throw (OwnershipAcquisitionPending, FederateOwnsAttributes, FederateNotExecutionMember, RTIinternalError)

virtual

4.5

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::retract ( MessageRetractionHandle  theHandle ) throw (InvalidRetractionHandle, TimeRegulationIsNotEnabled, MessageCanNoLongerBeRetracted, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.21

Implements DtVrlRtiAmbassador.

virtual RTI::RTIambassador* DtDirectRtiAmbassador::rtiAmb ( )

virtual

Get the real RTI ambassador.

Reimplemented from DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::rtiAmbCreationArgs ( std::vector< std::wstring > &  args ) const

virtual

virtual void DtDirectRtiAmbassador::sendInteraction ( InteractionClassHandle  theInteraction, ParameterHandleValueMap const &  theParameterValues, RTI::VariableLengthData const &  aTag  ) throw (InteractionClassNotPublished, InteractionClassNotDefined, InteractionParameterNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

6.8

Implements DtVrlRtiAmbassador.

virtual MessageRetractionHandle DtDirectRtiAmbassador::sendInteraction ( InteractionClassHandle  theInteraction, ParameterHandleValueMap const &  theParameterValues, RTI::VariableLengthData const &  aTag, LogicalTime const &  theTime  ) throw (InteractionClassNotPublished, InteractionClassNotDefined, InteractionParameterNotDefined, InvalidLogicalTime, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::sendInteractionWithRegions ( InteractionClassHandle  theInteraction, ParameterHandleValueMap const &  theParameterValues, RegionHandleSet const &  theRegionHandleSet, RTI::VariableLengthData const &  aTag  ) throw (InteractionClassNotDefined, InteractionClassNotPublished, InteractionParameterNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, InvalidRegionContext, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

9.12

Implements DtVrlRtiAmbassador.

virtual MessageRetractionHandle DtDirectRtiAmbassador::sendInteractionWithRegions ( InteractionClassHandle  theInteraction, ParameterHandleValueMap const &  theParameterValues, RegionHandleSet const &  theRegionHandleSet, RTI::VariableLengthData const &  aTag, LogicalTime const &  theTime  ) throw (InteractionClassNotDefined, InteractionClassNotPublished, InteractionParameterNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, InvalidRegionContext, InvalidLogicalTime, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::setRangeBounds ( RegionHandle  theRegionHandle, DimensionHandle  theDimensionHandle, RangeBounds const &  theRangeBounds  ) throw (InvalidRegion, RegionNotCreatedByThisFederate, RegionDoesNotContainSpecifiedDimension, InvalidRangeBound, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

10.32

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::subscribeInteractionClass ( InteractionClassHandle  theClass, bool  active = true  ) throw (InteractionClassNotDefined, FederateServiceInvocationsAreBeingReportedViaMOM, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

5.8

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::subscribeInteractionClassWithRegions ( InteractionClassHandle  theClass, RegionHandleSet const &  theRegionHandleSet, bool  active = true  ) throw (InteractionClassNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, InvalidRegionContext, FederateServiceInvocationsAreBeingReportedViaMOM, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

9.10

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::subscribeObjectClassAttributes ( ObjectClassHandle  theClass, AttributeHandleSet const &  attributeList, bool  active = true  ) throw (ObjectClassNotDefined, AttributeNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

5.6

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::subscribeObjectClassAttributesWithRegions ( ObjectClassHandle  theClass, AttributeHandleSetRegionHandleSetPairVector const &  theAttributeHandleSetRegionHandleSetPairVector, bool  active = true  ) throw (ObjectClassNotDefined, AttributeNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, InvalidRegionContext, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

9.8

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::synchronizationPointAchieved ( std::wstring const &  label ) throw (SynchronizationPointLabelNotAnnounced, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

4.9

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::timeAdvanceRequest ( LogicalTime const &  theTime ) throw (InvalidLogicalTime, LogicalTimeAlreadyPassed, InTimeAdvancingState, RequestForTimeRegulationPending, RequestForTimeConstrainedPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.8

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::timeAdvanceRequestAvailable ( LogicalTime const &  theTime ) throw (InvalidLogicalTime, LogicalTimeAlreadyPassed, InTimeAdvancingState, RequestForTimeRegulationPending, RequestForTimeConstrainedPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

8.9

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::unassociateRegionsForUpdates ( ObjectInstanceHandle  theObject, AttributeHandleSetRegionHandleSetPairVector const &  theAttributeHandleSetRegionHandleSetPairVector  ) throw (ObjectInstanceNotKnown, AttributeNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

9.7

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::unconditionalAttributeOwnershipDivestiture ( ObjectInstanceHandle  theObject, AttributeHandleSet const &  theAttributes  ) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

! Ownership Management Services //!

! 7.2

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::unpublishInteractionClass ( InteractionClassHandle  theInteraction ) throw (InteractionClassNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

5.5

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::unpublishObjectClass ( ObjectClassHandle  theClass ) throw (ObjectClassNotDefined, OwnershipAcquisitionPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

5.3

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::unpublishObjectClassAttributes ( ObjectClassHandle  theClass, AttributeHandleSet const &  attributeList  ) throw (ObjectClassNotDefined, AttributeNotDefined, OwnershipAcquisitionPending, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::unsubscribeInteractionClass ( InteractionClassHandle  theClass ) throw (InteractionClassNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

5.9

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::unsubscribeInteractionClassWithRegions ( InteractionClassHandle  theClass, RegionHandleSet const &  theRegionHandleSet  ) throw (InteractionClassNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

9.11

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::unsubscribeObjectClass ( ObjectClassHandle  theClass ) throw (ObjectClassNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

5.7

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::unsubscribeObjectClassAttributes ( ObjectClassHandle  theClass, AttributeHandleSet const &  attributeList  ) throw (ObjectClassNotDefined, AttributeNotDefined, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::unsubscribeObjectClassAttributesWithRegions ( ObjectClassHandle  theClass, AttributeHandleSetRegionHandleSetPairVector const &  theAttributeHandleSetRegionHandleSetPairVector  ) throw (ObjectClassNotDefined, AttributeNotDefined, InvalidRegion, RegionNotCreatedByThisFederate, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

9.9

Implements DtVrlRtiAmbassador.

virtual void DtDirectRtiAmbassador::updateAttributeValues ( ObjectInstanceHandle  theObject, AttributeHandleValueMap const &  theAttributeValues, RTI::VariableLengthData const &  aTag  ) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

6.6

Implements DtVrlRtiAmbassador.

virtual MessageRetractionHandle DtDirectRtiAmbassador::updateAttributeValues ( ObjectInstanceHandle  theObject, AttributeHandleValueMap const &  theAttributeValues, RTI::VariableLengthData const &  aTag, LogicalTime const &  theTime  ) throw (ObjectInstanceNotKnown, AttributeNotDefined, AttributeNotOwned, InvalidLogicalTime, FederateNotExecutionMember, SaveInProgress, RestoreInProgress, RTIinternalError)

virtual

Implements DtVrlRtiAmbassador.

Member Data Documentation

FederateAmbassador* DtDirectRtiAmbassador::myFedAmb

protected

std::auto_ptr<RTIambassador> DtDirectRtiAmbassador::myRtiAmb

protected

std::vector<std::wstring> DtDirectRtiAmbassador::myRtiAmbCreationArgs

protected

---

The documentation for this class was generated from the following file:

• dirRtiAmb1516.h
