DtEmitterSystemPublisher Class Reference

Instances of DtEmitterSystemPublisher are used for local or source simulations of emitter systems, (i.e. More...

Inheritance diagram for DtEmitterSystemPublisher:

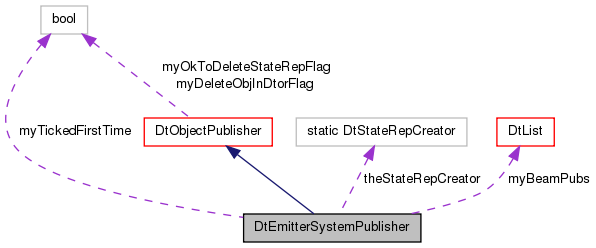

Collaboration diagram for DtEmitterSystemPublisher:

Public Types
typedef DtEmitterSystemRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtEmitterSystemRepositories.

Public Member Functions
	DtEmitterSystemPublisher (DtEmitterSystemRepository *stateRepToUse, DtExerciseConn *conn, const char *name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor.
	DtEmitterSystemPublisher (RTI::ObjectClassHandle h, DtExerciseConn *conn, const char *name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor.
	DtEmitterSystemPublisher (DtExerciseConn *conn, const char *name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor.
	DtEmitterSystemPublisher (DtHlaObjectWithStateRep *obj, DtExerciseConn *conn)
	Constructor that creates a publisher for an existing DtHlaObject.
virtual	~DtEmitterSystemPublisher ()
	destructor
virtual DtEmitterSystemRepository *	emitterSystemRep ()
	Returns a pointer to the DtEmitterSystemRepository - through which you can set or inspect current state information.
virtual DtEmitterSystemRepository *	esr ()
	Synonym for emitterSystemRep().
virtual const char *	classToUse () const
	Returns the name of the FOM object class to use.
virtual void	tick ()
	syncBeamList and update beam objects as well as main system object.
virtual void	forceUpdate ()
	if called, at the next tick all attributes will be sent to the RTI This call differs from the base callback by also including a force update of all beam children.
virtual void	forceUpdate (const RTI::AttributeHandleSet &set)
	If the attribute set is specified, forceUpdate will call through to DtObjectPublisher::forceUpdate and the beams children will not be updated.
Public Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtExerciseConn *conn, DtStateRepository *stateRep, DtStateRepository *asSeenByRemote, bool okToDeleteStateRep=true, const DtDDMRegionSet *regionSet=0)
	Constructor.
virtual	~DtObjectPublisher ()
	Destructor.
virtual void	setHlaObject (const char *className, DtHlaStateEncoder *encoder=0, DtHlaStateDecoder *decoder=0, const char *objectName=0, const DtDDMRegionSet *regionSet=0)
	A DtObjectPublisher is not capable of communicating data through the RTI until setHlaObject is called.
virtual void	setHlaObject (RTI::ObjectClassHandle hand, DtHlaStateEncoder *encoder=0, DtHlaStateDecoder *decoder=0, const char *objectName=0, const DtDDMRegionSet *regionSet=0)
	This version takes a classHandle and optional object name, and creates the DtHlaObject for you.
virtual void	setHlaObject (DtHlaObjectWithStateRep *obj, DtHlaStateEncoder *encoder=0, DtHlaStateDecoder *decoder=0)
	This version takes an existing DtHlaObject, and uses it.
virtual void	detachHlaObject ()
	Detach HLA object - bringing the DtObjectPublisher back to the state it was in before setHlaObject was called.
virtual DtStateRepository *	stateRep ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information.
virtual DtStateRepository *	sr ()
	Synonym for stateRep().
virtual DtStateRepository *	approximateRemoteStateRep ()
	Returns a pointer to the approximate remote DtStateRepository – This state repository contains the contents of the last sent message.
virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages that we send back into the asSeenByRemote SR.
virtual DtHlaStateEncoder *	encoder ()
	Returns a pointer to the Encoder being used to encode current state into an outgoing message.
virtual DtHlaObjectWithStateRep *	hlaObject ()
	Get the object's hlaObject.
virtual DtExerciseConn *	exerciseConn ()
	Get our exercise connection.
virtual const DtObjectId &	id () const
	Get the object's local identifier.
virtual const DtObjectId &	objectId () const
	Get the object's local identifier.
virtual const DtObjectId &	localId () const
	Get the object's local identifier.
virtual const DtString &	name () const
	Get the object's name.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in RTI1.3.3, but the objectId in RTI1.0.3.
virtual void	setDeleteObjInDtorFlag (bool onOff)
	Set/Get a flag that determines whether to try to delete the HLA object that we represent, upon destruction of this DtObjectPublisher.
virtual bool	deleteObjInDtorFlag () const
virtual const DtDDMRegionSet &	publishingRegions () const
virtual void	addRegion (DtDDMRegionSP regionToAdd)
	Adds the specified region to the set of publishing regions, and calls associateRegionForUpdates on the RTI Ambassador.
virtual void	removeRegion (DtDDMRegionSP regionToRemove)
	Removes the specified region from the set of publishing regions, and calls unassociateRegionForUpdates on the RTI Ambassador.
	DtObjectPublisher (DtExerciseConn *conn, const char *name=0)
	These constructors and init functions are obsolete, but are here for backwards compatibility with pre-3.4 releases.
void	init (RTI::ObjectClassHandle hand, DtStateRepository *stateRep, DtStateRepository *asSeenByRemote, DtHlaStateEncoder *encoder=0, DtHlaStateDecoder *decoder=0)
void	init (const char *className, DtStateRepository *stateRep, DtStateRepository *asSeenByRemote, DtHlaStateEncoder *encoder=0, DtHlaStateDecoder *decoder=0)

Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.
Static Public Member Functions inherited from DtObjectPublisher
static void	removeObjectCb (DtHlaObject *obj, void *pub)
	Callback to be called when our underlying DtHlaObject goes away.

Protected Member Functions
virtual void	syncBeamList ()
	Update myBeamPubs so that it has a publisher for all beamSRs in my systemSR, but no others.
virtual DtEmitterBeamPublisher *	publisherForBsr (DtEmitterBeamRepository *bsr)
	Returns the publisher responsible for publishing the indicated BSR, NULL if there is none.
virtual int	numBeams () const
	Return number of beam publishers.
Protected Member Functions inherited from DtObjectPublisher
virtual void	processRemoveObject (DtHlaObject *obj)
	Called by removeObjectCb to detachHlaObject when our underlying DtHlaObject goes away.

Protected Attributes
DtList	myBeamPubs
	List of DtEmitterBeamPubs.
bool	myTickedFirstTime
Protected Attributes inherited from DtObjectPublisher
DtExerciseConn *	myExConn
DtHlaObjectWithStateRep *	myHlaObj
DtStateRepository *	myStateRep
DtStateRepository *	myAsSeenByRemote
DtHlaStateEncoder *	myEncoder
DtHlaStateDecoder *	myDecoder
DtObjectId	myObjectId
bool	myOkToDeleteStateRepFlag
DtString	myName
bool	myDeleteObjInDtorFlag
DtDDMRegionSet	myPublishingRegions

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Private Member Functions
	DtEmitterSystemPublisher (const DtEmitterSystemPublisher &orig)
	copy constructor – not implemented
DtEmitterSystemPublisher &	operator= (const DtEmitterSystemPublisher &orig)
	assignment operator – not implemented

Detailed Description

Instances of DtEmitterSystemPublisher are used for local or source simulations of emitter systems, (i.e.

these entities are not dependent on data being produced elsewhere on the network for their existence). These emitter systems send data to the network.

Member Typedef Documentation

typedef DtEmitterSystemRepository*(* DtEmitterSystemPublisher::DtStateRepCreator)()

Function prototype for functions that create DtEmitterSystemRepositories.

Constructor & Destructor Documentation

DtEmitterSystemPublisher::DtEmitterSystemPublisher	(	DtEmitterSystemRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const char *	name = 0,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

Constructor.

DtEmitterSystemPublisher::DtEmitterSystemPublisher	(	RTI::ObjectClassHandle	h,
		DtExerciseConn *	conn,
		const char *	name = 0,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

Constructor.

DtEmitterSystemPublisher::DtEmitterSystemPublisher	(	DtExerciseConn *	conn,
		const char *	name = 0,
		const DtDDMRegionSet *	regionSetToUse = 0
	)

Constructor.

DtEmitterSystemPublisher::DtEmitterSystemPublisher	(	DtHlaObjectWithStateRep *	obj,
		DtExerciseConn *	conn
	)

Constructor that creates a publisher for an existing DtHlaObject.

(DtHlaObjectWithStateRep is derived from DtHlaObject.) Typically used in conjunction with ownership management, when you want to take ownership and begin updating some attributes of an object that you have already discovered.

virtual DtEmitterSystemPublisher::~DtEmitterSystemPublisher ( )

virtual

destructor

DtEmitterSystemPublisher::DtEmitterSystemPublisher ( const DtEmitterSystemPublisher &  orig )

private

copy constructor – not implemented

Member Function Documentation

virtual const char* DtEmitterSystemPublisher::classToUse ( ) const

virtual

Returns the name of the FOM object class to use.

Default implementation is to ask the FOM Mapper.

DtEmitterSystemRepository * DtEmitterSystemPublisher::emitterSystemRep ( )

inlinevirtual

Returns a pointer to the DtEmitterSystemRepository - through which you can set or inspect current state information.

References DtObjectPublisher::myStateRep.

DtEmitterSystemRepository * DtEmitterSystemPublisher::esr ( )

inlinevirtual

Synonym for emitterSystemRep().

References DtObjectPublisher::myStateRep.

virtual void DtEmitterSystemPublisher::forceUpdate ( )

virtual

if called, at the next tick all attributes will be sent to the RTI This call differs from the base callback by also including a force update of all beam children.

Reimplemented from DtObjectPublisher.

virtual void DtEmitterSystemPublisher::forceUpdate ( const RTI::AttributeHandleSet &  set )

virtual

If the attribute set is specified, forceUpdate will call through to DtObjectPublisher::forceUpdate and the beams children will not be updated.

This function is added to prevent it from being hidden

Reimplemented from DtObjectPublisher.

virtual int DtEmitterSystemPublisher::numBeams ( ) const

protectedvirtual

Return number of beam publishers.

DtEmitterSystemPublisher& DtEmitterSystemPublisher::operator= ( const DtEmitterSystemPublisher &  orig )

private

assignment operator – not implemented

virtual DtEmitterBeamPublisher* DtEmitterSystemPublisher::publisherForBsr ( DtEmitterBeamRepository *  bsr )

protectedvirtual

Returns the publisher responsible for publishing the indicated BSR, NULL if there is none.

static DtStateRepCreator DtEmitterSystemPublisher::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual void DtEmitterSystemPublisher::syncBeamList ( )

protectedvirtual

Update myBeamPubs so that it has a publisher for all beamSRs in my systemSR, but no others.

Called by tick() so that all beamPubs can be ticked after systemSR has been updated.

virtual void DtEmitterSystemPublisher::tick ( )

virtual

syncBeamList and update beam objects as well as main system object.

Reimplemented from DtObjectPublisher.

Member Data Documentation

DtList DtEmitterSystemPublisher::myBeamPubs

protected

List of DtEmitterBeamPubs.

bool DtEmitterSystemPublisher::myTickedFirstTime

protected

DtStateRepCreator DtEmitterSystemPublisher::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• hEmittrSysPub.h
