Represents a particular FOM, as described by a FED file. More...

Inheritance diagram for DtFom:

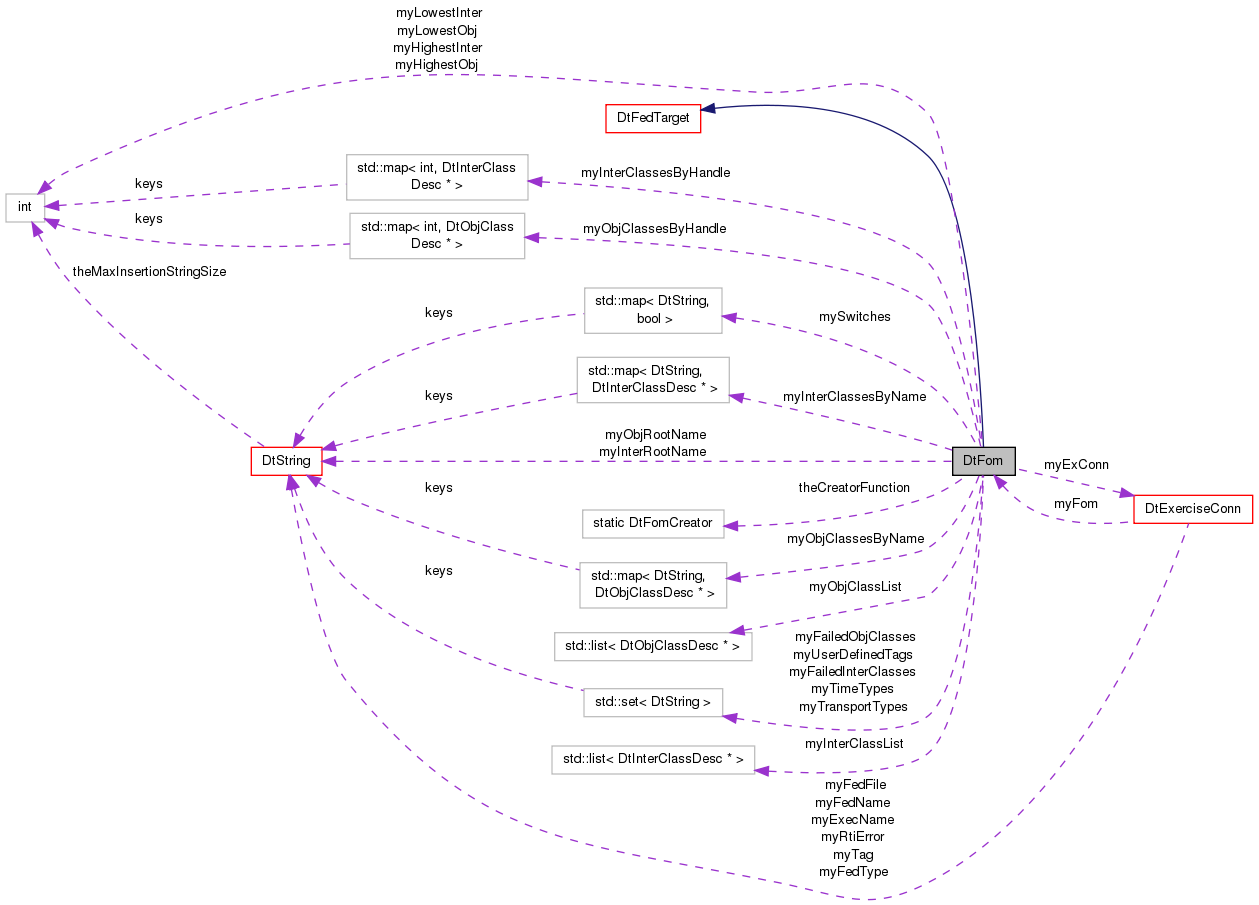

Collaboration diagram for DtFom:

Public Member Functions
	DtFom (DtExerciseConn *exConn)
	Constructor.
virtual	~DtFom ()
	Destructor.
	DtFom (const DtFom &orig)
	copy constructor
DtFom &	operator= (const DtFom &orig)
	assignment operator
virtual DtFedReadStatus	readFed (const DtString &fedFile, const std::vector< std::wstring > &fomModules, const DtString &mimModule, bool strictCheckingEnabled, bool useDTD, bool dontParseSwitches)
	Read a vector of create merging them into this as they're read.
virtual void	addSpace (const char *name)
	Define a routing space. Used when initializing from FED file.
virtual void	addDimension (const char SpaceName, const char dimName)
	Define a dimension within a routing space.
virtual void	addDimension (const char *dimName, unsigned long upperBound, unsigned long defaultLowerBound, unsigned long defaultUpperBound, bool excluded)
	Define a dimension. Used when initializing from FED file.
virtual void	addInterClass (const char name, const char baseName, DtTransportType transport, DtOrderType order, const char *space=NULL)
	Define a class. Used when initializing from FED file.
virtual void	addObjClass (const char name, const char baseName)
	Define a class. Used when initializing from FED file.
virtual void	addParameter (const char className, const char paramName)
	Define an parameter of a class.
virtual bool	addInteractionDimension (const char interactionName, const char dimension)
	Add regions to the class Return true if add was successful (i.e., dimension is valid)
virtual void	addAttribute (const char className, const char attrName, DtTransportType transport, DtOrderType order, const char *space=NULL)
	Define an attribute of a class.
virtual bool	addAttributeDimension (const char className, const char attrName, const char *dimName)
	Define the dimensions of an attribute Return true if add was successful (i.e., dimension is valid)
virtual DtInterClassDesc *	interClassByName (const char *name) const
	Returns the class descriptor for the name.
virtual DtObjClassDesc *	objClassByName (const char *name) const
	Returns the class descriptor for the name.
virtual DtInterClassDesc *	interClassByHandle (RTI::InteractionClassHandle handle) const
	Returns the class descriptor for the handle.
virtual DtObjClassDesc *	objClassByHandle (RTI::ObjectClassHandle handle) const
	Returns the class descriptor for the handle.
virtual const std::list < DtInterClassDesc * > &	interClassList () const
	interClassList() and objClassList() provide return a list of interaction and object classes.
virtual const std::list < DtObjClassDesc * > &	objClassList () const
virtual DtObjClassDesc *	firstObjClass () const
	Returns the first, last and next object classes in the FOM.
virtual DtObjClassDesc *	lastObjClass () const
virtual DtObjClassDesc *	nextObjClass (DtObjClassDesc *current) const
virtual DtInterClassDesc *	firstInterClass () const
	Returns the first, last and next interaction class in the FOM.
virtual DtInterClassDesc *	lastInterClass () const
virtual DtInterClassDesc *	nextInterClass (DtInterClassDesc *current) const
virtual DtVrlRtiAmbassador *	rtiAmb () const
	Returns our RTI ambassador.
virtual void	print () const
	Prints the contents of the FOM.
int	minObjClassHandle () const
	Returns the minimum and maximum interaction and object class handles in the FOM.
int	maxObjClassHandle () const
int	minInterClassHandle () const
int	maxInterClassHandle () const
int	numObjClasses () const
	Returns number of object or interaction classes in the FOM.
int	numInterClasses () const
Public Member Functions inherited from DtFedTarget
	DtFedTarget ()
	Constructor.
virtual	~DtFedTarget ()
	Destructor.
	DtFedTarget (const DtFedTarget &orig)
	copy constructor
DtFedTarget &	operator= (const DtFedTarget &orig)
	assignment operator
virtual void	setFomType (DtFomType type)
	Set/Get the FOM type.
virtual DtFomType	fomType ()
virtual bool	autoProvide () const
	switches
virtual void	setAutoProvide (bool value)
virtual bool	conveyRegionDesignatorSets () const
	Set/Get convey region designator sets switch.
virtual void	setConveyRegionDesignatorSets (bool value)
virtual bool	conveyProducingFederate () const
	Set/Get convey producing federate switch.
virtual void	setConveyProducingFederate (bool value)
virtual bool	attributeScopeAdvisory () const
	Set/Get attribute scople advisory switch.
virtual void	setAttributeScopeAdvisory (bool value)
virtual bool	attributeRelevanceAdvisory () const
	Set/Get attribute relevance advisory switch.
virtual void	setAttributeRelevanceAdvisory (bool value)
virtual bool	objectClassRelevanceAdvisory () const
	Set/Get object class relevance advisory switch.
virtual void	setObjectClassRelevanceAdvisory (bool value)
virtual bool	interactionRelevanceAdvisory () const
	Set/Get ineraction relevance advisory switch.
virtual void	setInteractionRelevanceAdvisory (bool value)
virtual bool	serviceReporting () const
	Set/Get service reporting switch.
virtual void	setServiceReporting (bool value)
virtual bool	exceptionReporting () const
	Set/Get exception reporting switch.
virtual void	setExceptionReporting (bool value)
virtual bool	delaySubscriptionEvaluation () const
	Set/Get delay subscription evaluation switch.
virtual void	setDelaySubscriptionEvaluation (bool value)
virtual DtResignAction	automaticResignAction () const
	Set/Get Automatic Resign Action switch.
virtual void	setAutomaticResignAction (DtResignAction value)
virtual bool	knownUpdateRate (const DtString updateRateName) const
	Is the specified updateRate specified.
virtual void	addUpdateRate (const DtString updateRateName, float rate)
	Add an updateRate from the FOM.
DtString	updateRateNameByHandle (unsigned long handle)
	Get the update Rate Name associated with this handle.

Static Public Member Functions
static void	setFomCreator (DtFomCreator)
	set creator function
static DtFom *	create (DtExerciseConn *exConn)
Static Public Member Functions inherited from DtFedTarget
static void	setDefaultAutoProvide (bool onOff)
	Set/Get the default auto provide.
static bool	defaultAutoProvide ()
static void	setDefaultConveyRegionDesignatorSets (bool onOff)
	Set/Get the default convey region.
static bool	defaultConveyRegionDesignatorSets ()
static void	setDefaultConveyProducingFederate (bool onOff)
	Set/Get the default convey producing federate.
static bool	defaultConveyProducingFederate ()
static void	setDefaultObjectClassRelevanceAdvisory (bool onOff)
	Set/Get the default class relevance advisory.
static bool	defaultObjectClassRelevanceAdvisory ()
static void	setDefaultAttributeRelevanceAdvisory (bool onOff)
	Set/Get the default attribute relevance advisory.
static bool	defaultAttributeRelevanceAdvisory ()
static void	setDefaultAttributeScopeAdvisory (bool onOff)
	Set/Get the default attribute scope advisory.
static bool	defaultAttributeScopeAdvisory ()
static void	setDefaultInteractionRelevanceAdvisory (bool onOff)
	Set/Get the default interaction relevance advisory.
static bool	defaultInteractionRelevanceAdvisory ()
static void	setDefaultServiceReporting (bool onOff)
	Set/Get the default service reporting.
static bool	defaultServiceReporting ()
static void	setDefaultExceptionReporting (bool onOff)
	set/get the default exception reporting
static bool	defaultExceptionReporting ()
static void	setDefaultAutomaticResignAction (DtResignAction val)
	set/get the automatic resign action
static DtResignAction	defaultAutomaticResignAction ()

Protected Member Functions
virtual DtMergeFomStatus	mergeTarget (const DtFom &module)
	Merge the contents of the specified target with this.
virtual DtMergeFomStatus	mergeObjectClasses (const DtFom &module)
	Merge the object classes of the specified FomMgr with this.
virtual DtMergeFomStatus	mergeObjClassDesc (const DtObjClassDesc *desc)
	Merge the contents of the objClassDesc with this.
virtual DtMergeFomStatus	mergeInteractionClasses (const DtFom &module)
	Merge the contents of the specified interactionClasses with this.
virtual DtMergeFomStatus	mergeIntClassDesc (const DtInterClassDesc *desc)
	Merge the contents of the InteractionClassDescription with this.
virtual DtMergeFomStatus	mergeSpaces (const DtFom &module)
	Merge the given routing spaces with this.
virtual DtMergeFomStatus	mergeUpdateRates (const DtFom &module)
	Merge the given update rates with this.
virtual DtMergeFomStatus	mergeSwitches (const DtFom &module)
	Merge the given switches with this.
virtual bool	switchesSame (const DtFom &module) const
	Check that module's switches are the same as mine.
virtual bool	transportTypesSame (DtFom const &module) const
	Check that module's transport types are the same as mine.
virtual bool	timeTypesSame (const DtFom &module) const
	Check that module's time match mine.
virtual bool	userDefinedTagsSame (const DtFom &module) const
	Check that user defined tags match mine.
virtual bool	updateRatesSame (const DtFom &module) const
	Check that update rates match mine.
virtual bool	knownTransportType (const DtString) const
	Is this transport Type already known.
virtual bool	knownTime (const DtString) const
	Is this time Type present.
virtual void	addTime (const DtString)
	Add a timeType from the FOM.
virtual unsigned int	numTimeTypes () const
	How many timeTypes are specified in this target.
virtual bool	knownUserDefinedTag (const DtString) const
	Is this userDefined tag present.

Protected Attributes
DtExerciseConn *	myExConn
std::map< DtString, DtInterClassDesc * >	myInterClassesByName
	Hash lists that map class names (DtStringHashKeys) to DtObjClassDesc pointers.
std::map< DtString, DtObjClassDesc * >	myObjClassesByName
std::map< int, DtInterClassDesc * >	myInterClassesByHandle
	Hash lists that map class handles (DtIntHashKeys) to DtObjClassDesc pointers.
std::map< int, DtObjClassDesc * >	myObjClassesByHandle
std::list< DtObjClassDesc * >	myObjClassList
std::list< DtInterClassDesc * >	myInterClassList
int	myLowestObj
int	myHighestObj
int	myLowestInter
int	myHighestInter
DtString	myObjRootName
DtString	myInterRootName
std::set< DtString >	myTransportTypes
	Transport types names.
std::set< DtString >	myUserDefinedTags
	User defined tag names.
std::map< DtString, bool >	mySwitches
	Order types names.
std::set< DtString >	myTimeTypes
	Time type names.
std::set< DtString >	myFailedObjClasses
std::set< DtString >	myFailedInterClasses
Protected Attributes inherited from DtFedTarget
bool	myAutoProvide
bool	myConveyRegionDesignatorSets
bool	myConveyProducingFederate
bool	myAttributeScopeAdvisory
bool	myAttributeRelevanceAdvisory
bool	myObjectClassRelevanceAdvisory
bool	myInteractionRelevanceAdvisory
bool	myServiceReporting
bool	myExceptionReporting
bool	myDelaySubscriptionEvaluation
DtResignAction	myAutomaticResignAction
DtFomType	myFomType
std::vector< float >	myUpdateRates
	Index of update rates.
DtUpdateRateHandleByNameMap	myUpdateRateHandleByName
	Map from update rate name to handle.
DtUpdateRateNameByHandleMap	myUpdateRateNameByHandle
	Map from update rate handle to name.

Static Protected Attributes
static DtFomCreator	theCreatorFunction
Static Protected Attributes inherited from DtFedTarget
static bool	theDefaultAutoProvide
static bool	theDefaultConveyRegionDesignatorSets
static bool	theDefaultConveyProducingFederate
static bool	theDefaultObjectClassRelevanceAdvisory
static bool	theDefaultAttributeRelevanceAdvisory
static bool	theDefaultAttributeScopeAdvisory
static bool	theDefaultInteractionRelevanceAdvisory
static bool	theDefaultServiceReporting
static bool	theDefaultExceptionReporting
static DtResignAction	theDefaultAutomaticResignAction

Detailed Description

Represents a particular FOM, as described by a FED file.

Object classes are represented by DtObjClassDescs; Interaction classes by DtInterClassDescs. Being a DtFedTarget, a DtFom can be filled in by a DtFedReader. Alternatively, you can fill it in programatically, with addObjClass, addInterClass, addParameter and addAttribute. Once so initialized, you can query for a class descriptor associated with a class.

Constructor & Destructor Documentation

DtFom::DtFom ( DtExerciseConn * exConn )

Constructor.

virtual DtFom::~DtFom ( )

virtual

Destructor.

DtFom::DtFom ( const DtFom & orig )

copy constructor

Member Function Documentation

virtual void DtFom::addAttribute	(	const char *	className,
		const char *	attrName,
		DtTransportType	transport,
		DtOrderType	order,
		const char *	space = `NULL`
	)

virtual

Define an attribute of a class.

Used when initializing from FED file.

Implements DtFedTarget.

virtual bool DtFom::addAttributeDimension	(	const char *	className,
		const char *	attrName,
		const char *	dimName
	)

virtual

Define the dimensions of an attribute Return true if add was successful (i.e., dimension is valid)

Implements DtFedTarget.

virtual void DtFom::addDimension	(	const char *	SpaceName,
		const char *	dimName
	)

virtual

Define a dimension within a routing space.

Used when initializing from FED file.

Implements DtFedTarget.

virtual void DtFom::addDimension	(	const char *	dimName,
		unsigned long	upperBound,
		unsigned long	defaultLowerBound,
		unsigned long	defaultUpperBound,
		bool	excluded
	)

virtual

Define a dimension. Used when initializing from FED file.

Implements DtFedTarget.

virtual bool DtFom::addInteractionDimension	(	const char *	interactionName,
		const char *	dimension
	)

virtual

Add regions to the class Return true if add was successful (i.e., dimension is valid)

Implements DtFedTarget.

virtual void DtFom::addInterClass	(	const char *	name,
		const char *	baseName,
		DtTransportType	transport,
		DtOrderType	order,
		const char *	space = `NULL`
	)

virtual

Define a class. Used when initializing from FED file.

Implements DtFedTarget.

virtual void DtFom::addObjClass	(	const char *	name,
		const char *	baseName
	)

virtual

Define a class. Used when initializing from FED file.

Implements DtFedTarget.

virtual void DtFom::addParameter	(	const char *	className,
		const char *	paramName
	)

virtual

Define an parameter of a class.

Used when initializing from FED file.

Implements DtFedTarget.

virtual void DtFom::addSpace ( const char * name )

virtual

Define a routing space. Used when initializing from FED file.

Implements DtFedTarget.

virtual void DtFom::addTime ( const DtString )

protectedvirtual

Add a timeType from the FOM.

static DtFom* DtFom::create ( DtExerciseConn * exConn )

static

virtual DtInterClassDesc* DtFom::firstInterClass ( ) const

virtual

Returns the first, last and next interaction class in the FOM.

Next returns NULL if current is the last class, or if current is NULL. These functions facilitate looping through classes like this: for (desc = firstInterClass; desc; desc = nextInterClass(desc))

virtual DtObjClassDesc* DtFom::firstObjClass ( ) const

virtual

Returns the first, last and next object classes in the FOM.

Next returns NULL if current is the last class, or if current is NULL. These functions facilitate looping through classes like this: for (desc = firstObjClass; desc; desc = nextObjClass(desc))

virtual DtInterClassDesc* DtFom::interClassByHandle ( RTI::InteractionClassHandle handle ) const

virtual

Returns the class descriptor for the handle.

virtual DtInterClassDesc* DtFom::interClassByName ( const char * name ) const

virtual

Returns the class descriptor for the name.

virtual const std::list<DtInterClassDesc*>& DtFom::interClassList ( ) const

virtual

interClassList() and objClassList() provide return a list of interaction and object classes.

These lists contain pointers to DtInterClassDesc and DtObjClassDesc, which can be accessed using the DtList API. This is provided to replace the firstObjClass/lastObjClass/nextObjClass functionality below.

virtual bool DtFom::knownTime ( const DtString ) const

protectedvirtual

Is this time Type present.

virtual bool DtFom::knownTransportType ( const DtString ) const

protectedvirtual

Is this transport Type already known.

virtual bool DtFom::knownUserDefinedTag ( const DtString ) const

protectedvirtual

Is this userDefined tag present.

virtual DtInterClassDesc* DtFom::lastInterClass ( ) const

virtual

virtual DtObjClassDesc* DtFom::lastObjClass ( ) const

virtual

int DtFom::maxInterClassHandle ( ) const

int DtFom::maxObjClassHandle ( ) const

virtual DtMergeFomStatus DtFom::mergeIntClassDesc ( const DtInterClassDesc * desc )

protectedvirtual

Merge the contents of the InteractionClassDescription with this.

virtual DtMergeFomStatus DtFom::mergeInteractionClasses ( const DtFom & module )

protectedvirtual

Merge the contents of the specified interactionClasses with this.

virtual DtMergeFomStatus DtFom::mergeObjClassDesc ( const DtObjClassDesc * desc )

protectedvirtual

Merge the contents of the objClassDesc with this.

virtual DtMergeFomStatus DtFom::mergeObjectClasses ( const DtFom & module )

protectedvirtual

Merge the object classes of the specified FomMgr with this.

virtual DtMergeFomStatus DtFom::mergeSpaces ( const DtFom & module )

protectedvirtual

Merge the given routing spaces with this.

virtual DtMergeFomStatus DtFom::mergeSwitches ( const DtFom & module )

protectedvirtual

Merge the given switches with this.

virtual DtMergeFomStatus DtFom::mergeTarget ( const DtFom & module )

protectedvirtual

Merge the contents of the specified target with this.

virtual DtMergeFomStatus DtFom::mergeUpdateRates ( const DtFom & module )

protectedvirtual

Merge the given update rates with this.

int DtFom::minInterClassHandle ( ) const

int DtFom::minObjClassHandle ( ) const

Returns the minimum and maximum interaction and object class handles in the FOM.

Not every handle between min and max must be valid.

virtual DtInterClassDesc* DtFom::nextInterClass ( DtInterClassDesc * current ) const

virtual

virtual DtObjClassDesc* DtFom::nextObjClass ( DtObjClassDesc * current ) const

virtual

int DtFom::numInterClasses ( ) const

int DtFom::numObjClasses ( ) const

Returns number of object or interaction classes in the FOM.

virtual unsigned int DtFom::numTimeTypes ( ) const

protectedvirtual

How many timeTypes are specified in this target.

virtual DtObjClassDesc* DtFom::objClassByHandle ( RTI::ObjectClassHandle handle ) const

virtual

Returns the class descriptor for the handle.

virtual DtObjClassDesc* DtFom::objClassByName ( const char * name ) const

virtual

Returns the class descriptor for the name.

virtual const std::list<DtObjClassDesc*>& DtFom::objClassList ( ) const

virtual

DtFom& DtFom::operator= ( const DtFom & orig )

assignment operator

virtual void DtFom::print ( ) const

virtual

Prints the contents of the FOM.

virtual DtFedReadStatus DtFom::readFed	(	const DtString &	fedFile,
		const std::vector< std::wstring > &	fomModules,
		const DtString &	mimModule,
		bool	strictCheckingEnabled,
		bool	useDTD,
		bool	dontParseSwitches
	)

virtual

Read a vector of create merging them into this as they're read.

DtVrlRtiAmbassador * DtFom::rtiAmb ( ) const

inlinevirtual

Returns our RTI ambassador.

References myExConn, and DtExerciseConn::rtiAmb().

static void DtFom::setFomCreator ( DtFomCreator )

static

set creator function

virtual bool DtFom::switchesSame ( const DtFom & module ) const

protectedvirtual

Check that module's switches are the same as mine.

virtual bool DtFom::timeTypesSame ( const DtFom & module ) const

protectedvirtual

Check that module's time match mine.

virtual bool DtFom::transportTypesSame ( DtFom const & module ) const

protectedvirtual

Check that module's transport types are the same as mine.

virtual bool DtFom::updateRatesSame ( const DtFom & module ) const

protectedvirtual

Check that update rates match mine.

virtual bool DtFom::userDefinedTagsSame ( const DtFom & module ) const

protectedvirtual

Check that user defined tags match mine.

Member Data Documentation

DtExerciseConn* DtFom::myExConn

protected

Referenced by rtiAmb().

std::set<DtString> DtFom::myFailedInterClasses

protected

std::set<DtString> DtFom::myFailedObjClasses

protected

int DtFom::myHighestInter

protected

int DtFom::myHighestObj

protected

std::map<int, DtInterClassDesc*> DtFom::myInterClassesByHandle

protected

Hash lists that map class handles (DtIntHashKeys) to DtObjClassDesc pointers.

std::map<DtString, DtInterClassDesc*> DtFom::myInterClassesByName

protected

Hash lists that map class names (DtStringHashKeys) to DtObjClassDesc pointers.

std::list<DtInterClassDesc*> DtFom::myInterClassList

protected

DtString DtFom::myInterRootName

protected

int DtFom::myLowestInter

protected

int DtFom::myLowestObj

protected

std::map<int, DtObjClassDesc*> DtFom::myObjClassesByHandle

protected

std::map<DtString, DtObjClassDesc*> DtFom::myObjClassesByName

protected

std::list<DtObjClassDesc*> DtFom::myObjClassList

protected

DtString DtFom::myObjRootName

protected

std::map<DtString, bool > DtFom::mySwitches

protected

Order types names.

std::set<DtString> DtFom::myTimeTypes

protected

Time type names.

std::set<DtString> DtFom::myTransportTypes

protected

Transport types names.

std::set<DtString> DtFom::myUserDefinedTags

protected

User defined tag names.

DtFomCreator DtFom::theCreatorFunction

staticprotected

The documentation for this class was generated from the following file:

fom.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
