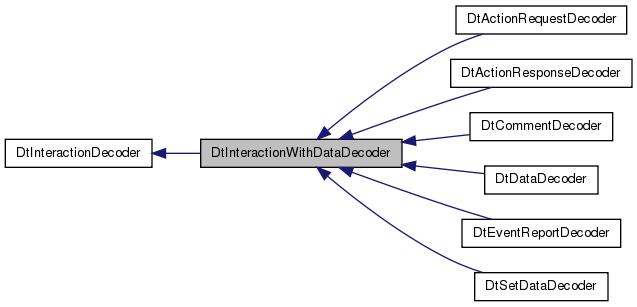

Inheritance diagram for DtInteractionWithDataDecoder:

Collaboration diagram for DtInteractionWithDataDecoder:

Public Member Functions
	DtInteractionWithDataDecoder (DtExerciseConn exConn, DtInterClassDesc classDesc, bool containsFixedDatums=true)
	constructor
virtual	~DtInteractionWithDataDecoder ()
	destructor
	DtInteractionWithDataDecoder (const DtInteractionWithDataDecoder &orig)
	copy constructor
DtInteractionWithDataDecoder &	operator= (const DtInteractionWithDataDecoder &orig)
	assignment operator
Public Member Functions inherited from DtInteractionDecoder
	DtInteractionDecoder (DtExerciseConn exConn, DtInterClassDesc classDesc)
	constructor
virtual	~DtInteractionDecoder ()
	destructor
DtParameterDecoder	addDecoder (RTI::ParameterHandle handle, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by handle.
DtParameterDecoder	addDecoder (char *name, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by name.
virtual DtParameterDecoder	decoder (RTI::ParameterHandle handle) const
	Get the parameter decoder for the specified handle.
virtual void	decode (DtInteractionRep *interaction, const RTI::ParameterHandleValuePairSet &pvList)
	Decode the interaction.
virtual RTI::InteractionClassHandle	interactionClassHandle ()
	Get the interaction's class handle.
virtual DtInteractionDecoder *	clone () const
	Returns a new-ed clone of this object.
virtual DtInteractionDecoder *	clone (DtInterClassDesc *interDesc) const
	Returns a new-ed clone of this object which corresponds to the inter description interDesc.

Protected Member Functions
	DtDECLARE_INTERWDATA_PARAM_DECODER (FixedDatums)
	Individual parameter decoders.
	DtDECLARE_INTERWDATA_PARAM_DECODER (VariableDatumSet)
Protected Member Functions inherited from DtInteractionDecoder
	DtInteractionDecoder (const DtInteractionDecoder &orig)
	copy constructor - not implemented.
DtInteractionDecoder &	operator= (const DtInteractionDecoder &orig)
	assignment operator - not implemented.
virtual void	decodeParameter (DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvList, int index)
	Process (decode) the specified parameter.

Static Protected Member Functions
static void	decodeVariableDatumSet_2_d_14 (DtInteractionWithData *inter, const RTI::ParameterHandleValuePairSet &params, int index)
static void	decodeVariableDatumSet_2_d_17 (DtInteractionWithData *inter, const RTI::ParameterHandleValuePairSet &params, int index)

Additional Inherited Members
Public Types inherited from DtInteractionDecoder
typedef void(*	DtParameterDecoder )(DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Parameter decoder function signature.
Static Public Member Functions inherited from DtInteractionDecoder
static char *	decodingBuffer (int length)
	Returns a pointer to a buffer that can be used to copy data obtained from a phvps.
Protected Attributes inherited from DtInteractionDecoder
DtExerciseConn *	myExConn
DtInterClassDesc *	myClassDesc
RTI::InteractionClassHandle	myClassHandle
std::map< RTI::ParameterHandle, DtParameterDecoder >	myList
	myList is an array of classDesc->maxParamHandle() items.

Detailed Description

Instances of DtInteractionWithDataDecoder are used to decode the datum of RPR FOM Interactions that use fixed and var datum records.

Constructor & Destructor Documentation

DtInteractionWithDataDecoder::DtInteractionWithDataDecoder	(	DtExerciseConn *	exConn,
		DtInterClassDesc *	classDesc,
		bool	containsFixedDatums = `true`
	)

constructor

virtual DtInteractionWithDataDecoder::~DtInteractionWithDataDecoder ( )

virtual

destructor

DtInteractionWithDataDecoder::DtInteractionWithDataDecoder ( const DtInteractionWithDataDecoder & orig )

copy constructor

static void DtInteractionWithDataDecoder::decodeVariableDatumSet_2_d_14	(	DtInteractionWithData *	inter,
		const RTI::ParameterHandleValuePairSet &	params,
		int	index
	)

staticprotected

static void DtInteractionWithDataDecoder::decodeVariableDatumSet_2_d_17	(	DtInteractionWithData *	inter,
		const RTI::ParameterHandleValuePairSet &	params,
		int	index
	)

staticprotected

DtInteractionWithDataDecoder::DtDECLARE_INTERWDATA_PARAM_DECODER ( FixedDatums )

protected

Individual parameter decoders.

DtInteractionWithDataDecoder::DtDECLARE_INTERWDATA_PARAM_DECODER ( VariableDatumSet )

protected

DtInteractionWithDataDecoder& DtInteractionWithDataDecoder::operator= ( const DtInteractionWithDataDecoder & orig )

assignment operator

The documentation for this class was generated from the following file:
