Dt3dChord Class Reference

A Dt3dChord is a finite line segment in 3-space, represented by its two 3d end points. More...

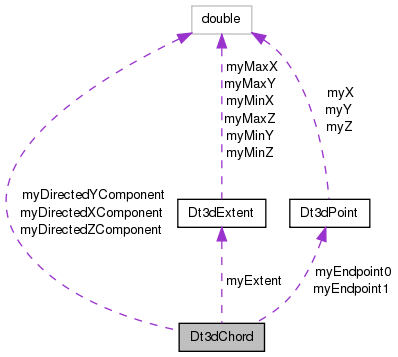

Collaboration diagram for Dt3dChord:

Public Member Functions
	Dt3dChord ()
	default constructor
	Dt3dChord (const Dt3dPoint &endpoint0, const Dt3dPoint &endpoint1)
	define the chord given its end points
	~Dt3dChord ()
	destructor
	Dt3dChord (const Dt3dChord &orig)
	copy constructor
Dt3dChord &	operator= (const Dt3dChord &orig)
	assignment operator
const Dt3dPoint &	endpoint0 () const
const Dt3dPoint &	endpoint1 () const
double	directedXComponent () const
double	directedYComponent () const
double	directedZComponent () const
const Dt3dExtent &	extent () const
Dt3dPoint	computePoint (const double t) const
	Determine the point at parametric value t, where the two end points of the chord assume values of 0 and 1.
bool	isCollinear (const Dt3dPoint &p) const
	Determine if given point p is collinear with chord.
bool	parallelToXYPlane () const
	Determines if the chord is parallel to the XY-plane.
bool	inPlaneZEquals (const double c) const
	Determines if Chord lies on plane z=c.
bool	intersectsPlaneZEqualsAtPoint (const double c, double &tvalue) const
	Returns true if the chord intersects plane z=c, and returns a tvalue between 0 and 1.
bool	collinearPointLiesWithin (const Dt3dPoint &pt) const
	Determines if pt is collinear with the chord, and lies between end points.

Protected Member Functions
double	minZ () const
double	maxZ () const
void	guaranteeValidConstruction ()
	Ensure sizes are non-negative, no matter what order the points are entered.

Protected Attributes
Dt3dPoint	myEndpoint0
Dt3dPoint	myEndpoint1
	first endpoint
double	myDirectedXComponent
	second endpoint
double	myDirectedYComponent
	second endpoint
double	myDirectedZComponent
	second endpoint
Dt3dExtent	myExtent
	second endpoint

Detailed Description

A Dt3dChord is a finite line segment in 3-space, represented by its two 3d end points.

This class has no virtual functions to avoid virtual table pointers for performance reasons. You can subclass, but do not add member data in derived classes or you will develop a memory leak.

Data derived from the two endpoints is the coordinate system aligned, minimal extent (bounding volume), and additional sizes of that volume. Note, the lengths are directed lengths, which may be negative.

Constructor & Destructor Documentation

Dt3dChord::Dt3dChord

(

)

default constructor

Dt3dChord::Dt3dChord	(	const Dt3dPoint &	endpoint0,
		const Dt3dPoint &	endpoint1
	)

define the chord given its end points

Dt3dChord::~Dt3dChord

(

)

destructor

Dt3dChord::Dt3dChord

(

const Dt3dChord &

orig

)

copy constructor

Member Function Documentation

bool Dt3dChord::collinearPointLiesWithin

(

const Dt3dPoint &

pt

)

const

Determines if pt is collinear with the chord, and lies between end points.

Dt3dPoint Dt3dChord::computePoint

(

const double

t

)

const

Determine the point at parametric value t, where the two end points of the chord assume values of 0 and 1.

void Dt3dChord::guaranteeValidConstruction ( )

protected

Ensure sizes are non-negative, no matter what order the points are entered.

This function should never be made virtual, as it is called from constructors.

bool Dt3dChord::inPlaneZEquals

(

const double

c

)

const

Determines if Chord lies on plane z=c.

bool Dt3dChord::intersectsPlaneZEqualsAtPoint	(	const double	c,
		double &	tvalue
	)		const

Returns true if the chord intersects plane z=c, and returns a tvalue between 0 and 1.

When the entire chord lies on plane z=c, returns true and tvalue = 2.

bool Dt3dChord::isCollinear

(

const Dt3dPoint &

p

)

const

Determine if given point p is collinear with chord.

double Dt3dChord::maxZ ( ) const

protected

Returns

The maximum Z-value along the chord

double Dt3dChord::minZ ( ) const

protected

Returns

The minimum Z-value along the chord

Dt3dChord& Dt3dChord::operator=

(

const Dt3dChord &

orig

)

assignment operator

bool Dt3dChord::parallelToXYPlane

(

)

const

Determines if the chord is parallel to the XY-plane.

Member Data Documentation

double Dt3dChord::myDirectedXComponent

protected

second endpoint

Data derived from endpoints. Should never be set by user.

double Dt3dChord::myDirectedYComponent

protected

second endpoint

Data derived from endpoints. Should never be set by user.

double Dt3dChord::myDirectedZComponent

protected

second endpoint

Data derived from endpoints. Should never be set by user.

Dt3dPoint Dt3dChord::myEndpoint0

protected

Dt3dPoint Dt3dChord::myEndpoint1

protected

first endpoint

Dt3dExtent Dt3dChord::myExtent

protected

second endpoint

Data derived from endpoints. Should never be set by user.

---

The documentation for this class was generated from the following file:

• 3dChord.h
