DtEntityStatePdu Class Reference

This class provides a wrapper around the DIS Entity State PDU network structure. More...

Inheritance diagram for DtEntityStatePdu:

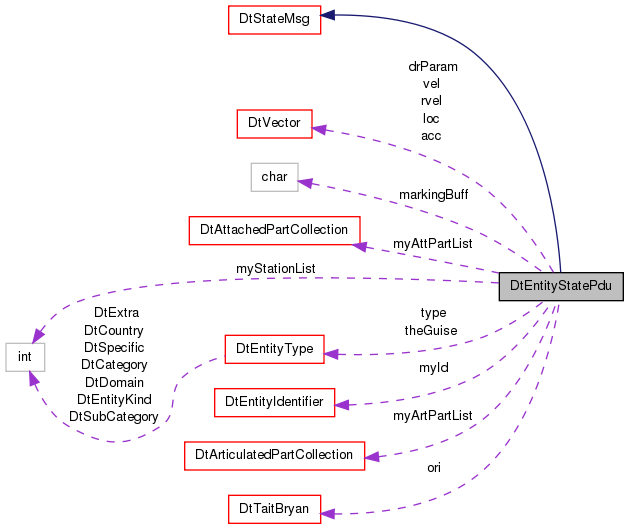

Collaboration diagram for DtEntityStatePdu:

Public Types
enum	{ PduStaticSize = 144 }

Public Member Functions
	DtEntityStatePdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	DtEntityStatePdu (const DtNetEntityStatePdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	CTOR for constructing the pdu using an existing net rep.
	DtEntityStatePdu (const DtEntityIdentifier &id, const DtEntityType &type, const DtEntityType &guise, DtDeadReckonTypes algorithm, DtForceType forceId, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	CTOR for creating a new Entity state pdu.
virtual	~DtEntityStatePdu ()
	DTOR.
const DtEntityIdentifier &	id () const
void	setId (const DtEntityIdentifier &id)
DtForceType	forceId () const
void	setForceId (DtForceType force)
int	numArtParams () const
int	numAttachedParams () const
int	numArtPlusAttachedParams () const
const DtEntityType &	entityType () const
void	setEntityType (const DtEntityType &type)
const DtEntityType &	guise () const
void	setGuise (const DtEntityType &type)
const DtVector &	velocity () const
void	setVelocity (const DtVector &Velocity)
const DtVector &	location () const
void	setLocation (const DtVector &Location)
const DtTaitBryan &	orientation () const
void	setOrientation (const DtTaitBryan &Orient)
DtU32	appearance () const
	Get the appearance attribute collection.
void	setAppearance (DtU32 app)
	Set the appearance attribute collection.
DtAppearAttrVal	appearanceAttribute (const DtAppearAttribute &attr) const
	Get the value of a specific appearance attribute.
void	setAppearanceAttribute (const DtAppearAttribute attr, const DtAppearAttrVal val)
	Set the value of a specific appearance attribute.
DtDeadReckonTypes	algorithm () const
void	setAlgorithm (DtDeadReckonTypes alg)
const DtVector &	acceleration () const
void	setAcceleration (const DtVector &Acceleration)
const DtVector &	rotationalVelocity () const
void	setRotationalVelocity (const DtVector &BodyRates)
char	deadReckonParamType () const
void	setDeadReckonParamType (char param)
short	deadReckon0Param () const
void	setDeadReckon0Param (short param)
const DtVector &	deadReckonXYZParams () const
void	setDeadReckonXYZParams (const DtVector &params)
int	markingCharSet () const
void	setMarkingText (const char *text)
const char *	markingText () const
void	setMarkingCharSet (int charSet)
DtU32	capabilities () const
void	setCapabilities (DtU32 cap)
void	setNumArtPlusAttachedParams (int num)
DtNetVPRecord *	variableParameterRecord (int index)
const DtNetVPRecord *	variableParameterRecord (int index) const
void	printData () const
	Print the PDU's data (not including header).
void	printDataToStream (std::ostream &stream) const
const DtArticulatedPartCollection &	artPartList () const
	Set/Get the articulated part list via the DtArticulatedPartCollection.
void	setArtPartList (const DtArticulatedPartCollection &apList)
	Set/Get the articulated part list via the DtArticulatedPartCollection.
const DtAttachedPartCollection &	attPartList () const
	Set/Get the attached part list via the DtAttachedPartCollection.
void	setAttPartList (const DtAttachedPartCollection &apList)
	Set/Get the attached part list via the DtAttachedPartCollection.
const DtNetArtPartRecord *	artPartRecord (int index) const
	Access the net articulated parts records through an index.
DtNetArtPartRecord *	artPartRecord (int index)
	Access the net articulated parts records through an index.
DtNetAttachedPart *	attPartRecord (int index)
	Access the net attached parts records through an index.
const DtNetAttachedPart *	attPartRecord (int index) const
	Access the net attached parts records through an index.
Public Member Functions inherited from DtStateMsg
	DtStateMsg ()
	default constructor
virtual	~DtStateMsg ()
	destructor
	DtStateMsg (const DtStateMsg &orig)
	copy constructor
DtStateMsg &	operator= (const DtStateMsg &orig)
	assignment operator
Public Member Functions inherited from DtPduWithAttributeRecordSets
	DtPduWithAttributeRecordSets ()
	Constructor.
	DtPduWithAttributeRecordSets (const DtPduWithAttributeRecordSets &orig)
	Constructor.
DtPduWithAttributeRecordSets &	operator= (const DtPduWithAttributeRecordSets &other)
	Assignment operator.
virtual	~DtPduWithAttributeRecordSets ()
	Destructor.
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU. This will call DtPdu's printToStream and also call printRecordSets()
virtual void	printRecordSets (bool printEntityObjectId=false) const
	Prints the Record Sets to DtInfo.
virtual void	printRecordSetsToStream (std::ostream &stream, bool printEntityObjectId=false) const
	Prints the Record Sets to the specified stream.
virtual void	addRecord (std::auto_ptr< DtStandardVariableRecord > record, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Adds a Record.
virtual void	removeRecord (unsigned int index, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes a Record.
virtual void	clearRecordSet (const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes all Records and deletes the recordSet for the given Entity/Object Identifier.
virtual void	clearAllRecordSets ()
	Removes all RecordSets.
virtual std::vector < DtEntityIdentifier >	recordSetIdentifiers () const
	Returns a vector of Entity/Object Identifiers. These are the Identifiers for the Record Sets.
virtual void	getRecordSetIdentifiers (std::vector< DtEntityIdentifier > &entityIdVector) const
	Returns by reference the vector of Entity/Object Identifiers.
virtual const std::vector < DtStandardVariableRecord * > &	records (const DtEntityIdentifier &id=DtEntityIdentifier::nullId()) const
	This will return the Records for a given Entity/Object Identifier.
virtual const DtAttributeRecordSet &	recordSet (const DtEntityIdentifier &id) const
	This will return the Record Set for a given Entity/Object Identifier.
virtual const std::vector < DtStandardVariableRecord * >	allRecords () const
	This will return the Records of all Record Sets.
virtual unsigned int	numberOfRecords () const
	Returns the number of records for all Record Sets.
virtual unsigned int	numberOfRecords (const DtEntityIdentifier &id) const
	Returns the number of records in the Record Set for the given Entity/Object Identifier.
virtual bool	containsStandardRecordSets () const
	Returns if this PDU contains Standard Record Sets. (This is only applicable to DIS 7 and higher).
virtual const DtSimulationAddress &	attributePduSimulationAddress () const
	Returns the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists.
virtual void	setAttributePduSimulationAddress (const DtSimulationAddress &addr)
	Sets the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists.
virtual void	encode ()
	Encode method.
virtual void	decode (DtPduFactory *pduFactory=0)
	Decode method.
virtual unsigned int	attributeRecordSetsNetSize () const
	Network Size of the all Attribute Record Sets.
virtual unsigned int	recordSetsNetSize () const
	Network Size of the all Record Sets.
virtual void	setStandardVariableRecordFactory (DtStandardVariableRecordFactory *factory)
	Sets/gets the Standard Variable Record Factory used for decoding.
virtual DtStandardVariableRecordFactory *	standardVariableRecordFactory () const
virtual unsigned int	numberOfRecordSets () const
	Gets the number of Attribute Record Sets.
virtual const DtAttributeRecordSetMap &	attributeRecordSetMap () const
	Get the AttributeRecordSet Map.
virtual int	computeMasterAttributeRecordType () const
	Get the Master Attribute Record Type (if applicable, this will return MULTIPLES_PRESENT if not)
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor.
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator.
virtual void *	packet () const
	Older function that returns a pointer to the network representation.
virtual int	status () const
	Get PDU status.
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header.
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header.
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header.
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header.
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type.
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header.
virtual void	setPduLength (unsigned int length)
	Set the PDU header's length.
virtual unsigned int	pduLength () const
	Return the length of the PDU, as indicated in the PDU header.
virtual void	setPduStatus (int)
	Set the PDU Status in the PDU header.
virtual int	pduStatus () const
	Returns the PDU Status from the PDU header.
virtual void	setTransferredEntityIndicator (bool difference)
	Set the Transferred Entity Indicator in the PDU header False is No Difference True is Difference.
virtual bool	transferredEntityIndicator () const
	Returns the Transferred Entity Indicator from the PDU header False is No Difference True is Difference.
virtual void	setLvcIndicator (DtPduStatusLVCIndicator lvcIndicator)
	Set the LVC Indicator in the PDU header.
virtual DtPduStatusLVCIndicator	lvcIndicator () const
	Returns the LVC Indicator from the PDU header.
virtual void	setCoupledExtensionIndicator (bool coupled)
	Set the Coupled Extension Indicator in the PDU Header False is Not Coupled True is Coupled.
virtual bool	coupledExtensionIndicator () const
	Returns the Coupled Extension Indicator from the PDU Header False is Not Coupled True is Coupled.
virtual void	setFireTypeIndicator (DtPduStatusFireTypeIndicator fireTypeIndicator)
	Set the Fire Type Indicator in the PDU header.
virtual DtPduStatusFireTypeIndicator	fireTypeIndicator () const
	Returns the Fire Type Indicator from the PDU header.
virtual void	setDetonationTypeIndicator (DtPduStatusDetonationTypeIndicator detonationTypeIndicator)
	Set the Detonation Type Indicator in the PDU header.
virtual DtPduStatusDetonationTypeIndicator	detonationTypeIndicator () const
	Returns the Detonation Type Indicator from the PDU header.
virtual void	setRadioAttachedIndicator (DtPduStatusRadioAttachedIndicator radioAttachedIndicator)
	Set the Radio Attached Indicator in the PDU header.
virtual DtPduStatusRadioAttachedIndicator	radioAttachedIndicator () const
	Returns the Radio Attached Indicator from the PDU header.
virtual void	setIntercomAttachedIndicator (DtPduStatusIntercomAttachedIndicator intercomAttachedIndicator)
	Set the Intercom Attached Indicator in the PDU header.
virtual DtPduStatusIntercomAttachedIndicator	intercomAttachedIndicator () const
	Returns the Intercom Attached Indicator from the PDU header.
virtual void	setIffSimulationMode (bool interactive)
	Set the IFF Simulation Mode in the PDU header.
virtual bool	iffSimulationMode () const
	Returns the IFF Simulation Mode from the PDU header.
virtual void	setActiveInterrogationIndicator (bool active)
	Set the Active Interrogation Indicator in the PDU header.
virtual bool	activeInterrogationIndicator () const
	Returns the Active Interrogation Indicator from the PDU header.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header.
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo).
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo).
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream.
virtual void	printDataToString (DtString &str) const
virtual void	printPduInHexToStream (std::ostream &stream, unsigned int numberOfColumns) const
	Prints the entire PDU's internal buffer to the stream in Hex.
virtual bool	isTransientPdu () const
	This method returns true if transient, false if state.
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor.
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment.
virtual const char *	netRep () const
	Get network representation.
virtual int	length () const
	Get size of message.
	DtBaseMsg ()
	Constructor Object is not fully constructed until initMsg is called.
void	initMsg (int size, DtBufferPtr bufferPtr)
void	initMsg (const void *initial, int size, DtBufferPtr bufferPtr)
virtual void	changeSize (int size, bool skipSizeChanged=false)
	Changes the size of the message.
virtual void	insertBytes (int offset, int numBytes, bool skipSizeChanged=false)
	Inserts numBytes zeroed-out bytes at the indicated offset into the net rep.
virtual void	insertBytes (void *address, int numBytes, bool skipSizeChanged=false)
	Inserts numBytes zeroed-out bytes at the indicated address.
virtual void	deleteBytes (int offset, int numBytes, bool skipSizeChanged=false)
	Deletes numBytes bytes at the indicated offset in the net rep.
virtual void	deleteBytes (void *address, int numBytes, bool skipSizeChanged=false)
	Deletes numBytes bytes starting at the indicated address.
virtual void	clearAll ()
	Zeros out all bytes in the network representation.
virtual void *	newInternalBuffer (int size)
	Sets myInternalBuff to point to a malloc'ed buffer of size bytes.

Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	Static functions.
static void	addCallback (DtExerciseConn *conn, DtEntityStatePduCb cb, void *usr)
	Add a receive callback.
static void	removeCallback (DtExerciseConn *conn, DtEntityStatePduCb cb, void *usr)
	Remove a receive callback.

Protected Member Functions
DtPduKind	internalGetPduKind () const
	Returns the PDU kind associated with the derived PDU class.
DtNetArtPartRecord *	artPartRecord (int partType, int param) const
DtNetArtPartRecord *	attachedPartRecord (int station) const

Protected Attributes
DtEntityIdentifier	myId
DtEntityType	type
DtEntityType	theGuise
DtVector	vel
DtVector	loc
DtVector	acc
DtTaitBryan	ori
DtBodyRates	rvel
DtVector	drParam
char	markingBuff [DtMaxEntityMarkingLength+1]
DtArticulatedPartCollection	myArtPartList
	Does not store state.
DtAttachedPartCollection	myAttPartList
int	myStationList [DtMaxNumAttachedParts]

Detailed Description

This class provides a wrapper around the DIS Entity State PDU network structure.

Member Enumeration Documentation

anonymous enum

Enumerator:

PduStaticSize

Constructor & Destructor Documentation

DtEntityStatePdu::DtEntityStatePdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

DtEntityStatePdu::DtEntityStatePdu	(	const DtNetEntityStatePdu *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER,
		DtPduFactory *	pduFactory = 0
	)

CTOR for constructing the pdu using an existing net rep.

DtEntityStatePdu::DtEntityStatePdu	(	const DtEntityIdentifier &	id,
		const DtEntityType &	type,
		const DtEntityType &	guise,
		DtDeadReckonTypes	algorithm,
		DtForceType	forceId,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

CTOR for creating a new Entity state pdu.

virtual DtEntityStatePdu::~DtEntityStatePdu ( )

inlinevirtual

DTOR.

Member Function Documentation

const DtVector& DtEntityStatePdu::acceleration

(

)

const

static void DtEntityStatePdu::addCallback ( DtExerciseConn *  conn, DtEntityStatePduCb  cb, void *  usr  )

static

Add a receive callback.

DtDeadReckonTypes DtEntityStatePdu::algorithm

(

)

const

DtU32 DtEntityStatePdu::appearance

(

)

const

Get the appearance attribute collection.

DtAppearAttrVal DtEntityStatePdu::appearanceAttribute

(

const DtAppearAttribute &

attr

)

const

Get the value of a specific appearance attribute.

const DtArticulatedPartCollection& DtEntityStatePdu::artPartList

(

)

const

Set/Get the articulated part list via the DtArticulatedPartCollection.

Warning

setNumArtPlusAttachedParams() needs to be called before setting the articulated parts, as memory needs to be allocated

const DtNetArtPartRecord* DtEntityStatePdu::artPartRecord

(

int

index

)

const

Access the net articulated parts records through an index.

These are used for encoding/decoding functions. It is recommended that the artPartList() accessor is used for articulated part access from the PDU.

DtNetArtPartRecord* DtEntityStatePdu::artPartRecord

(

int

index

)

Access the net articulated parts records through an index.

These are used for encoding/decoding functions. It is recommended that the artPartList() accessor is used for articulated part access from the PDU.

DtNetArtPartRecord* DtEntityStatePdu::artPartRecord ( int  partType, int  param  ) const

protected

DtNetArtPartRecord* DtEntityStatePdu::attachedPartRecord ( int  station ) const

protected

const DtAttachedPartCollection& DtEntityStatePdu::attPartList

(

)

const

Set/Get the attached part list via the DtAttachedPartCollection.

Warning

setNumArtPlusAttachedParams() needs to be called before setting the articulated parts, as memory needs to be allocated

DtNetAttachedPart* DtEntityStatePdu::attPartRecord

(

int

index

)

Access the net attached parts records through an index.

These are used for encoding/decoding functions. It is recommended that the attPartList() accessor is used for articulated part access from the PDU.

const DtNetAttachedPart* DtEntityStatePdu::attPartRecord

(

int

index

)

const

Access the net attached parts records through an index.

These are used for encoding/decoding functions. It is recommended that the attPartList() accessor is used for articulated part access from the PDU.

DtU32 DtEntityStatePdu::capabilities

(

)

const

static DtPdu* DtEntityStatePdu::create ( const DtNetPacket *  initial, DtBufferPtr  buffer = DtUSE_INTERNAL_BUFFER, DtPduFactory *  pduFactory = 0  )

static

Static functions.

short DtEntityStatePdu::deadReckon0Param

(

)

const

char DtEntityStatePdu::deadReckonParamType

(

)

const

const DtVector& DtEntityStatePdu::deadReckonXYZParams

(

)

const

const DtEntityType& DtEntityStatePdu::entityType

(

)

const

DtForceType DtEntityStatePdu::forceId

(

)

const

const DtEntityType& DtEntityStatePdu::guise

(

)

const

const DtEntityIdentifier& DtEntityStatePdu::id

(

)

const

DtPduKind DtEntityStatePdu::internalGetPduKind ( ) const

inlineprotectedvirtual

Returns the PDU kind associated with the derived PDU class.

Implements DtPdu.

References DtEntityStatePduKind.

const DtVector& DtEntityStatePdu::location

(

)

const

int DtEntityStatePdu::markingCharSet

(

)

const

const char* DtEntityStatePdu::markingText

(

)

const

int DtEntityStatePdu::numArtParams

(

)

const

int DtEntityStatePdu::numArtPlusAttachedParams

(

)

const

int DtEntityStatePdu::numAttachedParams

(

)

const

const DtTaitBryan& DtEntityStatePdu::orientation

(

)

const

void DtEntityStatePdu::printData ( ) const

virtual

Print the PDU's data (not including header).

Base DtPdu version just prints hex. Use the printDataToString to put the data into a DtString instead of simply sending the output to stdout. printData() calls printDataToStream(DtInfo).

Reimplemented from DtPdu.

void DtEntityStatePdu::printDataToStream ( std::ostream &  stream ) const

virtual

Reimplemented from DtPdu.

static void DtEntityStatePdu::removeCallback ( DtExerciseConn *  conn, DtEntityStatePduCb  cb, void *  usr  )

static

Remove a receive callback.

const DtVector& DtEntityStatePdu::rotationalVelocity

(

)

const

void DtEntityStatePdu::setAcceleration

(

const DtVector &

Acceleration

)

void DtEntityStatePdu::setAlgorithm

(

DtDeadReckonTypes

alg

)

void DtEntityStatePdu::setAppearance

(

DtU32

app

)

Set the appearance attribute collection.

void DtEntityStatePdu::setAppearanceAttribute	(	const DtAppearAttribute	attr,
		const DtAppearAttrVal	val
	)

Set the value of a specific appearance attribute.

void DtEntityStatePdu::setArtPartList

(

const DtArticulatedPartCollection &

apList

)

Set/Get the articulated part list via the DtArticulatedPartCollection.

Warning

setNumArtPlusAttachedParams() needs to be called before setting the articulated parts, as memory needs to be allocated

void DtEntityStatePdu::setAttPartList

(

const DtAttachedPartCollection &

apList

)

Set/Get the attached part list via the DtAttachedPartCollection.

Warning

setNumArtPlusAttachedParams() needs to be called before setting the articulated parts, as memory needs to be allocated

void DtEntityStatePdu::setCapabilities

(

DtU32

cap

)

void DtEntityStatePdu::setDeadReckon0Param

(

short

param

)

void DtEntityStatePdu::setDeadReckonParamType

(

char

param

)

void DtEntityStatePdu::setDeadReckonXYZParams

(

const DtVector &

params

)

void DtEntityStatePdu::setEntityType

(

const DtEntityType &

type

)

void DtEntityStatePdu::setForceId

(

DtForceType

force

)

void DtEntityStatePdu::setGuise

(

const DtEntityType &

type

)

void DtEntityStatePdu::setId

(

const DtEntityIdentifier &

id

)

void DtEntityStatePdu::setLocation

(

const DtVector &

Location

)

void DtEntityStatePdu::setMarkingCharSet

(

int

charSet

)

void DtEntityStatePdu::setMarkingText

(

const char *

text

)

void DtEntityStatePdu::setNumArtPlusAttachedParams

(

int

num

)

void DtEntityStatePdu::setOrientation

(

const DtTaitBryan &

Orient

)

void DtEntityStatePdu::setRotationalVelocity

(

const DtVector &

BodyRates

)

void DtEntityStatePdu::setVelocity

(

const DtVector &

Velocity

)

DtNetVPRecord* DtEntityStatePdu::variableParameterRecord

(

int

index

)

const DtNetVPRecord* DtEntityStatePdu::variableParameterRecord

(

int

index

)

const

const DtVector& DtEntityStatePdu::velocity

(

)

const

Member Data Documentation

DtVector DtEntityStatePdu::acc

protected

DtVector DtEntityStatePdu::drParam

protected

DtVector DtEntityStatePdu::loc

protected

char DtEntityStatePdu::markingBuff[DtMaxEntityMarkingLength+1]

protected

DtArticulatedPartCollection DtEntityStatePdu::myArtPartList

mutableprotected

Does not store state.

DtAttachedPartCollection DtEntityStatePdu::myAttPartList

mutableprotected

DtEntityIdentifier DtEntityStatePdu::myId

protected

int DtEntityStatePdu::myStationList[DtMaxNumAttachedParts]

protected

DtTaitBryan DtEntityStatePdu::ori

protected

DtBodyRates DtEntityStatePdu::rvel

protected

DtEntityType DtEntityStatePdu::theGuise

protected

DtEntityType DtEntityStatePdu::type

protected

DtVector DtEntityStatePdu::vel

protected

---

The documentation for this class was generated from the following file:

• entityStatePdu.h
