DtVrlApplicationInitializer Class Reference

Instances of DtVrlApplicationInitializer are used to initialize the exercise connection with command line arguments. More...

Inheritance diagram for DtVrlApplicationInitializer:

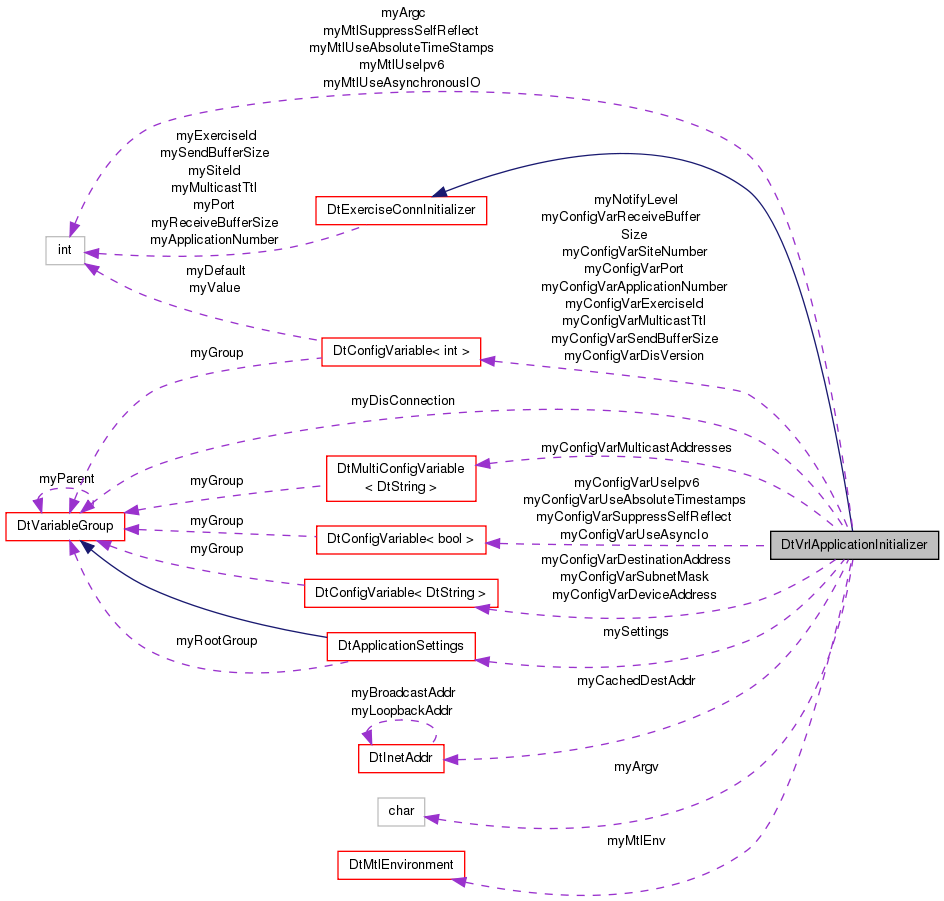

Collaboration diagram for DtVrlApplicationInitializer:

Public Member Functions
	DtVrlApplicationInitializer (int argc, char *argv[], const DtString &appName, const DtString &version=DtExerciseConn::vrlinkVersion())
virtual	~DtVrlApplicationInitializer ()
virtual void	parseCmdLine ()
virtual void	loadFile (const DtString &fileName)
	Load an .mtl or .xml file.
virtual void	saveFile (const DtString &filename)
	Saves the state of application settings to a specified .xml file.
virtual int	argc () const
	Returns the argument count passed to the constructor.
virtual char **	argv () const
	Returns a pointer to the variable argument list passed to the constructor.
virtual void	setPort (int port)
	Sets the port.
virtual int	port () const
	Returns the port.
virtual void	setExerciseId (int id)
	Sets the exercise ID.
virtual int	exerciseId () const
	Returns the exercise ID.
virtual void	setApplicationNumber (int num)
	Sets the application number.
virtual int	applicationNumber () const
	Returns the application number.
virtual void	setSiteId (int id)
	Sets the site ID.
virtual int	siteId () const
	Returns the site ID.
virtual void	setDestinationAddress (const DtString &address)
	Sets the destination address Same as above but takes address as a string.
virtual DtString	destinationAddress () const
	Returns the destination address.
virtual void	setNotifyLevel (int level)
	Sets the notify level.
virtual void	setSendBufferSize (int numBytes)
	Set the send buffer size.
virtual int	sendBufferSize () const
	Get the send buffer size.
virtual void	setReceiveBufferSize (int numBytes)
	Set the receive buffer size.
virtual int	receiveBufferSize () const
	Get the receive buffer size.
virtual void	setUseAsynchIO (bool on)
	Sets the use of asynchronous I/O.
virtual bool	useAsynchIO () const
	Returns the use of asynchronous I/O.
virtual void	setMulticastTtl (int ttl)
	Sets the network time to live for multicast traffic.
virtual int	multicastTtl () const
	Returns the network time to live for multicast traffic.
virtual void	setTimeStampType (DtTimeStampType relOrAbs)
	Set the time stamp type (DtTimeStampAbsolute or DtTimeStampRelative).
virtual DtTimeStampType	timeStampType () const
	Get the time stamp type.
virtual const std::vector < DtString > &	multicastAddresses () const
virtual void	setUseIpv6 (bool val)
virtual bool	useIpv6 () const
virtual void	setSuppressSelfReflect (bool yesNo)
	Set the suppression of reflection DIS PDU's. Off by default.
virtual bool	suppressSelfReflect () const
	Returns whether the application should not self reflect.
virtual void	setDeviceAddress (const DtString &devAddr)
	Set the device to use for the DIS connection.
virtual DtString	deviceAddress () const
	Returns the device address to use.
virtual void	setSubnetMask (const DtString &mask)
	Set the subnet mask to use for the DIS connection.
virtual DtString	subnetMask () const
	Returns the subnet mask to use.
Public Member Functions inherited from DtExerciseConnInitializer
	DtExerciseConnInitializer ()
	Constructor.
virtual	~DtExerciseConnInitializer ()
	Destructor.
	DtExerciseConnInitializer (const DtExerciseConnInitializer &orig)
	Copy Constructor.
DtExerciseConnInitializer &	operator= (const DtExerciseConnInitializer &orig)
	Assignment Operator.
virtual void	setSocket (DtDisSocket *sock)
	Sets the socket.
virtual DtDisSocket *	socket () const
	Returns the socket.
virtual void	setDisVersionToSend (int version)
	Sets the DIS version to send.
virtual void	setMulticastAddresses (const std::vector< DtString > &addresses)

Protected Member Functions
virtual void	initializeMtlParams ()
virtual void	loadMtlFile (const DtString &fileName)

Protected Attributes
int	myArgc
char **	myArgv
DtMtlEnvironment *	myMtlEnv
DtApplicationSettings	mySettings
DtConfigVariable< int >	myNotifyLevel
DtVariableGroup	myDisConnection
DtConfigVariable< int >	myConfigVarPort
DtConfigVariable< int >	myConfigVarExerciseId
DtConfigVariable< int >	myConfigVarSiteNumber
DtConfigVariable< int >	myConfigVarApplicationNumber
DtConfigVariable< int >	myConfigVarDisVersion
DtConfigVariable< DtString >	myConfigVarDestinationAddress
DtConfigVariable< int >	myConfigVarSendBufferSize
DtConfigVariable< int >	myConfigVarReceiveBufferSize
DtConfigVariable< bool >	myConfigVarUseAsyncIo
DtConfigVariable< bool >	myConfigVarUseIpv6
DtConfigVariable< bool >	myConfigVarSuppressSelfReflect
DtConfigVariable< bool >	myConfigVarUseAbsoluteTimestamps
DtConfigVariable< int >	myConfigVarMulticastTtl
DtMultiConfigVariable< DtString >	myConfigVarMulticastAddresses
DtConfigVariable< DtString >	myConfigVarDeviceAddress
DtConfigVariable< DtString >	myConfigVarSubnetMask
DtInetAddr	myCachedDestAddr
int	myMtlUseAsynchronousIO
int	myMtlUseAbsoluteTimeStamps
int	myMtlUseIpv6
int	myMtlSuppressSelfReflect

Detailed Description

Instances of DtVrlApplicationInitializer are used to initialize the exercise connection with command line arguments.

DtVrlApplicationInitializer is a subclass of DtExerciseConnInitializer. It provides all the functionality of DtExerciseConnInitializer, with the capability to provide command line arguments that are used to initialize the federate

Examples

• Talk
• Listen

Constructor & Destructor Documentation

DtVrlApplicationInitializer::DtVrlApplicationInitializer	(	int	argc,
		char *	argv[],
		const DtString &	appName,
		const DtString &	version = DtExerciseConn::vrlinkVersion()
	)

virtual DtVrlApplicationInitializer::~DtVrlApplicationInitializer ( )

virtual

Member Function Documentation

virtual int DtVrlApplicationInitializer::applicationNumber ( ) const

virtual

Returns the application number.

Reimplemented from DtExerciseConnInitializer.

virtual int DtVrlApplicationInitializer::argc ( ) const

virtual

Returns the argument count passed to the constructor.

virtual char** DtVrlApplicationInitializer::argv ( ) const

virtual

Returns a pointer to the variable argument list passed to the constructor.

virtual DtString DtVrlApplicationInitializer::destinationAddress ( ) const

virtual

Returns the destination address.

Sets the destination address

Reimplemented from DtExerciseConnInitializer.

virtual DtString DtVrlApplicationInitializer::deviceAddress ( ) const

virtual

Returns the device address to use.

Reimplemented from DtExerciseConnInitializer.

virtual int DtVrlApplicationInitializer::exerciseId ( ) const

virtual

Returns the exercise ID.

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::initializeMtlParams ( )

protectedvirtual

Reimplemented in DtLauncherInitializer, and DtF18Initializer.

virtual void DtVrlApplicationInitializer::loadFile ( const DtString &  fileName )

virtual

Load an .mtl or .xml file.

This method will parse the given file name, and set the initializer parameters to the specified values

virtual void DtVrlApplicationInitializer::loadMtlFile ( const DtString &  fileName )

protectedvirtual

Reimplemented in DtF18Initializer.

virtual const std::vector<DtString>& DtVrlApplicationInitializer::multicastAddresses ( ) const

virtual

Reimplemented from DtExerciseConnInitializer.

virtual int DtVrlApplicationInitializer::multicastTtl ( ) const

virtual

Returns the network time to live for multicast traffic.

see setMulticastTtl

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::parseCmdLine ( )

virtual

Reimplemented in DtF18Initializer, and DtLauncherInitializer.

virtual int DtVrlApplicationInitializer::port ( ) const

virtual

Returns the port.

Reimplemented from DtExerciseConnInitializer.

virtual int DtVrlApplicationInitializer::receiveBufferSize ( ) const

virtual

Get the receive buffer size.

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::saveFile ( const DtString &  filename )

virtual

Saves the state of application settings to a specified .xml file.

virtual int DtVrlApplicationInitializer::sendBufferSize ( ) const

virtual

Get the send buffer size.

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::setApplicationNumber ( int  num )

virtual

Sets the application number.

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::setDestinationAddress ( const DtString &  addr )

virtual

Sets the destination address Same as above but takes address as a string.

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::setDeviceAddress ( const DtString &  devAddr )

virtual

Set the device to use for the DIS connection.

Will use the broadcast address of the device and bind to that device.

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::setExerciseId ( int  id )

virtual

Sets the exercise ID.

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::setMulticastTtl ( int  ttl )

virtual

Sets the network time to live for multicast traffic.

This is the maximum number of hops allowed before the network drops the message.

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::setNotifyLevel ( int  level )

virtual

Sets the notify level.

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::setPort ( int  port )

virtual

Sets the port.

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::setReceiveBufferSize ( int  numBytes )

virtual

Set the receive buffer size.

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::setSendBufferSize ( int  numBytes )

virtual

Set the send buffer size.

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::setSiteId ( int  id )

virtual

Sets the site ID.

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::setSubnetMask ( const DtString &  mask )

virtual

Set the subnet mask to use for the DIS connection.

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::setSuppressSelfReflect ( bool  yesNo )

virtual

Set the suppression of reflection DIS PDU's. Off by default.

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::setTimeStampType ( DtTimeStampType  relOrAbs )

virtual

Set the time stamp type (DtTimeStampAbsolute or DtTimeStampRelative).

Defaults to DtTimeStampRelative.

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::setUseAsynchIO ( bool  on )

virtual

Sets the use of asynchronous I/O.

Reimplemented from DtExerciseConnInitializer.

virtual void DtVrlApplicationInitializer::setUseIpv6 ( bool  val )

virtual

Reimplemented from DtExerciseConnInitializer.

virtual int DtVrlApplicationInitializer::siteId ( ) const

virtual

Returns the site ID.

Reimplemented from DtExerciseConnInitializer.

virtual DtString DtVrlApplicationInitializer::subnetMask ( ) const

virtual

Returns the subnet mask to use.

Reimplemented from DtExerciseConnInitializer.

virtual bool DtVrlApplicationInitializer::suppressSelfReflect ( ) const

virtual

Returns whether the application should not self reflect.

Reimplemented from DtExerciseConnInitializer.

virtual DtTimeStampType DtVrlApplicationInitializer::timeStampType ( ) const

virtual

Get the time stamp type.

Reimplemented from DtExerciseConnInitializer.

virtual bool DtVrlApplicationInitializer::useAsynchIO ( ) const

virtual

Returns the use of asynchronous I/O.

Reimplemented from DtExerciseConnInitializer.

virtual bool DtVrlApplicationInitializer::useIpv6 ( ) const

virtual

Reimplemented from DtExerciseConnInitializer.

Member Data Documentation

int DtVrlApplicationInitializer::myArgc

protected

char** DtVrlApplicationInitializer::myArgv

protected

DtInetAddr DtVrlApplicationInitializer::myCachedDestAddr

mutableprotected

DtConfigVariable<int> DtVrlApplicationInitializer::myConfigVarApplicationNumber

protected

DtConfigVariable<DtString> DtVrlApplicationInitializer::myConfigVarDestinationAddress

protected

DtConfigVariable<DtString> DtVrlApplicationInitializer::myConfigVarDeviceAddress

protected

DtConfigVariable<int> DtVrlApplicationInitializer::myConfigVarDisVersion

protected

DtConfigVariable<int> DtVrlApplicationInitializer::myConfigVarExerciseId

protected

DtMultiConfigVariable<DtString> DtVrlApplicationInitializer::myConfigVarMulticastAddresses

protected

DtConfigVariable<int> DtVrlApplicationInitializer::myConfigVarMulticastTtl

protected

DtConfigVariable<int> DtVrlApplicationInitializer::myConfigVarPort

protected

DtConfigVariable<int> DtVrlApplicationInitializer::myConfigVarReceiveBufferSize

protected

DtConfigVariable<int> DtVrlApplicationInitializer::myConfigVarSendBufferSize

protected

DtConfigVariable<int> DtVrlApplicationInitializer::myConfigVarSiteNumber

protected

DtConfigVariable<DtString> DtVrlApplicationInitializer::myConfigVarSubnetMask

protected

DtConfigVariable<bool> DtVrlApplicationInitializer::myConfigVarSuppressSelfReflect

protected

DtConfigVariable<bool> DtVrlApplicationInitializer::myConfigVarUseAbsoluteTimestamps

protected

DtConfigVariable<bool> DtVrlApplicationInitializer::myConfigVarUseAsyncIo

protected

DtConfigVariable<bool> DtVrlApplicationInitializer::myConfigVarUseIpv6

protected

DtVariableGroup DtVrlApplicationInitializer::myDisConnection

protected

DtMtlEnvironment* DtVrlApplicationInitializer::myMtlEnv

protected

int DtVrlApplicationInitializer::myMtlSuppressSelfReflect

protected

int DtVrlApplicationInitializer::myMtlUseAbsoluteTimeStamps

protected

int DtVrlApplicationInitializer::myMtlUseAsynchronousIO

protected

int DtVrlApplicationInitializer::myMtlUseIpv6

protected

DtConfigVariable<int> DtVrlApplicationInitializer::myNotifyLevel

protected

DtApplicationSettings DtVrlApplicationInitializer::mySettings

protected

---

The documentation for this class was generated from the following file:

• exerciseConnInitializerDIS.h
