DtObjClassDesc Class Reference

An instance of DtObjClassDesc is a "class descriptor" for an HLA Object class. More...

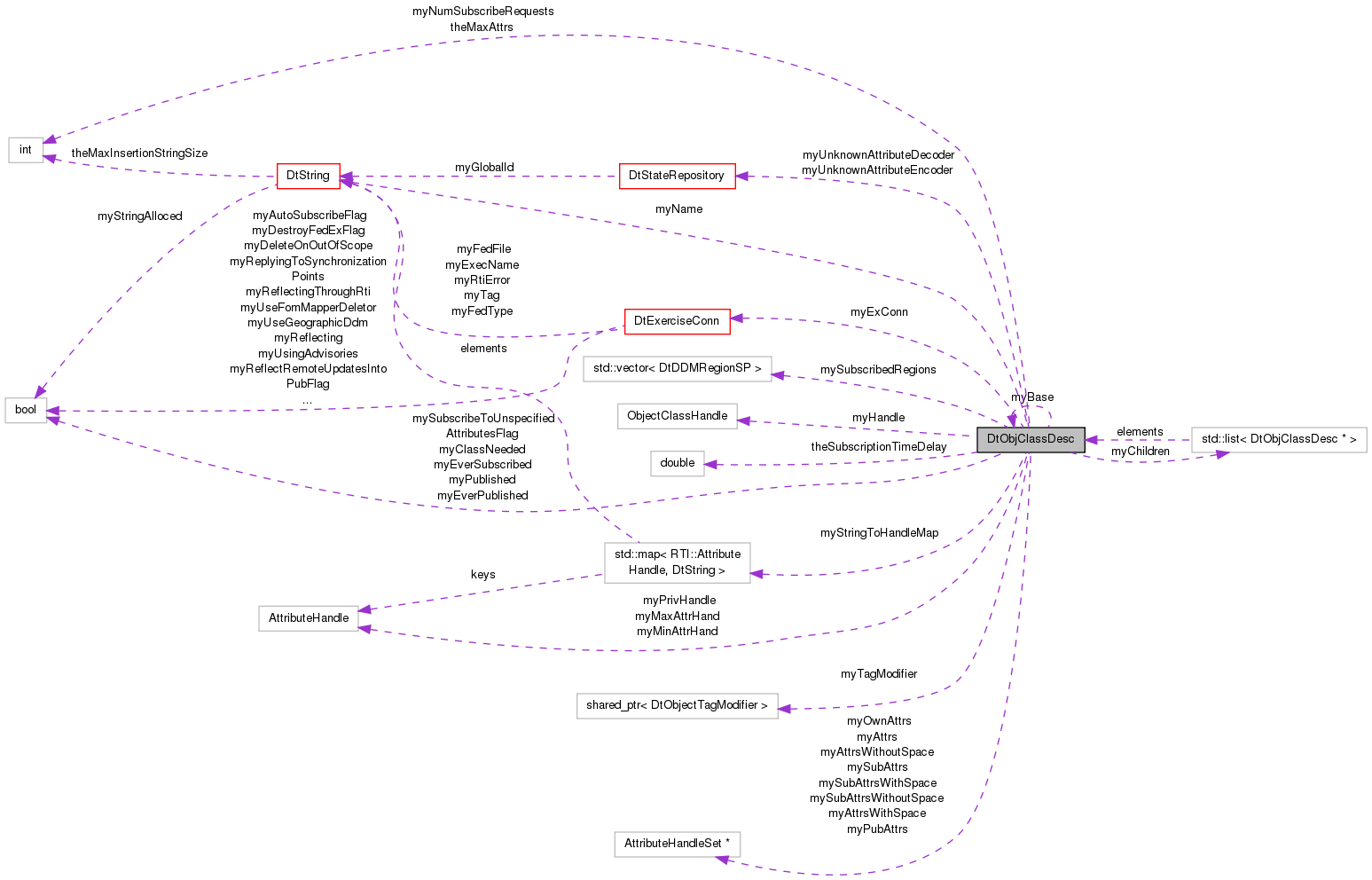

Collaboration diagram for DtObjClassDesc:

Public Member Functions
	DtObjClassDesc (const char *className, DtObjClassDesc *base, RTI::ObjectClassHandle handle, DtExerciseConn *exConn)
	Constructor.
virtual	~DtObjClassDesc ()
	destructor
virtual void	addAttr (const char *attrName, bool withSpace=false)
	Add an attribute (Used when reading FED file).
virtual RTI::ObjectClassHandle	handle () const
	Get the object's class handle.
virtual RTI::AttributeHandle	attributeHandleByName (const char *attrName) const
	Returns the attribute handle for this attribute name.
virtual DtString	attributeNameByHandle (const RTI::AttributeHandle &hand) const
	Returns a string holding the name of the attribute handle.
virtual const char *	name () const
	Get the object's class handle.
virtual const DtObjClassDesc *	baseClass () const
	Return a pointer to the base class's descriptor, NULL if none.
virtual DtObjClassDesc *	baseClass ()
	Return a pointer to the base class's descriptor, NULL if none.
virtual void	addChildClass (DtObjClassDesc *child)
	Informs base class that it has a new child class.
virtual int	isOfClass (RTI::ObjectClassHandle hand) const
	Returns 1 if the class is of class hand or a subclass of hand, 0 otherwise.
virtual int	numAttributes () const
	Get the number of attributes associated with this object, including privilege to delete.
virtual bool	hasAttribute (const char *attrName) const
	Determine whether a particular object has the attribute name specified.
virtual int	minAttrHandle () const
	Returns minimum/maximum attribute handle for the class.
virtual int	maxAttrHandle () const
virtual const RTI::AttributeHandleSet &	attrHandleSet () const
	Get the set of valid attribute handles for this class.
virtual const RTI::AttributeHandleSet &	ownAttrHandles () const
	Get the set of non-inherited attribute handles for this class.
virtual bool	classNeededByFederation ()
	Returns true if the class is currently needed by the federation.
virtual void	publish ()
	Publishes the class, along with the attributes specified by hSet (or all attributes if no hSet is given).
virtual void	publish (const RTI::AttributeHandleSet &hSet)
virtual void	unpublish ()
	Unpublishes the class. Same as publish with an empty attribute set.
virtual void	subscribe (const RTI::AttributeHandleSet &hSet, bool active=true)
	Subscribes to the class, along with the attributes specified by hSet (or all attributes is no hSet is given) and a boolean to indicate whether VR-Link should subscribe actively or passively.
virtual void	subscribe (const RTI::AttributeHandleSet &hSet, DtDDMRegionSP region, bool active=true)
	Subscribes to the class attributes specified by hSet, a region, and a boolean to indicate whether VR-Link should subscribe actively or passively.
virtual void	subscribe ()
virtual void	subscribe (const DtDDMRegionSet &regionSet)
virtual void	passiveSubscribe ()
virtual void	unsubscribe ()
	Unsubscribe to the class.
virtual void	unsubscribe (const DtDDMRegionSet &regionSet)
virtual void	requestUpdates ()
	Request updates of all objects of this class, include the attributes specified by hSet (or all subscribed attributes if no hSet is given).
virtual void	requestUpdates (const DtDDMRegionSet &region)
virtual void	requestUpdates (const RTI::AttributeHandleSet &hSet)
virtual void	requestUpdates (const RTI::AttributeHandleSet &hSet, DtDDMRegionSP region)
virtual const RTI::AttributeHandleSet &	publishedAttrs () const
	Returns the set of published attributes.
virtual bool	everPublished () const
	Return true if we have ever published the class using DtObjClassDesc::publish, false otherwise.
virtual const RTI::AttributeHandleSet &	subscribedAttrs () const
	Returns the set of subscribed attributes.
virtual const RTI::AttributeHandleSet &	attributesWithSpace () const
virtual const RTI::AttributeHandleSet &	attributesWithoutSpace () const
virtual const RTI::AttributeHandleSet &	subscribedAttrsWithSpace () const
virtual const RTI::AttributeHandleSet &	subscribedAttrsWithoutSpace () const
virtual DtObjClassDesc *	firstSubscribed ()
	Return the class descriptor for the first subscribed ancestor including this class.
virtual bool	everSubscribed () const
	Return true if we have ever subscribed to the class using DtObjClassDesc::subscribe, false otherwise.
virtual DtVrlRtiAmbassador *	rtiAmb ()
	Get my RTI ambassador.
virtual DtVrlFederateAmbassador *	fedAmb ()
	Get my federate ambassador.
virtual RTI::AttributeHandle	privilegeHandle () const
	Returns the attribute handle of the privilegeToDelete attribute.
virtual void	setUserTagModifier (DtObjectTagModifierSP modifier)
virtual DtObjectTagModifierSP	userTagModifier ()
virtual void	setSubscribeToUnspecifiedAttributesFlag (bool subscribe)
	Set/get whether subscriptions default unspecified attributes to subscription without region When true, subscriptions with regionset will subscribe without region to attributes not specified anywhere When false, subscriptions with regionset will only subscribe to specified attributes.
virtual bool	subscribeToUnspecifiedAttributesFlag ()
virtual void	setUnknownAttributeEncoder (DtHlaStateEncoder::DtAttributeEncoder encoder)
	Set an encoder to be called for this object class for any attribute that doesn't have an encoder set for it.
virtual void	setUnknownAttributeDecoder (DtHlaStateDecoder::DtAttributeDecoder decoder)
	Set a decoder to be called for this object class for any attribute received in an update that doesn't have a decoder.
virtual DtHlaStateEncoder::DtAttributeEncoder	unknownAttributeEncoder ()
	Returns the unknown attribute encoder. Returns null if not set.
virtual DtHlaStateDecoder::DtAttributeDecoder	unknownAttributeDecoder ()
	Returns the unknown attribute decoder. Returns null if not set.

Static Public Member Functions
static void	setMaxAttributes (int num)
	Set/Get the maximum number of attributes that any class can have this exercise.
static int	maxAttributes ()
static void	setSubscriptionTimeDelay (double delay)
	Set a time delay to occur after calling RTI::RTIambassador::subscribe() The purpose of this function is to get around a bug in DMSO RTI NG v3.2 for Win98.

Protected Types
typedef std::map < RTI::AttributeHandle, DtString >	StringToAttributeHandleMap

Protected Member Functions
virtual void	processStartReg (RTI::ObjectClassHandle h)
	Callback for handling startRegistration RTI callback.
virtual void	processStopReg (RTI::ObjectClassHandle h)
	Callback for handling stopRegistration RTI callback.
virtual DtObjClassDesc *	self () const
	Casts away const-ness. Use with caution.
virtual void	synchSubscribedAttributes ()
	Updates subscribed attributes using values from subscribed attributes with/without space.
virtual void	addAttr (const char *attrName, RTI::AttributeHandle attrHandle, bool isPrivilegeToDelete, bool withSpace=false)
	Add an attribute after the handle is known.

Static Protected Member Functions
static void	startRegCb (RTI::ObjectClassHandle h, void *usr)
	Callback for handling startRegistration RTI callback.
static void	stopRegCb (RTI::ObjectClassHandle h, void *usr)
	Callback for handling stopRegistration RTI callback.

Protected Attributes
DtString	myName
RTI::ObjectClassHandle	myHandle
RTI::AttributeHandleSet *	myAttrs
RTI::AttributeHandleSet *	myOwnAttrs
RTI::AttributeHandleSet *	mySubAttrs
RTI::AttributeHandleSet *	myPubAttrs
RTI::AttributeHandleSet *	myAttrsWithSpace
	Attributes with a space (or dimensions in 1516) defined in the FOM.
RTI::AttributeHandleSet *	myAttrsWithoutSpace
	Attributes without a space (or dimensions in 1516) defined in the FOM.
RTI::AttributeHandleSet *	mySubAttrsWithSpace
RTI::AttributeHandleSet *	mySubAttrsWithoutSpace
bool	myClassNeeded
DtObjClassDesc *	myBase
std::list< DtObjClassDesc * >	myChildren
DtExerciseConn *	myExConn
bool	myPublished
bool	myEverPublished
bool	myEverSubscribed
int	myNumSubscribeRequests
bool	mySubscribeToUnspecifiedAttributesFlag
RTI::AttributeHandle	myPrivHandle
	Handle of the privilegeToDelete attribute.
RTI::AttributeHandle	myMinAttrHand
RTI::AttributeHandle	myMaxAttrHand
StringToAttributeHandleMap	myStringToHandleMap
DtObjectTagModifierSP	myTagModifier
std::vector< DtDDMRegionSP >	mySubscribedRegions
DtHlaStateEncoder::DtAttributeEncoder	myUnknownAttributeEncoder
DtHlaStateDecoder::DtAttributeDecoder	myUnknownAttributeDecoder

Static Protected Attributes
static int	theMaxAttrs
static double	theSubscriptionTimeDelay

Detailed Description

An instance of DtObjClassDesc is a "class descriptor" for an HLA Object class.

A list of all DtObjClassDescs for the various classes in a FOM can be obtained from a DtFom. A DtObjClassDesc can tell you the set of attributes associated with the class, the class's handle, name, and base class. Publication, subscription and update requests are done through the DtObjClassDesc as well, and the DtObjClassDesc maintains information on which attributes of the class are subscribed to by remote federates. By registering callbacks on start/stopUpdates, a DtObjClassDesc can tell you which attributes of the class have been subscribed to by other federates.

Member Typedef Documentation

typedef std::map<RTI::AttributeHandle, DtString> DtObjClassDesc::StringToAttributeHandleMap

protected

Constructor & Destructor Documentation

DtObjClassDesc::DtObjClassDesc	(	const char *	className,
		DtObjClassDesc *	base,
		RTI::ObjectClassHandle	handle,
		DtExerciseConn *	exConn
	)

Constructor.

Adds the base class's attributes to our attribute set. Used when reading FED file.

virtual DtObjClassDesc::~DtObjClassDesc ( )

virtual

destructor

Member Function Documentation

virtual void DtObjClassDesc::addAttr ( const char *  attrName, bool  withSpace = false  )

virtual

Add an attribute (Used when reading FED file).

virtual void DtObjClassDesc::addAttr ( const char *  attrName, RTI::AttributeHandle  attrHandle, bool  isPrivilegeToDelete, bool  withSpace = false  )

protectedvirtual

Add an attribute after the handle is known.

void DtObjClassDesc::addChildClass ( DtObjClassDesc *  child )

inlinevirtual

Informs base class that it has a new child class.

References myChildren.

const RTI::AttributeHandleSet & DtObjClassDesc::attrHandleSet ( ) const

inlinevirtual

Get the set of valid attribute handles for this class.

Includes attributes inherited from base classes.

References myAttrs.

Referenced by DtHlaObject::attrHandleSet().

virtual RTI::AttributeHandle DtObjClassDesc::attributeHandleByName ( const char *  attrName ) const

virtual

Returns the attribute handle for this attribute name.

virtual DtString DtObjClassDesc::attributeNameByHandle ( const RTI::AttributeHandle &  hand ) const

virtual

Returns a string holding the name of the attribute handle.

virtual const RTI::AttributeHandleSet& DtObjClassDesc::attributesWithoutSpace ( ) const

virtual

virtual const RTI::AttributeHandleSet& DtObjClassDesc::attributesWithSpace ( ) const

virtual

const DtObjClassDesc * DtObjClassDesc::baseClass ( ) const

inlinevirtual

Return a pointer to the base class's descriptor, NULL if none.

References myBase.

DtObjClassDesc * DtObjClassDesc::baseClass ( )

inlinevirtual

Return a pointer to the base class's descriptor, NULL if none.

References myBase.

virtual bool DtObjClassDesc::classNeededByFederation ( )

virtual

Returns true if the class is currently needed by the federation.

If VR-Link is using advisories, this function will return true if we've either received a startRegistrationForObjectClass call for the class; otherwise this function will always return true. NOTE: We will only receive calls such as startRegistrationForObjectClass if the class has been published using DtObjClassDesc::publish.

virtual bool DtObjClassDesc::everPublished ( ) const

virtual

Return true if we have ever published the class using DtObjClassDesc::publish, false otherwise.

virtual bool DtObjClassDesc::everSubscribed ( ) const

virtual

Return true if we have ever subscribed to the class using DtObjClassDesc::subscribe, false otherwise.

virtual DtVrlFederateAmbassador* DtObjClassDesc::fedAmb ( )

virtual

Get my federate ambassador.

virtual DtObjClassDesc* DtObjClassDesc::firstSubscribed ( )

virtual

Return the class descriptor for the first subscribed ancestor including this class.

Null is returned if no ancestor is subscribed.

RTI::ObjectClassHandle DtObjClassDesc::handle ( ) const

inlinevirtual

Get the object's class handle.

References myHandle.

Referenced by DtHlaObject::objectClassHandle().

virtual bool DtObjClassDesc::hasAttribute ( const char *  attrName ) const

virtual

Determine whether a particular object has the attribute name specified.

virtual int DtObjClassDesc::isOfClass ( RTI::ObjectClassHandle  hand ) const

virtual

Returns 1 if the class is of class hand or a subclass of hand, 0 otherwise.

virtual int DtObjClassDesc::maxAttrHandle ( ) const

virtual

int DtObjClassDesc::maxAttributes ( )

inlinestatic

References theMaxAttrs.

virtual int DtObjClassDesc::minAttrHandle ( ) const

virtual

Returns minimum/maximum attribute handle for the class.

const char * DtObjClassDesc::name ( ) const

inlinevirtual

Get the object's class handle.

References DtString::c_str(), and myName.

int DtObjClassDesc::numAttributes ( ) const

inlinevirtual

Get the number of attributes associated with this object, including privilege to delete.

References myAttrs.

Referenced by DtHlaObject::numAttributes().

const RTI::AttributeHandleSet & DtObjClassDesc::ownAttrHandles ( ) const

inlinevirtual

Get the set of non-inherited attribute handles for this class.

References myOwnAttrs.

virtual void DtObjClassDesc::passiveSubscribe ( )

virtual

RTI::AttributeHandle DtObjClassDesc::privilegeHandle ( ) const

inlinevirtual

Returns the attribute handle of the privilegeToDelete attribute.

References myPrivHandle.

virtual void DtObjClassDesc::processStartReg ( RTI::ObjectClassHandle  h )

protectedvirtual

Callback for handling startRegistration RTI callback.

virtual void DtObjClassDesc::processStopReg ( RTI::ObjectClassHandle  h )

protectedvirtual

Callback for handling stopRegistration RTI callback.

virtual void DtObjClassDesc::publish ( )

virtual

Publishes the class, along with the attributes specified by hSet (or all attributes if no hSet is given).

Also, registers start and stopUpdates callbacks on the published classes. Can be called multiple times to change the set of published classes.

virtual void DtObjClassDesc::publish ( const RTI::AttributeHandleSet &  hSet )

virtual

virtual const RTI::AttributeHandleSet& DtObjClassDesc::publishedAttrs ( ) const

virtual

Returns the set of published attributes.

For this to work correctly, do not publish directly through the RTI. Instead, use DtObjClassDesc::publish.

virtual void DtObjClassDesc::requestUpdates ( )

virtual

Request updates of all objects of this class, include the attributes specified by hSet (or all subscribed attributes if no hSet is given).

virtual void DtObjClassDesc::requestUpdates ( const DtDDMRegionSet &  region )

virtual

virtual void DtObjClassDesc::requestUpdates ( const RTI::AttributeHandleSet &  hSet )

virtual

virtual void DtObjClassDesc::requestUpdates ( const RTI::AttributeHandleSet &  hSet, DtDDMRegionSP  region  )

virtual

virtual DtVrlRtiAmbassador* DtObjClassDesc::rtiAmb ( )

virtual

Get my RTI ambassador.

DtObjClassDesc * DtObjClassDesc::self ( ) const

inlineprotectedvirtual

Casts away const-ness. Use with caution.

void DtObjClassDesc::setMaxAttributes ( int  num )

inlinestatic

Set/Get the maximum number of attributes that any class can have this exercise.

References theMaxAttrs.

virtual void DtObjClassDesc::setSubscribeToUnspecifiedAttributesFlag ( bool  subscribe )

virtual

Set/get whether subscriptions default unspecified attributes to subscription without region When true, subscriptions with regionset will subscribe without region to attributes not specified anywhere When false, subscriptions with regionset will only subscribe to specified attributes.

void DtObjClassDesc::setSubscriptionTimeDelay ( double  delay )

inlinestatic

Set a time delay to occur after calling RTI::RTIambassador::subscribe() The purpose of this function is to get around a bug in DMSO RTI NG v3.2 for Win98.

If a delay is not used on Win98, DMSO RTI NG may miss subscribe messages and then fail to call discoverObjectInstance() when it's appropriate In most circumstances, you would never want to call this function.

References theSubscriptionTimeDelay.

virtual void DtObjClassDesc::setUnknownAttributeDecoder ( DtHlaStateDecoder::DtAttributeDecoder  decoder )

virtual

Set a decoder to be called for this object class for any attribute received in an update that doesn't have a decoder.

virtual void DtObjClassDesc::setUnknownAttributeEncoder ( DtHlaStateEncoder::DtAttributeEncoder  encoder )

virtual

Set an encoder to be called for this object class for any attribute that doesn't have an encoder set for it.

Note that this will be called every tick for each unknown attribute in the object class, as there is no checker. The user can simply not add the handle/value to the AttributeHandleValuePairSet if an update should not be made.

virtual void DtObjClassDesc::setUserTagModifier ( DtObjectTagModifierSP  modifier )

virtual

static void DtObjClassDesc::startRegCb ( RTI::ObjectClassHandle  h, void *  usr  )

staticprotected

Callback for handling startRegistration RTI callback.

static void DtObjClassDesc::stopRegCb ( RTI::ObjectClassHandle  h, void *  usr  )

staticprotected

Callback for handling stopRegistration RTI callback.

virtual void DtObjClassDesc::subscribe ( const RTI::AttributeHandleSet &  hSet, bool  active = true  )

virtual

Subscribes to the class, along with the attributes specified by hSet (or all attributes is no hSet is given) and a boolean to indicate whether VR-Link should subscribe actively or passively.

virtual void DtObjClassDesc::subscribe ( const RTI::AttributeHandleSet &  hSet, DtDDMRegionSP  region, bool  active = true  )

virtual

Subscribes to the class attributes specified by hSet, a region, and a boolean to indicate whether VR-Link should subscribe actively or passively.

Will subscribe with the region passed in.

virtual void DtObjClassDesc::subscribe ( )

virtual

virtual void DtObjClassDesc::subscribe ( const DtDDMRegionSet &  regionSet )

virtual

virtual const RTI::AttributeHandleSet& DtObjClassDesc::subscribedAttrs ( ) const

virtual

Returns the set of subscribed attributes.

For this to work correctly, do not publish directly through the RTI. Instead, use DtObjClassDesc::subscribe.

virtual const RTI::AttributeHandleSet& DtObjClassDesc::subscribedAttrsWithoutSpace ( ) const

virtual

virtual const RTI::AttributeHandleSet& DtObjClassDesc::subscribedAttrsWithSpace ( ) const

virtual

virtual bool DtObjClassDesc::subscribeToUnspecifiedAttributesFlag ( )

virtual

virtual void DtObjClassDesc::synchSubscribedAttributes ( )

protectedvirtual

Updates subscribed attributes using values from subscribed attributes with/without space.

virtual DtHlaStateDecoder::DtAttributeDecoder DtObjClassDesc::unknownAttributeDecoder ( )

virtual

Returns the unknown attribute decoder. Returns null if not set.

virtual DtHlaStateEncoder::DtAttributeEncoder DtObjClassDesc::unknownAttributeEncoder ( )

virtual

Returns the unknown attribute encoder. Returns null if not set.

virtual void DtObjClassDesc::unpublish ( )

virtual

Unpublishes the class. Same as publish with an empty attribute set.

virtual void DtObjClassDesc::unsubscribe ( )

virtual

Unsubscribe to the class.

virtual void DtObjClassDesc::unsubscribe ( const DtDDMRegionSet &  regionSet )

virtual

virtual DtObjectTagModifierSP DtObjClassDesc::userTagModifier ( )

virtual

Member Data Documentation

RTI::AttributeHandleSet* DtObjClassDesc::myAttrs

protected

Referenced by attrHandleSet(), and numAttributes().

RTI::AttributeHandleSet* DtObjClassDesc::myAttrsWithoutSpace

protected

Attributes without a space (or dimensions in 1516) defined in the FOM.

RTI::AttributeHandleSet* DtObjClassDesc::myAttrsWithSpace

protected

Attributes with a space (or dimensions in 1516) defined in the FOM.

DtObjClassDesc* DtObjClassDesc::myBase

protected

Referenced by baseClass().

std::list<DtObjClassDesc*> DtObjClassDesc::myChildren

protected

Referenced by addChildClass().

bool DtObjClassDesc::myClassNeeded

protected

bool DtObjClassDesc::myEverPublished

protected

bool DtObjClassDesc::myEverSubscribed

protected

DtExerciseConn* DtObjClassDesc::myExConn

protected

RTI::ObjectClassHandle DtObjClassDesc::myHandle

protected

Referenced by handle().

RTI::AttributeHandle DtObjClassDesc::myMaxAttrHand

protected

RTI::AttributeHandle DtObjClassDesc::myMinAttrHand

protected

DtString DtObjClassDesc::myName

protected

Referenced by name().

int DtObjClassDesc::myNumSubscribeRequests

protected

RTI::AttributeHandleSet* DtObjClassDesc::myOwnAttrs

protected

Referenced by ownAttrHandles().

RTI::AttributeHandle DtObjClassDesc::myPrivHandle

protected

Handle of the privilegeToDelete attribute.

Referenced by privilegeHandle().

RTI::AttributeHandleSet* DtObjClassDesc::myPubAttrs

protected

bool DtObjClassDesc::myPublished

protected

StringToAttributeHandleMap DtObjClassDesc::myStringToHandleMap

protected

RTI::AttributeHandleSet* DtObjClassDesc::mySubAttrs

protected

RTI::AttributeHandleSet* DtObjClassDesc::mySubAttrsWithoutSpace

protected

RTI::AttributeHandleSet* DtObjClassDesc::mySubAttrsWithSpace

protected

std::vector<DtDDMRegionSP> DtObjClassDesc::mySubscribedRegions

protected

bool DtObjClassDesc::mySubscribeToUnspecifiedAttributesFlag

protected

DtObjectTagModifierSP DtObjClassDesc::myTagModifier

protected

DtHlaStateDecoder::DtAttributeDecoder DtObjClassDesc::myUnknownAttributeDecoder

protected

DtHlaStateEncoder::DtAttributeEncoder DtObjClassDesc::myUnknownAttributeEncoder

protected

int DtObjClassDesc::theMaxAttrs

staticprotected

Referenced by maxAttributes(), and setMaxAttributes().

double DtObjClassDesc::theSubscriptionTimeDelay

staticprotected

Referenced by setSubscriptionTimeDelay().

---

The documentation for this class was generated from the following file:

• objClassDesc13.h
