DtSignalInteraction Class Reference

Instances of DtSignalInteraction are used to represent RadioSignal RPR FOM Interactions. More...

Inheritance diagram for DtSignalInteraction:

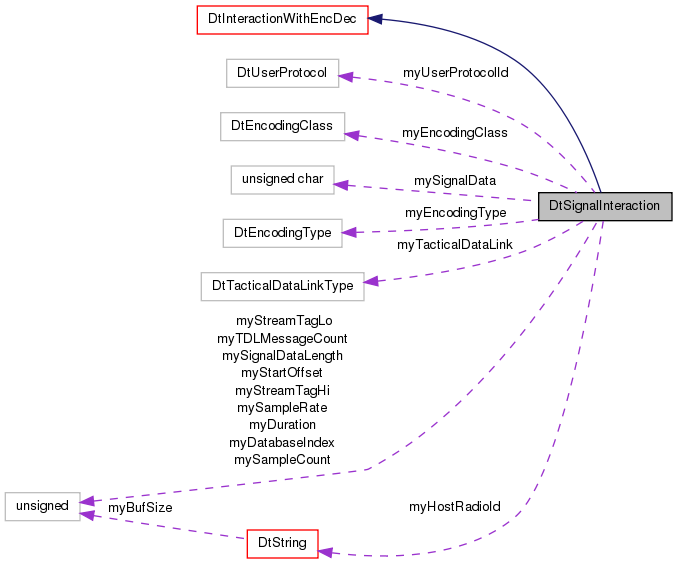

Collaboration diagram for DtSignalInteraction:

Public Member Functions
	DtSignalInteraction ()
	Default constructor.
virtual	~DtSignalInteraction ()
	Destructor.
	DtSignalInteraction (const DtSignalInteraction &orig)
	Copy constructor.
DtSignalInteraction &	operator= (const DtSignalInteraction &orig)
	Assignment operator.
virtual void	printData () const
	Print the interaction's data.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to a stream.
virtual void	setNumSamples (DtU32 count)
	Set/Get sample count.
virtual DtU32	numSamples () const
virtual void	setTdlType (DtTacticalDataLinkType link)
	Set/Get tactical data link.
virtual DtTacticalDataLinkType	tdlType () const
virtual unsigned long	streamTag (DtLongWordPortion upperLower=DtLowerWord) const
	Get either the upper or lower word of the 64 bit StreamTag.
virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.)
virtual void	setRadioId (const DtGlobalObjectDesignator &id)
	Set/Get Host radio id.
virtual const DtGlobalObjectDesignator &	radioId () const
	Set/Get Host radio id.
virtual void	setSampleRate (DtU32 rate)
	Set/Get sample rate.
virtual DtU32	sampleRate () const
	Set/Get sample rate.
virtual void	setNumDataBytes (DtU16 len)
	Set/Get signal data length in bytes.
virtual DtU16	numDataBytes () const
	Set/Get signal data length in bytes.
virtual void	setNumDataBits (DtU16 len)
	Set/Get signal data length in bits.
virtual DtU16	numDataBits () const
	Set/Get signal data length in bits.
virtual void	setData (const void *data, int numBytes)
	Set/Get signal data.
virtual const void *	data () const
	Set/Get signal data.
virtual DtU8	dataByte (int byteNum) const
	Set/Get the byteNum'th data byte.
virtual void	setDataByte (int byteNum, DtU8 data)
	Set/Get the byteNum'th data byte.
virtual void	setEncodingType (DtEncodingType encoding)
	Set/Get encoding type.
virtual DtEncodingType	encodingType () const
	Set/Get encoding type.
virtual DtEncodingClass	encodingClass () const
	Set/Get encoding class.
virtual void	setEncodingClass (DtEncodingClass encodingClass)
	Set/Get encoding class.
virtual void	setTdlMessageCount (DtU16 count)
	Set/Get TDL message count.
virtual DtU16	tdlMessageCount () const
	Set/Get TDL message count.
virtual void	setProtocolId (DtUserProtocol id)
	Set/Get user protocol id.
virtual DtUserProtocol	protocolId () const
	Set/Get user protocol id.
virtual void	setDatabaseIndex (DtU32 index)
	Set/Get database index.
virtual DtU32	databaseIndex () const
	Set/Get database index.
virtual void	setDuration (DtU32 duration)
	Set/Get duration.
virtual DtU32	duration () const
	Set/Get duration.
virtual void	setStartOffset (DtU32 offset)
	Set/Get start offset.
virtual DtU32	startOffset () const
	Set/Get start offset.
virtual void	setStreamTag (unsigned long upper, unsigned long lower)
	Set the Stream Tag, either as upper and lower word, or as full 64 bit integer.
virtual void	setStreamTag (unsigned long st)
	Set the Stream Tag, either as upper and lower word, or as full 64 bit integer.
Public Member Functions inherited from DtInteractionWithEncDec
	DtInteractionWithEncDec ()
	default constructor
virtual	~DtInteractionWithEncDec ()
	destructor
	DtInteractionWithEncDec (const DtInteractionWithEncDec &orig)
	copy constructor
DtInteractionWithEncDec &	operator= (const DtInteractionWithEncDec &orig)
	assignment operator
virtual void	setExConn (DtExerciseConn *exConn, DtInterClassDesc *classDesc=NULL)
	Sets the interaction's ExerciseConn and class descriptor.
virtual const RTI::ParameterHandleValuePairSet &	phvps () const
	Get the parameter handle value pair set for the interaction.
virtual void	setFromPhvps (const RTI::ParameterHandleValuePairSet &pvList)
	Set contents from a parameter handle value pair set.
virtual void	useThese (DtInteractionEncoder *enc, DtInteractionDecoder *dec, DtInteractionRep *data)
	Specify an encoder, decoder, and interaction data repository to use in encoding and decoding.
virtual DtInteractionEncoder *	encoder () const
	Return the encoder we are using.
virtual DtInteractionDecoder *	decoder () const
	Return the decoder we are using.
Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor
virtual	~DtInteraction ()
	destructor
	DtInteraction (const DtInteraction &orig)
	copy constructor
DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator
virtual RTI::InteractionClassHandle	interactionClassHandle () const
	Get the interaction class handle. Returns 0 if no classDesc.
virtual char *	interactionClassName () const
	Get the interaction class name. Returns NULL if no classDesc.
virtual int	numParameters () const
	Get the number of parameters. Returns 0 if no classDesc.
virtual bool	neededByFederation () const
	Returns true if the interaction class is needed by the federation false otherwise.
virtual void	print () const
	Print the interaction's host rep data, including header.
virtual void	printToStream (std::ostream &stream) const
	Print the interaction to a stream.
virtual void	printHeader () const
	Print the header info.
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the header info to a stream.
virtual void	printDataToString (DtString &buff) const
	Print the interaction's data to the string provided.
virtual void	printParams (bool withHex) const
	Print the header followed by the interaction's parameters.
virtual void	printParamsToStream (std::ostream &stream, bool withHex) const
	Print the header followed by the interaction's parameters to a stream.
virtual DtExerciseConn *	exerciseConn () const
	Get the current exercise connection.
virtual DtInterClassDesc *	classDesc () const
	Get the current class descriptor we're using for this interaction.
virtual bool	customTagSet () const
	Get whether a custom tag has been set on the interaction or not.
virtual void	setCustomTag (const DtString &a_tag)
	Set the user-defined tag.
virtual void	setTag (const DtString &tag)
	Set the user-defined tag.
virtual const DtString &	tag () const
	Get the user-defined tag.
virtual const RTI::Region *	conveyedRegion () const
	Get & Set the conveyed region of the reflected state message.
virtual void	setConveyedRegion (const RTI::Region *region)
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the time of validity of the message, and whether this represents relative or absolute time.
virtual DtTime	timeStamp () const
	Return the time of validity of the message (in seconds past an hour) as set by setTimeStamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual void	setFedTime (const RTI::FedTime &ft)
	This is used for TSO interactions.
virtual const RTI::FedTime *	fedTime () const
	When the interaction is received, if the federate sending the interaction had TSO set then the fedTime will be set.
virtual void	setEventRetractionHandle (const RTI::EventRetractionHandle &handle)
	Get/Set the EventRetractionHandle.
virtual RTI::EventRetractionHandle	eventRetractionHandle () const
	Get the event retraction handle. For more info see setEventRetractionHandle.

Static Public Member Functions
static DtInteraction *	create ()
	Create a DtSignalInteraction.
static void	addCallback (DtExerciseConn *conn, DtSignalInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs.
static void	removeCallback (DtExerciseConn *conn, DtSignalInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())

Protected Attributes
DtGlobalObjectDesignator	myHostRadioId
DtU16	mySignalDataLength
DtU8 *	mySignalData
	bits
DtTacticalDataLinkType	myTacticalDataLink
DtU16	myTDLMessageCount
DtUserProtocol	myUserProtocolId
DtU32	myDatabaseIndex
DtU32	myDuration
DtU32	myStartOffset
DtEncodingType	myEncodingType
DtEncodingClass	myEncodingClass
DtU32	mySampleRate
DtU32	mySampleCount
DtU32	myStreamTagHi
	Stream tag unsigned long long.
DtU32	myStreamTagLo
Protected Attributes inherited from DtInteractionWithEncDec
DtInteractionDecoder *	myDecoder
DtInteractionEncoder *	myEncoder
DtInteractionRep *	myData
Protected Attributes inherited from DtInteraction
DtInterClassDesc *	myClassDesc
DtExerciseConn *	myExConn
DtTime	myTime
DtTimeStampType	myTimeType
DtString	myTag
RTI::ParameterHandleValuePairSet *	myPvList
int	myPvListMaxSize
RTI::FedTime *	myFedTime
RTI::EventRetractionHandle	myRetractionHandle
const RTI::Region *	myConveyedRegion
bool	myCustomTagSet

Additional Inherited Members
Protected Member Functions inherited from DtInteractionWithEncDec
virtual DtInteractionDecoder *	createDecoder (DtExerciseConn *exConn) const
	Called by decoderToUse to obtain a new'ed decoder.
virtual DtInteractionEncoder *	createEncoder (DtExerciseConn *exConn) const
	Called by encoderToUse to obtain a new'ed encoder.
virtual DtInteractionDecoder *	decoderToUse (DtExerciseConn *exConn) const
	Returns a decoder to use for decoding the interaction.
virtual DtInteractionEncoder *	encoderToUse (DtExerciseConn *exConn) const
	Returns an encoder to use for encoding the interaction.
Static Protected Attributes inherited from DtInteraction
static bool	theTagIsAsciiTime

Detailed Description

Instances of DtSignalInteraction are used to represent RadioSignal RPR FOM Interactions.

The particular type of Signal interaction that is sent (Application Specific, Database Index, Encoded Audio, or Raw Binary) is determined by the encoding class.

Constructor & Destructor Documentation

DtSignalInteraction::DtSignalInteraction

(

)

Default constructor.

virtual DtSignalInteraction::~DtSignalInteraction ( )

virtual

Destructor.

DtSignalInteraction::DtSignalInteraction

(

const DtSignalInteraction &

orig

)

Copy constructor.

Member Function Documentation

static void DtSignalInteraction::addCallback ( DtExerciseConn *  conn, DtSignalInteractionCb  cb, void *  usr, DtDDMRegionSP  region = DtDDMRegionSP()  )

static

Add (register)/Remove (deregister) function to be called when interaction occurs.

static DtInteraction* DtSignalInteraction::create ( )

static

Create a DtSignalInteraction.

Caller is responsible for deletion.

Reimplemented in DtJtidsLetRadioSignalInteraction, DtJtidsMessageRadioSignalInteraction, DtJtidsVoiceCvsdRadioSignalInteraction, DtJtidsVoiceLpc10RadioSignalInteraction, DtJtidsVoiceLpc12RadioSignalInteraction, DtL16RadioSignalInteraction, DtRttReplyRadioSignalInteraction, DtVmfRadioSignalInteraction, and DtRttabRadioSignalInteraction.

virtual const void* DtSignalInteraction::data ( ) const

virtual

Set/Get signal data.

virtual DtU32 DtSignalInteraction::databaseIndex ( ) const

virtual

Set/Get database index.

This is only applicable to Database Index radio signals. In DIS, this value is packed into data bytes 0-3 of the signal data. These methods are not protocol-independent: they only exist in HLA, as this is set in the data portion of a DIS radio signal PDU.

virtual DtU8 DtSignalInteraction::dataByte ( int  byteNum ) const

virtual

Set/Get the byteNum'th data byte.

virtual DtU32 DtSignalInteraction::duration ( ) const

virtual

Set/Get duration.

This is only applicable to Database Index radio signals. In DIS, this value is packed into data bytes 8-11 of the signal data. These methods are not protocol-independent: they only exist in HLA, as this is set in the data portion of a DIS radio signal PDU.

virtual DtEncodingClass DtSignalInteraction::encodingClass ( ) const

virtual

Set/Get encoding class.

This determines the particular type of RPR FOM radio signal sent, if using the default RPR FOM Mapper.

virtual DtEncodingType DtSignalInteraction::encodingType ( ) const

virtual

Set/Get encoding type.

virtual const char* DtSignalInteraction::name ( ) const

virtual

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Implements DtInteraction.

Reimplemented in DtJtidsLetRadioSignalInteraction, DtJtidsMessageRadioSignalInteraction, DtJtidsVoiceCvsdRadioSignalInteraction, DtJtidsVoiceLpc10RadioSignalInteraction, DtJtidsVoiceLpc12RadioSignalInteraction, DtL16RadioSignalInteraction, DtRttReplyRadioSignalInteraction, DtVmfRadioSignalInteraction, and DtRttabRadioSignalInteraction.

virtual DtU16 DtSignalInteraction::numDataBits ( ) const

virtual

Set/Get signal data length in bits.

virtual DtU16 DtSignalInteraction::numDataBytes ( ) const

virtual

Set/Get signal data length in bytes.

virtual DtU32 DtSignalInteraction::numSamples ( ) const

virtual

DtSignalInteraction& DtSignalInteraction::operator=

(

const DtSignalInteraction &

orig

)

Assignment operator.

virtual void DtSignalInteraction::printData ( ) const

virtual

Print the interaction's data.

Reimplemented from DtInteraction.

virtual void DtSignalInteraction::printDataToStream ( std::ostream &  stream ) const

virtual

Print the interaction's data to a stream.

Reimplemented from DtInteraction.

Reimplemented in DtJtidsLetRadioSignalInteraction, DtJtidsMessageRadioSignalInteraction, DtJtidsVoiceCvsdRadioSignalInteraction, DtJtidsVoiceLpc10RadioSignalInteraction, DtJtidsVoiceLpc12RadioSignalInteraction, DtL16RadioSignalInteraction, DtRttReplyRadioSignalInteraction, DtVmfRadioSignalInteraction, and DtRttabRadioSignalInteraction.

virtual DtUserProtocol DtSignalInteraction::protocolId ( ) const

virtual

Set/Get user protocol id.

This is only applicable to Application Specific radio signals. In DIS, this value is contained in the first 32 bits of the signal data. These methods are not protocol-independent: they only exist in HLA, as this is set in the data portion of a DIS radio signal PDU.

virtual const DtGlobalObjectDesignator& DtSignalInteraction::radioId ( ) const

virtual

Set/Get Host radio id.

It should be noted that this is not protocol independent. In DIS, the radio a signal is associated with is determined through the entity ID and radio ID (which is an integer in DIS), as opposed to a string in HLA.

static void DtSignalInteraction::removeCallback ( DtExerciseConn *  conn, DtSignalInteractionCb  cb, void *  usr, DtDDMRegionSP  region = DtDDMRegionSP()  )

static

virtual DtU32 DtSignalInteraction::sampleRate ( ) const

virtual

Set/Get sample rate.

virtual void DtSignalInteraction::setData ( const void *  data, int  numBytes  )

virtual

Set/Get signal data.

virtual void DtSignalInteraction::setDatabaseIndex ( DtU32  index )

virtual

Set/Get database index.

This is only applicable to Database Index radio signals. In DIS, this value is packed into data bytes 0-3 of the signal data. These methods are not protocol-independent: they only exist in HLA, as this is set in the data portion of a DIS radio signal PDU.

virtual void DtSignalInteraction::setDataByte ( int  byteNum, DtU8  data  )

virtual

Set/Get the byteNum'th data byte.

virtual void DtSignalInteraction::setDuration ( DtU32  duration )

virtual

Set/Get duration.

This is only applicable to Database Index radio signals. In DIS, this value is packed into data bytes 8-11 of the signal data. These methods are not protocol-independent: they only exist in HLA, as this is set in the data portion of a DIS radio signal PDU.

virtual void DtSignalInteraction::setEncodingClass ( DtEncodingClass  encodingClass )

virtual

Set/Get encoding class.

This determines the particular type of RPR FOM radio signal sent, if using the default RPR FOM Mapper.

virtual void DtSignalInteraction::setEncodingType ( DtEncodingType  encoding )

virtual

Set/Get encoding type.

virtual void DtSignalInteraction::setNumDataBits ( DtU16  len )

virtual

Set/Get signal data length in bits.

virtual void DtSignalInteraction::setNumDataBytes ( DtU16  len )

virtual

Set/Get signal data length in bytes.

virtual void DtSignalInteraction::setNumSamples ( DtU32  count )

virtual

Set/Get sample count.

virtual void DtSignalInteraction::setProtocolId ( DtUserProtocol  id )

virtual

Set/Get user protocol id.

This is only applicable to Application Specific radio signals. In DIS, this value is contained in the first 32 bits of the signal data. These methods are not protocol-independent: they only exist in HLA, as this is set in the data portion of a DIS radio signal PDU.

virtual void DtSignalInteraction::setRadioId ( const DtGlobalObjectDesignator &  id )

virtual

Set/Get Host radio id.

It should be noted that this is not protocol independent. In DIS, the radio a signal is associated with is determined through the entity ID and radio ID (which is an integer in DIS), as opposed to a string in HLA.

virtual void DtSignalInteraction::setSampleRate ( DtU32  rate )

virtual

Set/Get sample rate.

virtual void DtSignalInteraction::setStartOffset ( DtU32  offset )

virtual

Set/Get start offset.

This is only applicable to Database Index radio signals. In DIS, this value is packed into data bytes 4-7 of the signal data. These methods are not protocol-independent: they only exist in HLA, as this is set in the data portion of a DIS radio signal PDU.

virtual void DtSignalInteraction::setStreamTag ( unsigned long  upper, unsigned long  lower  )

virtual

Set the Stream Tag, either as upper and lower word, or as full 64 bit integer.

This is used in the RPR 2 draft 17 encoding of the AudioData attribute of EncodedAudio radio signals.

virtual void DtSignalInteraction::setStreamTag ( unsigned long  st )

virtual

Set the Stream Tag, either as upper and lower word, or as full 64 bit integer.

This is used in the RPR 2 draft 17 encoding of the AudioData attribute of EncodedAudio radio signals.

virtual void DtSignalInteraction::setTdlMessageCount ( DtU16  count )

virtual

Set/Get TDL message count.

This is applicable to DatabaseIndex radio signals in HLA, and is contained in the Encoding Type of DIS radio signals.

virtual void DtSignalInteraction::setTdlType ( DtTacticalDataLinkType  link )

virtual

Set/Get tactical data link.

virtual DtU32 DtSignalInteraction::startOffset ( ) const

virtual

Set/Get start offset.

This is only applicable to Database Index radio signals. In DIS, this value is packed into data bytes 4-7 of the signal data. These methods are not protocol-independent: they only exist in HLA, as this is set in the data portion of a DIS radio signal PDU.

virtual unsigned long DtSignalInteraction::streamTag ( DtLongWordPortion  upperLower = DtLowerWord ) const

virtual

Get either the upper or lower word of the 64 bit StreamTag.

This is used in the RPR 2 draft 17 encoding of the AudioData attribute of EncodedAudio radio signals.

virtual DtU16 DtSignalInteraction::tdlMessageCount ( ) const

virtual

Set/Get TDL message count.

This is applicable to DatabaseIndex radio signals in HLA, and is contained in the Encoding Type of DIS radio signals.

virtual DtTacticalDataLinkType DtSignalInteraction::tdlType ( ) const

virtual

Member Data Documentation

DtU32 DtSignalInteraction::myDatabaseIndex

protected

DtU32 DtSignalInteraction::myDuration

protected

DtEncodingClass DtSignalInteraction::myEncodingClass

protected

DtEncodingType DtSignalInteraction::myEncodingType

protected

DtGlobalObjectDesignator DtSignalInteraction::myHostRadioId

protected

DtU32 DtSignalInteraction::mySampleCount

protected

DtU32 DtSignalInteraction::mySampleRate

protected

DtU8* DtSignalInteraction::mySignalData

protected

bits

DtU16 DtSignalInteraction::mySignalDataLength

protected

DtU32 DtSignalInteraction::myStartOffset

protected

DtU32 DtSignalInteraction::myStreamTagHi

protected

Stream tag unsigned long long.

DtU32 DtSignalInteraction::myStreamTagLo

protected

DtTacticalDataLinkType DtSignalInteraction::myTacticalDataLink

protected

DtU16 DtSignalInteraction::myTDLMessageCount

protected

DtUserProtocol DtSignalInteraction::myUserProtocolId

protected

---

The documentation for this class was generated from the following file:

• signalInteractionHLA.h
