Instances of DtUnderwaterAcousticsEmissionEncoder encode data from DtUnderwaterAcousticsEmissionStateRepository objects to the net structures to be sent to the network. More...

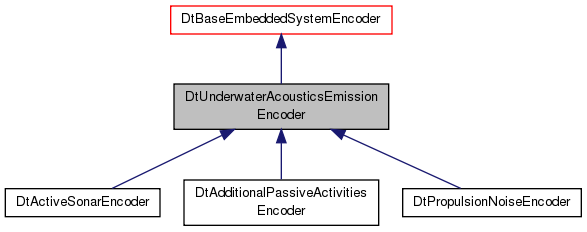

Inheritance diagram for DtUnderwaterAcousticsEmissionEncoder:

Collaboration diagram for DtUnderwaterAcousticsEmissionEncoder:

Public Member Functions
	DtUnderwaterAcousticsEmissionEncoder (DtExerciseConn exConn, DtObjClassDesc classDesc)
	Default constructor.
virtual	~DtUnderwaterAcousticsEmissionEncoder ()
	Destructor.
	DtUnderwaterAcousticsEmissionEncoder (const DtUnderwaterAcousticsEmissionEncoder &orig)
	Copy constructor.
DtUnderwaterAcousticsEmissionEncoder &	operator= (const DtUnderwaterAcousticsEmissionEncoder &orig)
	Assignment operator.
Public Member Functions inherited from DtBaseEmbeddedSystemEncoder
	DtBaseEmbeddedSystemEncoder (DtExerciseConn exConn, DtObjClassDesc classDesc)
	default constructor
virtual	~DtBaseEmbeddedSystemEncoder ()
	destructor
	DtBaseEmbeddedSystemEncoder (const DtBaseEmbeddedSystemEncoder &orig)
	copy constructor
DtBaseEmbeddedSystemEncoder &	operator= (const DtBaseEmbeddedSystemEncoder &orig)
	assignment operator
Public Member Functions inherited from DtHlaStateEncoder
	DtHlaStateEncoder (DtExerciseConn exConn, DtObjClassDesc classDesc)
	constructor
virtual	~DtHlaStateEncoder ()
	destructor
	DtHlaStateEncoder (const DtHlaStateEncoder &orig)
	copy constructor
DtHlaStateEncoder &	operator= (const DtHlaStateEncoder &orig)
	assignment operator
DtAttributeEncoder	addEncoder (RTI::AttributeHandle hand, DtAttributeEncoder func)
	Add/Remove an encoding function for the attribute specified by handle.
DtAttributeEncoder	removeEncoder (RTI::AttributeHandle hand)
DtAttributeEncoder	addEncoder (char *name, DtAttributeEncoder func, bool complain=true)
	Add/Remove an encoding function for the attribute specified by name.
DtAttributeEncoder	removeEncoder (char *name, bool complain=true)
DtAttributeChecker	addChecker (RTI::AttributeHandle hand, DtAttributeChecker func)
	Add/Remove a checker function for the attribute specified by handle.
DtAttributeChecker	removeChecker (RTI::AttributeHandle hand)
DtAttributeChecker	addChecker (char *name, DtAttributeChecker func, bool complain=true)
	Add/Remove a checker function for the attribute specified by name.
DtAttributeChecker	removeChecker (char *name, bool complain=true)
virtual DtAttributeEncoder	encoder (const RTI::AttributeHandle &handle)
	Get the attribute encoder for the specified handle.
virtual DtAttributeChecker	checker (const RTI::AttributeHandle &handle)
	Get the attribute checker for the specified handle.
virtual void	encode (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote, const RTI::AttributeHandleSet &neededAttrs, const RTI::AttributeHandleSet &includeThese, DtStateMsg *msg)
	Encode necessary values from the state repository.
virtual RTI::ObjectClassHandle	objectClassHandle ()
	Get the object's class handle.
virtual DtHlaStateEncoder *	clone (DtObjClassDesc *classDesc) const
	Returns a new-ed clone of this object which corresponds to the class description classDesc.
virtual DtHlaStateEncoder *	clone () const
	Returns a new-ed clone of this object.

Static Public Member Functions
static DtHlaStateEncoder *	create (DtExerciseConn exConn, DtObjClassDesc classDesc)
	Function that creates a DtUnderwaterAcousticsEmissionEncoder.

Static Protected Member Functions
static bool	needEventIdentifier (const DtUnderwaterAcousticsEmissionRepository &stateRep, const DtUnderwaterAcousticsEmissionRepository &asSeenByRemote)
	Return true if EventIdentifier needs to be sent to the network, false otherwise.
static void	encodeEventIdentifier (const DtUnderwaterAcousticsEmissionRepository &rep, RTI::AttributeHandleValuePairSet *attrs, RTI::AttributeHandle attrHandle)
	Encodes EventIdentifier from rep into attrs.

Additional Inherited Members
Public Types inherited from DtHlaStateEncoder
typedef void(*	DtAttributeEncoder )(const DtStateRepository &stateRep, RTI::AttributeHandleValuePairSet *avList, RTI::AttributeHandle handle)
	Attribute encoding function declaration.
typedef bool(*	DtAttributeChecker )(const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	Attribute checking function declaration.
Protected Member Functions inherited from DtBaseEmbeddedSystemEncoder
	DtDECLARE_BASE_EMBEDSYS_ATTR_CHECKER (RelativePosition)
	DtDECLARE_BASE_EMBEDSYS_ATTR_CHECKER (EntityID)
	for version <= 0.8
	DtDECLARE_BASE_EMBEDSYS_ATTR_CHECKER (HostObjectID)
	DtDECLARE_BASE_EMBEDSYS_ATTR_CHECKER (EntityIdentifier)
	for version > 0.8
	DtDECLARE_BASE_EMBEDSYS_ATTR_CHECKER (HostObjectIdentifier)
	DtDECLARE_BASE_EMBEDSYS_ATTR_ENCODER (RelativePosition)
	DtDECLARE_BASE_EMBEDSYS_ATTR_ENCODER (EntityID)
	for version <= 0.8
	DtDECLARE_BASE_EMBEDSYS_ATTR_ENCODER (HostObjectID)
	DtDECLARE_BASE_EMBEDSYS_ATTR_ENCODER (EntityIdentifier)
	for version > 0.8
	DtDECLARE_BASE_EMBEDSYS_ATTR_ENCODER (HostObjectIdentifier)
Protected Attributes inherited from DtHlaStateEncoder
DtExerciseConn *	myExConn
DtObjClassDesc *	myClassDesc
RTI::ObjectClassHandle	myHandle
std::map< RTI::AttributeHandle, DtAttributeEncoder >	myEncoderList
	myEncoderList and myCheckerList are arrays of classDesc->maxAttrHandle() items.
std::map< RTI::AttributeHandle, DtAttributeChecker >	myCheckerList
std::map< RTI::AttributeHandle, bool >	myReportedWarning
	myReportedWarning is an array for keeping track of which warnings have already been reported

Detailed Description

Instances of DtUnderwaterAcousticsEmissionEncoder encode data from DtUnderwaterAcousticsEmissionStateRepository objects to the net structures to be sent to the network.

Constructor & Destructor Documentation

DtUnderwaterAcousticsEmissionEncoder::DtUnderwaterAcousticsEmissionEncoder	(	DtExerciseConn *	exConn,
		DtObjClassDesc *	classDesc
	)

Default constructor.

virtual DtUnderwaterAcousticsEmissionEncoder::~DtUnderwaterAcousticsEmissionEncoder ( )

virtual

Destructor.

DtUnderwaterAcousticsEmissionEncoder::DtUnderwaterAcousticsEmissionEncoder ( const DtUnderwaterAcousticsEmissionEncoder & orig )

Copy constructor.

Member Function Documentation

static DtHlaStateEncoder* DtUnderwaterAcousticsEmissionEncoder::create	(	DtExerciseConn *	exConn,
		DtObjClassDesc *	classDesc
	)

static

Function that creates a DtUnderwaterAcousticsEmissionEncoder.

Reimplemented from DtBaseEmbeddedSystemEncoder.

Reimplemented in DtAdditionalPassiveActivitiesEncoder, DtActiveSonarEncoder, and DtPropulsionNoiseEncoder.

static void DtUnderwaterAcousticsEmissionEncoder::encodeEventIdentifier	(	const DtUnderwaterAcousticsEmissionRepository &	rep,
		RTI::AttributeHandleValuePairSet *	attrs,
		RTI::AttributeHandle	attrHandle
	)

staticprotected

Encodes EventIdentifier from rep into attrs.

static bool DtUnderwaterAcousticsEmissionEncoder::needEventIdentifier	(	const DtUnderwaterAcousticsEmissionRepository &	stateRep,
		const DtUnderwaterAcousticsEmissionRepository &	asSeenByRemote
	)

staticprotected

Return true if EventIdentifier needs to be sent to the network, false otherwise.

DtUnderwaterAcousticsEmissionEncoder& DtUnderwaterAcousticsEmissionEncoder::operator= ( const DtUnderwaterAcousticsEmissionEncoder & orig )

Assignment operator.

The documentation for this class was generated from the following file:

underwaterAcousticsEmissionEncoder.h
