Instances of DtCollisionInteraction are used to represent Collision Interactions in the RPR FOM. More...

Inheritance diagram for DtCollisionInteraction:

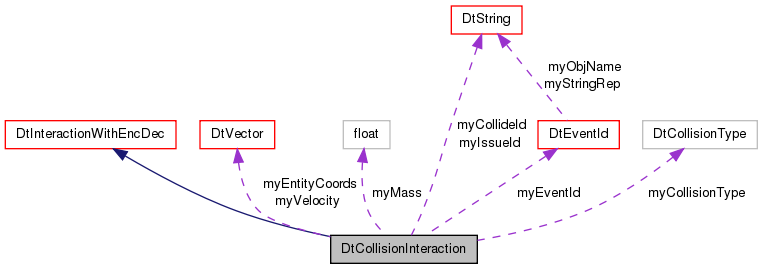

Collaboration diagram for DtCollisionInteraction:

Public Member Functions
	DtCollisionInteraction ()
	default constructor
virtual	~DtCollisionInteraction ()
	destructor
	DtCollisionInteraction (const DtCollisionInteraction &orig)
	copy constructor
DtCollisionInteraction &	operator= (const DtCollisionInteraction &orig)
	assignment operator
virtual void	printData () const
	Print the interaction's data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream.
virtual void	setIssueId (const DtGlobalObjectDesignator &id)
	Set/Get the issuer identifier.
virtual const DtGlobalObjectDesignator &	issueId () const
virtual void	setCollideId (const DtGlobalObjectDesignator &id)
	Set/Get the collide identifier.
virtual const DtGlobalObjectDesignator &	collideId () const
virtual void	setEventId (const DtEventID &id)
	Set/Get the collision event id.
virtual const DtEventID &	eventId () const
virtual void	setCollisionType (DtCollisionType t)
	Set/Get the collision type.
virtual DtCollisionType	collisionType () const
virtual void	setVelocity (const DtVector &veloc)
	Set/Get the velocity.
virtual const DtVector &	velocity () const
virtual void	setMass (DtFloat32 mass)
	Set/Get the mass involved.
virtual DtFloat32	mass () const
virtual void	setEntityCoords (const DtVector &coords)
	Set/Get the entity coordinates.
virtual const DtVector &	entityCoords () const
virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.)
Public Member Functions inherited from DtInteractionWithEncDec
	DtInteractionWithEncDec ()
	default constructor
virtual	~DtInteractionWithEncDec ()
	destructor
	DtInteractionWithEncDec (const DtInteractionWithEncDec &orig)
	copy constructor
DtInteractionWithEncDec &	operator= (const DtInteractionWithEncDec &orig)
	assignment operator
virtual void	setExConn (DtExerciseConn exConn, DtInterClassDesc classDesc=NULL)
	Sets the interaction's ExerciseConn and class descriptor.
virtual const RTI::ParameterHandleValuePairSet &	phvps () const
	Get the parameter handle value pair set for the interaction.
virtual void	setFromPhvps (const RTI::ParameterHandleValuePairSet &pvList)
	Set contents from a parameter handle value pair set.
virtual void	useThese (DtInteractionEncoder enc, DtInteractionDecoder dec, DtInteractionRep *data)
	Specify an encoder, decoder, and interaction data repository to use in encoding and decoding.
virtual DtInteractionEncoder *	encoder () const
	Return the encoder we are using.
virtual DtInteractionDecoder *	decoder () const
	Return the decoder we are using.
Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor
virtual	~DtInteraction ()
	destructor
	DtInteraction (const DtInteraction &orig)
	copy constructor
DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator
virtual RTI::InteractionClassHandle	interactionClassHandle () const
	Get the interaction class handle. Returns 0 if no classDesc.
virtual char *	interactionClassName () const
	Get the interaction class name. Returns NULL if no classDesc.
virtual int	numParameters () const
	Get the number of parameters. Returns 0 if no classDesc.
virtual bool	neededByFederation () const
	Returns true if the interaction class is needed by the federation false otherwise.
virtual void	print () const
	Print the interaction's host rep data, including header.
virtual void	printToStream (std::ostream &stream) const
	Print the interaction to a stream.
virtual void	printHeader () const
	Print the header info.
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the header info to a stream.
virtual void	printDataToString (DtString &buff) const
	Print the interaction's data to the string provided.
virtual void	printParams (bool withHex) const
	Print the header followed by the interaction's parameters.
virtual void	printParamsToStream (std::ostream &stream, bool withHex) const
	Print the header followed by the interaction's parameters to a stream.
virtual DtExerciseConn *	exerciseConn () const
	Get the current exercise connection.
virtual DtInterClassDesc *	classDesc () const
	Get the current class descriptor we're using for this interaction.
virtual bool	customTagSet () const
	Get whether a custom tag has been set on the interaction or not.
virtual void	setCustomTag (const DtString &a_tag)
	Set the user-defined tag.
virtual void	setTag (const DtString &tag)
	Set the user-defined tag.
virtual const DtString &	tag () const
	Get the user-defined tag.
virtual const RTI::Region *	conveyedRegion () const
	Get & Set the conveyed region of the reflected state message.
virtual void	setConveyedRegion (const RTI::Region *region)
virtual void	setProducingFederateHandle (RTI::FederateHandle federateHandle)
	HLA Evolved added an argument that provides the FederateHandle of the federate that produced the interaction being received.
virtual RTI::FederateHandle	producingFederateHandle () const
	The producing federate handle. Invalid if not enabled (or could be from MOM).
virtual const DtString &	producingFederateName () const
	The producing federate handle is used to get the federate name (cached after first access).
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the time of validity of the message, and whether this represents relative or absolute time.
virtual DtTime	timeStamp () const
	Return the time of validity of the message (in seconds past an hour) as set by setTimeStamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual void	setFedTime (const RTI::FedTime &ft)
	This is used for TSO interactions.
virtual const RTI::FedTime *	fedTime () const
	When the interaction is received, if the federate sending the interaction had TSO set then the fedTime will be set.
virtual void	setEventRetractionHandle (const RTI::EventRetractionHandle &handle)
	Get/Set the EventRetractionHandle.
virtual RTI::EventRetractionHandle	eventRetractionHandle () const
	Get the event retraction handle. For more info see setEventRetractionHandle.

Static Public Member Functions
static DtInteraction *	create ()
	Create a DtCollisionInteraction.
static void	addCallback (DtExerciseConn conn, DtCollisionInteractionCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs.
static void	removeCallback (DtExerciseConn conn, DtCollisionInteractionCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())

Protected Attributes
DtGlobalObjectDesignator	myIssueId
DtGlobalObjectDesignator	myCollideId
DtEventID	myEventId
DtCollisionType	myCollisionType
DtVector	myVelocity
DtFloat32	myMass
DtVector	myEntityCoords
Protected Attributes inherited from DtInteractionWithEncDec
DtInteractionDecoder *	myDecoder
DtInteractionEncoder *	myEncoder
DtInteractionRep *	myData
Protected Attributes inherited from DtInteraction
DtInterClassDesc *	myClassDesc
DtExerciseConn *	myExConn
DtTime	myTime
DtTimeStampType	myTimeType
DtString	myTag
RTI::ParameterHandleValuePairSet *	myPvList
int	myPvListMaxSize
RTI::FedTime *	myFedTime
RTI::EventRetractionHandle	myRetractionHandle
const RTI::Region *	myConveyedRegion
bool	myCustomTagSet

Additional Inherited Members
Protected Member Functions inherited from DtInteractionWithEncDec
virtual DtInteractionDecoder *	createDecoder (DtExerciseConn *exConn) const
	Called by decoderToUse to obtain a new'ed decoder.
virtual DtInteractionEncoder *	createEncoder (DtExerciseConn *exConn) const
	Called by encoderToUse to obtain a new'ed encoder.
virtual DtInteractionDecoder *	decoderToUse (DtExerciseConn *exConn) const
	Returns a decoder to use for decoding the interaction.
virtual DtInteractionEncoder *	encoderToUse (DtExerciseConn *exConn) const
	Returns an encoder to use for encoding the interaction.
Static Protected Attributes inherited from DtInteraction
static bool	theTagIsAsciiTime

Detailed Description

Instances of DtCollisionInteraction are used to represent Collision Interactions in the RPR FOM.

Constructor & Destructor Documentation

DtCollisionInteraction::DtCollisionInteraction ( )

default constructor

virtual DtCollisionInteraction::~DtCollisionInteraction ( )

virtual

destructor

DtCollisionInteraction::DtCollisionInteraction ( const DtCollisionInteraction & orig )

copy constructor

Member Function Documentation

static void DtCollisionInteraction::addCallback	(	DtExerciseConn *	conn,
		DtCollisionInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)

static

Add (register)/Remove (deregister) function to be called when interaction occurs.

virtual const DtGlobalObjectDesignator& DtCollisionInteraction::collideId ( ) const

virtual

virtual DtCollisionType DtCollisionInteraction::collisionType ( ) const

virtual

static DtInteraction* DtCollisionInteraction::create ( )

static

Create a DtCollisionInteraction.

Caller is responsible for deletion.

virtual const DtVector& DtCollisionInteraction::entityCoords ( ) const

virtual

virtual const DtEventID& DtCollisionInteraction::eventId ( ) const

virtual

virtual const DtGlobalObjectDesignator& DtCollisionInteraction::issueId ( ) const

virtual

virtual DtFloat32 DtCollisionInteraction::mass ( ) const

virtual

virtual const char* DtCollisionInteraction::name ( ) const

virtual

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Implements DtInteraction.

DtCollisionInteraction& DtCollisionInteraction::operator= ( const DtCollisionInteraction & orig )

assignment operator

virtual void DtCollisionInteraction::printData ( ) const

virtual

Print the interaction's data to DtInfo.

Reimplemented from DtInteraction.

virtual void DtCollisionInteraction::printDataToStream ( std::ostream & stream ) const

virtual

Print the interaction's data to the specified stream.

Reimplemented from DtInteraction.

static void DtCollisionInteraction::removeCallback	(	DtExerciseConn *	conn,
		DtCollisionInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)

static

virtual void DtCollisionInteraction::setCollideId ( const DtGlobalObjectDesignator & id )

virtual

Set/Get the collide identifier.

virtual void DtCollisionInteraction::setCollisionType ( DtCollisionType t )

virtual

Set/Get the collision type.

virtual void DtCollisionInteraction::setEntityCoords ( const DtVector & coords )

virtual

Set/Get the entity coordinates.

virtual void DtCollisionInteraction::setEventId ( const DtEventID & id )

virtual

Set/Get the collision event id.

virtual void DtCollisionInteraction::setIssueId ( const DtGlobalObjectDesignator & id )

virtual

Set/Get the issuer identifier.

virtual void DtCollisionInteraction::setMass ( DtFloat32 mass )

virtual

Set/Get the mass involved.

virtual void DtCollisionInteraction::setVelocity ( const DtVector & veloc )

virtual

Set/Get the velocity.

virtual const DtVector& DtCollisionInteraction::velocity ( ) const

virtual

Member Data Documentation

DtGlobalObjectDesignator DtCollisionInteraction::myCollideId

protected

DtCollisionType DtCollisionInteraction::myCollisionType

protected

DtVector DtCollisionInteraction::myEntityCoords

protected

DtEventID DtCollisionInteraction::myEventId

protected

DtGlobalObjectDesignator DtCollisionInteraction::myIssueId

protected

DtFloat32 DtCollisionInteraction::myMass

protected

DtVector DtCollisionInteraction::myVelocity

protected

The documentation for this class was generated from the following file:

collisionInteractionHLA.h

Public Member Functions

Static Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
