DtDataQueryInteraction Class Reference

class DtDataQueryInteraction: More...

Inheritance diagram for DtDataQueryInteraction:

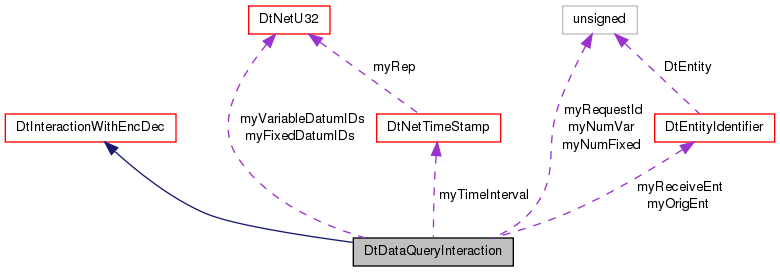

Collaboration diagram for DtDataQueryInteraction:

Public Member Functions
	DtDataQueryInteraction ()
	default constructor
virtual	~DtDataQueryInteraction ()
	destructor
	DtDataQueryInteraction (const DtDataQueryInteraction &orig)
	copy constructor
DtDataQueryInteraction &	operator= (const DtDataQueryInteraction &orig)
	assignment operator
virtual void	printData () const
	Print the interaction's data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the specified stream.
virtual void	setSenderId (const DtEntityIdentifier &id)
	Set/Get sender ID.
virtual const DtEntityIdentifier &	senderId () const
virtual void	setReceiverId (const DtEntityIdentifier &id)
	Set/Get receiver ID.
virtual const DtEntityIdentifier &	receiverId () const
virtual void	setRequestId (unsigned long id)
	Set/Get request ID.
virtual unsigned long	requestId () const
virtual void	setTimeInterval (DtTime seconds)
	Set/Get the time interval.
virtual DtTime	timeInterval () const
virtual void	initDatumIds (unsigned long numFixedFields, unsigned long numVarFields)
	Initialize fixed and variable datum ids.
virtual void	setNumFixedFields (unsigned long numFixedFields)
	Set/Get fixed fields.
virtual unsigned long	numFixedFields () const
virtual int	setFixedDatumId (DtU32 index, DtDatumParam id)
virtual DtDatumParam	fixedDatumId (DtU32 index) const
virtual void	setNumVarFields (unsigned long numVarFields)
	Set/Get variable fields.
virtual unsigned long	numVarFields () const
virtual int	setVarDatumId (DtU32 index, DtDatumParam id)
virtual DtDatumParam	varDatumId (DtU32 index) const
virtual void	setFixedDatumIDs (const void *data, DtInt32 numBytes)
	Set/Get the fixed field's memory block all at once.
virtual const void *	fixedDatumIDs () const
virtual void	setVariableDatumIDs (const void *data, DtInt32 numBytes)
	Set/Get the variable field's memory block all at once.
virtual const void *	variableDatumIDs () const
virtual void	changeFixedSize (DtU32 newSize)
	Change size of fixed or variable fields.
virtual void	changeVariableSize (DtU32 newSize)
virtual const char *	name () const
	Name of the interaction. (Not necessarily the ClassName from the FOM.)
Public Member Functions inherited from DtInteractionWithEncDec
	DtInteractionWithEncDec ()
	default constructor
virtual	~DtInteractionWithEncDec ()
	destructor
	DtInteractionWithEncDec (const DtInteractionWithEncDec &orig)
	copy constructor
DtInteractionWithEncDec &	operator= (const DtInteractionWithEncDec &orig)
	assignment operator
virtual void	setExConn (DtExerciseConn *exConn, DtInterClassDesc *classDesc=NULL)
	Sets the interaction's ExerciseConn and class descriptor.
virtual const RTI::ParameterHandleValuePairSet &	phvps () const
	Get the parameter handle value pair set for the interaction.
virtual void	setFromPhvps (const RTI::ParameterHandleValuePairSet &pvList)
	Set contents from a parameter handle value pair set.
virtual void	useThese (DtInteractionEncoder *enc, DtInteractionDecoder *dec, DtInteractionRep *data)
	Specify an encoder, decoder, and interaction data repository to use in encoding and decoding.
virtual DtInteractionEncoder *	encoder () const
	Return the encoder we are using.
virtual DtInteractionDecoder *	decoder () const
	Return the decoder we are using.
Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor
virtual	~DtInteraction ()
	destructor
	DtInteraction (const DtInteraction &orig)
	copy constructor
DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator
virtual RTI::InteractionClassHandle	interactionClassHandle () const
	Get the interaction class handle. Returns 0 if no classDesc.
virtual char *	interactionClassName () const
	Get the interaction class name. Returns NULL if no classDesc.
virtual int	numParameters () const
	Get the number of parameters. Returns 0 if no classDesc.
virtual bool	neededByFederation () const
	Returns true if the interaction class is needed by the federation false otherwise.
virtual void	print () const
	Print the interaction's host rep data, including header.
virtual void	printToStream (std::ostream &stream) const
	Print the interaction to a stream.
virtual void	printHeader () const
	Print the header info.
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the header info to a stream.
virtual void	printDataToString (DtString &buff) const
	Print the interaction's data to the string provided.
virtual void	printParams (bool withHex) const
	Print the header followed by the interaction's parameters.
virtual void	printParamsToStream (std::ostream &stream, bool withHex) const
	Print the header followed by the interaction's parameters to a stream.
virtual DtExerciseConn *	exerciseConn () const
	Get the current exercise connection.
virtual DtInterClassDesc *	classDesc () const
	Get the current class descriptor we're using for this interaction.
virtual bool	customTagSet () const
	Get whether a custom tag has been set on the interaction or not.
virtual void	setCustomTag (const DtString &a_tag)
	Set the user-defined tag.
virtual void	setTag (const DtString &tag)
	Set the user-defined tag.
virtual const DtString &	tag () const
	Get the user-defined tag.
virtual const RTI::Region *	conveyedRegion () const
	Get & Set the conveyed region of the reflected state message.
virtual void	setConveyedRegion (const RTI::Region *region)
virtual void	setProducingFederateHandle (RTI::FederateHandle federateHandle)
	HLA Evolved added an argument that provides the FederateHandle of the federate that produced the interaction being received.
virtual RTI::FederateHandle	producingFederateHandle () const
	The producing federate handle. Invalid if not enabled (or could be from MOM).
virtual const DtString &	producingFederateName () const
	The producing federate handle is used to get the federate name (cached after first access).
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the time of validity of the message, and whether this represents relative or absolute time.
virtual DtTime	timeStamp () const
	Return the time of validity of the message (in seconds past an hour) as set by setTimeStamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual void	setFedTime (const RTI::FedTime &ft)
	This is used for TSO interactions.
virtual const RTI::FedTime *	fedTime () const
	When the interaction is received, if the federate sending the interaction had TSO set then the fedTime will be set.
virtual void	setEventRetractionHandle (const RTI::EventRetractionHandle &handle)
	Get/Set the EventRetractionHandle.
virtual RTI::EventRetractionHandle	eventRetractionHandle () const
	Get the event retraction handle. For more info see setEventRetractionHandle.

Static Public Member Functions
static DtInteraction *	create ()
	Create a DtDataQueryInteraction.
static void	addCallback (DtExerciseConn *conn, DtDataQueryInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction occurs.
static void	removeCallback (DtExerciseConn *conn, DtDataQueryInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())

Protected Attributes
DtEntityIdentifier	myOrigEnt
DtEntityIdentifier	myReceiveEnt
DtU32	myRequestId
DtNetTimeStamp	myTimeInterval
DtNetU32 *	myFixedDatumIDs
DtNetU32 *	myVariableDatumIDs
DtU32	myNumFixed
DtU32	myNumVar
Protected Attributes inherited from DtInteractionWithEncDec
DtInteractionDecoder *	myDecoder
DtInteractionEncoder *	myEncoder
DtInteractionRep *	myData
Protected Attributes inherited from DtInteraction
DtInterClassDesc *	myClassDesc
DtExerciseConn *	myExConn
DtTime	myTime
DtTimeStampType	myTimeType
DtString	myTag
RTI::ParameterHandleValuePairSet *	myPvList
int	myPvListMaxSize
RTI::FedTime *	myFedTime
RTI::EventRetractionHandle	myRetractionHandle
const RTI::Region *	myConveyedRegion
bool	myCustomTagSet

Additional Inherited Members
Protected Member Functions inherited from DtInteractionWithEncDec
virtual DtInteractionDecoder *	createDecoder (DtExerciseConn *exConn) const
	Called by decoderToUse to obtain a new'ed decoder.
virtual DtInteractionEncoder *	createEncoder (DtExerciseConn *exConn) const
	Called by encoderToUse to obtain a new'ed encoder.
virtual DtInteractionDecoder *	decoderToUse (DtExerciseConn *exConn) const
	Returns a decoder to use for decoding the interaction.
virtual DtInteractionEncoder *	encoderToUse (DtExerciseConn *exConn) const
	Returns an encoder to use for encoding the interaction.
Static Protected Attributes inherited from DtInteraction
static bool	theTagIsAsciiTime

Detailed Description

class DtDataQueryInteraction:

Instances of DtDataQueryInteraction are used to represent DataQuery Interactions in the RPR FOM.

Constructor & Destructor Documentation

DtDataQueryInteraction::DtDataQueryInteraction

(

)

default constructor

virtual DtDataQueryInteraction::~DtDataQueryInteraction ( )

virtual

destructor

DtDataQueryInteraction::DtDataQueryInteraction

(

const DtDataQueryInteraction &

orig

)

copy constructor

Member Function Documentation

static void DtDataQueryInteraction::addCallback ( DtExerciseConn *  conn, DtDataQueryInteractionCb  cb, void *  usr, DtDDMRegionSP  region = DtDDMRegionSP()  )

static

Add (register)/Remove (deregister) function to be called when interaction occurs.

virtual void DtDataQueryInteraction::changeFixedSize ( DtU32  newSize )

virtual

Change size of fixed or variable fields.

virtual void DtDataQueryInteraction::changeVariableSize ( DtU32  newSize )

virtual

static DtInteraction* DtDataQueryInteraction::create ( )

static

Create a DtDataQueryInteraction.

Caller is responsible for deletion.

virtual DtDatumParam DtDataQueryInteraction::fixedDatumId ( DtU32  index ) const

virtual

virtual const void* DtDataQueryInteraction::fixedDatumIDs ( ) const

virtual

virtual void DtDataQueryInteraction::initDatumIds ( unsigned long  numFixedFields, unsigned long  numVarFields  )

virtual

Initialize fixed and variable datum ids.

virtual const char* DtDataQueryInteraction::name ( ) const

virtual

Name of the interaction. (Not necessarily the ClassName from the FOM.)

Implements DtInteraction.

virtual unsigned long DtDataQueryInteraction::numFixedFields ( ) const

virtual

virtual unsigned long DtDataQueryInteraction::numVarFields ( ) const

virtual

DtDataQueryInteraction& DtDataQueryInteraction::operator=

(

const DtDataQueryInteraction &

orig

)

assignment operator

virtual void DtDataQueryInteraction::printData ( ) const

virtual

Print the interaction's data to DtInfo.

Reimplemented from DtInteraction.

virtual void DtDataQueryInteraction::printDataToStream ( std::ostream &  stream ) const

virtual

Print the interaction's data to the specified stream.

Reimplemented from DtInteraction.

virtual const DtEntityIdentifier& DtDataQueryInteraction::receiverId ( ) const

virtual

static void DtDataQueryInteraction::removeCallback ( DtExerciseConn *  conn, DtDataQueryInteractionCb  cb, void *  usr, DtDDMRegionSP  region = DtDDMRegionSP()  )

static

virtual unsigned long DtDataQueryInteraction::requestId ( ) const

virtual

virtual const DtEntityIdentifier& DtDataQueryInteraction::senderId ( ) const

virtual

virtual int DtDataQueryInteraction::setFixedDatumId ( DtU32  index, DtDatumParam  id  )

virtual

virtual void DtDataQueryInteraction::setFixedDatumIDs ( const void *  data, DtInt32  numBytes  )

virtual

Set/Get the fixed field's memory block all at once.

virtual void DtDataQueryInteraction::setNumFixedFields ( unsigned long  numFixedFields )

virtual

Set/Get fixed fields.

virtual void DtDataQueryInteraction::setNumVarFields ( unsigned long  numVarFields )

virtual

Set/Get variable fields.

virtual void DtDataQueryInteraction::setReceiverId ( const DtEntityIdentifier &  id )

virtual

Set/Get receiver ID.

virtual void DtDataQueryInteraction::setRequestId ( unsigned long  id )

virtual

Set/Get request ID.

virtual void DtDataQueryInteraction::setSenderId ( const DtEntityIdentifier &  id )

virtual

Set/Get sender ID.

virtual void DtDataQueryInteraction::setTimeInterval ( DtTime  seconds )

virtual

Set/Get the time interval.

virtual int DtDataQueryInteraction::setVarDatumId ( DtU32  index, DtDatumParam  id  )

virtual

virtual void DtDataQueryInteraction::setVariableDatumIDs ( const void *  data, DtInt32  numBytes  )

virtual

Set/Get the variable field's memory block all at once.

virtual DtTime DtDataQueryInteraction::timeInterval ( ) const

virtual

virtual DtDatumParam DtDataQueryInteraction::varDatumId ( DtU32  index ) const

virtual

virtual const void* DtDataQueryInteraction::variableDatumIDs ( ) const

virtual

Member Data Documentation

DtNetU32* DtDataQueryInteraction::myFixedDatumIDs

protected

DtU32 DtDataQueryInteraction::myNumFixed

protected

DtU32 DtDataQueryInteraction::myNumVar

protected

DtEntityIdentifier DtDataQueryInteraction::myOrigEnt

protected

DtEntityIdentifier DtDataQueryInteraction::myReceiveEnt

protected

DtU32 DtDataQueryInteraction::myRequestId

protected

DtNetTimeStamp DtDataQueryInteraction::myTimeInterval

protected

DtNetU32* DtDataQueryInteraction::myVariableDatumIDs

protected

---

The documentation for this class was generated from the following file:

• dataQueryInteractionHLA.h
