DtRadioTransmitterRepository Class Reference

Instances of DtRadioTransmitterRepository are used to store state information for objects which are radio transmitters. More...

Inheritance diagram for DtRadioTransmitterRepository:

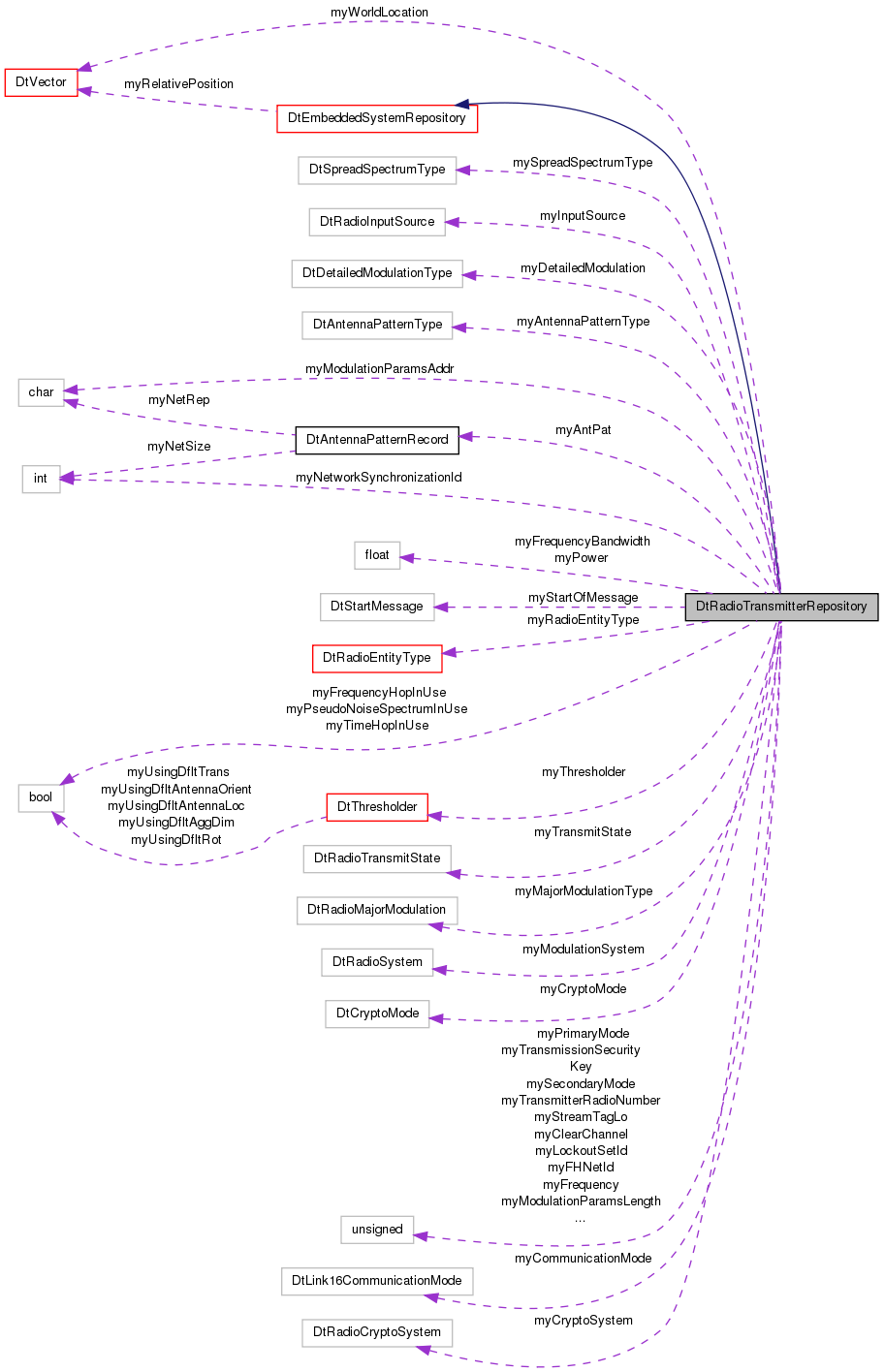

Collaboration diagram for DtRadioTransmitterRepository:

Public Member Functions
	DtRadioTransmitterRepository ()
	default constructor
virtual	~DtRadioTransmitterRepository ()
	destructor
	DtRadioTransmitterRepository (const DtRadioTransmitterRepository &orig)
	copy constructor
DtRadioTransmitterRepository &	operator= (const DtRadioTransmitterRepository &orig)
	assignment operator
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual void	setAntennaPattern (const DtAntennaPatternRecord &rec)
	Set the antenna pattern.
virtual const DtAntennaPatternRecord &	antennaPattern () const
	Get the antenna pattern.
virtual void	setAntennaPatternType (DtAntennaPatternType pattern)
	Set the antenna pattern type.
virtual DtAntennaPatternType	antennaPatternType () const
	Get the antenna pattern type.
virtual void	setCryptoKeyId (DtU16 key)
	Set the crypto key id.
virtual DtU16	cryptoKeyId () const
	Get the crypto key id.
virtual void	setCryptoMode (DtCryptoMode mode)
	Set the crypto key mode.
virtual DtCryptoMode	cryptoMode () const
	Get the crypto key mode.
virtual void	setCryptoSystem (DtRadioCryptoSystem system)
	Set/Get the crypto system.
virtual DtRadioCryptoSystem	cryptoSystem () const
virtual void	setDetailedModulationType (DtDetailedModulationType modulation)
	Set the detailed modulation.
virtual DtDetailedModulationType	detailedModulationType () const
	Get the detailed modulation.
virtual unsigned long	frequency (DtLongWordPortion upperLower) const
	Deprecated Get either the upper or lower word of the 64 bit frequency.
virtual void	setStreamTag (unsigned long upper, unsigned long lower)
	Set the StreamTag, either as upper and lower word, or as full 64 bit integer.
virtual void	setStreamTag (unsigned long st)
virtual unsigned long	streamTag (DtLongWordPortion upperLower=DtLowerWord) const
	Get either the upper or lower word of the 64 bit frequency.
virtual void	setFrequencyBandwidth (DtFloat32 bandwidth)
	Set the frequency bandwidth.
virtual DtFloat32	frequencyBandwidth () const
	Get the frequency bandwidth.
virtual void	setFrequencyHopInUse (bool hopInUse)
	Set the frequency hop in use.
virtual bool	frequencyHopInUse () const
	Get the frequency hop in use.
virtual void	setInputSource (DtRadioInputSource source)
	Set the input source.
virtual DtRadioInputSource	inputSource () const
	Get the input source.
virtual void	setModulationParams (const void *networkRepresentation, DtU8 size)
	Set/Get the modulation parameters' network representation.
virtual const void *	modulationParamsAddr () const
virtual DtU8	modulationParamsLength () const
virtual void	setMajorModulationType (DtRadioMajorModulation modulation)
	Set the major modulation type.
virtual DtRadioMajorModulation	majorModulationType () const
	Get the major modulation type.
virtual void	setModulationSystemType (DtRadioSystem system)
	Set the modulation system.
virtual DtRadioSystem	modulationSystemType () const
	Get the modulation system.
virtual void	setPower (DtFloat32 power)
	Set the power.
virtual DtFloat32	power () const
	Get the power.
virtual void	setPsuedoNoiseSpectrumInUse (bool inUse)
	Set the Pseudo Noise Spectrum In Use.
virtual bool	psuedoNoiseSpectrumInUse () const
	Get the Pseudo Noise Spectrum In Use.
virtual void	setPseudoNoiseSpectrumInUse (bool inUse)
	Set the Pseudo Noise Spectrum In Use.
virtual bool	pseudoNoiseSpectrumInUse () const
	Get the Pseudo Noise Spectrum In Use.
virtual void	setRadioId (unsigned int number)
	Set the Transmitter radio number.
virtual unsigned int	radioId () const
	Get the Transmitter radio number.
virtual void	setRadioEntityType (const DtRadioEntityType &type)
	Set the radio entity type.
virtual const DtRadioEntityType &	radioEntityType () const
	Get the radio entity type.
virtual void	setTimeHopInUse (bool inUse)
	Set the Time Hop In Use.
virtual bool	timeHopInUse () const
	Get the Time Hop In Use.
virtual void	setTransmitState (DtRadioTransmitState state)
	Set the transmit state.
virtual DtRadioTransmitState	transmitState () const
	Get the transmit state.
virtual void	setWorldAntennaLoc (const DtVector &location)
	Set the world location.
virtual const DtVector &	worldAntennaLoc () const
	Get the world location.
virtual void	setRelativeAntennaLoc (const DtVector &location)
	Set the relative location (wrapper around EmbedSysSR member func, for compatibility with DIS transmitter PDU.)
virtual const DtVector &	relativeAntennaLoc () const
	Get the relative location.
virtual void	printData () const
	Print data to the DtInfo stream.
virtual void	printDataToStream (std::ostream &stream) const
	Print state data to the specified stream.
virtual DtThresholder *	thresholder ()
virtual const DtThresholder &	thresholder () const
virtual void	setFrequency (unsigned long upper, unsigned long lower)
	Deprecated Set the frequency as upper and lower word.
virtual void	setFrequency (DtU64 freq)
	Get/Set the frequency.
virtual DtU64	frequency () const
	Get/Set the frequency.
ModulationParams and SpreadSpectrum Methods
ModulationParams and SpreadSpectrum Methods These methods deal with the data types in ModulationParams (RPR 1) and SpreadSpectrum (RPR 2), both of which have an attribute called SINCGARSModulationStruct. The SINCGARSModulationStruct used in RPR 2 lack the attributes ClearChannel and StartOfMessage, which were part of the RPR 1 struct, and therefore those methods are not used in RPR 2. SpreadSpectrum also has the attribute SpreadSpectrumType, which does not exist in ModulationParams. If the SpreadSpectrumType is DtSpreadSpectrumTypeNone, none of the SINCGARSModulationStruct values will be set.
virtual void	setSpreadSpectrumType (DtSpreadSpectrumType ty)
	Set the SpreadSpectrumType: DtSpreadSpectrumTypeNone, DtSINCGARSFrequencyHop, or DtJTIDS_MIDS_SpectrumType (the last is used to set the Link16 Transmitter).
virtual DtSpreadSpectrumType	spreadSpectrumType () const
	Get the SpreadSpectrumType.
virtual void	setFHNetId (DtU16 id)
	Set the FhNetId for the SINCGARSModulationStruct.
virtual DtU16	fHNetId () const
	Get the FhNetId for the SINCGARSModulationStruct.
virtual void	setHopSetId (DtU16 id)
	Set/get the HopSetId for the SINCGARSModulationStruct.
virtual DtU16	hopSetId () const
	Set the SpreadSpectrumType: DtSpreadSpectrumTypeNone, DtSINCGARSFrequencyHop, or DtJTIDS_MIDS_SpectrumType (the last is used to set the Link16 Transmitter).
virtual void	setLockoutSetId (DtU16 id)
	Set the LockoutSetId for the SINCGARSModulationStruct.
virtual DtU16	lockoutSetId () const
	Get the LockoutSetId for the SINCGARSModulationStruct.
virtual void	setTransmissionSecurityKey (DtU16 key)
	Set the TransmissionSecurityKey for the SINCGARSModulationStruct.
virtual DtU16	transmissionSecurityKey () const
	Get the TransmissionSecurityKey for the SINCGARSModulationStruct.
virtual void	setFHSynchronizationTimeOffset (DtU32 id)
	Set the FHSSynchronizationTimeOffset for the SINCGARSModulationStruct.
virtual DtU32	fHSynchronizationTimeOffset () const
	Get the FHSSynchronizationTimeOffset for the SINCGARSModulationStruct.
virtual void	setClearChannel (DtU8 chan)
	Set the ClearChannel attribute for the SINCGARSModulationStruct (RPR 1 only)
virtual DtU8	clearChannel () const
	Get the ClearChannel attribute for the SINCGARSModulationStruct (RPR 1 only)
virtual void	setStartOfMessage (DtStartMessage mess)
	Set the StartOfMessage attribute for the SINCGARSModulationStruct (RPR 1 only)
virtual DtStartMessage	startOfMessage () const
	Get the StartOfMessage attribute for the SINCGARSModulationStruct (RPR 1 only)
Link16Transmitter Methods
Link16Transmitter Methods The following functions are used for Link16 compatibility. They supplement the standard DtRadioTransmitter attributes with those required by the Link16 transmitter object as described in the SISO-STD-002-2006 document. If you want to use Link16, set the SpreadSpectrumType to DtJTIDS_MIDS_SpectrumType; this will allow use of the appropriate attributes.
virtual void	setFidelityLevel (DtU16 level)
	Set the Fidelity Level.
virtual DtU16	fidelityLevel () const
	Get the Fidelity Level.
virtual void	setCommunicationMode (DtLink16CommunicationMode mode)
	Set the communications mode.
virtual DtLink16CommunicationMode	communicationMode () const
	Get the communications mode.
virtual void	setPrimaryMode (DtU16 mode)
	Set the primary mode.
virtual DtU16	primaryMode () const
	Get the primary mode.
virtual void	setSecondaryMode (DtU16 mode)
	Set the secondary mode.
virtual DtU16	secondaryMode () const
	Get the secondary mode.
virtual void	setSynchronizationState (DtU16 val)
	Set the synchronization state.
virtual DtU16	synchronizationState () const
	Get the synchronization state.
virtual void	setNetworkSynchronizationId (int val)
	Set the network synchronization ID.
virtual int	networkSynchronizationId () const
	Get the network synchronization ID.
Public Member Functions inherited from DtEmbeddedSystemRepository
	DtEmbeddedSystemRepository ()
	default constructor
	DtEmbeddedSystemRepository (const DtEmbeddedSystemRepository &orig)
	copy constructor
virtual	~DtEmbeddedSystemRepository ()
	destructor
DtEmbeddedSystemRepository &	operator= (const DtEmbeddedSystemRepository &orig)
	assignment operator
virtual void	setEntityId (const DtEntityIdentifier &id)
	Set the entity identifier.
virtual const DtEntityIdentifier &	entityId () const
	Get the entity identifier.
virtual void	setHostId (const DtGlobalObjectDesignator &id)
	Set the host identifier.
virtual const DtGlobalObjectDesignator &	hostId () const
	Get the host identifier.
virtual void	setRelativePosition (const DtVector &position)
	Set the position of the object relative to the entity.
virtual const DtVector &	relativePosition () const
	Get the position of the object relative to the entity.
Public Member Functions inherited from DtStateRepository
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name.
virtual const DtGlobalObjectDesignator &	globalId () const
virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle.
virtual const DtObjectId &	localId () const

Static Public Member Functions
static DtRadioTransmitterRepository *	create ()

Protected Attributes
DtAntennaPatternType	myAntennaPatternType
DtU16	myCryptoKeyId
DtCryptoMode	myCryptoMode
DtRadioCryptoSystem	myCryptoSystem
DtDetailedModulationType	myDetailedModulation
DtU64	myFrequency
DtU32	myStreamTagHi
DtU32	myStreamTagLo
DtFloat32	myFrequencyBandwidth
bool	myFrequencyHopInUse
DtRadioInputSource	myInputSource
char *	myModulationParamsAddr
DtU8	myModulationParamsLength
DtAntennaPatternRecord *	myAntPat
DtRadioMajorModulation	myMajorModulationType
DtRadioSystem	myModulationSystem
DtFloat32	myPower
bool	myPseudoNoiseSpectrumInUse
DtU16	myTransmitterRadioNumber
DtRadioEntityType	myRadioEntityType
bool	myTimeHopInUse
DtRadioTransmitState	myTransmitState
DtVector	myWorldLocation
DtSpreadSpectrumType	mySpreadSpectrumType
DtThresholder	myThresholder
DtU16	myFHNetId
DtU16	myHopSetId
DtU16	myLockoutSetId
DtU16	myTransmissionSecurityKey
DtU32	myFHSynchronizationTimeOffset
DtU8	myClearChannel
DtStartMessage	myStartOfMessage
DtU16	myFidelityLevel
DtLink16CommunicationMode	myCommunicationMode
DtU16	myPrimaryMode
DtU16	mySecondaryMode
DtU16	mySynchronizationState
int	myNetworkSynchronizationId
Protected Attributes inherited from DtEmbeddedSystemRepository
DtEntityIdentifier	myEntityId
DtGlobalObjectDesignator	myHostId
DtVector	myRelativePosition
Protected Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtObjectId	myLocalId

Additional Inherited Members
Protected Member Functions inherited from DtStateRepository
	DtStateRepository ()
	Constructors are protected since this is an abstract base class.
	DtStateRepository (const DtStateRepository &orig)
	copy constructor

Detailed Description

Instances of DtRadioTransmitterRepository are used to store state information for objects which are radio transmitters.

Constructor & Destructor Documentation

DtRadioTransmitterRepository::DtRadioTransmitterRepository

(

)

default constructor

virtual DtRadioTransmitterRepository::~DtRadioTransmitterRepository ( )

virtual

destructor

DtRadioTransmitterRepository::DtRadioTransmitterRepository

(

const DtRadioTransmitterRepository &

orig

)

copy constructor

Member Function Documentation

virtual const DtAntennaPatternRecord& DtRadioTransmitterRepository::antennaPattern ( ) const

virtual

Get the antenna pattern.

virtual DtAntennaPatternType DtRadioTransmitterRepository::antennaPatternType ( ) const

virtual

Get the antenna pattern type.

virtual DtU8 DtRadioTransmitterRepository::clearChannel ( ) const

virtual

Get the ClearChannel attribute for the SINCGARSModulationStruct (RPR 1 only)

virtual DtStateRepository* DtRadioTransmitterRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtEmbeddedSystemRepository.

virtual DtLink16CommunicationMode DtRadioTransmitterRepository::communicationMode ( ) const

virtual

Get the communications mode.

static DtRadioTransmitterRepository* DtRadioTransmitterRepository::create ( )

static

Reimplemented from DtEmbeddedSystemRepository.

virtual DtU16 DtRadioTransmitterRepository::cryptoKeyId ( ) const

virtual

Get the crypto key id.

virtual DtCryptoMode DtRadioTransmitterRepository::cryptoMode ( ) const

virtual

Get the crypto key mode.

virtual DtRadioCryptoSystem DtRadioTransmitterRepository::cryptoSystem ( ) const

virtual

virtual DtDetailedModulationType DtRadioTransmitterRepository::detailedModulationType ( ) const

virtual

Get the detailed modulation.

virtual DtU16 DtRadioTransmitterRepository::fHNetId ( ) const

virtual

Get the FhNetId for the SINCGARSModulationStruct.

virtual DtU32 DtRadioTransmitterRepository::fHSynchronizationTimeOffset ( ) const

virtual

Get the FHSSynchronizationTimeOffset for the SINCGARSModulationStruct.

virtual DtU16 DtRadioTransmitterRepository::fidelityLevel ( ) const

virtual

Get the Fidelity Level.

virtual unsigned long DtRadioTransmitterRepository::frequency ( DtLongWordPortion  upperLower ) const

virtual

Deprecated Get either the upper or lower word of the 64 bit frequency.

virtual DtU64 DtRadioTransmitterRepository::frequency ( ) const

virtual

Get/Set the frequency.

virtual DtFloat32 DtRadioTransmitterRepository::frequencyBandwidth ( ) const

virtual

Get the frequency bandwidth.

virtual bool DtRadioTransmitterRepository::frequencyHopInUse ( ) const

virtual

Get the frequency hop in use.

virtual DtU16 DtRadioTransmitterRepository::hopSetId ( ) const

virtual

Set the SpreadSpectrumType: DtSpreadSpectrumTypeNone, DtSINCGARSFrequencyHop, or DtJTIDS_MIDS_SpectrumType (the last is used to set the Link16 Transmitter).

virtual DtRadioInputSource DtRadioTransmitterRepository::inputSource ( ) const

virtual

Get the input source.

virtual DtU16 DtRadioTransmitterRepository::lockoutSetId ( ) const

virtual

Get the LockoutSetId for the SINCGARSModulationStruct.

virtual DtRadioMajorModulation DtRadioTransmitterRepository::majorModulationType ( ) const

virtual

Get the major modulation type.

virtual const void* DtRadioTransmitterRepository::modulationParamsAddr ( ) const

virtual

virtual DtU8 DtRadioTransmitterRepository::modulationParamsLength ( ) const

virtual

virtual DtRadioSystem DtRadioTransmitterRepository::modulationSystemType ( ) const

virtual

Get the modulation system.

virtual int DtRadioTransmitterRepository::networkSynchronizationId ( ) const

virtual

Get the network synchronization ID.

DtRadioTransmitterRepository& DtRadioTransmitterRepository::operator=

(

const DtRadioTransmitterRepository &

orig

)

assignment operator

virtual DtFloat32 DtRadioTransmitterRepository::power ( ) const

virtual

Get the power.

virtual DtU16 DtRadioTransmitterRepository::primaryMode ( ) const

virtual

Get the primary mode.

virtual void DtRadioTransmitterRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual void DtRadioTransmitterRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print state data to the specified stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual bool DtRadioTransmitterRepository::pseudoNoiseSpectrumInUse ( ) const

virtual

Get the Pseudo Noise Spectrum In Use.

virtual bool DtRadioTransmitterRepository::psuedoNoiseSpectrumInUse ( ) const

virtual

Get the Pseudo Noise Spectrum In Use.

Deprecated to fix spelling.

virtual const DtRadioEntityType& DtRadioTransmitterRepository::radioEntityType ( ) const

virtual

Get the radio entity type.

virtual unsigned int DtRadioTransmitterRepository::radioId ( ) const

virtual

Get the Transmitter radio number.

virtual const DtVector& DtRadioTransmitterRepository::relativeAntennaLoc ( ) const

virtual

Get the relative location.

virtual DtU16 DtRadioTransmitterRepository::secondaryMode ( ) const

virtual

Get the secondary mode.

virtual void DtRadioTransmitterRepository::setAntennaPattern ( const DtAntennaPatternRecord &  rec )

virtual

Set the antenna pattern.

virtual void DtRadioTransmitterRepository::setAntennaPatternType ( DtAntennaPatternType  pattern )

virtual

Set the antenna pattern type.

virtual void DtRadioTransmitterRepository::setClearChannel ( DtU8  chan )

virtual

Set the ClearChannel attribute for the SINCGARSModulationStruct (RPR 1 only)

virtual void DtRadioTransmitterRepository::setCommunicationMode ( DtLink16CommunicationMode  mode )

virtual

Set the communications mode.

This information is not sent across the network, but is used to set other transmitter parameters, such as frequency, bandwidth, and spread spectrum type.

virtual void DtRadioTransmitterRepository::setCryptoKeyId ( DtU16  key )

virtual

Set the crypto key id.

virtual void DtRadioTransmitterRepository::setCryptoMode ( DtCryptoMode  mode )

virtual

Set the crypto key mode.

virtual void DtRadioTransmitterRepository::setCryptoSystem ( DtRadioCryptoSystem  system )

virtual

Set/Get the crypto system.

virtual void DtRadioTransmitterRepository::setDetailedModulationType ( DtDetailedModulationType  modulation )

virtual

Set the detailed modulation.

virtual void DtRadioTransmitterRepository::setFHNetId ( DtU16  id )

virtual

Set the FhNetId for the SINCGARSModulationStruct.

virtual void DtRadioTransmitterRepository::setFHSynchronizationTimeOffset ( DtU32  id )

virtual

Set the FHSSynchronizationTimeOffset for the SINCGARSModulationStruct.

virtual void DtRadioTransmitterRepository::setFidelityLevel ( DtU16  level )

virtual

Set the Fidelity Level.

virtual void DtRadioTransmitterRepository::setFrequency ( unsigned long  upper, unsigned long  lower  )

virtual

Deprecated Set the frequency as upper and lower word.

virtual void DtRadioTransmitterRepository::setFrequency ( DtU64  freq )

virtual

Get/Set the frequency.

virtual void DtRadioTransmitterRepository::setFrequencyBandwidth ( DtFloat32  bandwidth )

virtual

Set the frequency bandwidth.

virtual void DtRadioTransmitterRepository::setFrequencyHopInUse ( bool  hopInUse )

virtual

Set the frequency hop in use.

virtual void DtRadioTransmitterRepository::setHopSetId ( DtU16  id )

virtual

Set/get the HopSetId for the SINCGARSModulationStruct.

virtual void DtRadioTransmitterRepository::setInputSource ( DtRadioInputSource  source )

virtual

Set the input source.

virtual void DtRadioTransmitterRepository::setLockoutSetId ( DtU16  id )

virtual

Set the LockoutSetId for the SINCGARSModulationStruct.

virtual void DtRadioTransmitterRepository::setMajorModulationType ( DtRadioMajorModulation  modulation )

virtual

Set the major modulation type.

virtual void DtRadioTransmitterRepository::setModulationParams ( const void *  networkRepresentation, DtU8  size  )

virtual

Set/Get the modulation parameters' network representation.

virtual void DtRadioTransmitterRepository::setModulationSystemType ( DtRadioSystem  system )

virtual

Set the modulation system.

virtual void DtRadioTransmitterRepository::setNetworkSynchronizationId ( int  val )

virtual

Set the network synchronization ID.

virtual void DtRadioTransmitterRepository::setPower ( DtFloat32  power )

virtual

Set the power.

virtual void DtRadioTransmitterRepository::setPrimaryMode ( DtU16  mode )

virtual

Set the primary mode.

virtual void DtRadioTransmitterRepository::setPseudoNoiseSpectrumInUse ( bool  inUse )

virtual

Set the Pseudo Noise Spectrum In Use.

virtual void DtRadioTransmitterRepository::setPsuedoNoiseSpectrumInUse ( bool  inUse )

virtual

Set the Pseudo Noise Spectrum In Use.

Deprecated to fix spelling.

virtual void DtRadioTransmitterRepository::setRadioEntityType ( const DtRadioEntityType &  type )

virtual

Set the radio entity type.

virtual void DtRadioTransmitterRepository::setRadioId ( unsigned int  number )

virtual

Set the Transmitter radio number.

virtual void DtRadioTransmitterRepository::setRelativeAntennaLoc ( const DtVector &  location )

virtual

Set the relative location (wrapper around EmbedSysSR member func, for compatibility with DIS transmitter PDU.)

virtual void DtRadioTransmitterRepository::setSecondaryMode ( DtU16  mode )

virtual

Set the secondary mode.

virtual void DtRadioTransmitterRepository::setSpreadSpectrumType ( DtSpreadSpectrumType  ty )

virtual

Set the SpreadSpectrumType: DtSpreadSpectrumTypeNone, DtSINCGARSFrequencyHop, or DtJTIDS_MIDS_SpectrumType (the last is used to set the Link16 Transmitter).

virtual void DtRadioTransmitterRepository::setStartOfMessage ( DtStartMessage  mess )

virtual

Set the StartOfMessage attribute for the SINCGARSModulationStruct (RPR 1 only)

virtual void DtRadioTransmitterRepository::setStreamTag ( unsigned long  upper, unsigned long  lower  )

virtual

Set the StreamTag, either as upper and lower word, or as full 64 bit integer.

virtual void DtRadioTransmitterRepository::setStreamTag ( unsigned long  st )

virtual

virtual void DtRadioTransmitterRepository::setSynchronizationState ( DtU16  val )

virtual

Set the synchronization state.

virtual void DtRadioTransmitterRepository::setTimeHopInUse ( bool  inUse )

virtual

Set the Time Hop In Use.

virtual void DtRadioTransmitterRepository::setTransmissionSecurityKey ( DtU16  key )

virtual

Set the TransmissionSecurityKey for the SINCGARSModulationStruct.

virtual void DtRadioTransmitterRepository::setTransmitState ( DtRadioTransmitState  state )

virtual

Set the transmit state.

virtual void DtRadioTransmitterRepository::setWorldAntennaLoc ( const DtVector &  location )

virtual

Set the world location.

virtual DtSpreadSpectrumType DtRadioTransmitterRepository::spreadSpectrumType ( ) const

virtual

Get the SpreadSpectrumType.

virtual DtStartMessage DtRadioTransmitterRepository::startOfMessage ( ) const

virtual

Get the StartOfMessage attribute for the SINCGARSModulationStruct (RPR 1 only)

virtual unsigned long DtRadioTransmitterRepository::streamTag ( DtLongWordPortion  upperLower = DtLowerWord ) const

virtual

Get either the upper or lower word of the 64 bit frequency.

virtual DtU16 DtRadioTransmitterRepository::synchronizationState ( ) const

virtual

Get the synchronization state.

virtual DtThresholder* DtRadioTransmitterRepository::thresholder ( )

virtual

virtual const DtThresholder& DtRadioTransmitterRepository::thresholder ( ) const

virtual

virtual bool DtRadioTransmitterRepository::timeHopInUse ( ) const

virtual

Get the Time Hop In Use.

virtual DtU16 DtRadioTransmitterRepository::transmissionSecurityKey ( ) const

virtual

Get the TransmissionSecurityKey for the SINCGARSModulationStruct.

virtual DtRadioTransmitState DtRadioTransmitterRepository::transmitState ( ) const

virtual

Get the transmit state.

virtual const DtVector& DtRadioTransmitterRepository::worldAntennaLoc ( ) const

virtual

Get the world location.

Member Data Documentation

DtAntennaPatternType DtRadioTransmitterRepository::myAntennaPatternType

protected

DtAntennaPatternRecord* DtRadioTransmitterRepository::myAntPat

protected

DtU8 DtRadioTransmitterRepository::myClearChannel

protected

DtLink16CommunicationMode DtRadioTransmitterRepository::myCommunicationMode

protected

DtU16 DtRadioTransmitterRepository::myCryptoKeyId

protected

DtCryptoMode DtRadioTransmitterRepository::myCryptoMode

protected

DtRadioCryptoSystem DtRadioTransmitterRepository::myCryptoSystem

protected

DtDetailedModulationType DtRadioTransmitterRepository::myDetailedModulation

protected

DtU16 DtRadioTransmitterRepository::myFHNetId

protected

DtU32 DtRadioTransmitterRepository::myFHSynchronizationTimeOffset

protected

DtU16 DtRadioTransmitterRepository::myFidelityLevel

protected

DtU64 DtRadioTransmitterRepository::myFrequency

protected

DtFloat32 DtRadioTransmitterRepository::myFrequencyBandwidth

protected

bool DtRadioTransmitterRepository::myFrequencyHopInUse

protected

DtU16 DtRadioTransmitterRepository::myHopSetId

protected

DtRadioInputSource DtRadioTransmitterRepository::myInputSource

protected

DtU16 DtRadioTransmitterRepository::myLockoutSetId

protected

DtRadioMajorModulation DtRadioTransmitterRepository::myMajorModulationType

protected

char* DtRadioTransmitterRepository::myModulationParamsAddr

protected

DtU8 DtRadioTransmitterRepository::myModulationParamsLength

protected

DtRadioSystem DtRadioTransmitterRepository::myModulationSystem

protected

int DtRadioTransmitterRepository::myNetworkSynchronizationId

protected

DtFloat32 DtRadioTransmitterRepository::myPower

protected

DtU16 DtRadioTransmitterRepository::myPrimaryMode

protected

bool DtRadioTransmitterRepository::myPseudoNoiseSpectrumInUse

protected

DtRadioEntityType DtRadioTransmitterRepository::myRadioEntityType

protected

DtU16 DtRadioTransmitterRepository::mySecondaryMode

protected

DtSpreadSpectrumType DtRadioTransmitterRepository::mySpreadSpectrumType

protected

DtStartMessage DtRadioTransmitterRepository::myStartOfMessage

protected

DtU32 DtRadioTransmitterRepository::myStreamTagHi

protected

DtU32 DtRadioTransmitterRepository::myStreamTagLo

protected

DtU16 DtRadioTransmitterRepository::mySynchronizationState

protected

DtThresholder DtRadioTransmitterRepository::myThresholder

protected

bool DtRadioTransmitterRepository::myTimeHopInUse

protected

DtU16 DtRadioTransmitterRepository::myTransmissionSecurityKey

protected

DtRadioTransmitState DtRadioTransmitterRepository::myTransmitState

protected

DtU16 DtRadioTransmitterRepository::myTransmitterRadioNumber

protected

DtVector DtRadioTransmitterRepository::myWorldLocation

protected

---

The documentation for this class was generated from the following file:

• radioTransmitterRepository.h
