DtTrackJamDesignator Class Reference

Instances of DtTrackJamDesignator are used to represent track/jam targets in the EmitterSystem PDU (DIS). More...

Inheritance diagram for DtTrackJamDesignator:

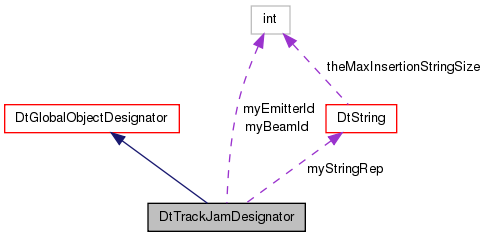

Collaboration diagram for DtTrackJamDesignator:

Public Member Functions
	DtTrackJamDesignator ()
	Default constructor.
	DtTrackJamDesignator (const DtEntityIdentifier &entId, int emitterId, int beamId)
	Constructor.
virtual	~DtTrackJamDesignator ()
	Destructor.
	DtTrackJamDesignator (const DtTrackJamDesignator &orig)
	Copy constructor.
DtTrackJamDesignator &	operator= (const DtTrackJamDesignator &orig)
	Assignment operator.
virtual void	setEmitterId (int id)
	Sets the emitter ID.
virtual int	emitterId () const
	Gets the emitter ID.
virtual void	setBeamId (int id)
	Sets the beam ID.
virtual int	beamId () const
	Gets the beam ID.
virtual bool	operator== (const DtTrackJamDesignator &des) const
	Equality operator.
virtual bool	operator!= (const DtTrackJamDesignator &des) const
	Non-equality operator.
virtual const char *	string () const
	Returns a string representation.
Public Member Functions inherited from DtEntityIdentifier
	DtEntityIdentifier (const char *str)
	constructs an instance from a string in the form "2:3:4"
	DtEntityIdentifier (int site, int host, DtU16 entityNum)
	constructs an instance with the specified site:host:entityNum
	DtEntityIdentifier (const DtSimulationAddress &simulationAddress, DtU16 entityNum)
	constructs an instance with a simulation address (site:host) and the entNum
	DtEntityIdentifier (const DtEntityIdentifier &orig)
	copy constructor
const DtEntityIdentifier &	operator= (const DtEntityIdentifier &orig)
	assignment operator
	DtEntityIdentifier (const DtNetEntityIdentifier &netId)
	constructs from a network structure.
	DtEntityIdentifier ()
	creates an instance of 0:0:0
void	init (int site, int host, DtU16 entityNum)
	Initialization function.
int	operator== (const DtEntityIdentifier &other) const
	The equality operators were shown to be a real bottleneck in VRF testing.
int	operator!= (const DtEntityIdentifier &other) const
	operator DtNetEntityIdentifier () const
bool	operator< (const DtEntityIdentifier &rightOperand) const
	Sorting criterion.
void	setFromNet (const DtNetEntityIdentifier &netId)
	sets the Site/Host/EntityNum from a network structure.
void	setSite (int site)
	Sets the site Id for this instance.
int	site () const
	Gets the site Id for this instance.
void	setHost (int host)
	Sets the hostId (or applicationID) for this instance.
int	host () const
	Gets the hostId (or applicationID) for this instance.
void	setEntityNum (DtU16 entityNum)
	Sets the EntityNumber for this ID.
DtU16	entityNum () const
	Gets the EntityNumber for this ID.
void	setSimulationAddress (const DtSimulationAddress &simulationAddress)
	Sets the SimulationAddress Component of the entityIdentifier.
const DtSimulationAddress &	simulationAddress () const
	Gets the SimulationAddress Component of the entityIdentifier.
bool	sameHost (const DtEntityIdentifier &other) const
	Returns true if other has the same hostId as this instance.
bool	sameEntity (const DtEntityIdentifier &other) const
	Returns true if other has the same EntityNum as this EntityNum.
bool	matchPattern (const DtEntityIdentifier &pat) const
	Matches any part of the entityID passed in pat, using the DtDeferredEntityId.

Protected Attributes
int	myEmitterId
int	myBeamId
DtString	myStringRep
Protected Attributes inherited from DtEntityIdentifier
std::string	myMutableStringRep
	This member is: 1) mutable because it is changed in const methods and used as a char buffer 2) protected because legacy subclasses use it 3) it SHOULD be private because it is not considered part of the API and should not be used by any subclass.

Additional Inherited Members
Static Public Member Functions inherited from DtEntityIdentifier
static const DtEntityIdentifier &	nullId ()
	Returns a reference to an instance of 0:0:0.
static const DtEntityIdentifier &	defaultId ()
	Returns a reference to an instance of -1:-1:-1.
Public Attributes inherited from DtEntityIdentifier
DtSimulationAddress	DtSimulator
	DtSimulator is public for historical reasons.
DtU16	DtEntity
	DtEntity is public for historical reasons.

Detailed Description

Instances of DtTrackJamDesignator are used to represent track/jam targets in the EmitterSystem PDU (DIS).

Constructor & Destructor Documentation

DtTrackJamDesignator::DtTrackJamDesignator

(

)

Default constructor.

DtTrackJamDesignator::DtTrackJamDesignator	(	const DtEntityIdentifier &	entId,
		int	emitterId,
		int	beamId
	)

Constructor.

virtual DtTrackJamDesignator::~DtTrackJamDesignator ( )

virtual

Destructor.

DtTrackJamDesignator::DtTrackJamDesignator

(

const DtTrackJamDesignator &

orig

)

Copy constructor.

Member Function Documentation

virtual int DtTrackJamDesignator::beamId ( ) const

virtual

Gets the beam ID.

virtual int DtTrackJamDesignator::emitterId ( ) const

virtual

Gets the emitter ID.

virtual bool DtTrackJamDesignator::operator!= ( const DtTrackJamDesignator &  des ) const

virtual

Non-equality operator.

DtTrackJamDesignator& DtTrackJamDesignator::operator=

(

const DtTrackJamDesignator &

orig

)

Assignment operator.

virtual bool DtTrackJamDesignator::operator== ( const DtTrackJamDesignator &  des ) const

virtual

Equality operator.

virtual void DtTrackJamDesignator::setBeamId ( int  id )

virtual

Sets the beam ID.

virtual void DtTrackJamDesignator::setEmitterId ( int  id )

virtual

Sets the emitter ID.

virtual const char* DtTrackJamDesignator::string ( ) const

virtual

Returns a string representation.

Reimplemented from DtEntityIdentifier.

Member Data Documentation

int DtTrackJamDesignator::myBeamId

protected

int DtTrackJamDesignator::myEmitterId

protected

DtString DtTrackJamDesignator::myStringRep

protected

---

The documentation for this class was generated from the following file:

• trackJamDesignator.h
