Instances of DtUnderwaterAcousticsStateRepository are used to store state data for all underwater acoustics objects for a given entity. More...

Inheritance diagram for DtUnderwaterAcousticsStateRepository:

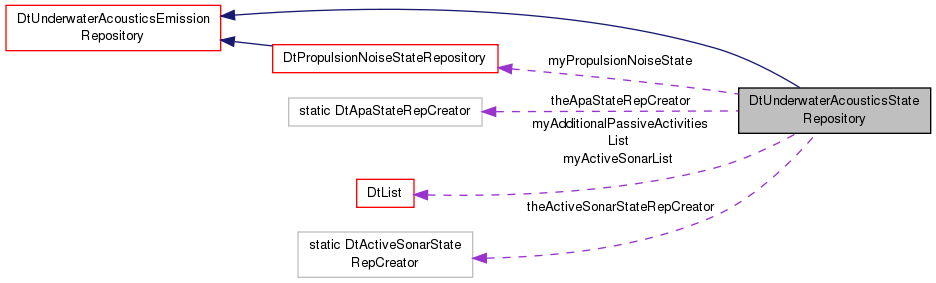

Collaboration diagram for DtUnderwaterAcousticsStateRepository:

Public Types
typedef DtAdditionalPassiveActivitiesRepository (	DtApaStateRepCreator )()
	Function prototype for functions that create APA State Repositories.
typedef DtActiveSonarStateRepository (	DtActiveSonarStateRepCreator )()
	Function prototype for functions that create Active Sonar State Repositories.

Public Member Functions
	DtUnderwaterAcousticsStateRepository ()
	Constructor.
	DtUnderwaterAcousticsStateRepository (const DtUnderwaterAcousticsStateRepository &orig)
	Copy Constructor.
virtual	~DtUnderwaterAcousticsStateRepository ()
	Destructor.
DtUnderwaterAcousticsStateRepository &	operator= (const DtUnderwaterAcousticsStateRepository &orig)
	Assignment Operator.
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual void	printData () const
	Print data to the DtInfo stream.
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream.
General attribute mutators (overridden).
virtual void	setEntityId (const DtEntityIdentifier &id)
	Entity id setter (overridden to update subobjects too).
virtual void	setHostId (const DtGlobalObjectDesignator &id)
	Entity id setter (overridden to update subobjects too).
virtual void	setEventIdentifier (const DtEventId &id)
	Entity id setter (overridden to update subobjects too).
Shaft Propulsion Noise accessors & mutators
virtual void	setHullMaskerOn (bool val)
	Set the HullMaskerOn.
virtual bool	hullMaskerOn () const
	Get the HullMaskerOn.
virtual void	setPassiveParameterIndex (DtU16 val)
	Set the PassiveParameterIndex.
virtual DtU16	passiveParameterIndex () const
	Get the PassiveParameterIndex.
virtual void	setPropulsionPlantConfiguration (DtUnderwaterAcousticPropulsionPlantConfig val)
	Set the PropulsionPlantConfiguration.
virtual DtUnderwaterAcousticPropulsionPlantConfig	propulsionPlantConfiguration () const
	Get the PropulsionPlantConfiguration.
virtual void	setShaftRateData (const std::vector< DtUnderwaterAcousticShaftSpeed > &val)
	Set the ShaftRateData.
virtual const std::vector < DtUnderwaterAcousticShaftSpeed > &	shaftRateData () const
	Get the ShaftRateData.
virtual const DtPropulsionNoiseStateRepository &	propNoiseStateRep () const
	Accessors for the prop noise state rep (for direct read/write).
virtual DtPropulsionNoiseStateRepository &	propNoiseStateRep ()
	Set the HullMaskerOn.
Additional Passive Activities accessors & mutators.
virtual DtAdditionalPassiveActivitiesRepository *	apaSRById (DtU16 activityCode, DtApaRetCode *retcode=NULL)
	Return a pointer to the first APA with the specified activity code.
virtual DtAdditionalPassiveActivitiesRepository *	addApa (DtU16 activityCode=0, DtApaRetCode *retcode=NULL)
	Add/remove a new APA within this underwater acoustic object.
virtual DtApaRetCode	removeApa (DtU16 activityCode)
	Removes an APA, if there are duplicate APAs, it will remove the first APA with the given activity code.
virtual int	numAPAs () const
	Returns number of APAs.
virtual const DtList *	apaList () const
	Returns DtList of DtAdditionalPassiveActivitiesRepositories.
virtual DtList *	apaList ()
	Return a pointer to the first APA with the specified activity code.
bool	isMember (DtAdditionalPassiveActivitiesRepository *ssr) const
	Returns true if the given APA SR is in the list of APA SRs.
Active Sonar accessors & mutators.
virtual DtActiveSonarStateRepository *	activeSonarSRById (DtU8 acousticId, DtSonarSysRetCode *retcode=NULL)
	Return a pointer to the first active sonar with the specified id.
virtual DtActiveSonarStateRepository *	addActiveSonar (DtU8 acousticId=0, DtSonarSysRetCode *retcode=NULL)
	Add/remove a new active sonar within this underwater acoustic object.
virtual DtSonarSysRetCode	removeActiveSonar (DtU8 acousticId)
	Removes an active sonar, if there are duplicate sonars it will remove the first sonar with the given acoustic ID.
virtual int	numActiveSonars () const
	Returns number of active sonars.
virtual const DtList *	activeSonarList () const
	Returns DtList of DtActiveSonarStateRepositories.
virtual DtList *	activeSonarList ()
	Return a pointer to the first active sonar with the specified id.
bool	isMember (DtActiveSonarStateRepository *ssr) const
	Returns true if the given active sonar SR is in the list of sonar SRs.
Public Member Functions inherited from DtUnderwaterAcousticsEmissionRepository
	DtUnderwaterAcousticsEmissionRepository ()
	Constructor.
virtual	~DtUnderwaterAcousticsEmissionRepository ()
	Destructor.
	DtUnderwaterAcousticsEmissionRepository (const DtUnderwaterAcousticsEmissionRepository &orig)
	Copy Constructor.
DtUnderwaterAcousticsEmissionRepository &	operator= (const DtUnderwaterAcousticsEmissionRepository &orig)
	Assignment Operator.
virtual const DtEventId &	eventIdentifier () const
	Get the EventIdentifier.
Public Member Functions inherited from DtEmbeddedSystemRepository
	DtEmbeddedSystemRepository ()
	default constructor
	DtEmbeddedSystemRepository (const DtEmbeddedSystemRepository &orig)
	copy constructor
virtual	~DtEmbeddedSystemRepository ()
	destructor
DtEmbeddedSystemRepository &	operator= (const DtEmbeddedSystemRepository &orig)
	assignment operator
virtual const DtEntityIdentifier &	entityId () const
	Get the entity identifier.
virtual const DtGlobalObjectDesignator &	hostId () const
	Get the host identifier.
virtual void	setRelativePosition (const DtVector &position)
	Set the position of the object relative to the entity.
virtual const DtVector &	relativePosition () const
	Get the position of the object relative to the entity.
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor
	DtStateRepository (const DtStateRepository &orig)
	copy constructor
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name.
virtual const DtGlobalObjectDesignator &	globalId () const
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records)
	The following functions are related to the extendability part of DIS 7.
virtual const std::vector < DtStandardVariableRecord * >	attributeRecords (unsigned int recordType=0) const
virtual void	getAttributeRecords (std::vector< DtStandardVariableRecord * > &vec, unsigned int recordType=0) const
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
virtual void	clearAttributeRecords ()
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records, const DtSimulationAddress &address)
virtual void	setSimAddr (const DtSimulationAddress &id)
	Get/Set default simulation address. Set by VR-Link for publishers (based on exercise connection)
virtual const DtSimulationAddress &	simAddr () const
virtual unsigned int	numberOfAttributeRecords () const

Static Public Member Functions
static DtUnderwaterAcousticsStateRepository *	create ()
	Create a DtUnderwaterAcousticsStateRepository.
static DtActiveSonarStateRepCreator	setActiveSonarStateRepCreator (DtActiveSonarStateRepCreator creator)
	Give us a function to be used for creating active sonar SRs.

Protected Member Functions
virtual void	purgeApaList ()
virtual void	purgeActiveSonarList ()

Protected Attributes
DtPropulsionNoiseStateRepository	myPropulsionNoiseState
	Propulsion noise state rep.
DtList	myAdditionalPassiveActivitiesList
	APA state rep.
DtList	myActiveSonarList
	List of active sonars in this system.
Protected Attributes inherited from DtUnderwaterAcousticsEmissionRepository
DtEventId	myEventIdentifier
Protected Attributes inherited from DtEmbeddedSystemRepository
DtEntityIdentifier	myEntityId
DtVector	myRelativePosition

Static Protected Attributes
static DtApaStateRepCreator	theApaStateRepCreator
static DtActiveSonarStateRepCreator	theActiveSonarStateRepCreator

Additional Inherited Members
Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtSimulationAddress	myDefaultSimulationAddress
std::map< DtSimulationAddress, std::vector < DtStandardVariableRecord * > >	myRecordsMap

Detailed Description

Instances of DtUnderwaterAcousticsStateRepository are used to store state data for all underwater acoustics objects for a given entity.

Member Typedef Documentation

typedef DtActiveSonarStateRepository*(* DtUnderwaterAcousticsStateRepository::DtActiveSonarStateRepCreator)()

Function prototype for functions that create Active Sonar State Repositories.

typedef DtAdditionalPassiveActivitiesRepository*(* DtUnderwaterAcousticsStateRepository::DtApaStateRepCreator)()

Function prototype for functions that create APA State Repositories.

Constructor & Destructor Documentation

DtUnderwaterAcousticsStateRepository::DtUnderwaterAcousticsStateRepository ( )

Constructor.

DtUnderwaterAcousticsStateRepository::DtUnderwaterAcousticsStateRepository ( const DtUnderwaterAcousticsStateRepository & orig )

Copy Constructor.

virtual DtUnderwaterAcousticsStateRepository::~DtUnderwaterAcousticsStateRepository ( )

virtual

Destructor.

Member Function Documentation

virtual const DtList* DtUnderwaterAcousticsStateRepository::activeSonarList ( ) const

virtual

Returns DtList of DtActiveSonarStateRepositories.

virtual DtList* DtUnderwaterAcousticsStateRepository::activeSonarList ( )

virtual

Return a pointer to the first active sonar with the specified id.

virtual DtActiveSonarStateRepository* DtUnderwaterAcousticsStateRepository::activeSonarSRById	(	DtU8	acousticId,
		DtSonarSysRetCode *	retcode = `NULL`
	)

virtual

Return a pointer to the first active sonar with the specified id.

virtual DtActiveSonarStateRepository* DtUnderwaterAcousticsStateRepository::addActiveSonar	(	DtU8	acousticId = `0`,
		DtSonarSysRetCode *	retcode = `NULL`
	)

virtual

Add/remove a new active sonar within this underwater acoustic object.

If you add an active sonar with a duplicate ID, retcode will be set to DtDuplicateSonar, and activeSonarSRById will return the first active sonar SR with the given ID.

virtual DtAdditionalPassiveActivitiesRepository* DtUnderwaterAcousticsStateRepository::addApa	(	DtU16	activityCode = `0`,
		DtApaRetCode *	retcode = `NULL`
	)

virtual

Add/remove a new APA within this underwater acoustic object.

If you add an APA with a duplicate ID, retcode will be set to DtDuplicateApa, and addPassActSRById will return the first APA SR with the given ID.

virtual const DtList* DtUnderwaterAcousticsStateRepository::apaList ( ) const

virtual

Returns DtList of DtAdditionalPassiveActivitiesRepositories.

virtual DtList* DtUnderwaterAcousticsStateRepository::apaList ( )

virtual

Return a pointer to the first APA with the specified activity code.

virtual DtAdditionalPassiveActivitiesRepository* DtUnderwaterAcousticsStateRepository::apaSRById	(	DtU16	activityCode,
		DtApaRetCode *	retcode = `NULL`
	)

virtual

Return a pointer to the first APA with the specified activity code.

virtual DtStateRepository* DtUnderwaterAcousticsStateRepository::clone ( bool copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtUnderwaterAcousticsEmissionRepository.

static DtUnderwaterAcousticsStateRepository* DtUnderwaterAcousticsStateRepository::create ( )

static

Create a DtUnderwaterAcousticsStateRepository.

Reimplemented from DtUnderwaterAcousticsEmissionRepository.

virtual bool DtUnderwaterAcousticsStateRepository::hullMaskerOn ( ) const

virtual

Get the HullMaskerOn.

bool DtUnderwaterAcousticsStateRepository::isMember ( DtAdditionalPassiveActivitiesRepository * ssr ) const

Returns true if the given APA SR is in the list of APA SRs.

bool DtUnderwaterAcousticsStateRepository::isMember ( DtActiveSonarStateRepository * ssr ) const

Returns true if the given active sonar SR is in the list of sonar SRs.

virtual int DtUnderwaterAcousticsStateRepository::numActiveSonars ( ) const

virtual

Returns number of active sonars.

virtual int DtUnderwaterAcousticsStateRepository::numAPAs ( ) const

virtual

Returns number of APAs.

DtUnderwaterAcousticsStateRepository& DtUnderwaterAcousticsStateRepository::operator= ( const DtUnderwaterAcousticsStateRepository & orig )

Assignment Operator.

virtual DtU16 DtUnderwaterAcousticsStateRepository::passiveParameterIndex ( ) const

virtual

Get the PassiveParameterIndex.

virtual void DtUnderwaterAcousticsStateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtUnderwaterAcousticsEmissionRepository.

virtual void DtUnderwaterAcousticsStateRepository::printDataToStream ( std::ostream & stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtUnderwaterAcousticsEmissionRepository.

virtual const DtPropulsionNoiseStateRepository& DtUnderwaterAcousticsStateRepository::propNoiseStateRep ( ) const

virtual

Accessors for the prop noise state rep (for direct read/write).

virtual DtPropulsionNoiseStateRepository& DtUnderwaterAcousticsStateRepository::propNoiseStateRep ( )

virtual

Set the HullMaskerOn.

virtual DtUnderwaterAcousticPropulsionPlantConfig DtUnderwaterAcousticsStateRepository::propulsionPlantConfiguration ( ) const

virtual

Get the PropulsionPlantConfiguration.

virtual void DtUnderwaterAcousticsStateRepository::purgeActiveSonarList ( )

protectedvirtual

virtual void DtUnderwaterAcousticsStateRepository::purgeApaList ( )

protectedvirtual

virtual DtSonarSysRetCode DtUnderwaterAcousticsStateRepository::removeActiveSonar ( DtU8 acousticId )

virtual

Removes an active sonar, if there are duplicate sonars it will remove the first sonar with the given acoustic ID.

This can cause crashes in HLA as this may not be the HLA object which was actually removed. It is safer in HLA to call removeActiveSonar which takes a GlobalId.

virtual DtApaRetCode DtUnderwaterAcousticsStateRepository::removeApa ( DtU16 activityCode )

virtual

Removes an APA, if there are duplicate APAs, it will remove the first APA with the given activity code.

This can cause crashes in HLA as this may not be the HLA object which was actually removed. It is safer in HLA to call removeApa which takes a GlobalId.

static DtActiveSonarStateRepCreator DtUnderwaterAcousticsStateRepository::setActiveSonarStateRepCreator ( DtActiveSonarStateRepCreator creator )

static

Give us a function to be used for creating active sonar SRs.

virtual void DtUnderwaterAcousticsStateRepository::setEntityId ( const DtEntityIdentifier & id )

virtual

Entity id setter (overridden to update subobjects too).

Reimplemented from DtEmbeddedSystemRepository.

virtual void DtUnderwaterAcousticsStateRepository::setEventIdentifier ( const DtEventId & id )

virtual

Entity id setter (overridden to update subobjects too).

Reimplemented from DtUnderwaterAcousticsEmissionRepository.

virtual void DtUnderwaterAcousticsStateRepository::setHostId ( const DtGlobalObjectDesignator & id )

virtual

Entity id setter (overridden to update subobjects too).

Reimplemented from DtEmbeddedSystemRepository.

virtual void DtUnderwaterAcousticsStateRepository::setHullMaskerOn ( bool val )

virtual

Set the HullMaskerOn.

virtual void DtUnderwaterAcousticsStateRepository::setPassiveParameterIndex ( DtU16 val )

virtual

Set the PassiveParameterIndex.

virtual void DtUnderwaterAcousticsStateRepository::setPropulsionPlantConfiguration ( DtUnderwaterAcousticPropulsionPlantConfig val )

virtual

Set the PropulsionPlantConfiguration.

virtual void DtUnderwaterAcousticsStateRepository::setShaftRateData ( const std::vector< DtUnderwaterAcousticShaftSpeed > & val )

virtual

Set the ShaftRateData.

virtual const std::vector<DtUnderwaterAcousticShaftSpeed>& DtUnderwaterAcousticsStateRepository::shaftRateData ( ) const

virtual

Get the ShaftRateData.

Member Data Documentation

DtList DtUnderwaterAcousticsStateRepository::myActiveSonarList

protected

List of active sonars in this system.

DtList DtUnderwaterAcousticsStateRepository::myAdditionalPassiveActivitiesList

protected

APA state rep.

DtPropulsionNoiseStateRepository DtUnderwaterAcousticsStateRepository::myPropulsionNoiseState

protected

Propulsion noise state rep.

DtActiveSonarStateRepCreator DtUnderwaterAcousticsStateRepository::theActiveSonarStateRepCreator

staticprotected

DtApaStateRepCreator DtUnderwaterAcousticsStateRepository::theApaStateRepCreator

staticprotected

The documentation for this class was generated from the following file:

underwaterAcousticsStateRepository.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
