DtReflectedEmitterSystemList Class Reference

Instances of DtReflectedEmitterSystemList manage the list of of remote EmitterSystems in the exercise. More...

Inheritance diagram for DtReflectedEmitterSystemList:

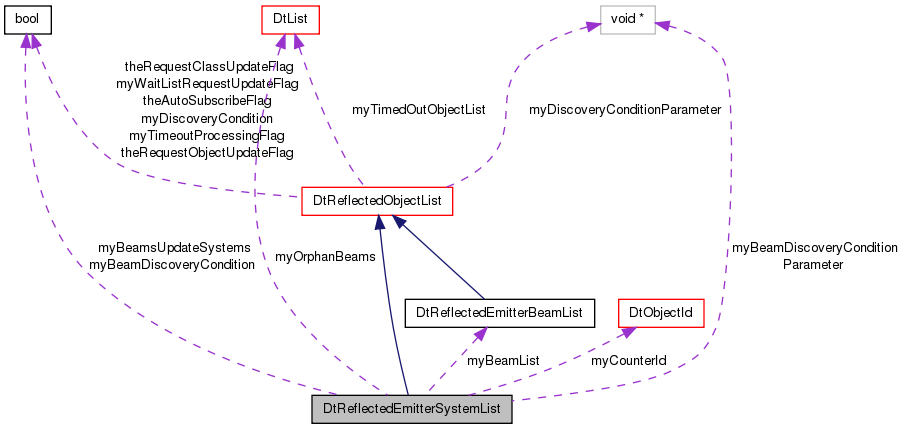

Collaboration diagram for DtReflectedEmitterSystemList:

Public Member Functions
	DtReflectedEmitterSystemList (DtExerciseConn *exConn, bool beamsUpdateSystems=true, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor If beamsUpdateSystems == true, then a system's post-update callbacks are called whenever one of the beams in the system is updated.
	DtReflectedEmitterSystemList (DtExerciseConn *exConn, const DtList *handleList, bool beamsUpdateSystems=true, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor - only subscribe to the RTI::ObjectClassHandles in handleList.
virtual	~DtReflectedEmitterSystemList ()
	destructor
virtual DtReflectedEmitterSystem *	lookup (RTI::ObjectHandle id)
	Look up emitter system by identifier.
virtual DtReflectedEmitterSystem *	lookup (const DtGlobalObjectDesignator &objName)
	Look up emitter system by name.
virtual DtReflectedEmitterSystem *	lookup (const DtGlobalObjectDesignator &emittingEntity, int systemId) const
	Lookup an emitter from its object ID and system ID.
virtual DtReflectedEmitterSystem *	first () const
	Get the first/last emitter system in the list.
virtual DtReflectedEmitterSystem *	last () const
virtual void	addEmitterSystemAdditionCallback (DtEmitterSystemCallbackFunction cb, void *usr)
	EmitterSystem added callback registration/deregistration.
virtual void	removeEmitterSystemAdditionCallback (DtEmitterSystemCallbackFunction cb, void *usr)
virtual void	addEmitterSystemRemovalCallback (DtEmitterSystemCallbackFunction cb, void *usr)
	EmitterSystem removed callback registration/deregistration.
virtual void	removeEmitterSystemRemovalCallback (DtEmitterSystemCallbackFunction cb, void *usr)
virtual DtReflectedEmitterBeamList *	refBeamList ()
	Returns a pointer to a reflected emitter beam list that we are using internally to track our constituent beams.
virtual void	setDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Over-rides DtReflectedObjectList::setDiscoveryCondition().
virtual void	clearDiscoveryCondition ()
	Overrides the DtReflectedObjectList::clearDiscoveryCondition.
virtual void	setBeamDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Call this function to register a discovery condition on the beams of Emitter Systems.
virtual void	clearBeamDiscoveryCondition ()
	Call this function to remove the previously registered discovery condition.
virtual bool	delayBeamDiscovery (DtReflectedObject *beam, void *usr)
	The following function checks whether a beam should be discovered; It only gets called if discovery conditions get registered either by calling DtReflectedEmitterSystemList::setDiscoveryCondition() or DtReflectedEmitterSystemList::setBeamDiscoveryCondition().
Public Member Functions inherited from DtReflectedObjectList
	DtReflectedObjectList (DtExerciseConn *exConn, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor.
virtual	~DtReflectedObjectList ()
	destructor
virtual DtReflectedObject *	lookupObj (RTI::ObjectHandle id)
	Look up object by identifier.
virtual DtReflectedObject *	lookupObj (const DtGlobalObjectDesignator &objName)
	Look up object by global ID (which is the object name in RTI1.3.3).
virtual DtReflectedObject *	firstObj () const
	Get the first/last object in the list.
virtual DtReflectedObject *	lastObj () const
virtual int	count () const
	Get number of objects.
virtual DtExerciseConn *	exerciseConn () const
	Get my exerciseConn.
virtual void	manageObjectClass (RTI::ObjectClassHandle handle)
	Register callbacks with exercise connection so that we get notified when an object of this class is discovered.
virtual bool	removeObject (const DtObjectId &id)
	Have the application act as though we had never discovered the object.
virtual void	addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object added callback registration/deregistration.
virtual void	removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object removed callback registration/deregistration.
virtual void	removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	print ()
	Print the SRs of all objects.
virtual void	setTimeoutProcessing (bool onOff)
	Set whether or not timeout processing occurs.
virtual bool	isTimeoutProcessing () const
	Get whether or not timeout processing occurs.
virtual void	setWaitListRefreshEnabled (bool on)
	Set whether or not we will request updates for objects which have not met discovery and are therefor wait listed.
virtual void	setTimeoutInterval (DtTime time)
	Set/Get the remote object timeout period.
virtual DtTime	timeoutInterval ()
virtual void	setWaitlistRefreshPeriod (DtTime time)
	Set/Get the wait list refresh period.
virtual DtTime	waitlistRefreshPeriod ()
virtual const DtDDMRegionSet &	subscribedRegions ()
	Returns list of regions subscribed to.

Protected Member Functions
virtual void	processDiscoverObject (DtHlaObject *obj)
	Process the discovery of a remote emitter system on the network.
virtual void	processRemoveObject (DtHlaObject *obj)
	Process the removal of a remote emitter system from the network.
virtual void	processEmitterBeamAddition (DtReflectedEmitterBeam *beam)
	Called by similar callback functions registered with myBeamList on beam additions/removals.
virtual void	processEmitterBeamUpdate (DtReflectedEmitterBeam *beam)
virtual void	processEmitterBeamRemoval (DtReflectedEmitterBeam *beam)
virtual void	resolveOrphans ()
	Check if any orphanBeams have non-NULL emittingSystemId.
virtual DtReflectedObject *	newReflectedObject (DtHlaObject *obj) const
	Override of virtual function. Here, we create a DtReflectedEmitterSystem.
virtual DtReflectedEmitterSystem *	newReflectedEmitterSystem (const DtGlobalObjectDesignator &des) const
	Create a remote emitter system object for the HLA object.
virtual void	objectAdded (DtReflectedObject *obj)
	Called from processDiscoverObject() after a remote transmitter has been added to the list.
virtual bool	shouldBeTimedOut (DtReflectedObject *object)
	Returns whether or not the object should be timed out.
virtual const DtList *	dfltHandleList ()
	Returns a DtList of RTI::ObjectClassHandles that represent the list of object classes to which this list should subscribe.
Protected Member Functions inherited from DtReflectedObjectList
virtual void	processTimedOutObjectReflect (const DtStateMsg &msg, DtHlaObject *obj)
	Handle the receipt of attributes for a remote object which was timed out.
virtual void	doTimeouts ()
	Remove any remote objects which have not been updated during the timeout period.
virtual void	doRequestWaitListUpdates ()
	Request an update for any objects which have not met their discovery criteria yet.
virtual void	removeAndDelete (DtReflectedObject *obj, char *msg=NULL)
	Remove the remote object from the list if found and delete it.
virtual void	timeOutObject (DtReflectedObject *object)
	Times out object by removing it from the remote object list and deleting it.
virtual void	unTimeOutObject (DtHlaObject *obj)
	Manages callbacks and data used for reinstating a remote object which was timed out.
virtual void	addObjectClass (RTI::ObjectClassHandle handle)
	Register interest in this FOM object class.
virtual void	addObjectClassByName (const char *className)
	Register interest in this FOM object class by className.
virtual void	init (const DtList *handleList)
	Register interest in a whole list of RTI::ObjectClassHandles all at once.
void	emptyLists ()
	Empty the object list and the timeout list.
void	emptyCallbackLists ()
	Empty the callback lists.
virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks.
virtual void	processObjectRemovalCallbacks (DtReflectedObject *object)
virtual void	findAlreadyDiscoveredObjects ()
	When list is created, we call this function to go through the list of all discovered HLA objects to see if any should be managed by this list.
virtual void	checkDiscoveryCondition (DtReflectedObject *refObj)
virtual bool	readyToAdd (DtReflectedObject *obj)
	Returns true if the obj is ready to be added to myObjectList; calls myWaitListChecker from within.
virtual void	addToObjectList (DtReflectedObject *refObj)
	Add refObj to myObjectList and initiates discovery callbacks.
virtual DtReflectedObject *	lookupObjInWaitList (RTI::ObjectHandle id)
	Find object in waitList by identifier.
virtual DtReflectedObject *	lookupObjInWaitList (const DtGlobalObjectDesignator &name)
	Find object in waitList by name.
void	unsubscribeRegions ()

Static Protected Member Functions
static void	emitterBeamAdditionCb (DtReflectedEmitterBeam *beam, void *usr)
	Callback functions registered with myBeamList on beam additions, updates, and removals.
static void	emitterBeamUpdateCb (DtReflectedEmitterBeam *beam, void *usr)
static void	emitterBeamRemovalCb (DtReflectedEmitterBeam *beam, void *usr)
static void	resolveOrphansPostDrainCb (void *usr)
	Callback that calls resolveOrphans.
static bool	delayBeamDiscoveryCondition (DtReflectedObject *beam, void *usr)
	The following discovery condition function gets set for EmitterBeams when users register a discovery condition for either DtReflectedEmitterSystemList or its beam list.
Static Protected Member Functions inherited from DtReflectedObjectList
static void	discoverObjectCb (DtHlaObject *hlaObj, void *rel)
	Cast the void* to a DtReflectedObjectList* and calls processDiscoverObject().
static void	removeObjectCb (DtHlaObject *hlaObj, void *rel)
	Cast the void* to a DtReflectedObjectList* and calls processRemoveObject().
static void	timedOutObjectReflectCb (const DtStateMsg &msg, DtHlaObject *obj, void *usr)
	Cast the void* to a DtReflectedObjectList* and calls processTimedOutObjectReflect().
static void	doTimeoutsPostDrainCb (void *usr)
	Calls doTimeouts.
static void	doRequestWaitListUpdatesPostDrainCb (void *usr)
	Calls doRequestWaitListUpdates.
static void	postUpdateCb (DtReflectedObject *obj, void *usr)
	Calls checkDiscoveryCondition.

Protected Attributes
DtObjectId	myCounterId
DtList	myOrphanBeams
	used for generating dummy obj ids
DtReflectedEmitterBeamList	myBeamList
bool	myBeamsUpdateSystems
DtDiscoveryCondition	myBeamDiscoveryCondition
void *	myBeamDiscoveryConditionParameter
Protected Attributes inherited from DtReflectedObjectList
DtExerciseConn *	myExConn
DtRefHlaObjectMap	myObjectList
DtHashList	myObjectListByName
DtRefHlaObjectMap	myWaitList
DtList	myTimedOutObjectList
std::vector < RTI::ObjectClassHandle >	myHandleList
DtIntrusiveList	myObjectAddedCallbacks
DtIntrusiveList	myObjectRemovedCallbacks
DtTime	myTimeoutInterval
bool	myTimeoutProcessingFlag
bool	myWaitListRequestUpdateFlag
DtDiscoveryCondition	myDiscoveryCondition
void *	myDiscoveryConditionParameter
DtTime	myWaitlistTime
DtTime	myWaitlistRefreshPeriod
DtDDMRegionSet	mySubscribedRegions
DtString	myUpdateRateTag

Private Member Functions
	DtReflectedEmitterSystemList (const DtReflectedEmitterSystemList &orig)
	copy constructor – not implemented
DtReflectedEmitterSystemList &	operator= (const DtReflectedEmitterSystemList &orig)
	assignment operator – not implemented

Additional Inherited Members
Static Public Member Functions inherited from DtReflectedObjectList
static void	setAutoSubscribeFlag (bool flag)
	Set/Get flag which determines whether to subscribe to object classes that this list manages.
static bool	autoSubscribeFlag ()
static void	setRequestClassUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from all objects of the object classes we subscribe to.
static bool	requestClassUpdateFlag ()
static void	setRequestObjectUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from an object as we discover it.
static bool	requestObjectUpdateFlag ()
static void	findDiscoveredObjectsCb (void *usr)
	Post-drain callback that calls findAlreadyDiscovedObjects().
Static Protected Attributes inherited from DtReflectedObjectList
static bool	theAutoSubscribeFlag
static bool	theRequestClassUpdateFlag
static bool	theRequestObjectUpdateFlag

Detailed Description

Instances of DtReflectedEmitterSystemList manage the list of of remote EmitterSystems in the exercise.

Constructor & Destructor Documentation

DtReflectedEmitterSystemList::DtReflectedEmitterSystemList	(	DtExerciseConn *	exConn,
		bool	beamsUpdateSystems = true,
		const DtDDMRegionSet *	regionSetToUse = 0,
		const DtString &	updateRateTag = DtString("")
	)

Constructor If beamsUpdateSystems == true, then a system's post-update callbacks are called whenever one of the beams in the system is updated.

DtReflectedEmitterSystemList::DtReflectedEmitterSystemList	(	DtExerciseConn *	exConn,
		const DtList *	handleList,
		bool	beamsUpdateSystems = true,
		const DtDDMRegionSet *	regionSetToUse = 0,
		const DtString &	updateRateTag = DtString("")
	)

Constructor - only subscribe to the RTI::ObjectClassHandles in handleList.

virtual DtReflectedEmitterSystemList::~DtReflectedEmitterSystemList ( )

virtual

destructor

DtReflectedEmitterSystemList::DtReflectedEmitterSystemList ( const DtReflectedEmitterSystemList &  orig )

private

copy constructor – not implemented

Member Function Documentation

virtual void DtReflectedEmitterSystemList::addEmitterSystemAdditionCallback ( DtEmitterSystemCallbackFunction  cb, void *  usr  )

virtual

EmitterSystem added callback registration/deregistration.

Called when an emitter system is added due to discovery of a system OR beam.

virtual void DtReflectedEmitterSystemList::addEmitterSystemRemovalCallback ( DtEmitterSystemCallbackFunction  cb, void *  usr  )

virtual

EmitterSystem removed callback registration/deregistration.

Called when an emitter system is removed due to discovery of a system OR beam.

virtual void DtReflectedEmitterSystemList::clearBeamDiscoveryCondition ( )

virtual

Call this function to remove the previously registered discovery condition.

virtual void DtReflectedEmitterSystemList::clearDiscoveryCondition ( )

virtual

Overrides the DtReflectedObjectList::clearDiscoveryCondition.

This function clears the discovery condition on the emitter systems and beams.

Reimplemented from DtReflectedObjectList.

virtual bool DtReflectedEmitterSystemList::delayBeamDiscovery ( DtReflectedObject *  beam, void *  usr  )

virtual

The following function checks whether a beam should be discovered; It only gets called if discovery conditions get registered either by calling DtReflectedEmitterSystemList::setDiscoveryCondition() or DtReflectedEmitterSystemList::setBeamDiscoveryCondition().

static bool DtReflectedEmitterSystemList::delayBeamDiscoveryCondition ( DtReflectedObject *  beam, void *  usr  )

staticprotected

The following discovery condition function gets set for EmitterBeams when users register a discovery condition for either DtReflectedEmitterSystemList or its beam list.

Calls DtReflectedEmitterSystem::delayBeamDiscovery()

virtual const DtList* DtReflectedEmitterSystemList::dfltHandleList ( )

protectedvirtual

Returns a DtList of RTI::ObjectClassHandles that represent the list of object classes to which this list should subscribe.

static void DtReflectedEmitterSystemList::emitterBeamAdditionCb ( DtReflectedEmitterBeam *  beam, void *  usr  )

staticprotected

Callback functions registered with myBeamList on beam additions, updates, and removals.

Calls processEmitterBeamAddition/Update/Removal.

static void DtReflectedEmitterSystemList::emitterBeamRemovalCb ( DtReflectedEmitterBeam *  beam, void *  usr  )

staticprotected

static void DtReflectedEmitterSystemList::emitterBeamUpdateCb ( DtReflectedEmitterBeam *  beam, void *  usr  )

staticprotected

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystemList::first ( ) const

virtual

Get the first/last emitter system in the list.

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystemList::last ( ) const

virtual

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystemList::lookup ( RTI::ObjectHandle  id )

virtual

Look up emitter system by identifier.

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystemList::lookup ( const DtGlobalObjectDesignator &  objName )

virtual

Look up emitter system by name.

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystemList::lookup ( const DtGlobalObjectDesignator &  emittingEntity, int  systemId  ) const

virtual

Lookup an emitter from its object ID and system ID.

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystemList::newReflectedEmitterSystem ( const DtGlobalObjectDesignator &  des ) const

protectedvirtual

Create a remote emitter system object for the HLA object.

Caller is responsible for deletion.

virtual DtReflectedObject* DtReflectedEmitterSystemList::newReflectedObject ( DtHlaObject *  obj ) const

protectedvirtual

Override of virtual function. Here, we create a DtReflectedEmitterSystem.

Implements DtReflectedObjectList.

virtual void DtReflectedEmitterSystemList::objectAdded ( DtReflectedObject *  obj )

protectedvirtual

Called from processDiscoverObject() after a remote transmitter has been added to the list.

Default implementation prints a message. Subclasses can override this function to add functionality on addition. obj will be an instance of a class derived from DtReflectedObj.

Reimplemented from DtReflectedObjectList.

DtReflectedEmitterSystemList& DtReflectedEmitterSystemList::operator= ( const DtReflectedEmitterSystemList &  orig )

private

assignment operator – not implemented

virtual void DtReflectedEmitterSystemList::processDiscoverObject ( DtHlaObject *  obj )

protectedvirtual

Process the discovery of a remote emitter system on the network.

Can't use base version, since we need to account for systems that are already in the list by virtue of discovered beams.

Reimplemented from DtReflectedObjectList.

virtual void DtReflectedEmitterSystemList::processEmitterBeamAddition ( DtReflectedEmitterBeam *  beam )

protectedvirtual

Called by similar callback functions registered with myBeamList on beam additions/removals.

Addition function adds the beam to the set of orphan beams (since we don't know what system he's part of), the removal function removes the beam's beamSR from his system's systemSR. Update function calls the beam's system update callbacks if beamsUpdateSystems == true in the reflected system list constructor.

virtual void DtReflectedEmitterSystemList::processEmitterBeamRemoval ( DtReflectedEmitterBeam *  beam )

protectedvirtual

virtual void DtReflectedEmitterSystemList::processEmitterBeamUpdate ( DtReflectedEmitterBeam *  beam )

protectedvirtual

virtual void DtReflectedEmitterSystemList::processRemoveObject ( DtHlaObject *  obj )

protectedvirtual

Process the removal of a remote emitter system from the network.

Removes the remote emitter system from this list. Can't use base version, since we need to keep systems that still have live beams.

Reimplemented from DtReflectedObjectList.

virtual DtReflectedEmitterBeamList* DtReflectedEmitterSystemList::refBeamList ( )

virtual

Returns a pointer to a reflected emitter beam list that we are using internally to track our constituent beams.

Normally, you do not need to access this beam list. Instead, you should find out the state of a beam by going through the parent DtReflectedEmitterSystem, and its DtEmitterSystemRepository (through which you can get a list of DtEmitterBeamRepositories). This function, however, may be used in conjunction with ownership management. If you want to take ownership of some attributes of a beam object, use this function to grab the beam list, find the appropriate beam's DtHlaObject, and pass it to the DtEmitterBeamPublisher's constructor.

virtual void DtReflectedEmitterSystemList::removeEmitterSystemAdditionCallback ( DtEmitterSystemCallbackFunction  cb, void *  usr  )

virtual

virtual void DtReflectedEmitterSystemList::removeEmitterSystemRemovalCallback ( DtEmitterSystemCallbackFunction  cb, void *  usr  )

virtual

virtual void DtReflectedEmitterSystemList::resolveOrphans ( )

protectedvirtual

Check if any orphanBeams have non-NULL emittingSystemId.

If so, add them to their appropriate system (creating one if it doesn't exist), and delete them from orphan list.

static void DtReflectedEmitterSystemList::resolveOrphansPostDrainCb ( void *  usr )

staticprotected

Callback that calls resolveOrphans.

virtual void DtReflectedEmitterSystemList::setBeamDiscoveryCondition ( DtDiscoveryCondition  fn, void *  usr  )

virtual

Call this function to register a discovery condition on the beams of Emitter Systems.

Generally, it will be preferable to call this function rather than calling setDiscoveryCondition() directly on the beamList. (Calling setDiscoveryCondition() directly will over-ride the mechanism by which beam discoveries are delayed when a user registers a discovery condition on DtReflectedEmitterSystem – See comment above).

virtual void DtReflectedEmitterSystemList::setDiscoveryCondition ( DtDiscoveryCondition  fn, void *  usr  )

virtual

Over-rides DtReflectedObjectList::setDiscoveryCondition().

This function checks that emitter system objects satisfy the given criteria before getting discovered and added to the list (the discovery of beams belonging to the system will also be delayed until the after the system is discovered)

Reimplemented from DtReflectedObjectList.

virtual bool DtReflectedEmitterSystemList::shouldBeTimedOut ( DtReflectedObject *  object )

protectedvirtual

Returns whether or not the object should be timed out.

Assumes that timeout processing is enabled. Can't use base version since we don't want to time out systems with live beams.

Reimplemented from DtReflectedObjectList.

Member Data Documentation

DtDiscoveryCondition DtReflectedEmitterSystemList::myBeamDiscoveryCondition

protected

void* DtReflectedEmitterSystemList::myBeamDiscoveryConditionParameter

protected

DtReflectedEmitterBeamList DtReflectedEmitterSystemList::myBeamList

protected

bool DtReflectedEmitterSystemList::myBeamsUpdateSystems

protected

DtObjectId DtReflectedEmitterSystemList::myCounterId

mutableprotected

DtList DtReflectedEmitterSystemList::myOrphanBeams

protected

used for generating dummy obj ids

---

The documentation for this class was generated from the following file:

• reflectedEmitterSystemListHLA.h
