DtInetUdpSocket Class Reference

An abstract base class to represent a Socket Type. More...

Inheritance diagram for DtInetUdpSocket:

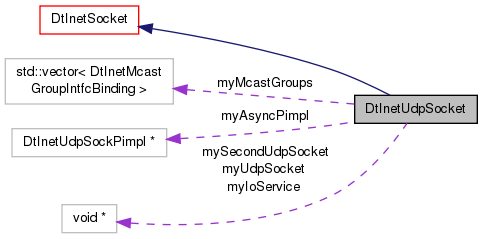

Collaboration diagram for DtInetUdpSocket:

Public Member Functions
	DtInetUdpSocket ()
	Default Constructor.
	DtInetUdpSocket (const DtInetEndpoint &dest, DtU16 localPort=0, DtInetDevice *hostIf=NULL, DtU32 flags=DtDefaultSockOpts, bool immediateOpen=true)
	Client Socket Constructor.
virtual	~DtInetUdpSocket ()
	Destructor.
virtual bool	setDestination (const DtInetEndpoint &dest)
	Set / get the destination endpoint for the socket.
virtual bool	openSocket ()
	Enable sending and receiving of packets.
virtual bool	closeSocket ()
	Close a socket.
virtual bool	bindToDevice (const DtInetDevice *hostIf=NULL)
	Set the network interface device the socket will attempt to bind to on the local host.
virtual bool	connectToDestination ()
	Initiate a connection to a single unicast destination endpoint.
virtual bool	disconnect ()
	Dissolve any unicast connection and return to normal 'connectionless' operation.
virtual bool	isOk ()
	Deprecated.
virtual int	descriptor () const
	Get the socket's descriptor.
virtual bool	setSocket (const DtInetEndpoint &dest, DtU16 localPort=0, DtInetDevice *hostIf=NULL, DtU32 flags=DtDefaultSockOpts)
	Set all socket parameters at once.
virtual void *	udpSocket ()
	Return the underlying socket object.
virtual void *	secondUdpSocket ()
	Return the second underlying socket object.
Send methods.
Use send() or sendChain() to write to the socket's default destination endpoint, whether the socket is in CONNECTED state or not. Use sendTo() or sendChainTo() on unconnected sockets to send to any endpoint, including the default destination, by specifying the endpoint in 'dest'. If sendTo() or sendChainTo() is used on a socket in the CONNECTED the destination endpoint will be ignored and the packet will be sent to the default destination. Return the number of bytes sent or -1 if an error occurs. Use getLastError() and getLastErrorString() to retrieve cause of failure.
virtual int	send (caddr_t packet, size_t size, DtU32 flags=0)
	Simple send methods.
virtual int	sendTo (caddr_t packet, size_t size, DtInetEndpoint &dest, DtU32 flags=0)
	Simple send methods.
virtual int	sendChain (DtInetBufferChain &packets, DtU32 flags=0)
	Send from a chain of buffers.
virtual int	sendChainTo (DtInetBufferChain &packets, DtInetEndpoint &dest, DtU32 flags=0)
	Simple send methods.
Receive methods.
If the socket is in the CONNECTED state it will only receive packets from the designated connected host regardless of the receive method invoked. Return a status code if an error occurs or if the received packet was discarded by packet filtering. If packet filtering is enabled this method may return empty buffers. Otherwise the number of bytes received is returned in which case the return value should be cast to an integer type. If an error occurs use getLastError() and getLastErrorString() to retrieve the cause of the failure.
virtual DtInetSockRcvStatus	recv (caddr_t buff, size_t buffSize, DtU32 flags=0)
	Simple receive method.
virtual DtInetSockRcvStatus	recvToChain (DtInetBufferChain &packets, DtU32 flags=0)
	Receives into a buffer chain.
virtual DtInetSockRcvStatus	recvFrom (caddr_t buff, size_t buffSize, DtInetEndpoint &src, DtU32 flags=0)
	Same as above, but sets 'src' to reflect peer from which the packet was received.
virtual DtInetSockRcvStatus	recvToChainFrom (DtInetBufferChain &packets, DtInetEndpoint &src, DtU32 flags=0)
	Simple receive method.
Set / get socket options.
These methods provides an interface to all supported socket options. The socket must be open in order to use these methods.
virtual bool	setNonBlockingOption (bool onOrOff)
virtual bool	setSendBufferSize (DtU32 size)
virtual bool	setReceiveBufferSize (DtU32 size)
virtual bool	setBroadcastOption (bool onOrOff)
virtual bool	setReuseAddressOption (bool onOrOff)
virtual bool	setDoNotRouteOption (bool onOrOff)
virtual bool	setSendLowWatermark (DtU32 size)
virtual bool	setReceiveLowWatermark (DtU32 size)
virtual bool	setMcastDevice (const DtInetAddr &devAddr)
virtual bool	setMcastDevice (DtInetDevice *hostIf)
virtual DtU32	getSendBufferSize ()
virtual DtU32	getReceiveBufferSize ()
virtual DtU32	getBytesAvailable ()
virtual bool	getBroadcastOption ()
virtual bool	getReuseAddressOption ()
virtual bool	getDoNotRouteOption ()
virtual DtU32	getSendLowWatermark ()
virtual DtU32	getReceiveLowWatermark ()
Multicast specific methods.
Join / drop subscription to multicast group. Socket will join group identified by the multicast address in grpAddr or grpEndpoint. If an object is passed in the port value of the endpoint will be ignored and the socket will join from the same port the socket's local endpoint uses. If no interface is specified in the join it will join on the host's default multicast interface.
virtual bool	joinMulticastGroup (const DtInetAddr &grpAddr, DtInetDevice *device=NULL)
	Change the default time-to-live on outbound multicast packets sent from this socket.
virtual bool	joinMulticastGroup (const DtInetEndpoint &grpEndpoint, DtInetDevice *device=NULL)
	Change the default time-to-live on outbound multicast packets sent from this socket.
virtual bool	dropMulticastGroup (const DtInetAddr &grpAddr, DtInetDevice *device=NULL)
	Change the default time-to-live on outbound multicast packets sent from this socket.
virtual bool	dropMulticastGroup (const DtInetEndpoint &grpEndpoint, DtInetDevice *device=NULL)
	Change the default time-to-live on outbound multicast packets sent from this socket.
virtual bool	setMcastTtlOption (DtU32 ttl)
	Change the default time-to-live on outbound multicast packets sent from this socket.
Public Member Functions inherited from DtInetSocket
	DtInetSocket ()
	Default Constructor.
virtual	~DtInetSocket ()
	Destructor.
virtual const DtInetEndpoint &	destination () const
virtual const DtInetEndpoint &	localEndpoint () const
	Get the local endpoint for the socket.
virtual bool	setLocalPort (DtU16 port)
	Set / get the local port number of the socket.
virtual DtU16	localPort () const
virtual const DtInetDevice *	hostIf () const
	Get the host network interface device the socket is bound to.
virtual DtInetSockState	state ()
	Return the present state of the socket.
virtual DtU32	protocol () const
	Get the protocol (DtInetProtocol_TCP or DtInetProtocol_UDP)
virtual DtInetUtils::DtInetAddrFamily	family () const
	Get the address family, IPv4 or IPv6.
virtual int	getLastError ()
	Return code or string describing last error.
virtual DtString	getLastErrorString ()
virtual bool	isErrorWouldBlockOrTryAgain ()
virtual void	clearError ()
virtual int	getTerminationCode ()
	Return code or string describing termination cause.
virtual DtString	getTerminationString ()
virtual DtU64	totalBytesSent () const
	Get traffic statistics.
virtual DtU64	totalPacketsSent () const
virtual DtU64	totalBytesReceived () const
virtual DtU64	totalPacketsReceived () const
virtual void	clearStats ()
	Reset all statistics.
virtual bool	addProcessingCallback (DtInetSockProcessingType kind, DtInetSocketProcessingCallback cb, void *usr, int callSequence=-1)
	Add / remove pre- and post- processing callbacks.
virtual bool	removeProcessingCallback (DtInetSockProcessingType kind, DtInetSocketProcessingCallback cb)
virtual bool	isNonBlocking () const
virtual bool	isNoDelay () const
virtual bool	isIPv4 () const
	Return true if the socket matches the queried family or protocol.
virtual bool	isIPv6 () const
	Return true if the socket matches the queried family or protocol.
virtual bool	isTcp () const
	Return true if the socket matches the queried family or protocol.
virtual bool	isUdp () const
	Return true if the socket matches the queried family or protocol.

Protected Types
typedef std::pair< DtInetAddr, DtInetAddr >	DtInetMcastGroupIntfcBinding
	Associate the multicast group address with the host interface address the group is joined from.
typedef std::vector < DtInetMcastGroupIntfcBinding >	DtInetMcastGroupBindings

Protected Attributes
void *	myIoService
void *	myUdpSocket
void *	mySecondUdpSocket
DtInetMcastGroupBindings	myMcastGroups
Protected Attributes inherited from DtInetSocket
DtInetEndpoint	myLocalEndpoint
DtInetEndpoint	myRemoteEndpoint
DtInetDevice *	myHostIf
DtInetSockState	myState
DtU32	myFlags
bool	myAsync
bool	myNonBlockingEnabled
bool	myNoDelayEnabled
bool	myStartImmediately
int	myErrorCode
DtString	myErrorString
int	myTerminationCode
DtString	myTerminationString
DtInetSockCallbackList	myPreRecvCallbacks
DtInetSockCallbackList	myPostRecvCallbacks
DtInetSockCallbackList	myPreSendCallbacks
DtInetSockCallbackList	myPostSendCallbacks
DtU64	mySentByteCount
DtU64	mySentPacketCount
DtU64	myReceivedByteCount
DtU64	myReceivedPacketCount

Private Member Functions
	DtInetUdpSocket (const DtInetUdpSocket &orig)
	Copy constructor not implemented.
DtInetUdpSocket &	operator= (const DtInetUdpSocket &orig)
	Assignment not implemented.

Private Attributes
DtInetUdpSockPimpl *	myAsyncPimpl

Friends
class	DtInetUdpSockPimpl
	For async operations.

Additional Inherited Members
Protected Member Functions inherited from DtInetSocket
virtual bool	findAndRemoveCallback (DtInetSockCallbackList &cbList, DtInetSocketProcessingCallback cb)

Detailed Description

An abstract base class to represent a Socket Type.

Member Typedef Documentation

typedef std::vector<DtInetMcastGroupIntfcBinding> DtInetUdpSocket::DtInetMcastGroupBindings

protected

typedef std::pair<DtInetAddr, DtInetAddr> DtInetUdpSocket::DtInetMcastGroupIntfcBinding

protected

Associate the multicast group address with the host interface address the group is joined from.

Constructor & Destructor Documentation

DtInetUdpSocket::DtInetUdpSocket

(

)

Default Constructor.

DtInetUdpSocket::DtInetUdpSocket	(	const DtInetEndpoint &	dest,
		DtU16	localPort = 0,
		DtInetDevice *	hostIf = NULL,
		DtU32	flags = DtDefaultSockOpts,
		bool	immediateOpen = true
	)

Client Socket Constructor.

Takes a DtInetEndpoint (containing the destination address, protocol (must be UDP), and destination port number), a source port number to use, a pointer to the local network interface device the socket will be bound to, socket option flags, and an 'immediateOpen' indicator dictating how the socket should behave upon creation. The address family (IPv4 or IPv6) is assumed from the destin- ation endpoint object. If the specified local port is 0 an ephemeral port will be chosen for the connection UNLESS the destination is a broadcast or multicast address, in which case the destination port is used as the local port also. If no host interface is specified the most appropriate interface will be chosen based on the destination. If the destination endpoint specifies a multicast address the multicast group is joined automatically when the socket is opened and the group member- ship is dropped when the socket is closed. If the 'immediateOpen' parameter is true the socket will immediately try to bind to an interface and allow datagrams to be sent and received using the default packet handlers which perform no parsing of packets. To use custom packet handlers for the send and receive functions set 'immediateOpen' to false, configure the packet handler callbacks, then call openSocket() or connectToDestination() if the socket will only communicate with a single remote host. This ctor will not throw exceptions on failure. Check the socket status by calling state() (or isOk()) to determine if the socket is ready.

virtual DtInetUdpSocket::~DtInetUdpSocket ( )

virtual

Destructor.

DtInetUdpSocket::DtInetUdpSocket ( const DtInetUdpSocket &  orig )

private

Copy constructor not implemented.

Member Function Documentation

virtual bool DtInetUdpSocket::bindToDevice ( const DtInetDevice *  hostIf = NULL )

virtual

Set the network interface device the socket will attempt to bind to on the local host.

The actual bind takes place after the socket is opened. If hostIf is NULL the socket will bind to the first device with an assigned IP address that most closely matches the destination endpoint family and prefix. If the socket's destination endpoint specifies a broadcast address the socket will bind to the specified interface's default broadcast address even if it does not match the broadcast address in the destination endpoint (ie. it's idiot-proof). Returns true on success and false on failure. Call getLastError() and getLastErrorString() to retrieve cause of failure.

Implements DtInetSocket.

virtual bool DtInetUdpSocket::closeSocket ( )

virtual

Close a socket.

Returns true on successful close or false on failure. Call getLastError() and getLastErrorString() to retrieve cause of failure.

Implements DtInetSocket.

Reimplemented in DtDisSocket.

virtual bool DtInetUdpSocket::connectToDestination ( )

virtual

Initiate a connection to a single unicast destination endpoint.

For UDP sockets this precludes sending and receiving broadcast and multicast while the socket is connected. It is not necessary to call connectToDestination() for normal UDP socket communication with multiple hosts or when performing broadcast or multicast send / receive. The destination can be changed at will on UDP sockets by calling setDestination() and connectToDestination() in succession. The socket state will be set to CONNECTED to indicate the socket is only communicating with one destination endpoint. To dissolve a connection (eg. communicate with more than one host at will) use disconnect(). The state will be set to OPEN when the connection is dissolved. Since there is no handshaking to confirm that communication with the destination is possible this method always returns true unless an error occurs. Call getLastError() and getLastErrorString() to retrieve the cause of the failure.

Implements DtInetSocket.

virtual int DtInetUdpSocket::descriptor ( ) const

virtual

Get the socket's descriptor.

Implements DtInetSocket.

virtual bool DtInetUdpSocket::disconnect ( )

virtual

Dissolve any unicast connection and return to normal 'connectionless' operation.

virtual bool DtInetUdpSocket::dropMulticastGroup ( const DtInetAddr &  grpAddr, DtInetDevice *  device = NULL  )

virtual

Change the default time-to-live on outbound multicast packets sent from this socket.

virtual bool DtInetUdpSocket::dropMulticastGroup ( const DtInetEndpoint &  grpEndpoint, DtInetDevice *  device = NULL  )

virtual

Change the default time-to-live on outbound multicast packets sent from this socket.

virtual bool DtInetUdpSocket::getBroadcastOption ( )

virtual

virtual DtU32 DtInetUdpSocket::getBytesAvailable ( )

virtual

Implements DtInetSocket.

virtual bool DtInetUdpSocket::getDoNotRouteOption ( )

virtual

Implements DtInetSocket.

virtual DtU32 DtInetUdpSocket::getReceiveBufferSize ( )

virtual

Implements DtInetSocket.

virtual DtU32 DtInetUdpSocket::getReceiveLowWatermark ( )

virtual

Implements DtInetSocket.

virtual bool DtInetUdpSocket::getReuseAddressOption ( )

virtual

Implements DtInetSocket.

virtual DtU32 DtInetUdpSocket::getSendBufferSize ( )

virtual

Implements DtInetSocket.

virtual DtU32 DtInetUdpSocket::getSendLowWatermark ( )

virtual

Implements DtInetSocket.

virtual bool DtInetUdpSocket::isOk ( )

virtual

Deprecated.

Provided for compatibility with DtSocket. For UDP sockets returns true if socket is open (or connected)

Reimplemented from DtInetSocket.

virtual bool DtInetUdpSocket::joinMulticastGroup ( const DtInetAddr &  grpAddr, DtInetDevice *  device = NULL  )

virtual

Change the default time-to-live on outbound multicast packets sent from this socket.

virtual bool DtInetUdpSocket::joinMulticastGroup ( const DtInetEndpoint &  grpEndpoint, DtInetDevice *  device = NULL  )

virtual

Change the default time-to-live on outbound multicast packets sent from this socket.

virtual bool DtInetUdpSocket::openSocket ( )

virtual

Enable sending and receiving of packets.

Returns true on success or false on failure. Call getLastError() and getLastErrorString() to retrieve cause of failure.

Implements DtInetSocket.

Reimplemented in DtDisSocket.

DtInetUdpSocket& DtInetUdpSocket::operator= ( const DtInetUdpSocket &  orig )

private

Assignment not implemented.

virtual DtInetSockRcvStatus DtInetUdpSocket::recv ( caddr_t  buff, size_t  buffSize, DtU32  flags = 0  )

virtual

Simple receive method.

This method does NOT perform pre- or post- reception callbacks. It receives into a single user-supplied buffer. If buffSize is too small for the packet this method will fill 'buff' with as much data as possible and return DtInetSockRcv_BUFFER_TOO_SMALL. The unreturned data is discarded.

Implements DtInetSocket.

virtual DtInetSockRcvStatus DtInetUdpSocket::recvFrom ( caddr_t  buff, size_t  buffSize, DtInetEndpoint &  src, DtU32  flags = 0  )

virtual

Same as above, but sets 'src' to reflect peer from which the packet was received.

Implements DtInetSocket.

Reimplemented in DtDisSocket.

virtual DtInetSockRcvStatus DtInetUdpSocket::recvToChain ( DtInetBufferChain &  packets, DtU32  flags = 0  )

virtual

Receives into a buffer chain.

This method CAN perform pre- and post- reception callbacks. The chain can be populated with buffers by the user in which case as much received data as possible that will fit in the available buffers is returned. If the buffer chain is too small for a single datagram packet this method will fill it with as much data as possible and return DtInetSockRcv_BUFFER_TOO_SMALL. The unreturned data is discarded. If the chain supplied by the caller is empty the method will allocate buffers and add them to the chain.

Implements DtInetSocket.

virtual DtInetSockRcvStatus DtInetUdpSocket::recvToChainFrom ( DtInetBufferChain &  packets, DtInetEndpoint &  src, DtU32  flags = 0  )

virtual

Simple receive method.

This method does NOT perform pre- or post- reception callbacks. It receives into a single user-supplied buffer. If buffSize is too small for the packet this method will fill 'buff' with as much data as possible and return DtInetSockRcv_BUFFER_TOO_SMALL. The unreturned data is discarded.

Implements DtInetSocket.

virtual void* DtInetUdpSocket::secondUdpSocket ( )

virtual

Return the second underlying socket object.

This socket is only opened under linux, and only when the remote endpoint is broadcast, and a host interface address has been specified. Otherwise, this is a copy of the first socket.

virtual int DtInetUdpSocket::send ( caddr_t  packet, size_t  size, DtU32  flags = 0  )

virtual

Simple send methods.

The send() and sendChain() methods DO NOT support pre- or post- processing callbacks (eg. bundling, backlog queueing)

Implements DtInetSocket.

Reimplemented in DtDisSocket.

virtual int DtInetUdpSocket::sendChain ( DtInetBufferChain &  packets, DtU32  flags = 0  )

virtual

Send from a chain of buffers.

For 'gather' send operations or when pre- or post- processing callbacks are used (eg. bundling, backlog queueing)

Implements DtInetSocket.

Reimplemented in DtDisSocket.

virtual int DtInetUdpSocket::sendChainTo ( DtInetBufferChain &  packets, DtInetEndpoint &  dest, DtU32  flags = 0  )

virtual

Simple send methods.

The send() and sendChain() methods DO NOT support pre- or post- processing callbacks (eg. bundling, backlog queueing)

Implements DtInetSocket.

Reimplemented in DtDisSocket.

virtual int DtInetUdpSocket::sendTo ( caddr_t  packet, size_t  size, DtInetEndpoint &  dest, DtU32  flags = 0  )

virtual

Simple send methods.

The send() and sendChain() methods DO NOT support pre- or post- processing callbacks (eg. bundling, backlog queueing)

Implements DtInetSocket.

Reimplemented in DtDisSocket.

virtual bool DtInetUdpSocket::setBroadcastOption ( bool  onOrOff )

virtual

virtual bool DtInetUdpSocket::setDestination ( const DtInetEndpoint &  dest )

virtual

Set / get the destination endpoint for the socket.

The endpoint protocol must not be TCP. If the protocol of the endpoint is not set, this call will automatically set it to UDP. The address family (IPv4 or IPv6) is assumed from the destination endpoint. The socket will not automatically connect when the destination is set. Use openSocket() or connectToDestination() to initiate communication on the socket. The destination can be changed at will on UDP sockets by calling setDestination() and connectToDestin- ation() in succession. To dissolve a connection (eg. communicate with more than one host at will) set the destination endpoint family to DtInetAddrFamily_INVALID, then call connectToDestination(). setDestination() returns true if the destination is valid for a UDP socket, false otherwise.

Implements DtInetSocket.

virtual bool DtInetUdpSocket::setDoNotRouteOption ( bool  onOrOff )

virtual

Implements DtInetSocket.

virtual bool DtInetUdpSocket::setMcastDevice ( const DtInetAddr &  devAddr )

virtual

virtual bool DtInetUdpSocket::setMcastDevice ( DtInetDevice *  hostIf )

virtual

virtual bool DtInetUdpSocket::setMcastTtlOption ( DtU32  ttl )

virtual

Change the default time-to-live on outbound multicast packets sent from this socket.

virtual bool DtInetUdpSocket::setNonBlockingOption ( bool  onOrOff )

virtual

Implements DtInetSocket.

virtual bool DtInetUdpSocket::setReceiveBufferSize ( DtU32  size )

virtual

Implements DtInetSocket.

virtual bool DtInetUdpSocket::setReceiveLowWatermark ( DtU32  size )

virtual

Implements DtInetSocket.

virtual bool DtInetUdpSocket::setReuseAddressOption ( bool  onOrOff )

virtual

Implements DtInetSocket.

virtual bool DtInetUdpSocket::setSendBufferSize ( DtU32  size )

virtual

Implements DtInetSocket.

virtual bool DtInetUdpSocket::setSendLowWatermark ( DtU32  size )

virtual

Implements DtInetSocket.

virtual bool DtInetUdpSocket::setSocket ( const DtInetEndpoint &  dest, DtU16  localPort = 0, DtInetDevice *  hostIf = NULL, DtU32  flags = DtDefaultSockOpts  )

virtual

Set all socket parameters at once.

Returns true if the socket has not previously been opened and initialization succeeds, false otherwise.

Implements DtInetSocket.

virtual void* DtInetUdpSocket::udpSocket ( )

virtual

Return the underlying socket object.

Must be cast to appropriate type before using

Friends And Related Function Documentation

friend class DtInetUdpSockPimpl

friend

For async operations.

Member Data Documentation

DtInetUdpSockPimpl* DtInetUdpSocket::myAsyncPimpl

private

void* DtInetUdpSocket::myIoService

protected

DtInetMcastGroupBindings DtInetUdpSocket::myMcastGroups

protected

void* DtInetUdpSocket::mySecondUdpSocket

protected

void* DtInetUdpSocket::myUdpSocket

protected

---

The documentation for this class was generated from the following file:

• vlInetUdpSocket.h
