DtReflectedObjectList Class Reference

class DtReflectedObjectList More...

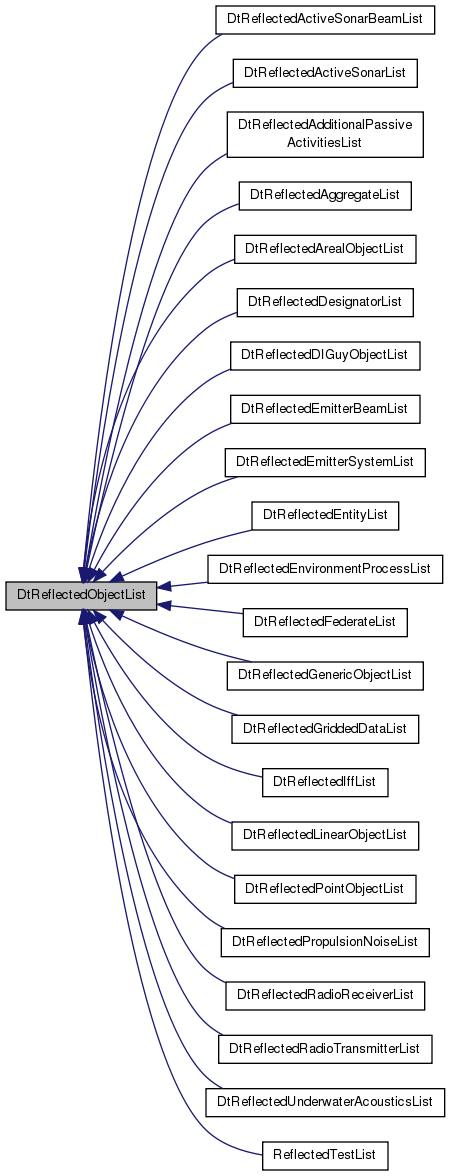

Inheritance diagram for DtReflectedObjectList:

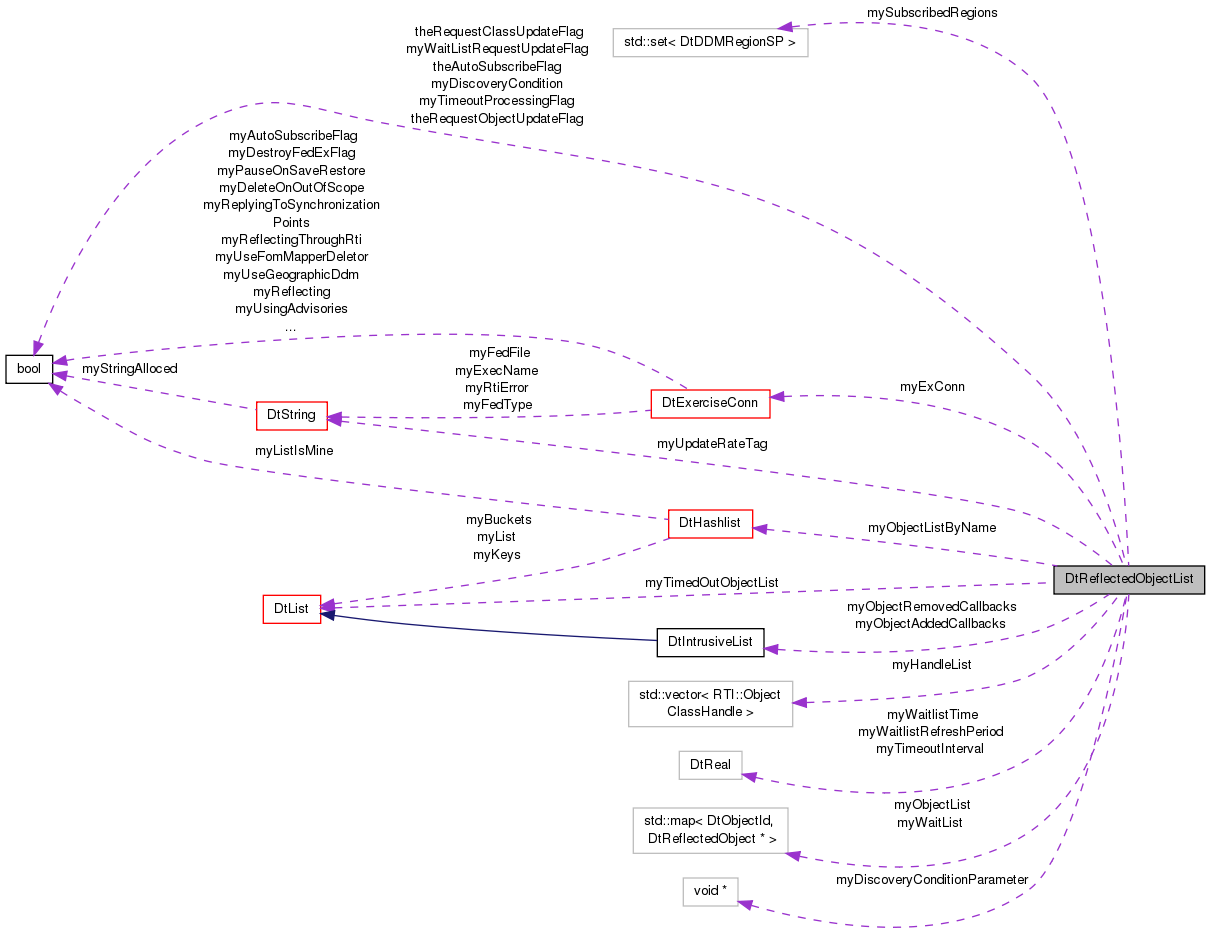

Collaboration diagram for DtReflectedObjectList:

Public Member Functions
	DtReflectedObjectList (DtExerciseConn *exConn, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor.
virtual	~DtReflectedObjectList ()
	destructor
virtual DtReflectedObject *	lookupObj (RTI::ObjectInstanceHandle id)
	Look up object by identifier.
virtual DtReflectedObject *	lookupObj (const DtGlobalObjectDesignator &objName)
	Look up object by global ID (which is the object name in RTI1.3.3).
virtual DtReflectedObject *	firstObj () const
	Get the first/last object in the list.
virtual DtReflectedObject *	lastObj () const
virtual int	count () const
	Get number of objects.
virtual DtExerciseConn *	exerciseConn () const
	Get my exerciseConn.
virtual void	manageObjectClass (RTI::ObjectClassHandle handle)
	Register callbacks with exercise connection so that we get notified when an object of this class is discovered.
virtual bool	removeObject (const DtObjectId &id)
	Have the application act as though we had never discovered the object.
virtual void	addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object added callback registration/deregistration.
virtual void	removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object removed callback registration/deregistration.
virtual void	removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	print ()
	Print the SRs of all objects.
virtual void	setTimeoutProcessing (bool onOff)
	Set whether or not timeout processing occurs.
virtual bool	isTimeoutProcessing () const
	Get whether or not timeout processing occurs.
virtual void	setWaitListRefreshEnabled (bool on)
	Set whether or not we will request updates for objects which have not met discovery and are therefor wait listed.
virtual void	setTimeoutInterval (DtTime time)
	Set/Get the remote object timeout period.
virtual DtTime	timeoutInterval ()
virtual void	setWaitlistRefreshPeriod (DtTime time)
	Set/Get the wait list refresh period.
virtual DtTime	waitlistRefreshPeriod ()
virtual void	setDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Set the checker function which will determine when an object gets discovered and put into the reflected list.
virtual void	clearDiscoveryCondition ()
	Unregisters the checker function set in setDiscoverCondition.
virtual const DtDDMRegionSet &	subscribedRegions ()
	Returns list of regions subscribed to.

Static Public Member Functions
static void	setAutoSubscribeFlag (bool flag)
	Set/Get flag which determines whether to subscribe to object classes that this list manages.
static bool	autoSubscribeFlag ()
static void	setRequestClassUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from all objects of the object classes we subscribe to.
static bool	requestClassUpdateFlag ()
static void	setRequestObjectUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from an object as we discover it.
static bool	requestObjectUpdateFlag ()
static void	findDiscoveredObjectsCb (void *usr)
	Post-drain callback that calls findAlreadyDiscovedObjects().

Protected Member Functions
virtual void	processDiscoverObject (DtHlaObject *obj)
	Process the discovery of a remote object on the network.
virtual void	processRemoveObject (DtHlaObject *obj)
	Process the removal of a remote object from the network.
virtual void	processTimedOutObjectReflect (const DtStateMsg &msg, DtHlaObject *obj)
	Handle the receipt of attributes for a remote object which was timed out.
virtual void	doTimeouts ()
	Remove any remote objects which have not been updated during the timeout period.
virtual void	doRequestWaitListUpdates ()
	Request an update for any objects which have not met their discovery criteria yet.
virtual DtReflectedObject *	newReflectedObject (DtHlaObject *obj) const =0
	Create a remote object object for the HLA object.
virtual void	removeAndDelete (DtReflectedObject *obj, char *msg=NULL)
	Remove the remote object from the list if found and delete it.
virtual void	objectAdded (DtReflectedObject *object)
	Called from processDiscoverObject() after a remote object has been added to the list.
virtual bool	shouldBeTimedOut (DtReflectedObject *object)
	Returns whether or not the object should be timed out.
virtual void	timeOutObject (DtReflectedObject *object)
	Times out object by removing it from the remote object list and deleting it.
virtual void	unTimeOutObject (DtHlaObject *obj)
	Manages callbacks and data used for reinstating a remote object which was timed out.
virtual void	addObjectClass (RTI::ObjectClassHandle handle)
	Register interest in this FOM object class.
virtual void	addObjectClassByName (const char *className)
	Register interest in this FOM object class by className.
virtual void	init (const DtList *handleList)
	Register interest in a whole list of RTI::ObjectClassHandles all at once.
void	emptyLists ()
	Empty the object list and the timeout list.
void	emptyCallbackLists ()
	Empty the callback lists.
virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks.
virtual void	processObjectRemovalCallbacks (DtReflectedObject *object)
virtual void	findAlreadyDiscoveredObjects ()
	When list is created, we call this function to go through the list of all discovered HLA objects to see if any should be managed by this list.
virtual void	checkDiscoveryCondition (DtReflectedObject *refObj)
virtual bool	readyToAdd (DtReflectedObject *obj)
	Returns true if the obj is ready to be added to myObjectList; calls myWaitListChecker from within.
virtual void	addToObjectList (DtReflectedObject *refObj)
	Add refObj to myObjectList and initiates discovery callbacks.
virtual DtReflectedObject *	lookupObjInWaitList (RTI::ObjectInstanceHandle id)
	Find object in waitList by identifier.
virtual DtReflectedObject *	lookupObjInWaitList (const DtGlobalObjectDesignator &name)
	Find object in waitList by name.
void	unsubscribeRegions ()

Static Protected Member Functions
static void	discoverObjectCb (DtHlaObject *hlaObj, void *rel)
	Cast the void* to a DtReflectedObjectList* and calls processDiscoverObject().
static void	removeObjectCb (DtHlaObject *hlaObj, void *rel)
	Cast the void* to a DtReflectedObjectList* and calls processRemoveObject().
static void	timedOutObjectReflectCb (const DtStateMsg &msg, DtHlaObject *obj, void *usr)
	Cast the void* to a DtReflectedObjectList* and calls processTimedOutObjectReflect().
static void	doTimeoutsPostDrainCb (void *usr)
	Calls doTimeouts.
static void	doRequestWaitListUpdatesPostDrainCb (void *usr)
	Calls doRequestWaitListUpdates.
static void	postUpdateCb (DtReflectedObject *obj, void *usr)
	Calls checkDiscoveryCondition.

Protected Attributes
DtExerciseConn *	myExConn
DtRefHlaObjectMap	myObjectList
DtHashList	myObjectListByName
DtRefHlaObjectMap	myWaitList
DtList	myTimedOutObjectList
std::vector < RTI::ObjectClassHandle >	myHandleList
DtIntrusiveList	myObjectAddedCallbacks
DtIntrusiveList	myObjectRemovedCallbacks
DtTime	myTimeoutInterval
bool	myTimeoutProcessingFlag
bool	myWaitListRequestUpdateFlag
DtDiscoveryCondition	myDiscoveryCondition
void *	myDiscoveryConditionParameter
DtTime	myWaitlistTime
DtTime	myWaitlistRefreshPeriod
DtDDMRegionSet	mySubscribedRegions
DtString	myUpdateRateTag

Static Protected Attributes
static bool	theAutoSubscribeFlag
static bool	theRequestClassUpdateFlag
static bool	theRequestObjectUpdateFlag

Private Member Functions
	DtReflectedObjectList (const DtReflectedObjectList &orig)
	copy constructor – not implemented
DtReflectedObjectList &	operator= (const DtReflectedObjectList &orig)
	assignment operator – not implemented

Detailed Description

class DtReflectedObjectList

Instances of DtReflectedObjectList are list of instances of classes derived from DtReflectedObject. A DtReflectedObjectList manages the comings and goings of its reflected objects based on discoveries and removes received from the RTI.

Constructor & Destructor Documentation

DtReflectedObjectList::DtReflectedObjectList	(	DtExerciseConn *	exConn,
		const DtDDMRegionSet *	regionSetToUse = 0,
		const DtString &	updateRateTag = DtString("")
	)

Constructor.

virtual DtReflectedObjectList::~DtReflectedObjectList ( )

virtual

destructor

DtReflectedObjectList::DtReflectedObjectList ( const DtReflectedObjectList &  orig )

private

copy constructor – not implemented

Member Function Documentation

virtual void DtReflectedObjectList::addObjectAdditionCallback ( DtReflectedObjectCallbackFunction  cb, void *  userData  )

virtual

Object added callback registration/deregistration.

virtual void DtReflectedObjectList::addObjectClass ( RTI::ObjectClassHandle  handle )

protectedvirtual

Register interest in this FOM object class.

Typically called by derived class constructor.

virtual void DtReflectedObjectList::addObjectClassByName ( const char *  className )

protectedvirtual

Register interest in this FOM object class by className.

Typically called by derived class constructor.

virtual void DtReflectedObjectList::addObjectRemovalCallback ( DtReflectedObjectCallbackFunction  cb, void *  userData  )

virtual

Object removed callback registration/deregistration.

virtual void DtReflectedObjectList::addToObjectList ( DtReflectedObject *  refObj )

protectedvirtual

Add refObj to myObjectList and initiates discovery callbacks.

Reimplemented in DtReflectedEntityList.

static bool DtReflectedObjectList::autoSubscribeFlag ( )

static

virtual void DtReflectedObjectList::checkDiscoveryCondition ( DtReflectedObject *  refObj )

protectedvirtual

virtual void DtReflectedObjectList::clearDiscoveryCondition ( )

virtual

Unregisters the checker function set in setDiscoverCondition.

If there is none set, this has no effect.

Reimplemented in DtReflectedUnderwaterAcousticsList, DtReflectedEmitterSystemList, and DtReflectedActiveSonarList.

virtual int DtReflectedObjectList::count ( ) const

virtual

Get number of objects.

static void DtReflectedObjectList::discoverObjectCb ( DtHlaObject *  hlaObj, void *  rel  )

staticprotected

Cast the void* to a DtReflectedObjectList* and calls processDiscoverObject().

virtual void DtReflectedObjectList::doRequestWaitListUpdates ( )

protectedvirtual

Request an update for any objects which have not met their discovery criteria yet.

static void DtReflectedObjectList::doRequestWaitListUpdatesPostDrainCb ( void *  usr )

staticprotected

Calls doRequestWaitListUpdates.

virtual void DtReflectedObjectList::doTimeouts ( )

protectedvirtual

Remove any remote objects which have not been updated during the timeout period.

Gets called automatically by a postDrainCallback registered by the constructor. Users should not need to call this.

static void DtReflectedObjectList::doTimeoutsPostDrainCb ( void *  usr )

staticprotected

Calls doTimeouts.

void DtReflectedObjectList::emptyCallbackLists ( )

protected

Empty the callback lists.

Non-virtual since it's meant to be called from the destructor

void DtReflectedObjectList::emptyLists ( )

protected

Empty the object list and the timeout list.

Non-virtual since meant to be called from destructor.

DtExerciseConn * DtReflectedObjectList::exerciseConn ( ) const

inlinevirtual

Get my exerciseConn.

References myExConn.

virtual void DtReflectedObjectList::findAlreadyDiscoveredObjects ( )

protectedvirtual

When list is created, we call this function to go through the list of all discovered HLA objects to see if any should be managed by this list.

Otherwise, this list only hears about objects that are discovered by the app after the creation of this list.

static void DtReflectedObjectList::findDiscoveredObjectsCb ( void *  usr )

static

Post-drain callback that calls findAlreadyDiscovedObjects().

DtReflectedObject * DtReflectedObjectList::firstObj ( ) const

inlinevirtual

Get the first/last object in the list.

References myObjectList.

virtual void DtReflectedObjectList::init ( const DtList *  handleList )

protectedvirtual

Register interest in a whole list of RTI::ObjectClassHandles all at once.

Uses addObjectClass above.

virtual bool DtReflectedObjectList::isTimeoutProcessing ( ) const

virtual

Get whether or not timeout processing occurs.

DtReflectedObject * DtReflectedObjectList::lastObj ( ) const

inlinevirtual

References myObjectList.

virtual DtReflectedObject* DtReflectedObjectList::lookupObj ( RTI::ObjectInstanceHandle  id )

virtual

Look up object by identifier.

virtual DtReflectedObject* DtReflectedObjectList::lookupObj ( const DtGlobalObjectDesignator &  objName )

virtual

Look up object by global ID (which is the object name in RTI1.3.3).

virtual DtReflectedObject* DtReflectedObjectList::lookupObjInWaitList ( RTI::ObjectInstanceHandle  id )

protectedvirtual

Find object in waitList by identifier.

virtual DtReflectedObject* DtReflectedObjectList::lookupObjInWaitList ( const DtGlobalObjectDesignator &  name )

protectedvirtual

Find object in waitList by name.

virtual void DtReflectedObjectList::manageObjectClass ( RTI::ObjectClassHandle  handle )

virtual

Register callbacks with exercise connection so that we get notified when an object of this class is discovered.

Automatically called for all object classes passed to the constructor, or for the default set of objects classes if the ctor without a handleList is used. But if you want to handle your own subscription and update requests, pass an empty handleSet to the constructor, use DtObjectClassDesc's registerInterest and requestUpdates, then use this function to tell the ROL to manage the objects that get discovered.

virtual DtReflectedObject* DtReflectedObjectList::newReflectedObject ( DtHlaObject *  obj ) const

protectedpure virtual

Create a remote object object for the HLA object.

Caller is responsible for deletion.

Implemented in DtReflectedUnderwaterAcousticsList, DtReflectedEntityList, DtReflectedEmitterSystemList, DtReflectedActiveSonarList, DtReflectedIffList, DtReflectedGenericObjectList, DtReflectedEnvironmentProcessList, DtReflectedDIGuyObjectList, DtReflectedAggregateList, DtReflectedGriddedDataList, DtReflectedActiveSonarBeamList, DtReflectedRadioReceiverList, DtReflectedRadioTransmitterList, DtReflectedLinearObjectList, DtReflectedAdditionalPassiveActivitiesList, DtReflectedPointObjectList, DtReflectedPropulsionNoiseList, DtReflectedArealObjectList, DtReflectedDesignatorList, DtReflectedFederateList, DtReflectedEmitterBeamList, and ReflectedTestList.

virtual void DtReflectedObjectList::objectAdded ( DtReflectedObject *  object )

protectedvirtual

Called from processDiscoverObject() after a remote object has been added to the list.

Defaults to do nothing. Subclasses can override this function to add functionality on addition.

Reimplemented in DtReflectedUnderwaterAcousticsList, DtReflectedEntityList, DtReflectedEmitterSystemList, DtReflectedActiveSonarList, DtReflectedAggregateList, DtReflectedEnvironmentProcessList, DtReflectedDIGuyObjectList, DtReflectedActiveSonarBeamList, DtReflectedGriddedDataList, DtReflectedRadioReceiverList, DtReflectedRadioTransmitterList, DtReflectedLinearObjectList, DtReflectedAdditionalPassiveActivitiesList, DtReflectedIffList, DtReflectedPointObjectList, DtReflectedPropulsionNoiseList, DtReflectedArealObjectList, DtReflectedDesignatorList, DtReflectedFederateList, and DtReflectedEmitterBeamList.

DtReflectedObjectList& DtReflectedObjectList::operator= ( const DtReflectedObjectList &  orig )

private

assignment operator – not implemented

static void DtReflectedObjectList::postUpdateCb ( DtReflectedObject *  obj, void *  usr  )

staticprotected

Calls checkDiscoveryCondition.

virtual void DtReflectedObjectList::print ( )

virtual

Print the SRs of all objects.

virtual void DtReflectedObjectList::processDiscoverObject ( DtHlaObject *  obj )

protectedvirtual

Process the discovery of a remote object on the network.

Adds the remote object to this list.

Reimplemented in DtReflectedEmitterSystemList, and DtReflectedActiveSonarList.

virtual void DtReflectedObjectList::processObjectAdditionCallbacks ( DtReflectedObject *  object )

protectedvirtual

Process object addition/removal callbacks.

virtual void DtReflectedObjectList::processObjectRemovalCallbacks ( DtReflectedObject *  object )

protectedvirtual

virtual void DtReflectedObjectList::processRemoveObject ( DtHlaObject *  obj )

protectedvirtual

Process the removal of a remote object from the network.

Removes the remote object from this list.

Reimplemented in DtReflectedEmitterSystemList, and DtReflectedActiveSonarList.

virtual void DtReflectedObjectList::processTimedOutObjectReflect ( const DtStateMsg &  msg, DtHlaObject *  obj  )

protectedvirtual

Handle the receipt of attributes for a remote object which was timed out.

Reinstates the remote object in this list.

virtual bool DtReflectedObjectList::readyToAdd ( DtReflectedObject *  obj )

protectedvirtual

Returns true if the obj is ready to be added to myObjectList; calls myWaitListChecker from within.

virtual void DtReflectedObjectList::removeAndDelete ( DtReflectedObject *  obj, char *  msg = NULL  )

protectedvirtual

Remove the remote object from the list if found and delete it.

Prints a message on deletion if specified.

Reimplemented in DtReflectedEntityList, DtReflectedIffList, and DtReflectedAggregateList.

virtual bool DtReflectedObjectList::removeObject ( const DtObjectId &  id )

virtual

Have the application act as though we had never discovered the object.

We call the RTI's localDelete service, and delete the DtHlaObject, which causes any DtReflectedObjects associated with id (in this list and in any others) to be removed. The object will be re-discovered (perhaps immediately), unless your subscriptions have changed so that the object is no longer relevant. Returns true if successful, false otherwise. Will be unsuccessful if you own attributes of the object in question.

virtual void DtReflectedObjectList::removeObjectAdditionCallback ( DtReflectedObjectCallbackFunction  cb, void *  userData  )

virtual

static void DtReflectedObjectList::removeObjectCb ( DtHlaObject *  hlaObj, void *  rel  )

staticprotected

Cast the void* to a DtReflectedObjectList* and calls processRemoveObject().

virtual void DtReflectedObjectList::removeObjectRemovalCallback ( DtReflectedObjectCallbackFunction  cb, void *  userData  )

virtual

static bool DtReflectedObjectList::requestClassUpdateFlag ( )

static

static bool DtReflectedObjectList::requestObjectUpdateFlag ( )

static

static void DtReflectedObjectList::setAutoSubscribeFlag ( bool  flag )

static

Set/Get flag which determines whether to subscribe to object classes that this list manages.

Defaults to true, but should be set to false if you will be managing subscriptions manually, e.g. if using DDM.

virtual void DtReflectedObjectList::setDiscoveryCondition ( DtDiscoveryCondition  fn, void *  usr  )

virtual

Set the checker function which will determine when an object gets discovered and put into the reflected list.

Reimplemented in DtReflectedUnderwaterAcousticsList, DtReflectedEmitterSystemList, and DtReflectedActiveSonarList.

static void DtReflectedObjectList::setRequestClassUpdateFlag ( bool  onOff )

static

Set/Get flag that determines whether we request updates from all objects of the object classes we subscribe to.

Default is true.

static void DtReflectedObjectList::setRequestObjectUpdateFlag ( bool  onOff )

static

Set/Get flag that determines whether we request updates from an object as we discover it.

Default is true.

void DtReflectedObjectList::setTimeoutInterval ( DtTime  time )

inlinevirtual

Set/Get the remote object timeout period.

References myTimeoutInterval.

virtual void DtReflectedObjectList::setTimeoutProcessing ( bool  onOff )

virtual

Set whether or not timeout processing occurs.

Defaults to off.

virtual void DtReflectedObjectList::setWaitListRefreshEnabled ( bool  on )

virtual

Set whether or not we will request updates for objects which have not met discovery and are therefor wait listed.

void DtReflectedObjectList::setWaitlistRefreshPeriod ( DtTime  time )

inlinevirtual

Set/Get the wait list refresh period.

References myWaitlistRefreshPeriod.

virtual bool DtReflectedObjectList::shouldBeTimedOut ( DtReflectedObject *  object )

protectedvirtual

Returns whether or not the object should be timed out.

Assumes that timeout processing is enabled.

Reimplemented in DtReflectedUnderwaterAcousticsList, DtReflectedEmitterSystemList, and DtReflectedActiveSonarList.

virtual const DtDDMRegionSet& DtReflectedObjectList::subscribedRegions ( )

virtual

Returns list of regions subscribed to.

static void DtReflectedObjectList::timedOutObjectReflectCb ( const DtStateMsg &  msg, DtHlaObject *  obj, void *  usr  )

staticprotected

Cast the void* to a DtReflectedObjectList* and calls processTimedOutObjectReflect().

DtTime DtReflectedObjectList::timeoutInterval ( )

inlinevirtual

References myTimeoutInterval.

virtual void DtReflectedObjectList::timeOutObject ( DtReflectedObject *  object )

protectedvirtual

Times out object by removing it from the remote object list and deleting it.

Manages callbacks to reinstate remote object upon receiving attribute updates for the timed out object.

void DtReflectedObjectList::unsubscribeRegions ( )

protected

virtual void DtReflectedObjectList::unTimeOutObject ( DtHlaObject *  obj )

protectedvirtual

Manages callbacks and data used for reinstating a remote object which was timed out.

DtTime DtReflectedObjectList::waitlistRefreshPeriod ( )

inlinevirtual

References myWaitlistRefreshPeriod.

Member Data Documentation

DtDiscoveryCondition DtReflectedObjectList::myDiscoveryCondition

protected

void* DtReflectedObjectList::myDiscoveryConditionParameter

protected

DtExerciseConn* DtReflectedObjectList::myExConn

protected

Referenced by exerciseConn().

std::vector<RTI::ObjectClassHandle> DtReflectedObjectList::myHandleList

protected

DtIntrusiveList DtReflectedObjectList::myObjectAddedCallbacks

protected

DtRefHlaObjectMap DtReflectedObjectList::myObjectList

protected

Referenced by firstObj(), and lastObj().

DtHashList DtReflectedObjectList::myObjectListByName

protected

DtIntrusiveList DtReflectedObjectList::myObjectRemovedCallbacks

protected

DtDDMRegionSet DtReflectedObjectList::mySubscribedRegions

protected

DtList DtReflectedObjectList::myTimedOutObjectList

protected

DtTime DtReflectedObjectList::myTimeoutInterval

protected

Referenced by setTimeoutInterval(), and timeoutInterval().

bool DtReflectedObjectList::myTimeoutProcessingFlag

protected

DtString DtReflectedObjectList::myUpdateRateTag

protected

DtRefHlaObjectMap DtReflectedObjectList::myWaitList

protected

DtTime DtReflectedObjectList::myWaitlistRefreshPeriod

protected

Referenced by setWaitlistRefreshPeriod(), and waitlistRefreshPeriod().

bool DtReflectedObjectList::myWaitListRequestUpdateFlag

protected

DtTime DtReflectedObjectList::myWaitlistTime

protected

bool DtReflectedObjectList::theAutoSubscribeFlag

staticprotected

bool DtReflectedObjectList::theRequestClassUpdateFlag

staticprotected

bool DtReflectedObjectList::theRequestObjectUpdateFlag

staticprotected

---

The documentation for this class was generated from the following file:

• reflectedObjectListHLA.h
