DtClientSocket Class Reference

ClientSocket uses the vrlink packet server to read and write packets The destination address (incl. More...

Inheritance diagram for DtClientSocket:

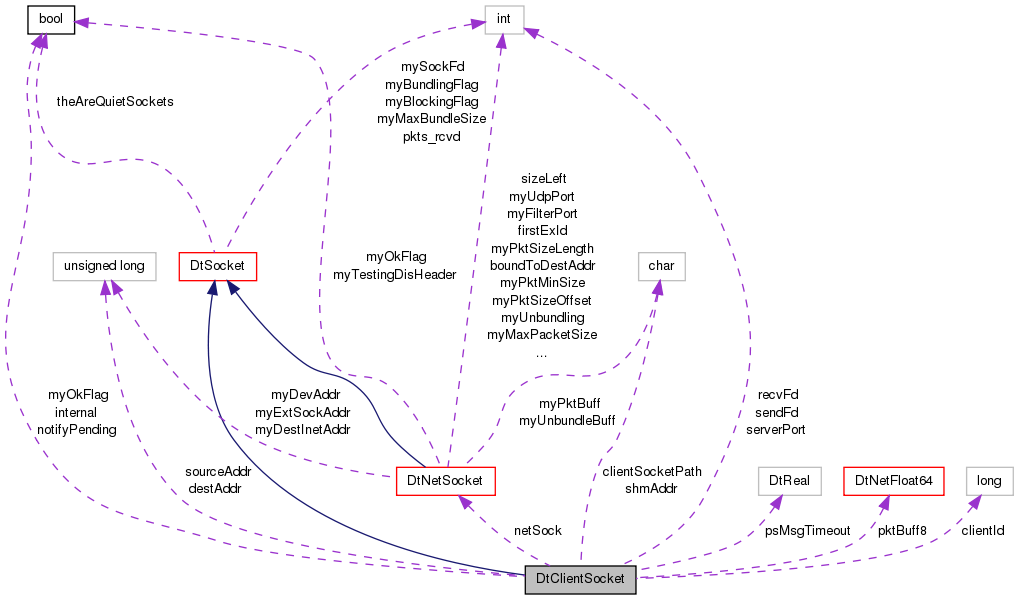

Collaboration diagram for DtClientSocket:

Public Member Functions
	DtClientSocket (int port, int recvQSize=DtCsQDefaultSize, unsigned short csFlags=DtCsFlagsDefault)
	DtClientSocket (int port, DtIpv4Addr destAddr, int recvQSize=DtCsQDefaultSize, unsigned short csFlags=DtCsFlagsDefault)
	~DtClientSocket ()
int	sendTo (caddr_t packet, size_t size, DtIpv4Addr addr)
	sendTo is a pure virtual function which subclasses should impliment to take packets and place them on a network interface.
int	DtRecv (caddr_t, size_t)
int	DtRecv (caddr_t *buffptr, int *status=NULL)
	This is slower as it does a memcpy().
int	listenToMulticastGroup (DtIpv4Addr multicastAddr)
int	dropMulticastGroup (DtIpv4Addr multicastAddr)
int	setMcastTtl (int ttl)
void	setUnbundling (int onOff)
DtIpv4Addr	lastSourceInetAddr ()
	int isUnbundling(); Is not currently implemented.
void	DtBecomeNonBlocking (void)
int	readFd ()
	Get the file descriptor for reading and writing to this socket.
int	writeFd ()
virtual bool	isOk () const
bool	isInternal ()
void	setPsMsgTimeout (int seconds)
void	notifyMe ()
void	disconnectFromServer ()
void	setPacketServerInternal ()
void	setPacketServerExternal ()
void	pingClients ()
void	testClients ()
void	terminatePacketServer ()
void	requestServerState ()
void	requestServerCStates ()
void	setPacketServerUnbundling (int onOff)
Public Member Functions inherited from DtSocket
	DtSocket ()
	Default constructor.
virtual	~DtSocket ()
	Default Destructor.
virtual int	DtSend (caddr_t packet, size_t size, DtIpv4Addr addr=DtUSE_DEFAULT_IP_ADDR)
	DtSend is called when someone wants to send a packet to this "Socket", in other words, all outgoing messages are passed to this socket via DtSend().
caddr_t	DtRecv ()
virtual DtFlushStatus	flush ()
	Send buffered messages.
virtual DtFlushStatus	flush (long &byteCount)
	Send buffered messages.
virtual void	setReceiveBufferSize (int newsize)
	Change the socket's receive buffer size that the OS uses to collect incoming data from the network.
virtual void	setSendBufferSize (int newsize)
	Change the socket's send buffer size that the OS uses when writing data to the network.
virtual void	setBundling (int maxSize)
virtual int	isBundling ()
virtual int	DtReportPktsRcvd (void)
virtual int	listenToMulticastGroup (DtIpv4Addr addr, DtIpv4Addr netInterface=DtUSE_DEFAULT_IP_ADDR)
virtual int	dropMulticastGroup (DtIpv4Addr addr, DtIpv4Addr netInterface=DtUSE_DEFAULT_IP_ADDR)
virtual void	setMcastDevice (DtIpv4Addr)
virtual DtFilterTest *	exerciseId ()
virtual DtFilterTest *	protocolVersion ()
virtual DtFilterTest *	pduKind ()
virtual DtFilterTest *	ipAddr ()

Public Attributes
DtTime	psMsgTimeout
Public Attributes inherited from DtSocket
int	myBlockingFlag
int	pkts_rcvd

Protected Member Functions
void	init (int port, DtIpv4Addr destAddr, int recvQSize, unsigned short csFlags)
int	timedRecv (caddr_t buf, size_t size, char *psKind)
void	drainNotifySocket ()
void	checkGoAway ()
Protected Member Functions inherited from DtSocket
virtual bool	accept (char *buf, DtIpv4Addr iaddr)

Protected Attributes
DtNetSocket *	netSock
bool	notifyPending
bool	myOkFlag
int	recvFd
int	sendFd
long	clientId
Protected Attributes inherited from DtSocket
BufferMap	myBufferMap
int	myBundlingFlag
int	myMaxBundleSize
int	mySockFd

Private Member Functions
void	processControlMsg (DtCsMsg *msg)
DtCsMsg *	getPsMsg (DtCsMsg *buf, char desiredKind)
void	cleanup (void)

Private Attributes
DtIpv4Addr	destAddr
char	clientSocketPath [DtCsClientPathSize]
int	serverPort
bool	internal
DtIpv4Addr	sourceAddr
DtNetFloat64 *	pktBuff8
char *	shmAddr

Additional Inherited Members
Static Public Member Functions inherited from DtSocket
static void	initializeNetwork ()
static void	setQuietSockets (bool quietVal)
	These functions determine whether a socket will print messages, informative or error.
static bool	areQuietSockets ()
Protected Types inherited from DtSocket
typedef std::vector< char >	Buffer
typedef std::map< DtIpv4Addr, Buffer >	BufferMap
Static Protected Member Functions inherited from DtSocket
static int	getConfig (const char *device, int sock, ifconf *ifc)
	Get ifconfig information by filling in ifc.
Static Protected Attributes inherited from DtSocket
static bool	theAreQuietSockets
	Should a socket print messages, informative or error.

Detailed Description

ClientSocket uses the vrlink packet server to read and write packets The destination address (incl.

broadcast vs. internal-mode) are controlled by the packet server.

Constructor differences with respect to NetSocket: The destAddr is determined by the packet server (aka vrlink-daemon). All ClientSockets are currently ReadWrite.

Constructor & Destructor Documentation

DtClientSocket::DtClientSocket	(	int	port,
		int	recvQSize = DtCsQDefaultSize,
		unsigned short	csFlags = DtCsFlagsDefault
	)

DtClientSocket::DtClientSocket	(	int	port,
		DtIpv4Addr	destAddr,
		int	recvQSize = DtCsQDefaultSize,
		unsigned short	csFlags = DtCsFlagsDefault
	)

DtClientSocket::~DtClientSocket

(

)

Member Function Documentation

void DtClientSocket::checkGoAway ( )

protected

void DtClientSocket::cleanup ( void  )

private

void DtClientSocket::disconnectFromServer

(

)

void DtClientSocket::drainNotifySocket ( )

protected

int DtClientSocket::dropMulticastGroup

(

DtIpv4Addr

multicastAddr

)

void DtClientSocket::DtBecomeNonBlocking ( void  )

virtual

Reimplemented from DtSocket.

int DtClientSocket::DtRecv ( caddr_t  buff, size_t    )

virtual

See Also

DtRecv(caddr_t *buffptr, int *status=0)

Implements DtSocket.

int DtClientSocket::DtRecv ( caddr_t *  buffptr, int *  status = NULL  )

virtual

This is slower as it does a memcpy().

Implements DtSocket.

DtCsMsg* DtClientSocket::getPsMsg ( DtCsMsg *  buf, char  desiredKind  )

private

void DtClientSocket::init ( int  port, DtIpv4Addr  destAddr, int  recvQSize, unsigned short  csFlags  )

protected

bool DtClientSocket::isInternal

(

)

bool DtClientSocket::isOk ( ) const

inlinevirtual

Reimplemented from DtSocket.

DtIpv4Addr DtClientSocket::lastSourceInetAddr ( )

inlinevirtual

int isUnbundling(); Is not currently implemented.

The answer depends on the state of the Packet Server.

Reimplemented from DtSocket.

int DtClientSocket::listenToMulticastGroup

(

DtIpv4Addr

multicastAddr

)

void DtClientSocket::notifyMe ( )

virtual

Reimplemented from DtSocket.

void DtClientSocket::pingClients

(

)

void DtClientSocket::processControlMsg ( DtCsMsg *  msg )

private

int DtClientSocket::readFd ( )

inlinevirtual

Get the file descriptor for reading and writing to this socket.

NOTE: Not all DtSocket have associated file descriptors. Those that do not will have readFd()/writeFd() return -1.

Reimplemented from DtSocket.

void DtClientSocket::requestServerCStates

(

)

void DtClientSocket::requestServerState

(

)

int DtClientSocket::sendTo ( caddr_t  packet, size_t  size, DtIpv4Addr  addr  )

virtual

sendTo is a pure virtual function which subclasses should impliment to take packets and place them on a network interface.

This function is called by DtSend which deals with bundling.

Implements DtSocket.

int DtClientSocket::setMcastTtl ( int  ttl )

inlinevirtual

Reimplemented from DtSocket.

void DtClientSocket::setPacketServerExternal

(

)

void DtClientSocket::setPacketServerInternal

(

)

void DtClientSocket::setPacketServerUnbundling

(

int

onOff

)

void DtClientSocket::setPsMsgTimeout

(

int

seconds

)

void DtClientSocket::setUnbundling ( int  onOff )

virtual

Reimplemented from DtSocket.

void DtClientSocket::terminatePacketServer

(

)

void DtClientSocket::testClients

(

)

int DtClientSocket::timedRecv ( caddr_t  buf, size_t  size, char *  psKind  )

protected

int DtClientSocket::writeFd ( )

inlinevirtual

Reimplemented from DtSocket.

Member Data Documentation

long DtClientSocket::clientId

protected

char DtClientSocket::clientSocketPath[DtCsClientPathSize]

private

DtIpv4Addr DtClientSocket::destAddr

private

bool DtClientSocket::internal

private

bool DtClientSocket::myOkFlag

protected

DtNetSocket* DtClientSocket::netSock

protected

bool DtClientSocket::notifyPending

protected

DtNetFloat64* DtClientSocket::pktBuff8

private

DtTime DtClientSocket::psMsgTimeout

int DtClientSocket::recvFd

protected

int DtClientSocket::sendFd

protected

int DtClientSocket::serverPort

private

char* DtClientSocket::shmAddr

private

DtIpv4Addr DtClientSocket::sourceAddr

private

---

The documentation for this class was generated from the following file:

• vlClientSocket.h
