DtLauncherInitializer Class Reference

DtLauncherInitializer derives from DtVrlApplicationInitializer and describes how command line/MTL parameters could be added to a VR-Link application. More...

Inheritance diagram for DtLauncherInitializer:

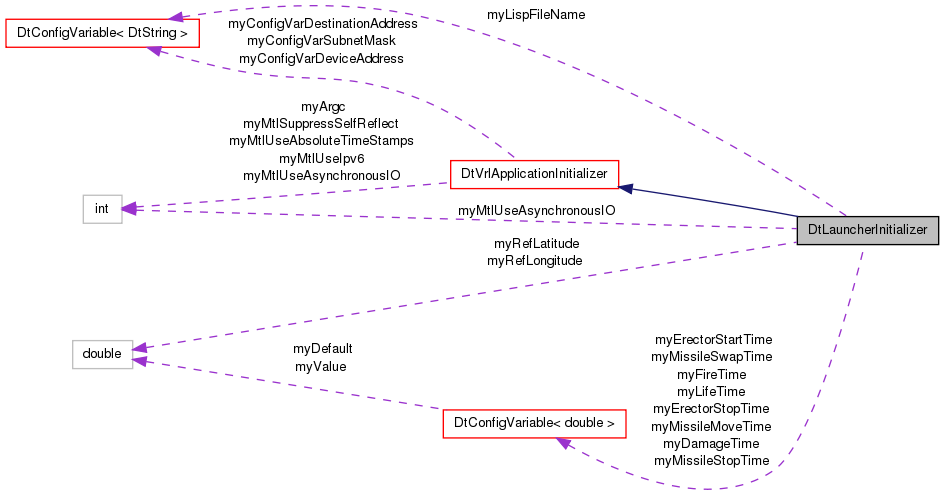

Collaboration diagram for DtLauncherInitializer:

Public Member Functions
	DtLauncherInitializer (int argc, char *argv[])
	Default CTOR.
virtual	~DtLauncherInitializer ()
	Default DTOR.
virtual void	parseCmdLine ()
virtual void	setLispFileName (const DtString &name)
virtual DtString	lispFileName () const
virtual double	refLatitude () const
virtual double	refLongitude () const
virtual double	lifeTime () const
virtual double	erectorStartTime () const
virtual double	erectorStopTime () const
virtual double	missileSwapTime () const
virtual double	fireTime () const
virtual double	damageTime () const
virtual double	missileMoveTime () const
virtual double	missileStopTime () const
Public Member Functions inherited from DtVrlApplicationInitializer
	DtVrlApplicationInitializer (int argc, char *argv[], const DtString &appName, const DtString &version=DtExerciseConnInitializer::vrlinkVersion())
virtual	~DtVrlApplicationInitializer ()
virtual void	loadFile (const DtString &fileName)
	Load an .mtl or .xml file.
virtual void	saveFile (const DtString &filename)
	Saves the state of application settings to a specified .xml file.
virtual int	argc () const
	Returns the argument count passed to the constructor.
virtual char **	argv () const
	Returns a pointer to the variable argument list passed to the constructor.
virtual void	setPort (int port)
	Sets the port.
virtual int	port () const
	Returns the port.
virtual void	setExerciseId (int id)
	Sets the exercise ID.
virtual int	exerciseId () const
	Returns the exercise ID.
virtual void	setApplicationNumber (int num)
	Sets the application number.
virtual int	applicationNumber () const
	Returns the application number.
virtual void	setSiteId (int id)
	Sets the site ID.
virtual int	siteId () const
	Returns the site ID.
virtual void	setDestinationAddress (const DtString &address)
	Sets the destination address Same as above but takes address as a string.
virtual DtString	destinationAddress () const
	Returns the destination address.
virtual void	setNotifyLevel (int level)
	Sets the notify level.
virtual void	setSendBufferSize (int numBytes)
	Set the send buffer size.
virtual int	sendBufferSize () const
	Get the send buffer size.
virtual void	setReceiveBufferSize (int numBytes)
	Set the receive buffer size.
virtual int	receiveBufferSize () const
	Get the receive buffer size.
virtual void	setUseAsynchIO (bool on)
	Sets the use of asynchronous I/O.
virtual bool	useAsynchIO () const
	Returns the use of asynchronous I/O.
virtual void	setMulticastTtl (int ttl)
	Sets the network time to live for multicast traffic.
virtual int	multicastTtl () const
	Returns the network time to live for multicast traffic.
virtual void	setTimeStampType (DtTimeStampType relOrAbs)
	Set the time stamp type (DtTimeStampAbsolute or DtTimeStampRelative).
virtual DtTimeStampType	timeStampType () const
	Get the time stamp type.
virtual const std::vector < DtString > &	multicastAddresses () const
virtual void	setUseIpv6 (bool val)
virtual bool	useIpv6 () const
virtual void	setSuppressSelfReflect (bool yesNo)
	Set the suppression of reflection DIS PDU's. Off by default.
virtual bool	suppressSelfReflect () const
	Returns whether the application should not self reflect.
virtual void	setDeviceAddress (const DtString &devAddr)
	Set the device to use for the DIS connection.
virtual DtString	deviceAddress () const
	Returns the device address to use.
virtual void	setSubnetMask (const DtString &mask)
	Set the subnet mask to use for the DIS connection.
virtual DtString	subnetMask () const
	Returns the subnet mask to use.
Public Member Functions inherited from DtExerciseConnInitializer
	DtExerciseConnInitializer ()
	Constructor.
virtual	~DtExerciseConnInitializer ()
	Destructor.
	DtExerciseConnInitializer (const DtExerciseConnInitializer &orig)
	Copy Constructor.
DtExerciseConnInitializer &	operator= (const DtExerciseConnInitializer &orig)
	Assignment Operator.
virtual void	setSocket (DtDisSocket *sock)
	Sets the socket.
virtual DtDisSocket *	socket () const
	Returns the socket.
virtual void	setDisVersionToSend (int version)
	Sets the DIS version to send.
virtual void	setMulticastAddresses (const std::vector< DtString > &addresses)

Protected Member Functions
virtual void	initializeMtlParams ()
	Register the MTL/Command Line parameters.
Protected Member Functions inherited from DtVrlApplicationInitializer
virtual void	loadMtlFile (const DtString &fileName)

Protected Attributes
DtConfigVariable< DtString >	myLispFileName
	Command line arguments.
DtConfigVariable< double >	myLifeTime
DtConfigVariable< double >	myErectorStartTime
DtConfigVariable< double >	myErectorStopTime
DtConfigVariable< double >	myFireTime
DtConfigVariable< double >	myMissileSwapTime
DtConfigVariable< double >	myMissileMoveTime
DtConfigVariable< double >	myMissileStopTime
DtConfigVariable< double >	myDamageTime
int	myMtlUseAsynchronousIO
double	myRefLatitude
	here, because MTL does not support bool types
double	myRefLongitude
Protected Attributes inherited from DtVrlApplicationInitializer
int	myArgc
char **	myArgv
DtMtlEnvironment *	myMtlEnv
DtApplicationSettings	mySettings
DtConfigVariable< int >	myNotifyLevel
DtVariableGroup	myDisConnection
DtConfigVariable< int >	myConfigVarPort
DtConfigVariable< int >	myConfigVarExerciseId
DtConfigVariable< int >	myConfigVarSiteNumber
DtConfigVariable< int >	myConfigVarApplicationNumber
DtConfigVariable< int >	myConfigVarDisVersion
DtConfigVariable< DtString >	myConfigVarDestinationAddress
DtConfigVariable< int >	myConfigVarSendBufferSize
DtConfigVariable< int >	myConfigVarReceiveBufferSize
DtConfigVariable< bool >	myConfigVarUseAsyncIo
DtConfigVariable< bool >	myConfigVarUseIpv6
DtConfigVariable< bool >	myConfigVarSuppressSelfReflect
DtConfigVariable< bool >	myConfigVarUseAbsoluteTimestamps
DtConfigVariable< int >	myConfigVarMulticastTtl
DtMultiConfigVariable< DtString >	myConfigVarMulticastAddresses
DtConfigVariable< DtString >	myConfigVarDeviceAddress
DtConfigVariable< DtString >	myConfigVarSubnetMask
DtInetAddr	myCachedDestAddr
int	myMtlUseAsynchronousIO
int	myMtlUseAbsoluteTimeStamps
int	myMtlUseIpv6
int	myMtlSuppressSelfReflect

Private Member Functions
	DtLauncherInitializer (const DtLauncherInitializer &other)
	Copy CTOR not implemented – Do Not copy.
DtLauncherInitializer &	operator= (const DtLauncherInitializer &other)
	Assignment Operator not implemented – Do Not copy.

Additional Inherited Members
Static Public Member Functions inherited from DtExerciseConnInitializer
static DtString	vrlinkVersion ()
	Returns a string indicating the VR-Link version number.

Detailed Description

DtLauncherInitializer derives from DtVrlApplicationInitializer and describes how command line/MTL parameters could be added to a VR-Link application.

DtVrlApplicationInitializer contains default behavior for protocol specific parameters, while DtLauncherInitializer contains behavior particular to the F18 app parseCmdLine() parses the command line arguments specified in this class and DtVrlApplicationInitializer. loadMtlFile() can be called (defined in DtVrlApplicationInitializer) with an MTL file name. This will parse the MTL file specified and set those variables registered

Constructor & Destructor Documentation

DtLauncherInitializer::DtLauncherInitializer	(	int	argc,
		char *	argv[]
	)

Default CTOR.

virtual DtLauncherInitializer::~DtLauncherInitializer ( )

virtual

Default DTOR.

DtLauncherInitializer::DtLauncherInitializer ( const DtLauncherInitializer &  other )

private

Copy CTOR not implemented – Do Not copy.

Member Function Documentation

virtual double DtLauncherInitializer::damageTime ( ) const

virtual

virtual double DtLauncherInitializer::erectorStartTime ( ) const

virtual

virtual double DtLauncherInitializer::erectorStopTime ( ) const

virtual

virtual double DtLauncherInitializer::fireTime ( ) const

virtual

virtual void DtLauncherInitializer::initializeMtlParams ( )

protectedvirtual

Register the MTL/Command Line parameters.

Non-virtual since they are called from the constructor

Reimplemented from DtVrlApplicationInitializer.

virtual double DtLauncherInitializer::lifeTime ( ) const

virtual

virtual DtString DtLauncherInitializer::lispFileName ( ) const

virtual

virtual double DtLauncherInitializer::missileMoveTime ( ) const

virtual

virtual double DtLauncherInitializer::missileStopTime ( ) const

virtual

virtual double DtLauncherInitializer::missileSwapTime ( ) const

virtual

DtLauncherInitializer& DtLauncherInitializer::operator= ( const DtLauncherInitializer &  other )

private

Assignment Operator not implemented – Do Not copy.

virtual void DtLauncherInitializer::parseCmdLine ( )

virtual

Reimplemented from DtVrlApplicationInitializer.

virtual double DtLauncherInitializer::refLatitude ( ) const

virtual

virtual double DtLauncherInitializer::refLongitude ( ) const

virtual

virtual void DtLauncherInitializer::setLispFileName ( const DtString &  name )

virtual

Member Data Documentation

DtConfigVariable<double> DtLauncherInitializer::myDamageTime

protected

DtConfigVariable<double> DtLauncherInitializer::myErectorStartTime

protected

DtConfigVariable<double> DtLauncherInitializer::myErectorStopTime

protected

DtConfigVariable<double> DtLauncherInitializer::myFireTime

protected

DtConfigVariable<double> DtLauncherInitializer::myLifeTime

protected

DtConfigVariable<DtString> DtLauncherInitializer::myLispFileName

protected

Command line arguments.

DtConfigVariable<double> DtLauncherInitializer::myMissileMoveTime

protected

DtConfigVariable<double> DtLauncherInitializer::myMissileStopTime

protected

DtConfigVariable<double> DtLauncherInitializer::myMissileSwapTime

protected

int DtLauncherInitializer::myMtlUseAsynchronousIO

protected

double DtLauncherInitializer::myRefLatitude

protected

here, because MTL does not support bool types

double DtLauncherInitializer::myRefLongitude

protected

---

The documentation for this class was generated from the following file:

• launcherInit.h
