DtReflectedEntityList Class Reference

Instances of this class provide a protocol independent interface to a list of reflected entities in a DIS environment. More...

Inheritance diagram for DtReflectedEntityList:

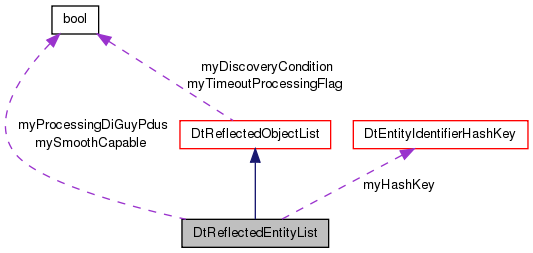

Collaboration diagram for DtReflectedEntityList:

Public Member Functions
	DtReflectedEntityList (DtExerciseConn *exConn, bool smoothCapable=false, bool processDiGuyPdus=false)
	Constructor.
virtual	~DtReflectedEntityList ()
	Destructor.
virtual DtReflectedEntity *	lookup (const DtObjectId &id) const
	Lookup an entity from its object ID.
virtual DtReflectedEntity *	first () const
	Get the first and last elements of the entity list.
virtual DtReflectedEntity *	last () const
virtual void	addEntityAdditionCallback (DtEntityCallbackFunction cb, void *userData)
	Entity added callback registration/deregistration.
virtual void	removeEntityAdditionCallback (DtEntityCallbackFunction cb, void *userData)
virtual void	addEntityRemovalCallback (DtEntityCallbackFunction cb, void *userData)
	Entity removed callback registration/deregistration.
virtual void	removeEntityRemovalCallback (DtEntityCallbackFunction cb, void *userData)
virtual void	print ()
	Print the SRs of all objects.
virtual DtReflectedEntity *	processEntityState (const DtEntityStatePdu &pdu)
	Process an incoming entity state pdu.
virtual void	processRelativeLocationPdu (const DtRelativeLocationPdu &pdu)
	Process an incoming relativeLocation pdu.
virtual void	processEntityStateUpdatePdu (const DtEntityStateUpdatePdu &pdu)
	Process an incoming relativeLocation pdu.
virtual void	processDiGuyPdu (const DtDIGuyCustomPdu &pdu)
	Process an incoming DI Guy Custom PDU.
virtual void	processSeesPdu (const DtSuppEmisEntStatePdu &pdu)
	Process an incoming SEES PDU.
virtual void	setProcessDiGuyPdus (bool trueFalse)
	Tells the reflected list whether to process DI-Guy PDU's or not.
virtual void	discoverOnlyWhenEntityTypeKnown (bool yesNo)
	Allows one to specify whether the REL should wait until the entity type is known before adding the entity to the list.
Public Member Functions inherited from DtReflectedObjectList
	DtReflectedObjectList (DtExerciseConn *exConn)
	Constructor.
virtual	~DtReflectedObjectList ()
	destructor Warning: makes non-virtual call to removeAndDelete
virtual void	initializeAttributePduKindsOfInterest (const std::set< DtPduKind > &pduKinds)
	This initializes which PDU kinds will be processed when receiving an Attribute PDU.
virtual DtReflectedObject *	firstObj () const
	Get the first/last object in the list.
virtual DtReflectedObject *	lastObj () const
virtual int	count () const
	Get number of objects.
virtual DtReflectedObject *	lookupObj (const DtBaseHashKey &key) const
	Search for an object.
virtual DtExerciseConn *	exerciseConn () const
	Get my exerciseConn.
virtual void	addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object added callback registration/deregistration.
virtual void	removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object removed callback registration/deregistration.
virtual void	removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	print () const
	Print the SRs of all objects.
virtual void	setTimeoutProcessing (bool onOff)
	Set whether or not timeout processing occurs.
virtual void	setTimeoutInterval (DtTime time)
	Set/Get the remote object timeout period.
virtual DtTime	timeoutInterval ()
virtual void	setDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Set the checker function which will determine when an object gets discovered and put into the ref.
virtual void	clearDiscoveryCondition ()
	Unregisters the checker function set in setDiscoverCondition.

Protected Member Functions
DtReflectedEntityList &	operator= (const DtReflectedEntityList &orig)
	Assignment operator – not implemented.
	DtReflectedEntityList (const DtReflectedEntityList &orig)
	Copy constructor – not implemented.
virtual DtReflectedObject *	newReflectedObj (const DtStateMsg &msg)
	Create a new object from a state message.
virtual DtReflectedObject *	processStateMessage (const DtStateMsg &msg)
	Process an incoming state message. Calls processEntityState().
virtual void	objectAdded (DtReflectedObject *obj)
	Called after an entity is added and before additional callbacks are processed.
virtual void	finalPduIsSetAction (DtReflectedEntity *entity)
	Called when an entity sends its final PDU.
virtual const DtBaseHashKey &	hashKeyFromStateMessage (const DtStateMsg *msg)
	Get a hash key from a state message.
virtual DtReflectedEntity *	newReflectedEntity (const DtEntityIdentifier &id, const DtEntityType &type) const
	Create a new reflected entity.
virtual void	entityAdded (DtReflectedEntity *ent)
	Called after an entity is added and before additional callbacks are processed.
Protected Member Functions inherited from DtReflectedObjectList
	DtReflectedObjectList (const DtReflectedObjectList &orig)
	copy constructor – not implemented
DtReflectedObjectList &	operator= (const DtReflectedObjectList &orig)
	assignment operator – not implemented
virtual void	doTimeouts ()
	Remove any remote objects which have not been updated during the timeout period.
virtual void	removeAndDelete (DtReflectedObject *obj, char *msg=NULL)
	Remove the remote object from the list if found and delete it.
virtual bool	shouldBeTimedOut (DtReflectedObject *object)
	Returns whether or not the object should be timed out.
void	emptyLists ()
	Empty the object list and the timeout list.
void	emptyCallbackLists ()
virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks.
virtual void	processObjectRemovalCallbacks (DtReflectedObject *object)
virtual DtBaseHashKey *	hashKeyFromAttributeRecordSet (const DtAttributeRecordSet &recordSet)
	Get a hash key from an attribute record set.
virtual int	acceptPdu (const DtStateMsg &) const
	Determines if a PDU should be processed or not.
virtual bool	readyToAdd (DtReflectedObject *obj)
	Returns true if the obj is ready to be added to myObjectList; calls myDiscoveryCondition from within.
virtual void	processAttributePduCb (DtAttributeInteraction *inter)

Static Protected Member Functions
static void	entityStateCb (DtEntityStatePdu *pdu, void *usr)
	Callback for the exercise connection.
static void	relativeLocationCb (DtRelativeLocationPdu *pdu, void *usr)
	Callback which calls processRelativeLocationPdu.
static void	entityStateUpdateCb (DtEntityStateUpdatePdu *pdu, void *usr)
	Callback which calls processEntityStateUpdatePdu.
static void	diGuyPduCb (DtDIGuyCustomPdu *pdu, void *usr)
	Callback which calls processDiGuyPdu.
static void	seesPduCb (DtSuppEmisEntStatePdu *pdu, void *usr)
	SEES PDU callback.
static bool	checkEntityType (DtReflectedObject *obj, void *usr)
	Callback which checks whether the entity type has arrived yet; registered/deregistered using the fn, discoverOnlyWhenEntityTypeKnown.
Static Protected Member Functions inherited from DtReflectedObjectList
static void	doTimeoutsPostDrainCb (void *usr)
	Calls doTimeouts.
static void	processAttributePduCb (DtAttributeInteraction *inter, void *usr)

Protected Attributes
bool	mySmoothCapable
DtEntityIdentifierHashKey *	myHashKey
bool	myProcessingDiGuyPdus
Protected Attributes inherited from DtReflectedObjectList
DtExerciseConn *	myExConn
DtIntrusiveList	myObjectAddedCallbacks
DtIntrusiveList	myObjectRemovedCallbacks
DtIntrusiveList	myObjectList
DtIntrusiveList	myWaitList
DtHashlist	myObjectHashlist
DtHashlist	myWaitHashlist
DtTime	myTimeoutInterval
bool	myTimeoutProcessingFlag
DtDiscoveryCondition	myDiscoveryCondition
void *	myDiscoveryConditionParameter
std::set< DtPduKind >	myPduKindSet

Detailed Description

Instances of this class provide a protocol independent interface to a list of reflected entities in a DIS environment.

Examples

• Talk
• Listen
• F18

Constructor & Destructor Documentation

DtReflectedEntityList::DtReflectedEntityList	(	DtExerciseConn *	exConn,
		bool	smoothCapable = false,
		bool	processDiGuyPdus = false
	)

Constructor.

virtual DtReflectedEntityList::~DtReflectedEntityList ( )

virtual

Destructor.

DtReflectedEntityList::DtReflectedEntityList ( const DtReflectedEntityList &  orig )

protected

Copy constructor – not implemented.

Member Function Documentation

virtual void DtReflectedEntityList::addEntityAdditionCallback ( DtEntityCallbackFunction  cb, void *  userData  )

virtual

Entity added callback registration/deregistration.

virtual void DtReflectedEntityList::addEntityRemovalCallback ( DtEntityCallbackFunction  cb, void *  userData  )

virtual

Entity removed callback registration/deregistration.

static bool DtReflectedEntityList::checkEntityType ( DtReflectedObject *  obj, void *  usr  )

staticprotected

Callback which checks whether the entity type has arrived yet; registered/deregistered using the fn, discoverOnlyWhenEntityTypeKnown.

static void DtReflectedEntityList::diGuyPduCb ( DtDIGuyCustomPdu *  pdu, void *  usr  )

staticprotected

Callback which calls processDiGuyPdu.

virtual void DtReflectedEntityList::discoverOnlyWhenEntityTypeKnown ( bool  yesNo )

virtual

Allows one to specify whether the REL should wait until the entity type is known before adding the entity to the list.

The default value is no, meaning entities will get added to the list immediately – regardless of whether it has received any attr values or not.

virtual void DtReflectedEntityList::entityAdded ( DtReflectedEntity *  ent )

protectedvirtual

Called after an entity is added and before additional callbacks are processed.

Right now, this function only calls DtInfo.

static void DtReflectedEntityList::entityStateCb ( DtEntityStatePdu *  pdu, void *  usr  )

staticprotected

Callback for the exercise connection.

static void DtReflectedEntityList::entityStateUpdateCb ( DtEntityStateUpdatePdu *  pdu, void *  usr  )

staticprotected

Callback which calls processEntityStateUpdatePdu.

virtual void DtReflectedEntityList::finalPduIsSetAction ( DtReflectedEntity *  entity )

protectedvirtual

Called when an entity sends its final PDU.

Currently, this removes and deletes the entity.

virtual DtReflectedEntity* DtReflectedEntityList::first ( ) const

virtual

Get the first and last elements of the entity list.

virtual const DtBaseHashKey& DtReflectedEntityList::hashKeyFromStateMessage ( const DtStateMsg *  msg )

protectedvirtual

Get a hash key from a state message.

Implements DtReflectedObjectList.

virtual DtReflectedEntity* DtReflectedEntityList::last ( ) const

virtual

virtual DtReflectedEntity* DtReflectedEntityList::lookup ( const DtObjectId &  id ) const

virtual

Lookup an entity from its object ID.

virtual DtReflectedEntity* DtReflectedEntityList::newReflectedEntity ( const DtEntityIdentifier &  id, const DtEntityType &  type  ) const

protectedvirtual

Create a new reflected entity.

virtual DtReflectedObject* DtReflectedEntityList::newReflectedObj ( const DtStateMsg &  msg )

protectedvirtual

Create a new object from a state message.

Calls newReflectedEntity() to create a new entity, and then tells the esr to use a smoother if smoothing is enabled.

Implements DtReflectedObjectList.

virtual void DtReflectedEntityList::objectAdded ( DtReflectedObject *  obj )

protectedvirtual

Called after an entity is added and before additional callbacks are processed.

Calls entityAdded().

Reimplemented from DtReflectedObjectList.

DtReflectedEntityList& DtReflectedEntityList::operator= ( const DtReflectedEntityList &  orig )

protected

Assignment operator – not implemented.

virtual void DtReflectedEntityList::print ( )

virtual

Print the SRs of all objects.

virtual void DtReflectedEntityList::processDiGuyPdu ( const DtDIGuyCustomPdu &  pdu )

virtual

Process an incoming DI Guy Custom PDU.

Only used if capability is turned on in the constructor.

virtual DtReflectedEntity* DtReflectedEntityList::processEntityState ( const DtEntityStatePdu &  pdu )

virtual

Process an incoming entity state pdu.

Then calls down to base class processStateMessage().

virtual void DtReflectedEntityList::processEntityStateUpdatePdu ( const DtEntityStateUpdatePdu &  pdu )

virtual

Process an incoming relativeLocation pdu.

virtual void DtReflectedEntityList::processRelativeLocationPdu ( const DtRelativeLocationPdu &  pdu )

virtual

Process an incoming relativeLocation pdu.

virtual void DtReflectedEntityList::processSeesPdu ( const DtSuppEmisEntStatePdu &  pdu )

virtual

Process an incoming SEES PDU.

virtual DtReflectedObject* DtReflectedEntityList::processStateMessage ( const DtStateMsg &  msg )

protectedvirtual

Process an incoming state message. Calls processEntityState().

Reimplemented from DtReflectedObjectList.

static void DtReflectedEntityList::relativeLocationCb ( DtRelativeLocationPdu *  pdu, void *  usr  )

staticprotected

Callback which calls processRelativeLocationPdu.

virtual void DtReflectedEntityList::removeEntityAdditionCallback ( DtEntityCallbackFunction  cb, void *  userData  )

virtual

virtual void DtReflectedEntityList::removeEntityRemovalCallback ( DtEntityCallbackFunction  cb, void *  userData  )

virtual

static void DtReflectedEntityList::seesPduCb ( DtSuppEmisEntStatePdu *  pdu, void *  usr  )

staticprotected

SEES PDU callback.

virtual void DtReflectedEntityList::setProcessDiGuyPdus ( bool  trueFalse )

virtual

Tells the reflected list whether to process DI-Guy PDU's or not.

If true, and the list is not processing DI-Guy PDU's, will add a callback for DI-Guy PDU's. If false, and the list is processing DI-Guy PDU's, will remove the callback to process the PDU's.

Member Data Documentation

DtEntityIdentifierHashKey* DtReflectedEntityList::myHashKey

protected

bool DtReflectedEntityList::myProcessingDiGuyPdus

protected

bool DtReflectedEntityList::mySmoothCapable

protected

---

The documentation for this class was generated from the following file:

• reflectedEntityListDIS.h
