DtTcpSocket Class Reference

An implementation of DtSocket which uses a TCP connection. More...

Inheritance diagram for DtTcpSocket:

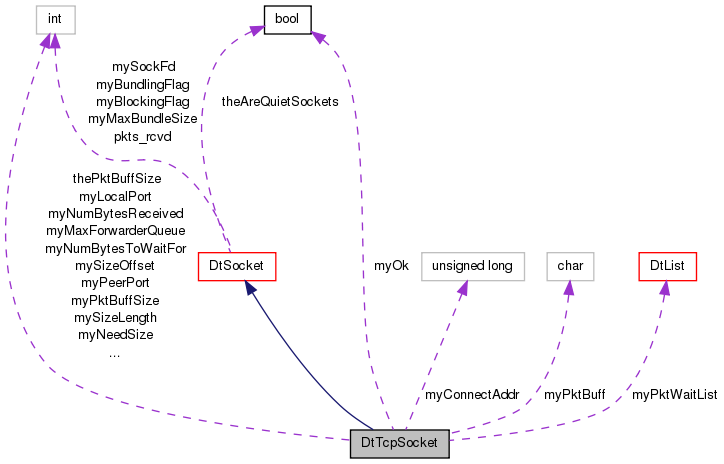

Collaboration diagram for DtTcpSocket:

Public Member Functions
	DtTcpSocket (int socketfd, DtIpv4Addr addr, int clientPort=0)
	Server Constructor.
	DtTcpSocket (DtIpv4Addr addr, int port=DtDEFAULT_PORT, int nonBlockingConnect=0)
	Client Constructor.
virtual	~DtTcpSocket ()
	Destructor.
virtual int	sendTo (caddr_t packet, size_t packetSize, DtIpv4Addr addr=DtUSE_DEFAULT_IP_ADDR)
	Returns size of packet sent.
virtual int	DtRecv (caddr_t *buffptr, int *status=NULL)
	DtReceiv is he function which VR-Link uses to read packets from the socket.
virtual int	DtRecv (caddr_t buff, size_t bufsize)
virtual DtFlushStatus	flush ()
	Send buffered messages.
virtual DtFlushStatus	flush (long &byteCount)
	Send buffered messages.
virtual void	DtBecomeNonBlocking ()
	Designate the socket as non-blocking.
virtual void	DtBecomeBlocking ()
	Designate the socket as blocking.
virtual bool	isOk () const
	passively checks for errors in the socket.
virtual bool	isConnectionEstablished ()
	checks if the connection is fully established by sending a minimal packet through the socket.
virtual bool	testConnectionStatus ()
	actively test the connection for socket errors.
DtIpv4Addr	getConnectionAddr () const
	Get the address of the connected remote host.
int	sizeOffset () const
	Get/Set mySizeOffset.
void	setSizeOffset (int offset)
int	sizeLength () const
	Get/Set mySizeLength.
void	setSizeLength (int length)
virtual void	setNoDelay (bool onOff)
	Sets the TCP_NODELAY sockopt to 1 if onOff is true, 0 otherwise.
virtual int	peerPort () const
	Returns the port connected to on the remote host.
virtual int	localPort () const
	Returns the port bound to on the local host.
int	maxForwarderQueue () const
	Get/Set the max forwarder queue size.
void	setMaxForwarderQueue (int maxForwarderQueue)
std::pair< int, int >	getQueueStatus () const
	Returns the queue status int 1 - the packet wait list ( myPktWaitList ) count int 2 - the max forwarder queue size.
Public Member Functions inherited from DtSocket
	DtSocket ()
	Default constructor.
virtual	~DtSocket ()
	Default Destructor.
virtual int	DtSend (caddr_t packet, size_t size, DtIpv4Addr addr=DtUSE_DEFAULT_IP_ADDR)
	DtSend is called when someone wants to send a packet to this "Socket", in other words, all outgoing messages are passed to this socket via DtSend().
caddr_t	DtRecv ()
virtual void	setReceiveBufferSize (int newsize)
	Change the socket's receive buffer size that the OS uses to collect incoming data from the network.
virtual void	setSendBufferSize (int newsize)
	Change the socket's send buffer size that the OS uses when writing data to the network.
virtual void	setBundling (int maxSize)
virtual int	isBundling ()
virtual void	setUnbundling (int)
virtual DtIpv4Addr	lastSourceInetAddr ()
virtual int	DtReportPktsRcvd (void)
virtual void	notifyMe ()
virtual int	listenToMulticastGroup (DtIpv4Addr addr, DtIpv4Addr netInterface=DtUSE_DEFAULT_IP_ADDR)
virtual int	dropMulticastGroup (DtIpv4Addr addr, DtIpv4Addr netInterface=DtUSE_DEFAULT_IP_ADDR)
virtual int	setMcastTtl (int)
virtual void	setMcastDevice (DtIpv4Addr)
virtual DtFilterTest *	exerciseId ()
virtual DtFilterTest *	protocolVersion ()
virtual DtFilterTest *	pduKind ()
virtual DtFilterTest *	ipAddr ()
virtual int	readFd ()
	Get the file descriptor for reading and writing to this socket.
virtual int	writeFd ()

Static Public Member Functions
static void	setNoDelay (int sockfd, bool onOff)
	Sets the TCP_NODELAY sockopt to 1 if onOff is true, 0 otherwise.
static void	setPacketBufferSize (int size)
	Set the default buffer size for receiving data.
Static Public Member Functions inherited from DtSocket
static void	initializeNetwork ()
static void	setQuietSockets (bool quietVal)
	These functions determine whether a socket will print messages, informative or error.
static bool	areQuietSockets ()

Protected Member Functions
int	sendTo (caddr_t packet, size_t packetSize, bool reportMinSizePktFaults)
	Returns size of packet sent.
int	recvWithStatus (caddr_t *buffptr, int *status)
int	checkSize (int size, caddr_t *buffptr, int *status)
bool	expandPktBuffer (unsigned int sizeNeeded)
int	sendMinimumSizePkt (bool reportMinSizePktFaults)
Protected Member Functions inherited from DtSocket
virtual bool	accept (char *buf, DtIpv4Addr iaddr)

Protected Attributes
char *	myPktBuff
unsigned int	myPktBuffSize
DtIpv4Addr	myConnectAddr
int	myPeerPort
int	myLocalPort
bool	myOk
int	myNeedSize
int	mySizeOffset
int	mySizeLength
int	myNumBytesToWaitFor
int	myNumBytesReceived
DtList *	myPktWaitList
	List for saving un-sent packets.
int	myMaxForwarderQueue
	Max forwarder queue size.
Protected Attributes inherited from DtSocket
BufferMap	myBufferMap
int	myBundlingFlag
int	myMaxBundleSize
int	mySockFd

Static Protected Attributes
static int	thePktBuffSize
Static Protected Attributes inherited from DtSocket
static bool	theAreQuietSockets
	Should a socket print messages, informative or error.

Private Member Functions
	DtTcpSocket (const DtTcpSocket &)
	Copy CTOR Not Implemented.
DtTcpSocket &	operator= (const DtTcpSocket &)
	Assignment Operator Not Implemented.

Additional Inherited Members
Public Attributes inherited from DtSocket
int	myBlockingFlag
int	pkts_rcvd
Protected Types inherited from DtSocket
typedef std::vector< char >	Buffer
typedef std::map< DtIpv4Addr, Buffer >	BufferMap
Static Protected Member Functions inherited from DtSocket
static int	getConfig (const char *device, int sock, ifconf *ifc)
	Get ifconfig information by filling in ifc.

Detailed Description

An implementation of DtSocket which uses a TCP connection.

Constructor & Destructor Documentation

DtTcpSocket::DtTcpSocket	(	int	socketfd,
		DtIpv4Addr	addr,
		int	clientPort = 0
	)

Server Constructor.

DtTcpSocket::DtTcpSocket	(	DtIpv4Addr	addr,
		int	port = DtDEFAULT_PORT,
		int	nonBlockingConnect = 0
	)

Client Constructor.

virtual DtTcpSocket::~DtTcpSocket ( )

virtual

Destructor.

DtTcpSocket::DtTcpSocket ( const DtTcpSocket &  )

private

Copy CTOR Not Implemented.

Member Function Documentation

int DtTcpSocket::checkSize ( int  size, caddr_t *  buffptr, int *  status  )

protected

virtual void DtTcpSocket::DtBecomeBlocking ( )

virtual

Designate the socket as blocking.

virtual void DtTcpSocket::DtBecomeNonBlocking ( )

virtual

Designate the socket as non-blocking.

Reimplemented from DtSocket.

virtual int DtTcpSocket::DtRecv ( caddr_t *  buffptr, int *  status = NULL  )

virtual

DtReceiv is he function which VR-Link uses to read packets from the socket.

Users who wish to provide another mechanisim, such as shared memory, or loopback, will need to impliment or override these functions to return new packets. Depending on the implementation in derived DtSockets, one of the forms of DtRecv may be faster than the other.

DtRecv has an optional status argument that could more elegantly be implemented as different return codes, but this would break older code.

Note

If a derived class complains "... hides virtual DtRecv() ...", make sure you have BOTH overloads of DtRecv declared and defined in the subclass.

Implements DtSocket.

virtual int DtTcpSocket::DtRecv ( caddr_t  buff, size_t    )

virtual

See Also

DtRecv(caddr_t *buffptr, int *status=0)

Implements DtSocket.

bool DtTcpSocket::expandPktBuffer ( unsigned int  sizeNeeded )

protected

virtual DtFlushStatus DtTcpSocket::flush ( )

virtual

Send buffered messages.

Returns the status indicating error, flush is complete or incomplete.

Reimplemented from DtSocket.

virtual DtFlushStatus DtTcpSocket::flush ( long &  byteCount )

virtual

Send buffered messages.

Number of flushed bytes returned in provided parameter. Returns the status indicating error, flush is complete or incomplete.

Reimplemented from DtSocket.

DtIpv4Addr DtTcpSocket::getConnectionAddr ( ) const

inline

Get the address of the connected remote host.

std::pair<int, int> DtTcpSocket::getQueueStatus

(

)

const

Returns the queue status int 1 - the packet wait list ( myPktWaitList ) count int 2 - the max forwarder queue size.

virtual bool DtTcpSocket::isConnectionEstablished ( )

virtual

checks if the connection is fully established by sending a minimal packet through the socket.

This should be checked after checking isOk().

bool DtTcpSocket::isOk ( ) const

inlinevirtual

passively checks for errors in the socket.

A result of true does not mean that the socket is fully connected.

Reimplemented from DtSocket.

virtual int DtTcpSocket::localPort ( ) const

virtual

Returns the port bound to on the local host.

int DtTcpSocket::maxForwarderQueue

(

)

const

Get/Set the max forwarder queue size.

DtTcpSocket& DtTcpSocket::operator= ( const DtTcpSocket &  )

private

Assignment Operator Not Implemented.

virtual int DtTcpSocket::peerPort ( ) const

virtual

Returns the port connected to on the remote host.

int DtTcpSocket::recvWithStatus ( caddr_t *  buffptr, int *  status  )

protected

int DtTcpSocket::sendMinimumSizePkt ( bool  reportMinSizePktFaults )

protected

virtual int DtTcpSocket::sendTo ( caddr_t  packet, size_t  packetSize, DtIpv4Addr  addr = DtUSE_DEFAULT_IP_ADDR  )

virtual

Returns size of packet sent.

It is possible that a packet may not get sent. It is the user's responsibility to call flush() and re-try sending un-sent packets.

Implements DtSocket.

int DtTcpSocket::sendTo ( caddr_t  packet, size_t  packetSize, bool  reportMinSizePktFaults  )

protected

Returns size of packet sent.

Allows caller to specify whether to report send errors for minimum size messages ( for example, when checking non-blocking connect status, errors should not be reported )

void DtTcpSocket::setMaxForwarderQueue

(

int

maxForwarderQueue

)

virtual void DtTcpSocket::setNoDelay ( bool  onOff )

virtual

Sets the TCP_NODELAY sockopt to 1 if onOff is true, 0 otherwise.

Default is 1.

static void DtTcpSocket::setNoDelay ( int  sockfd, bool  onOff  )

static

Sets the TCP_NODELAY sockopt to 1 if onOff is true, 0 otherwise.

Default is 1.

static void DtTcpSocket::setPacketBufferSize ( int  size )

static

Set the default buffer size for receiving data.

The packet buffer is only created once (in the constructor), so it is important to call the function below before creating a TcpSocket if you want the buffer to be larger than the default value of 20000 bytes.

void DtTcpSocket::setSizeLength

(

int

length

)

void DtTcpSocket::setSizeOffset

(

int

offset

)

int DtTcpSocket::sizeLength ( ) const

inline

Get/Set mySizeLength.

int DtTcpSocket::sizeOffset ( ) const

inline

Get/Set mySizeOffset.

virtual bool DtTcpSocket::testConnectionStatus ( )

virtual

actively test the connection for socket errors.

sends a minimal size packet and returns false if any socket errors detected. Unlike isConnectionEstablished() a size 0 send is acceptable. This should be checked after checking isOk(). Failure sets isOk() to false.

Member Data Documentation

DtIpv4Addr DtTcpSocket::myConnectAddr

protected

int DtTcpSocket::myLocalPort

protected

int DtTcpSocket::myMaxForwarderQueue

protected

Max forwarder queue size.

int DtTcpSocket::myNeedSize

protected

int DtTcpSocket::myNumBytesReceived

protected

int DtTcpSocket::myNumBytesToWaitFor

protected

bool DtTcpSocket::myOk

protected

int DtTcpSocket::myPeerPort

protected

char* DtTcpSocket::myPktBuff

protected

unsigned int DtTcpSocket::myPktBuffSize

protected

DtList* DtTcpSocket::myPktWaitList

protected

List for saving un-sent packets.

Calling flush will attempt to empty this list.

int DtTcpSocket::mySizeLength

protected

int DtTcpSocket::mySizeOffset

protected

int DtTcpSocket::thePktBuffSize

staticprotected

---

The documentation for this class was generated from the following file:

• vlTcpSocket.h
