DtSocketPairSocket Class Reference

Inheritance diagram for DtSocketPairSocket:

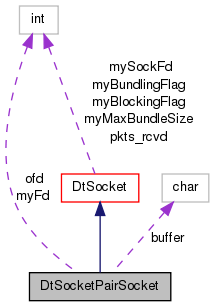

Collaboration diagram for DtSocketPairSocket:

Public Member Functions
	DtSocketPairSocket ()
	DtSocketPairSocket (int sockNum)
int	sendTo (caddr_t packet, size_t size, DtIpv4Addr addr)
	sendTo is a pure virtual function which subclasses should impliment to take packets and place them on a network interface.
int	recvWithStatus (caddr_t buffptr, size_t size, int *status=NULL)
int	DtRecv (caddr_t *buffptr, int *status)
	DtReceiv is he function which VR-Link uses to read packets from the socket.
int	DtRecv (caddr_t buff, size_t size)
void	DtBecomeNonBlocking (void)
int	otherFd ()
int	readFd ()
	Get the file descriptor for reading and writing to this socket.
int	writeFd ()
Public Member Functions inherited from DtSocket
	DtSocket ()
	Default constructor.
virtual	~DtSocket ()
	Default Destructor.
virtual int	DtSend (caddr_t packet, size_t size, DtIpv4Addr addr=DtUSE_DEFAULT_IP_ADDR)
	DtSend is called when someone wants to send a packet to this "Socket", in other words, all outgoing messages are passed to this socket via DtSend().
caddr_t	DtRecv ()
virtual DtFlushStatus	flush ()
	Send buffered messages.
virtual DtFlushStatus	flush (long &byteCount)
	Send buffered messages.
virtual void	setReceiveBufferSize (int newsize)
	Change the socket's receive buffer size that the OS uses to collect incoming data from the network.
virtual void	setSendBufferSize (int newsize)
	Change the socket's send buffer size that the OS uses when writing data to the network.
virtual void	setBundling (int maxSize)
virtual int	isBundling ()
virtual void	setUnbundling (int)
virtual DtIpv4Addr	lastSourceInetAddr ()
virtual int	DtReportPktsRcvd (void)
virtual void	notifyMe ()
virtual int	listenToMulticastGroup (DtIpv4Addr addr, DtIpv4Addr netInterface=DtUSE_DEFAULT_IP_ADDR)
virtual int	dropMulticastGroup (DtIpv4Addr addr, DtIpv4Addr netInterface=DtUSE_DEFAULT_IP_ADDR)
virtual int	setMcastTtl (int)
virtual void	setMcastDevice (DtIpv4Addr)
virtual DtFilterTest *	exerciseId ()
virtual DtFilterTest *	protocolVersion ()
virtual DtFilterTest *	pduKind ()
virtual DtFilterTest *	ipAddr ()
virtual bool	isOk () const

Private Attributes
int	myFd
int	ofd
char	buffer [1500]

Additional Inherited Members
Static Public Member Functions inherited from DtSocket
static void	initializeNetwork ()
static void	setQuietSockets (bool quietVal)
	These functions determine whether a socket will print messages, informative or error.
static bool	areQuietSockets ()
Public Attributes inherited from DtSocket
int	myBlockingFlag
int	pkts_rcvd
Protected Types inherited from DtSocket
typedef std::vector< char >	Buffer
typedef std::map< DtIpv4Addr, Buffer >	BufferMap
Protected Member Functions inherited from DtSocket
virtual bool	accept (char *buf, DtIpv4Addr iaddr)
Static Protected Member Functions inherited from DtSocket
static int	getConfig (const char *device, int sock, ifconf *ifc)
	Get ifconfig information by filling in ifc.
Protected Attributes inherited from DtSocket
BufferMap	myBufferMap
int	myBundlingFlag
int	myMaxBundleSize
int	mySockFd
Static Protected Attributes inherited from DtSocket
static bool	theAreQuietSockets
	Should a socket print messages, informative or error.

Constructor & Destructor Documentation

DtSocketPairSocket::DtSocketPairSocket

(

)

DtSocketPairSocket::DtSocketPairSocket

(

int

sockNum

)

Member Function Documentation

void DtSocketPairSocket::DtBecomeNonBlocking ( void  )

virtual

Reimplemented from DtSocket.

int DtSocketPairSocket::DtRecv ( caddr_t *  buffptr, int *  status  )

virtual

DtReceiv is he function which VR-Link uses to read packets from the socket.

Users who wish to provide another mechanisim, such as shared memory, or loopback, will need to impliment or override these functions to return new packets. Depending on the implementation in derived DtSockets, one of the forms of DtRecv may be faster than the other.

DtRecv has an optional status argument that could more elegantly be implemented as different return codes, but this would break older code.

Note

If a derived class complains "... hides virtual DtRecv() ...", make sure you have BOTH overloads of DtRecv declared and defined in the subclass.

Implements DtSocket.

int DtSocketPairSocket::DtRecv ( caddr_t  buff, size_t    )

virtual

See Also

DtRecv(caddr_t *buffptr, int *status=0)

Implements DtSocket.

int DtSocketPairSocket::otherFd ( )

inline

int DtSocketPairSocket::readFd ( )

inlinevirtual

Get the file descriptor for reading and writing to this socket.

NOTE: Not all DtSocket have associated file descriptors. Those that do not will have readFd()/writeFd() return -1.

Reimplemented from DtSocket.

int DtSocketPairSocket::recvWithStatus	(	caddr_t	buffptr,
		size_t	size,
		int *	status = NULL
	)

int DtSocketPairSocket::sendTo ( caddr_t  packet, size_t  size, DtIpv4Addr  addr  )

virtual

sendTo is a pure virtual function which subclasses should impliment to take packets and place them on a network interface.

This function is called by DtSend which deals with bundling.

Implements DtSocket.

int DtSocketPairSocket::writeFd ( )

inlinevirtual

Reimplemented from DtSocket.

Member Data Documentation

char DtSocketPairSocket::buffer[1500]

private

int DtSocketPairSocket::myFd

private

int DtSocketPairSocket::ofd

private

---

The documentation for this class was generated from the following file:

• vlPairSock.h
