DtStandardVariableRecord Class Reference

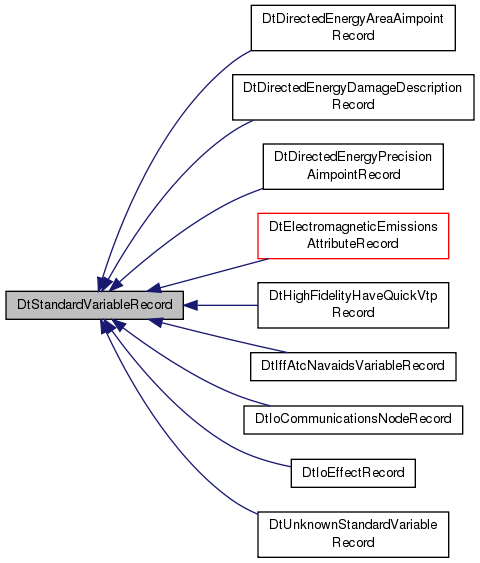

Inheritance diagram for DtStandardVariableRecord:

Public Member Functions
	DtStandardVariableRecord ()
	Constructor.
virtual bool	operator== (const DtStandardVariableRecord &other)=0
	Equals operator.
virtual unsigned int	recordType () const =0
	Setters and Getters for Record Type.
virtual void	setRecordType (unsigned int recordType)=0
virtual unsigned int	recordLength () const =0
	Setters and Getters for Record Length.
virtual void	setRecordLength (unsigned int recordLength)=0
virtual void	printData () const
	Prints the data to DtInfo.
virtual void	printDataToStream (std::ostream &stream) const =0
	Prints the data to the specified stream.
virtual void	writeRecord (void *addr) const =0
virtual void	setFromNet (const void *netRecord, unsigned int length, DtStandardVariableRetCode *retCode=NULL)=0
	Sets the record from Network Representation from the given location.
virtual unsigned	unpaddedNetsize () const =0
	This is the network size of the record without padding.
virtual unsigned int	netSize ()
	Returns the size of the network representation (including padding bytes)
virtual DtStandardVariableRecord *	clone () const =0
	Clone.

Constructor & Destructor Documentation

DtStandardVariableRecord::DtStandardVariableRecord

(

)

Constructor.

Member Function Documentation

virtual DtStandardVariableRecord* DtStandardVariableRecord::clone ( ) const

pure virtual

Clone.

Implemented in DtHighFidelityHaveQuickVtpRecord, DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtIoEffectRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyDamageDescriptionRecord, DtDirectedEnergyAreaAimpointRecord, DtIoCommunicationsNodeRecord, and DtUnknownStandardVariableRecord.

virtual unsigned int DtStandardVariableRecord::netSize ( )

virtual

Returns the size of the network representation (including padding bytes)

Reimplemented in DtIffAtcNavaidsVariableRecord.

virtual bool DtStandardVariableRecord::operator== ( const DtStandardVariableRecord &  other )

pure virtual

Equals operator.

Implemented in DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtHighFidelityHaveQuickVtpRecord, DtIoEffectRecord, DtIoCommunicationsNodeRecord, DtDirectedEnergyDamageDescriptionRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyAreaAimpointRecord, and DtUnknownStandardVariableRecord.

virtual void DtStandardVariableRecord::printData ( ) const

virtual

Prints the data to DtInfo.

virtual void DtStandardVariableRecord::printDataToStream ( std::ostream &  stream ) const

pure virtual

Prints the data to the specified stream.

Implemented in DtHighFidelityHaveQuickVtpRecord, DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyDamageDescriptionRecord, DtIoEffectRecord, DtDirectedEnergyAreaAimpointRecord, DtIoCommunicationsNodeRecord, and DtUnknownStandardVariableRecord.

virtual unsigned int DtStandardVariableRecord::recordLength ( ) const

pure virtual

Setters and Getters for Record Length.

Implemented in DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtHighFidelityHaveQuickVtpRecord, DtIoEffectRecord, DtIoCommunicationsNodeRecord, DtDirectedEnergyDamageDescriptionRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyAreaAimpointRecord, and DtUnknownStandardVariableRecord.

virtual unsigned int DtStandardVariableRecord::recordType ( ) const

pure virtual

Setters and Getters for Record Type.

Implemented in DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtHighFidelityHaveQuickVtpRecord, DtIoEffectRecord, DtIoCommunicationsNodeRecord, DtDirectedEnergyDamageDescriptionRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyAreaAimpointRecord, and DtUnknownStandardVariableRecord.

virtual void DtStandardVariableRecord::setFromNet ( const void *  netRecord, unsigned int  length, DtStandardVariableRetCode *  retCode = NULL  )

pure virtual

Sets the record from Network Representation from the given location.

Implemented in DtHighFidelityHaveQuickVtpRecord, DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtIoEffectRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyDamageDescriptionRecord, DtDirectedEnergyAreaAimpointRecord, DtIoCommunicationsNodeRecord, and DtUnknownStandardVariableRecord.

virtual void DtStandardVariableRecord::setRecordLength ( unsigned int  recordLength )

pure virtual

Implemented in DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtHighFidelityHaveQuickVtpRecord, DtIoEffectRecord, DtIoCommunicationsNodeRecord, DtDirectedEnergyDamageDescriptionRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyAreaAimpointRecord, and DtUnknownStandardVariableRecord.

virtual void DtStandardVariableRecord::setRecordType ( unsigned int  recordType )

pure virtual

Implemented in DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtHighFidelityHaveQuickVtpRecord, DtIoEffectRecord, DtIoCommunicationsNodeRecord, DtDirectedEnergyDamageDescriptionRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyAreaAimpointRecord, and DtUnknownStandardVariableRecord.

virtual unsigned DtStandardVariableRecord::unpaddedNetsize ( ) const

pure virtual

This is the network size of the record without padding.

Implemented in DtHighFidelityHaveQuickVtpRecord, DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtIoEffectRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyDamageDescriptionRecord, DtDirectedEnergyAreaAimpointRecord, DtIoCommunicationsNodeRecord, and DtUnknownStandardVariableRecord.

virtual void DtStandardVariableRecord::writeRecord ( void *  addr ) const

pure virtual

Implemented in DtHighFidelityHaveQuickVtpRecord, DtAngleDeceptionAttributeRecord, DtFalseTargetsAttributeRecord, DtBlankingSectorAttributeRecord, DtIoEffectRecord, DtDirectedEnergyPrecisionAimpointRecord, DtDirectedEnergyDamageDescriptionRecord, DtDirectedEnergyAreaAimpointRecord, DtIoCommunicationsNodeRecord, and DtUnknownStandardVariableRecord.

---

The documentation for this class was generated from the following file:

• standardVariableRecord.h
