Inheritance diagram for EmitterStateMessage:

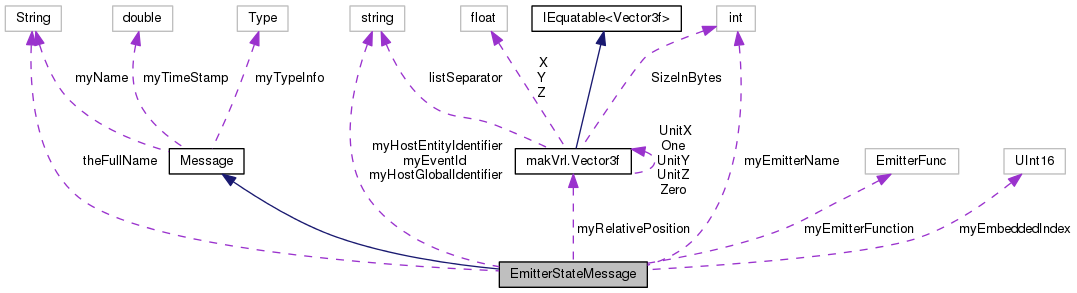

Collaboration diagram for EmitterStateMessage:

Public Types
enum	EmitterFunc { EmitterFunc.Other =0, EmitterFunc.MultiFunction = 1, EmitterFunc.EarlyWarningSurveillance = 2, EmitterFunc.HeightFinding = 3, EmitterFunc.FireControl = 4, EmitterFunc.AcquisitionDetection = 5, EmitterFunc.Tracking = 6, EmitterFunc.GuidanceIllumination = 7, EmitterFunc.FiringPointLaunchPointLocation = 8, EmitterFunc.Ranging = 9, EmitterFunc.RadarAltimeter = 10, EmitterFunc.Imaging = 11, EmitterFunc.MotionDetection = 12, EmitterFunc.Navigation = 13, EmitterFunc.Weather = 14, EmitterFunc.Instrumentation = 15, EmitterFunc.IdentificationClassification = 16, EmitterFunc.AAAFireControl = 17, EmitterFunc.AirSearchBomb = 18, EmitterFunc.AirIntercept = 19, EmitterFunc.Altimeter = 20, EmitterFunc.AirMapping = 21, EmitterFunc.AirTrafficControl = 22, EmitterFunc.Beacon = 23, EmitterFunc.BattlefieldSurveillance = 24, EmitterFunc.GroundControlApproach = 25, EmitterFunc.GroundControlIntercept = 26, EmitterFunc.CoastalSurveillance = 27, EmitterFunc.DecoyMimic = 28, EmitterFunc.DataTransmission = 29, EmitterFunc.EarthSurveillance = 30, EmitterFunc.GunLayBeacon = 31, EmitterFunc.GroundMapping = 32, EmitterFunc.HarborSurveillance = 33, EmitterFunc.IFF = 34, EmitterFunc.ILS = 35, EmitterFunc.IonosphericSound = 36, EmitterFunc.Interrogator = 37, EmitterFunc.BarrageJamming = 38, EmitterFunc.ClickJamming = 39, EmitterFunc.DeceptiveJamming = 40, EmitterFunc.FrequencySweptJamming = 41, EmitterFunc.Jammer = 42, EmitterFunc.NoiseJamming = 43, EmitterFunc.PulsedJamming = 44, EmitterFunc.RepeaterJamming = 45, EmitterFunc.SpotNoiseJamming = 46, EmitterFunc.MissileAcquisition = 47, EmitterFunc.MissileDownlink = 48, EmitterFunc.Meterological = 49, EmitterFunc.Space = 50, EmitterFunc.SurfaceSearch = 51, EmitterFunc.ShellTracking = 52, EmitterFunc.Television = 56, EmitterFunc.Unknown = 57, EmitterFunc.VideoRemoting = 58, EmitterFunc.ExperimentalOrTraining = 59, EmitterFunc.MissileGuidance = 60, EmitterFunc.MissileHoming = 61, EmitterFunc.MissileTracking = 62, EmitterFunc.JammingNoise = 64, EmitterFunc.JammingDeception = 65, EmitterFunc.Decoy = 66, EmitterFunc.NavigationDistanceMeasuringEquipment = 71, EmitterFunc.TerrainFollowing = 72, EmitterFunc.WeatherAvoidance = 73, EmitterFunc.ProximityFuse = 74, EmitterFunc.Radiosonde = 76, EmitterFunc.Sonobouy = 77, EmitterFunc.BathythermalSensor = 78, EmitterFunc.TowedCounterMeasure = 79, EmitterFunc.WeaponNonLethal = 96, EmitterFunc.WeaponLethal = 97 }

Public Member Functions
	EmitterStateMessage ()

Public Member Functions inherited from Message
	Message ()

virtual Byte[]	encode ()

Public Attributes
const String	theFullName ="EmitterStateMessage"

Protected Member Functions
override int	messageSize ()

override void	serialize (ref BinaryWriter writer)

override void	deserialize (ref BinaryReader reader)

Properties
static string	theName `[get]`

string	hostGlobalIdentifier `[get, set]`

UInt16	embeddedIndex `[get, set]`

string	hostEntityIdentifier `[get, set]`

Vector3f	relativePosition `[get, set]`

string	eventId `[get, set]`

EmitterFunc	emitterFunction `[get, set]`

int	emitterName `[get, set]`

Properties inherited from Message
String	name `[get]`

double	timeStamp `[get, set]`

Static Private Member Functions
static	EmitterStateMessage ()

Private Attributes
string	myHostGlobalIdentifier = ""

UInt16	myEmbeddedIndex

string	myHostEntityIdentifier = ""

Vector3f	myRelativePosition

string	myEventId = ""

EmitterFunc	myEmitterFunction

int	myEmitterName

Additional Inherited Members
Static Public Member Functions inherited from Message
static Message	decode (ref Byte[] bytes)

Static Protected Member Functions inherited from Message
static Message	createMessage (ref byte[] b)

Protected Attributes inherited from Message
String	myName

double	myTimeStamp = -1.0

Type	myTypeInfo

Member Enumeration Documentation

enum EmitterStateMessage.EmitterFunc

Enumerator
Other
MultiFunction
EarlyWarningSurveillance
HeightFinding
FireControl
AcquisitionDetection
Tracking
GuidanceIllumination
FiringPointLaunchPointLocation
Ranging
RadarAltimeter
Imaging
MotionDetection
Navigation
Weather
Instrumentation
IdentificationClassification
AAAFireControl
AirSearchBomb
AirIntercept
Altimeter
AirMapping
AirTrafficControl
Beacon
BattlefieldSurveillance
GroundControlApproach
GroundControlIntercept
CoastalSurveillance
DecoyMimic
DataTransmission
EarthSurveillance
GunLayBeacon
GroundMapping
HarborSurveillance
IFF
ILS
IonosphericSound
Interrogator
BarrageJamming
ClickJamming
DeceptiveJamming
FrequencySweptJamming
Jammer
NoiseJamming
PulsedJamming
RepeaterJamming
SpotNoiseJamming
MissileAcquisition
MissileDownlink
Meterological
Space
SurfaceSearch
ShellTracking
Television
Unknown
VideoRemoting
ExperimentalOrTraining
MissileGuidance
MissileHoming
MissileTracking
JammingNoise
JammingDeception
Decoy
NavigationDistanceMeasuringEquipment
TerrainFollowing
WeatherAvoidance
ProximityFuse
Radiosonde
Sonobouy
BathythermalSensor
TowedCounterMeasure
WeaponNonLethal
WeaponLethal
