DtBaseReflectedEntity Class Reference

DtBaseReflectedEntity is an abstract base class. More...

Inheritance diagram for DtBaseReflectedEntity:

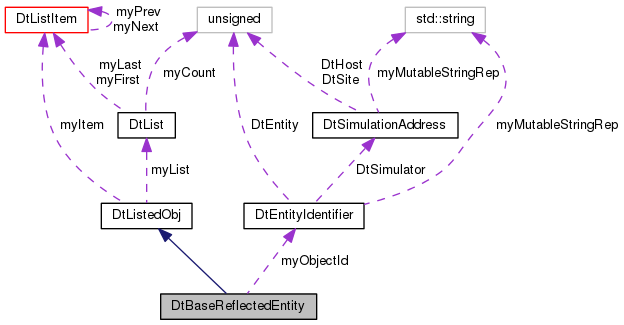

Collaboration diagram for DtBaseReflectedEntity:

Public Member Functions
virtual	~DtBaseReflectedEntity ()
	destructor More...
DtBaseReflectedEntity &	operator= (const DtBaseReflectedEntity &orig)
	assignment operator More...
virtual DtEntityStateRepository *	entityStateRep () const =0
	Get the entity's state repository. More...
virtual const DtObjectId &	id () const
	Get the entity's identifier. More...
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor. More...
virtual	~DtListedObj ()
	Destructor. More...
void *	next () const
	Return next (previous) elements on the list, or NULL if hit the end (beginning) of the list. More...
void *	prev () const
void *	wrapNext () const
	Return next (previous) elements on the list, but wrap to the beginning (end) of the list when you hit the end (beginning). More...
void *	wrapPrev () const

Protected Member Functions
	DtBaseReflectedEntity (const DtObjectId &id)
	Constructors are protected since this is an abstract base class. More...
	DtBaseReflectedEntity (const DtBaseReflectedEntity &orig)
	copy constructor More...

Protected Attributes
DtObjectId	myObjectId
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Detailed Description

DtBaseReflectedEntity is an abstract base class.

It is used to maintain the representation of a simulation entity reflected across a network (i.e. this is not an full simulation running on this machine).

Constructor & Destructor Documentation

virtual DtBaseReflectedEntity::~DtBaseReflectedEntity ( )

virtual

destructor

DtBaseReflectedEntity::DtBaseReflectedEntity ( const DtObjectId &  id )

protected

Constructors are protected since this is an abstract base class.

constructor

DtBaseReflectedEntity::DtBaseReflectedEntity ( const DtBaseReflectedEntity &  orig )

protected

copy constructor

Member Function Documentation

virtual DtEntityStateRepository* DtBaseReflectedEntity::entityStateRep ( ) const

pure virtual

Get the entity's state repository.

const DtObjectId & DtBaseReflectedEntity::id ( ) const

inlinevirtual

Get the entity's identifier.

References myObjectId.

DtBaseReflectedEntity& DtBaseReflectedEntity::operator=

(

const DtBaseReflectedEntity &

orig

)

assignment operator

Member Data Documentation

DtObjectId DtBaseReflectedEntity::myObjectId

protected

Referenced by id().

---

The documentation for this class was generated from the following file:

• baseReflectedEntity.h
